Baader M54 Heavy Duty QuickChanging System (consisting of parts #2958760 & #2958765), optical length 15mm
| Article number: | M54-QCS |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
- Heavy Duty M54 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps
- Optical path length: 15mm
- Consists of M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (#2958760) and M54a Change Ring with S54a ring dovetail (#2958765) – with 56mm dovetail
- Quick-changing and rotating device with maximum load capacity

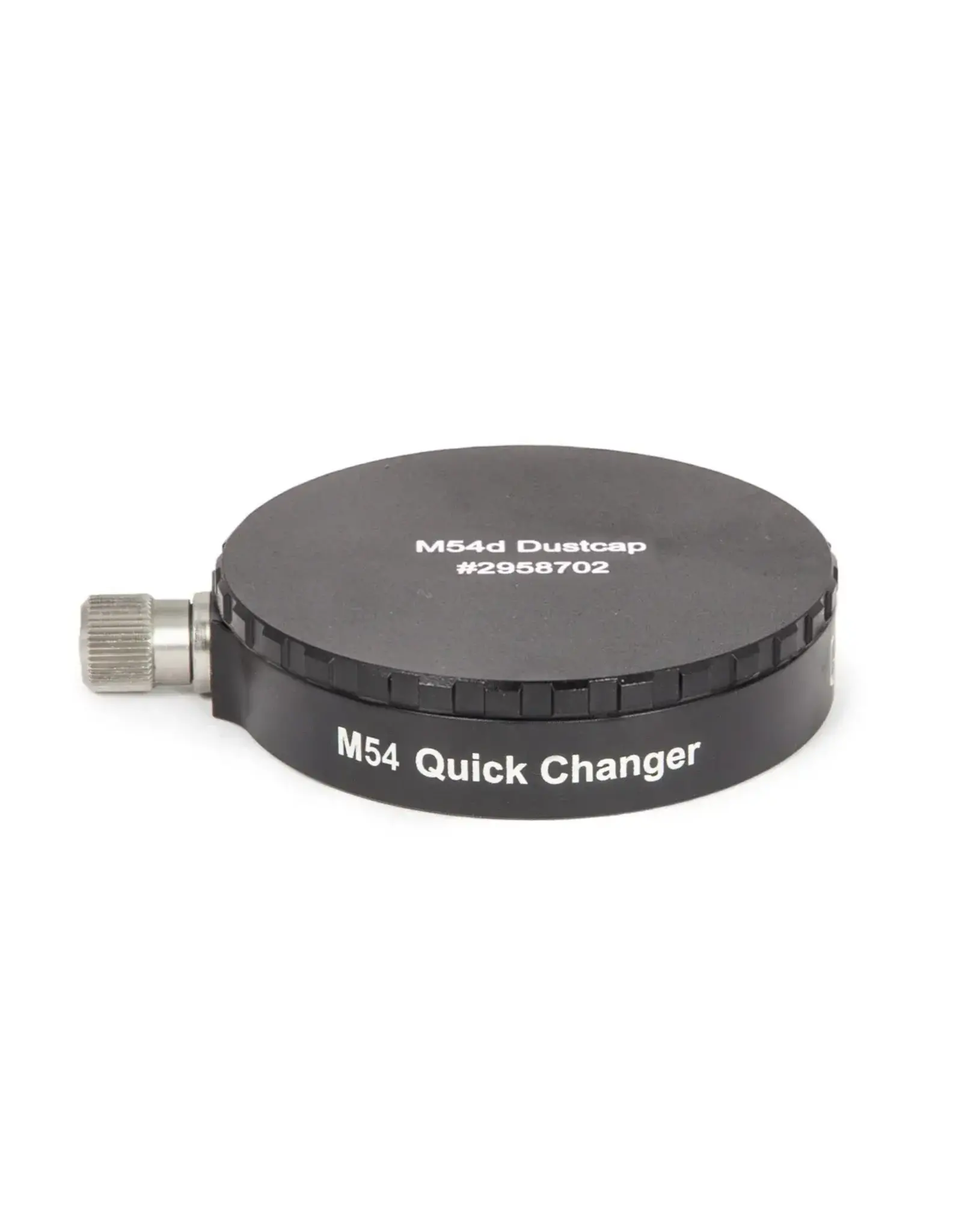

- 1x M54 Metal Dustcap with S54a ring dovetail (#2958702) included
- 1x M54 Metal Dustcap with S54a ring dovetail (#2958702) included
Baader Heavy Duty M54 Quick Changing System
A helpful addition to the M54 system is the Heavy Duty M54 Quick Changing System. A combination of quick changer and dovetail will carry any load with maximum safety. It enables the rotation-proof and repeatable holding of heavy accessories.

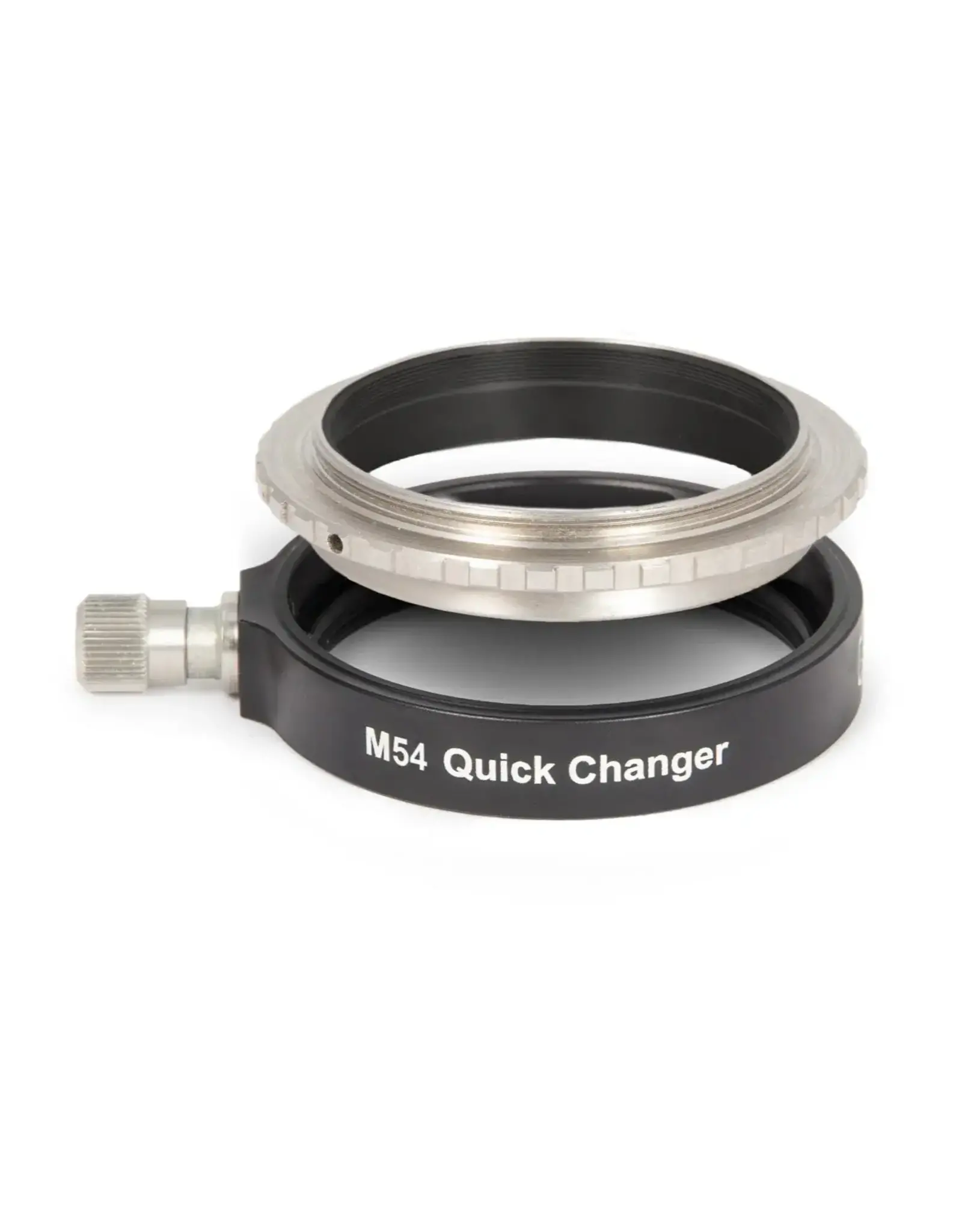

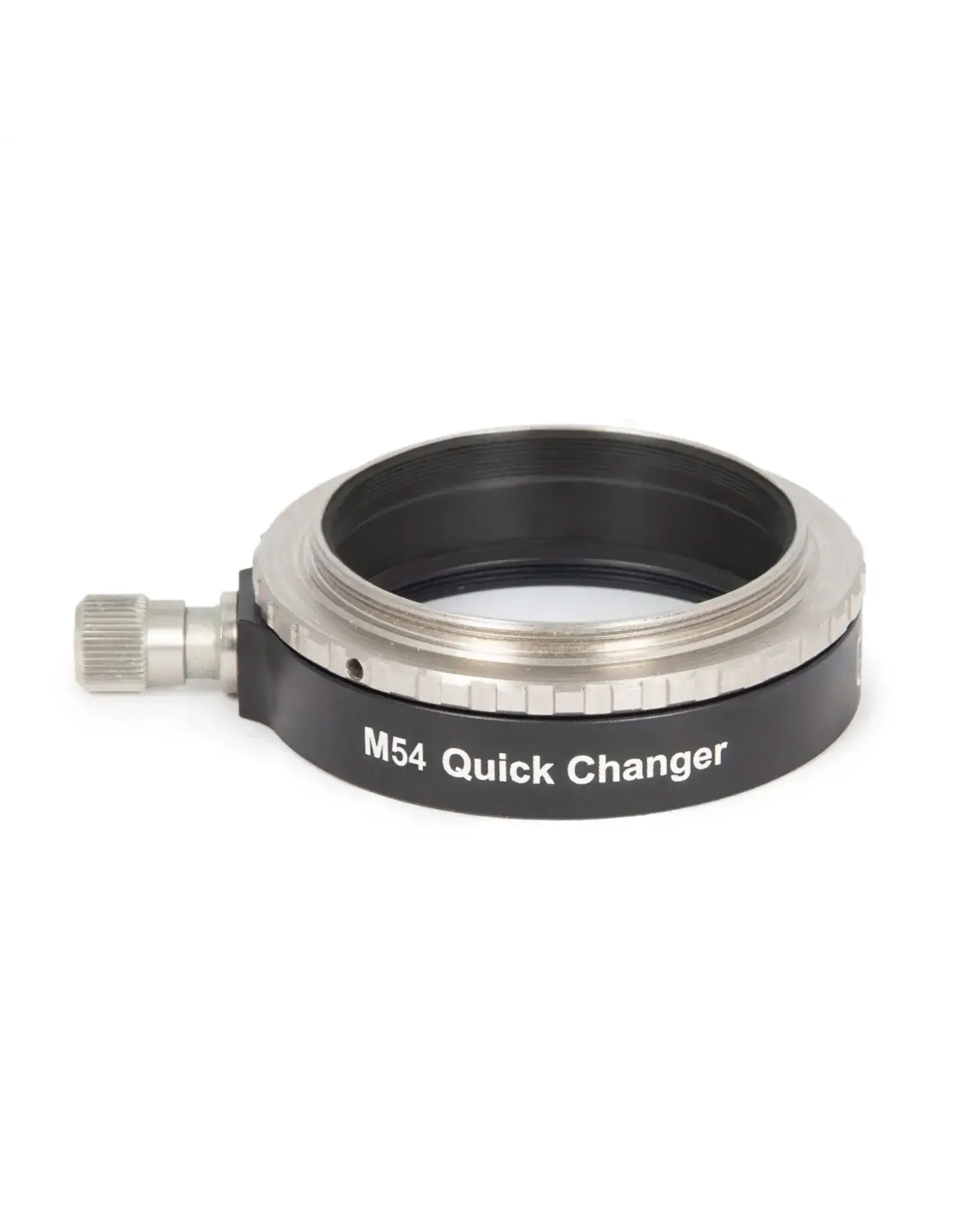

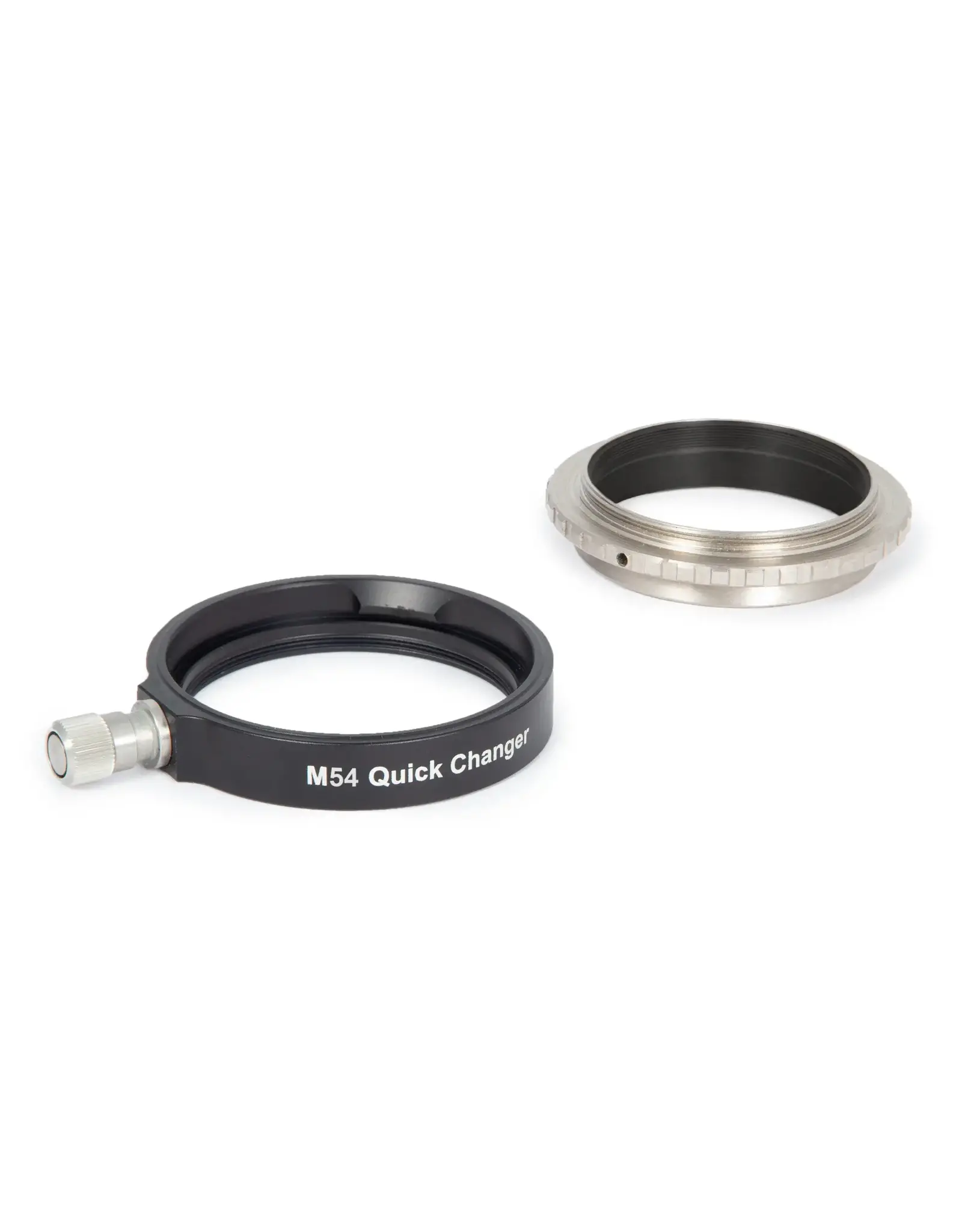

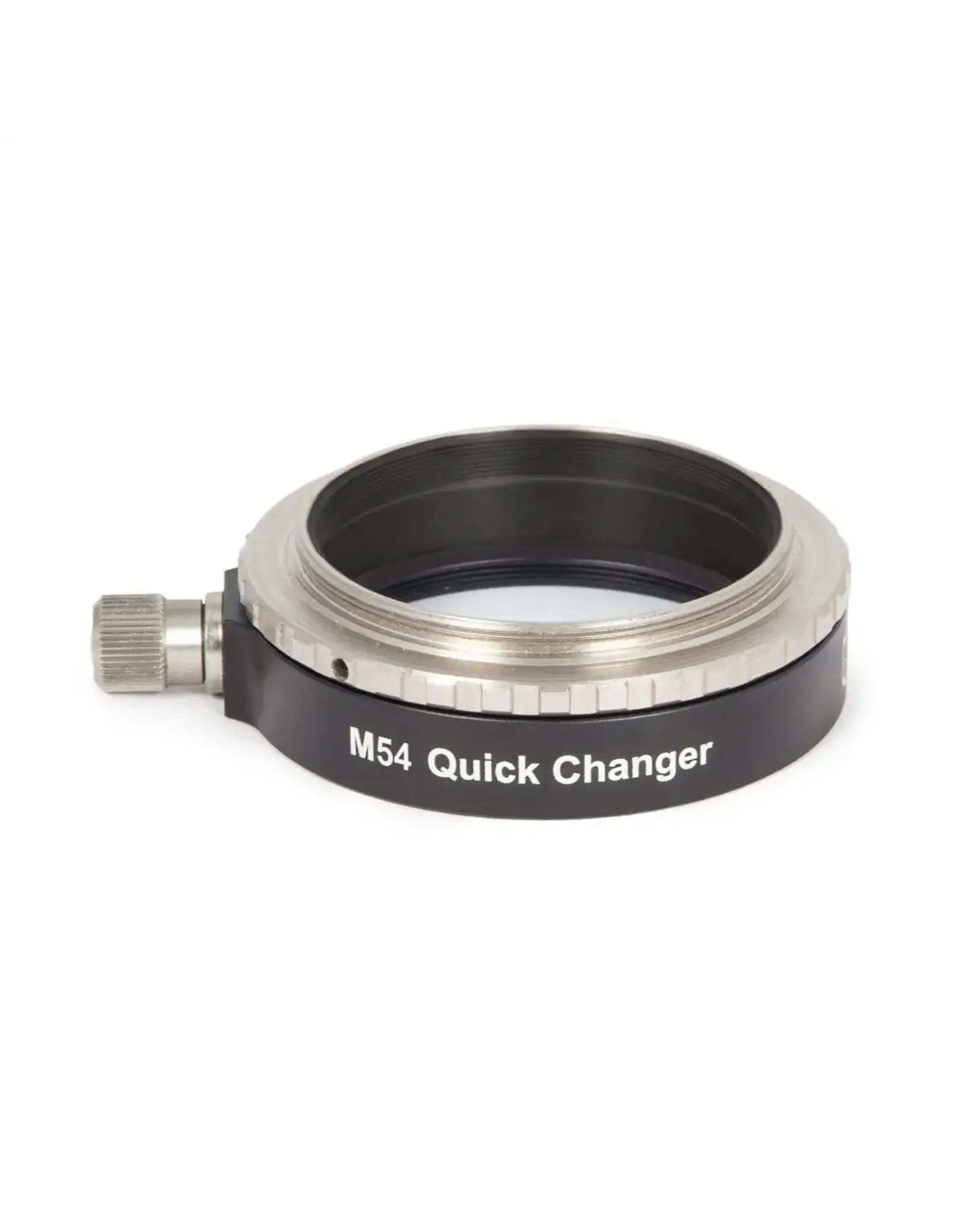

M54 Quick Changing Ring: The quick changing ring made of high-quality steel has an M48 external thread on one side and a 56mm dovetail on the other. The M54a Change Ring with S54a ring dovetail (#2958765) is also available separately.
M48 Quick Changer: The Quick Changer has a built-in M54 female thread and a high-quality brass pressure piece, so that even very heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. The M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (#2958760) is also available separately.
| SKU | 2958766 |
|---|---|
| EAN Code | 4047825060637 |
| Manufacturer | Baader Planetarium |
| Adapters Family | M54 System |
| Optical length (mm) | 15 |
| Type of Adapter | Same-Thread Adapter |
| Clamping System | Dovetail clamp |
| Inner Connection (eyepiece/-camera-sided) | S54 |
| Inner Connection (lens sided) | M54 x 0.75 |
| Screw Type | Large clamping screw with brass thrust piece |
| Inner Diameter / Clear Aperture (mm) | 50 mm |
| Net weight (kg) | 0.00 |
| Outer Diameter | 65 mm |
