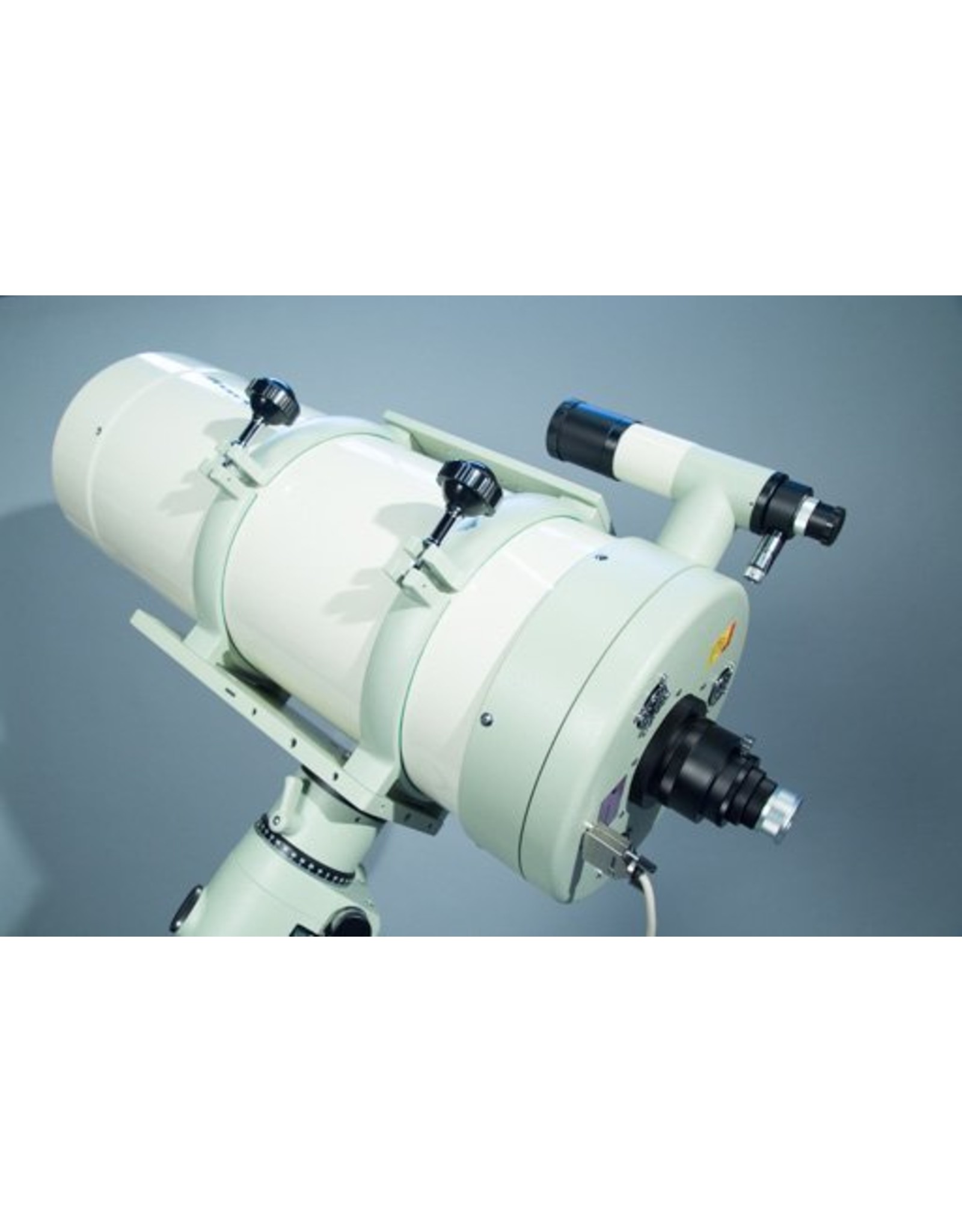

Takahashi Mewlon-250CRS Corrected Mewlon

$8,320.00
Article number: TLK25300
Availability: More on the Way to us
Delivery time: More on the Way to us

Takahashi’s CRS series of Mewlon telescopes leads the industry in advanced design and optical quality.  At their heart is the Dall-Kirkham Cassegrain telescope design, coupled with a corrector that provides Ritchey–Chrétien like performance.  With the CRS series, Takahashi has added a 3-element corrector plate made from ED glass, converting the telescope to a flat field instrument for imaging and visual observation.  In addition, the CRS series has an electronic focusing system controllable with an ASCOM driver or in an autofocus mode.  Each CRS telescope features a primary mirror cooled by 3 fans.



Mewlon-250 CRS



The Mewlon-250 CRS is a 250 mm aperture telescope in an f/10, 2500 mm instrument.  With the optional reducer, the Mewlon-250 CRS can be converted to an f/7.3 telescope.  The Mewlon-250 CRS comes with a built-in 7x50 finder scope.



Mewlon-300 CRS



The Mewlon-300 CRS is a 300 mm aperture telescope in an f/9.9, 2960 mm instrument.  With the optional reducer, the Mewlon-300 CRS can be converted to an f/7.2 telescope.  The Mewlon-300 CRS comes with a built-in 7x50 finder scope.



Telescope Specifications

Mewlon-250CRS System Chart

Mewlon-250CRS System Chart with 1.5X Extender



SPECIFICATIONS for the M-250 CRS (Tube assembly only)

Corrected Dall-Kirkham

Effective aperture ø250mm
Focal ratio F/10
Image circle ø40mm
Metal back distance 182mm
Tube diameter ø280mm
Tube length ø21mm/ø42mm

Reducer 0.73x

Focal length 1835mm
Effective focal ratio F/7.3
Image circle ø35mm

Extender 1.5x

Focal length 3780mm
Effective focal ratio F/15
Image circle ø44mm
