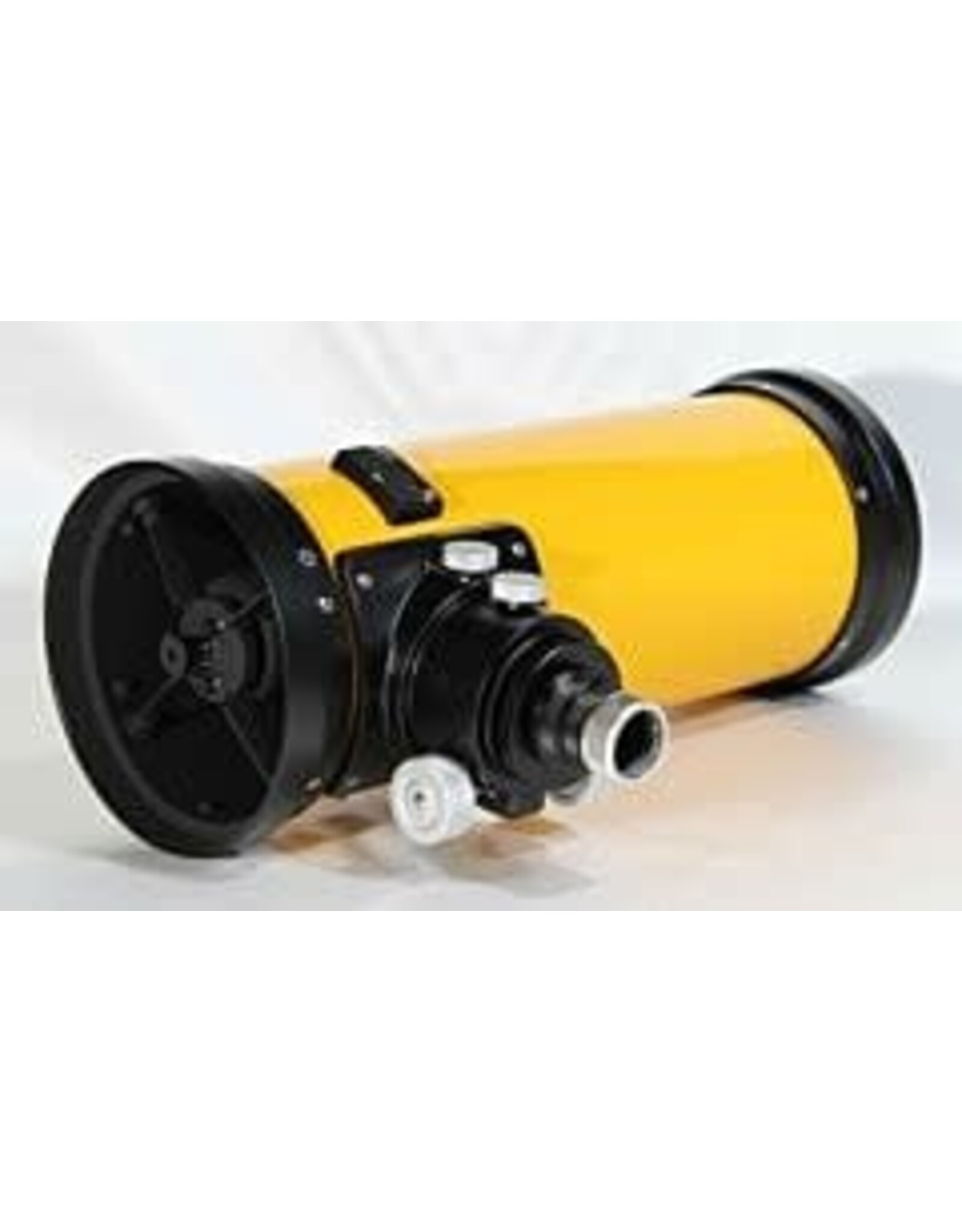

Takahashi E-130D Hyperbolic Astrograph

$2,990.00
Article number: TEK13010
Availability: More on the Way to us
Delivery time: More on the Way to us

Takahashi introduced their Epsilon Series flat-field hyperbolic astrographs in the middle 1980’s. The Epsilon-130 was the smallest aperture and most portable of the series. Now Takahashi is re-introducing the new e-130D digital version of this astrograph.

The Epsilon optical system features a hyperbolic primary and a digital corrector to produce a flat field image. Takahashi has been producing hyperbolic mirrors since 1985 and has a reputation for producing high quality hyperbolic astrographs like the current e-180ED.

The Epsilon series of astrographs are specifically designed for exceptional astrophotography.  Takahashi’s proprietary optical design features a hyperbolic, concave primary mirror with a 2 element ED corrector lens to eliminate spherical aberration and coma.  Compared to the conventional Schmidt camera design, the chromatic aberration is reduced by half, even out to large viewing angles.



The new ε-130D is the same aperture as the original but now uses a digital corrector. This corrector produces improved sharpness and a 1/3rd reduction in the size of the spot equaling the spot size of the E-180 at the edge producing a 44 mm diameter circle. The offset secondary insures better illumination of the image formed by the primary.



The ε-130D has a 5.9° field of view which is perfect for imaging wide field objects like comets and objects with extended nebulosity. With a speed of f/3.3 and a focal length of 430mm the ε-130D will shorten exposure times, increase color saturation and will produce wide field high performance images.

Epsilon 130D System Chart
