T-2 Fine-Adjustment rings (0,3 / 0,5 / 1 mm)- Aluminium
| Article number: | T2FAR-3 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |

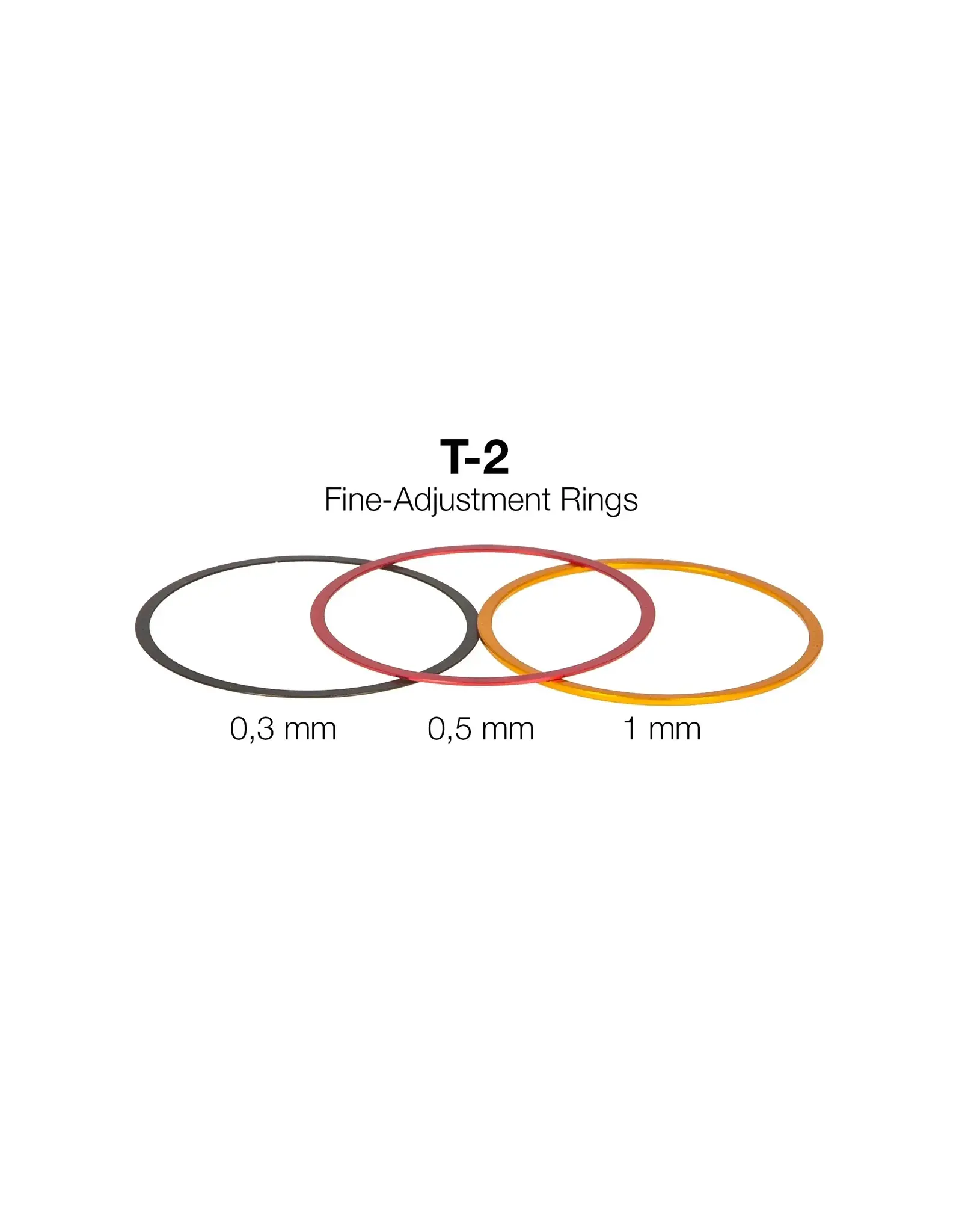

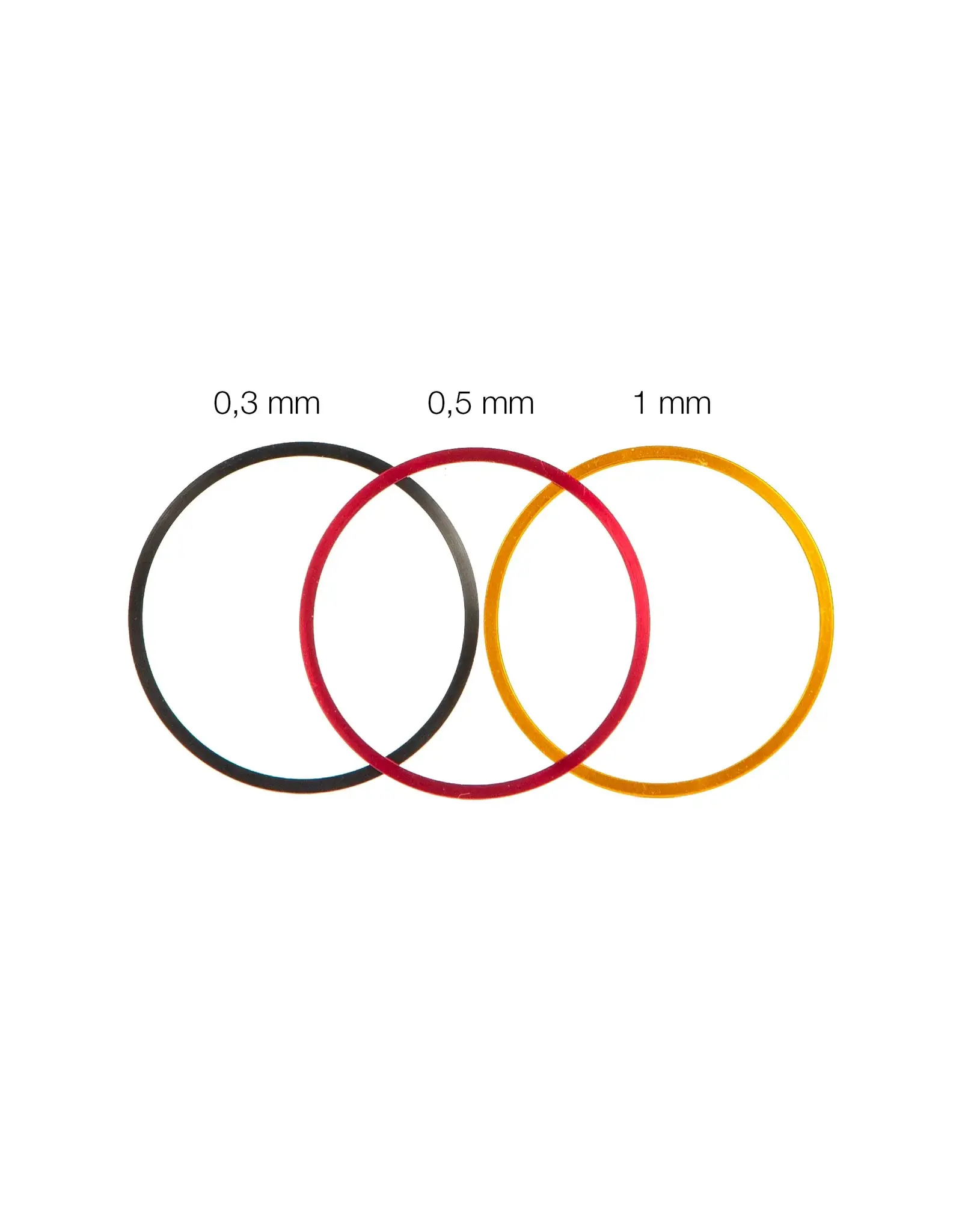

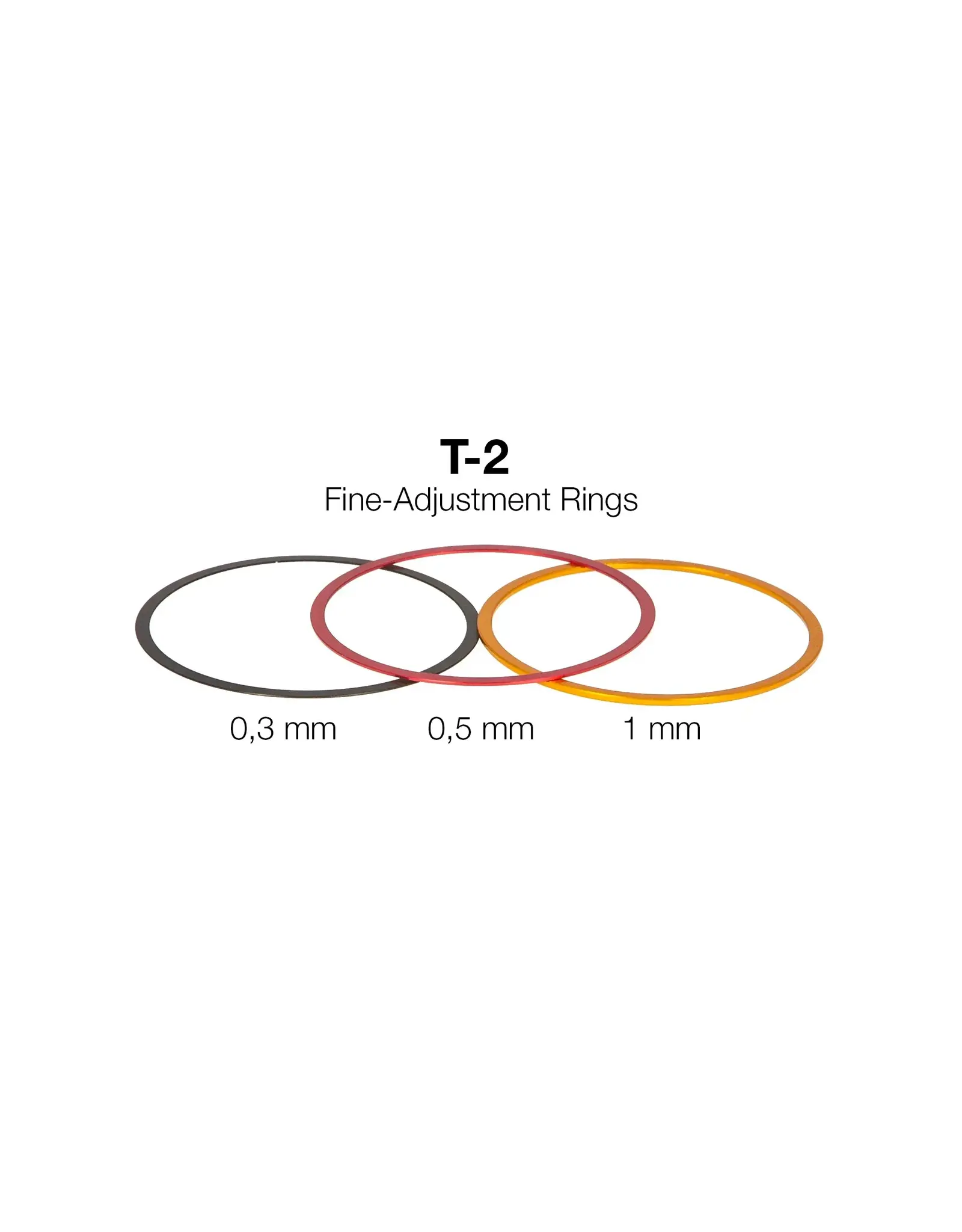

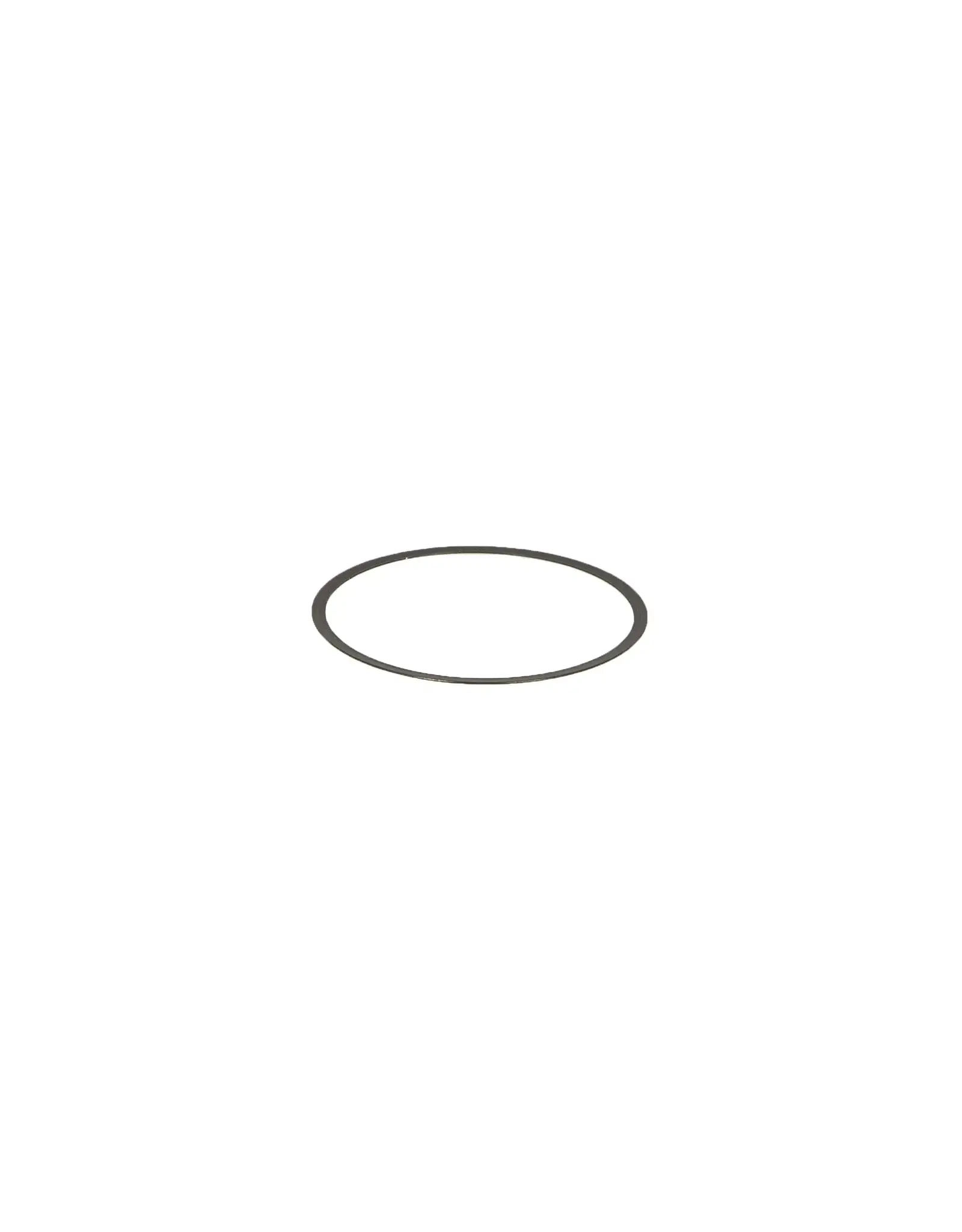

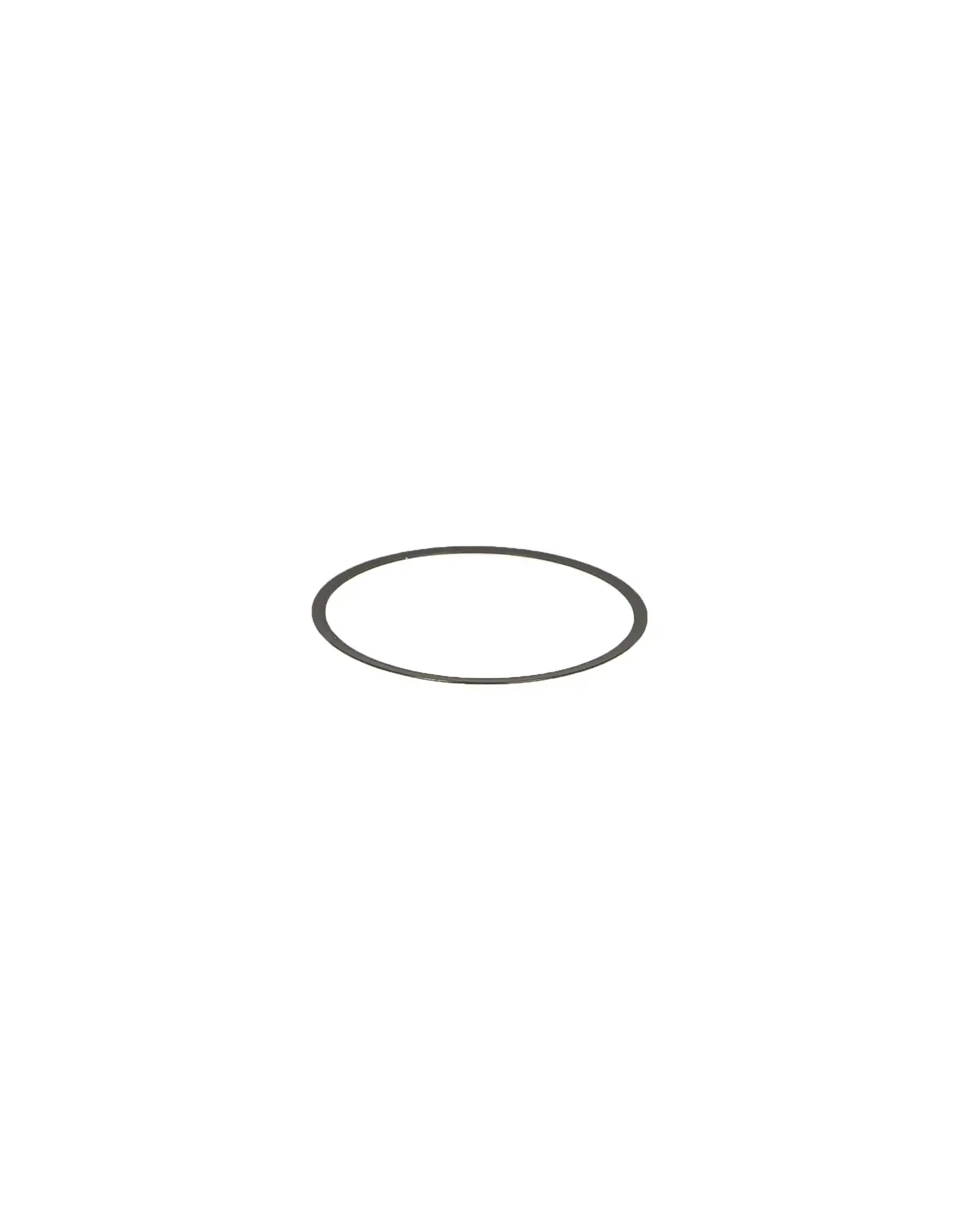

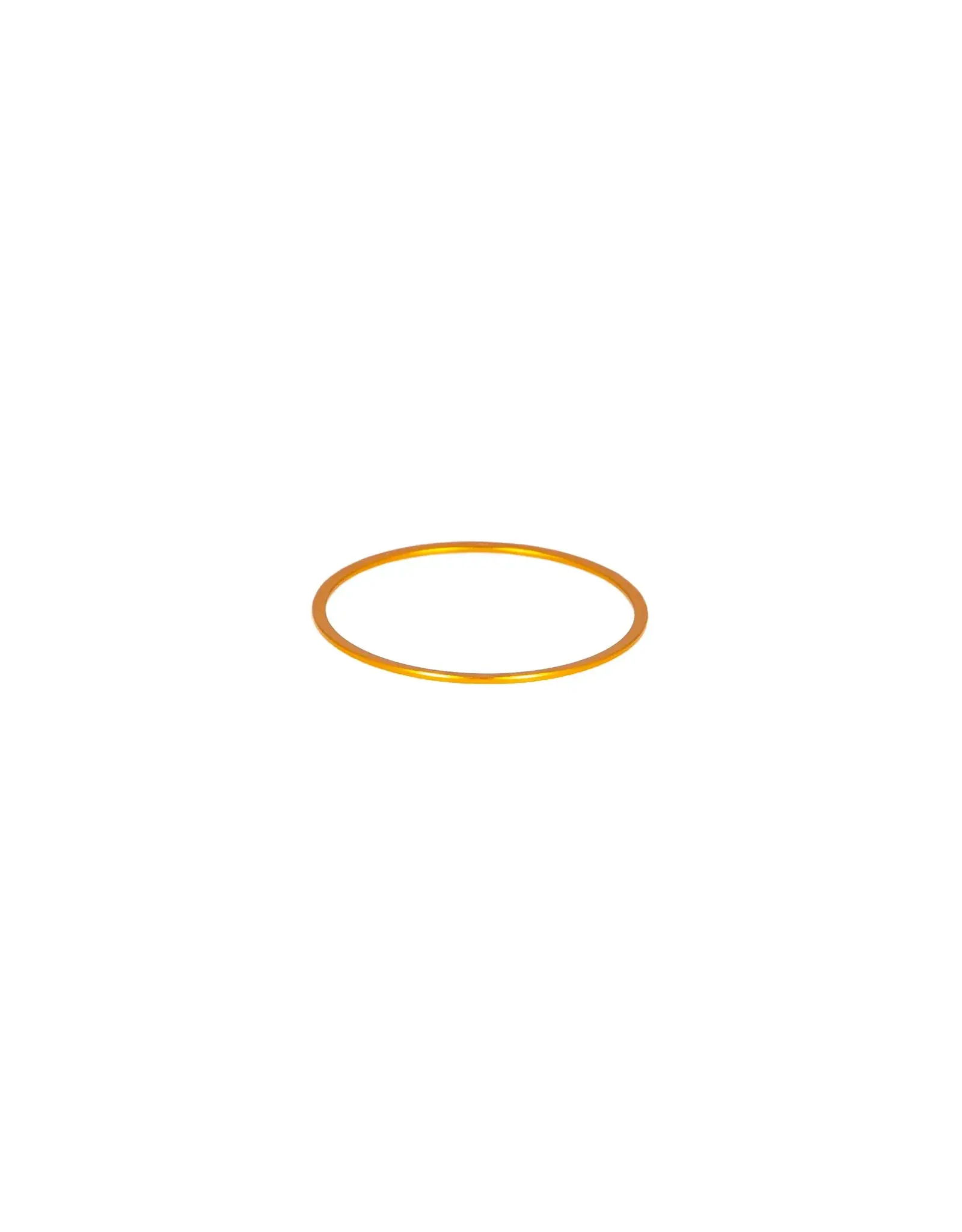

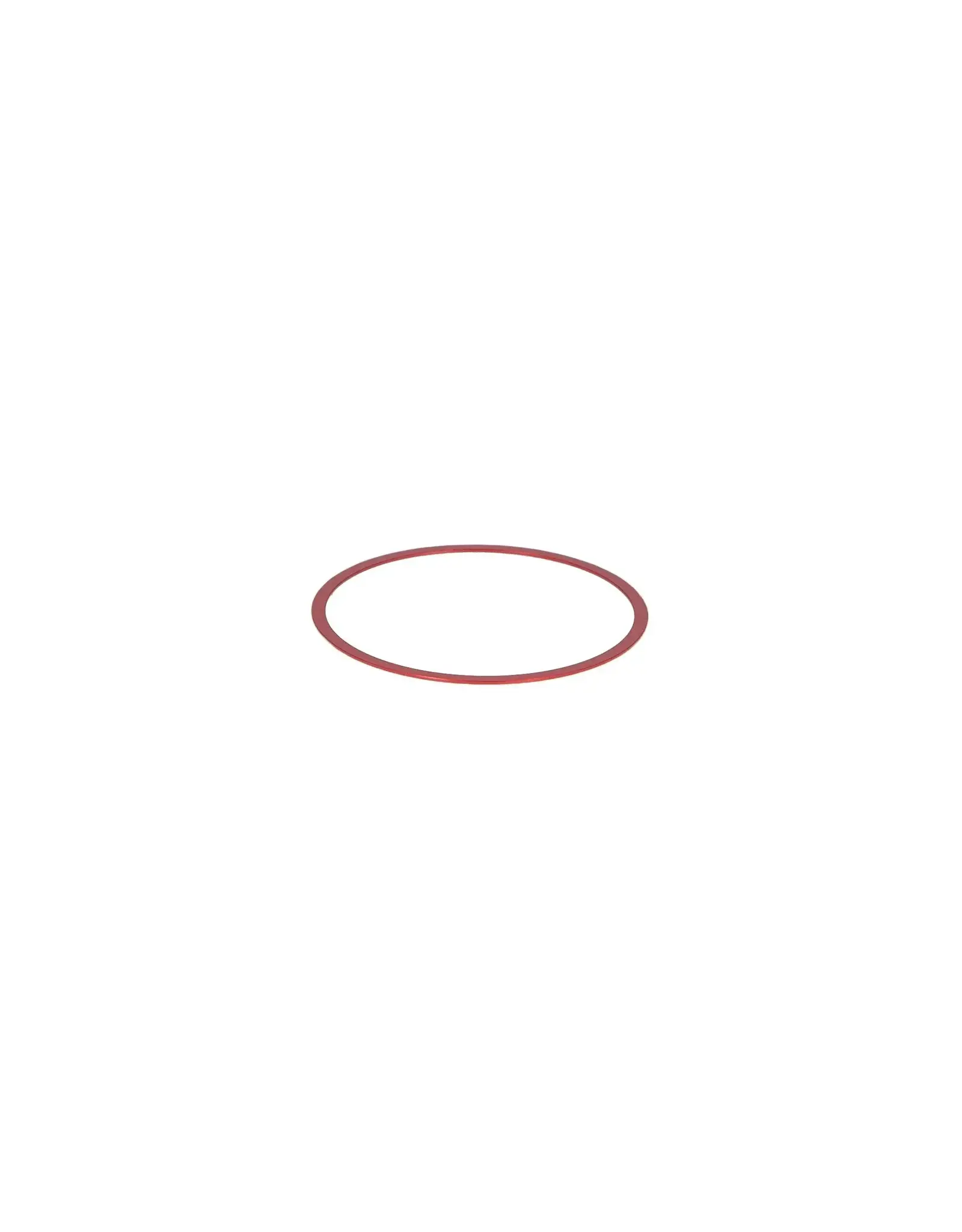

- Astro T-2 System spacer (Fine-Adjustment) rings, available in thickness 0,3mm (black), 0,5mm (red), 1mm (gold)
- Very thin ring for finetuning in T-2 eyepiece projection
- Rings with T-2 inner diameter without threads
- Fits between all T-2 threads, equals approx. 2/5 (0,3mm), 2/3 (0,5mm) respectively 1 1/3 (1mm) turn of rotation. Rotation may differ slightly.
- Prevents binding between two T-2 threaded parts

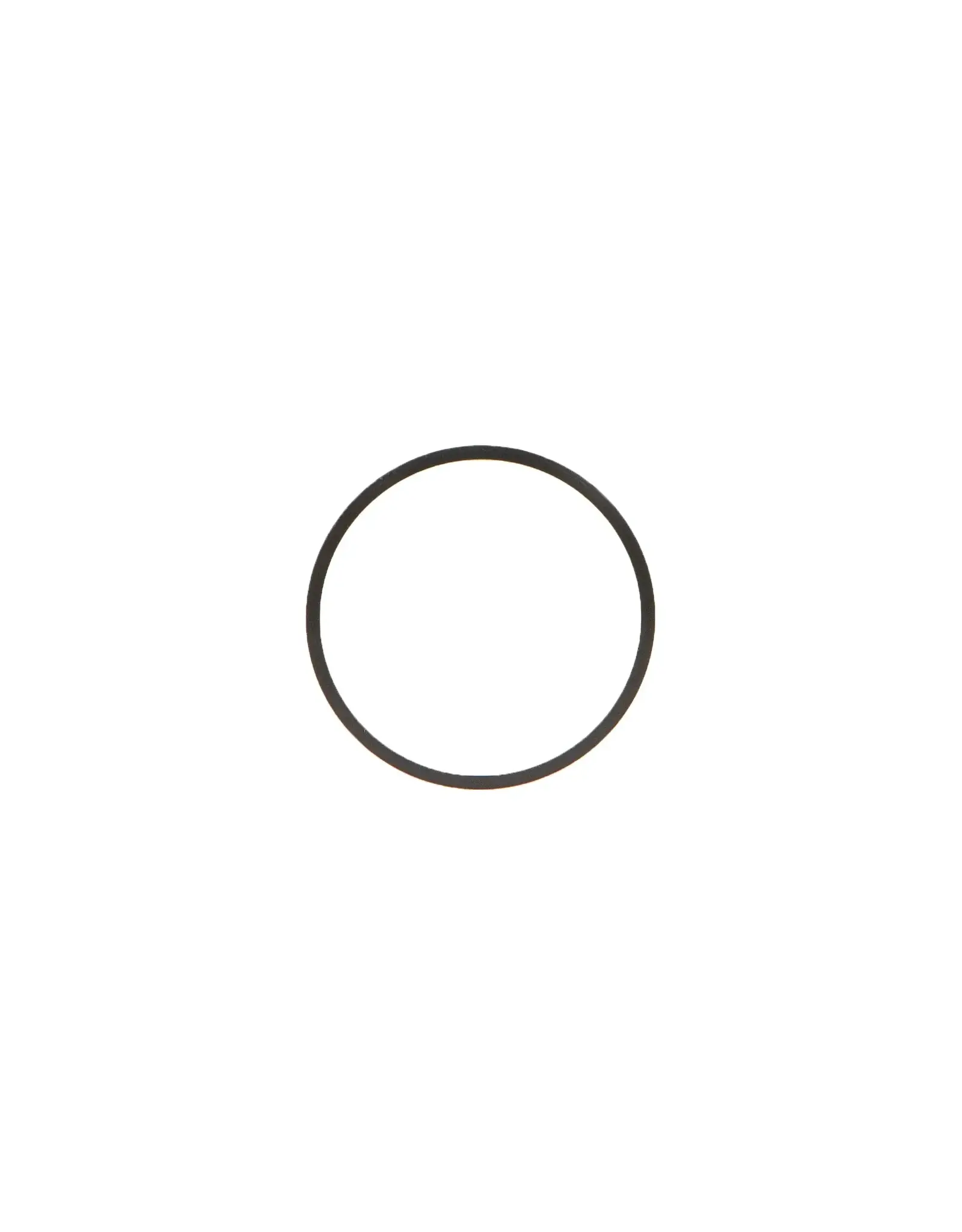

0.3 mm
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2457911 |
| WEIGHT (NETTO) | 0.01 |
| OPTICAL LENGTH (MM) | 0,3 |
| INNER DIAMETER / CLEAR APERTURE (MM) | T-2 (42 mm) |
| OUTER DIAMETER | 45,75 mm |
| INNER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| TYPE OF ADAPTER | Extension |

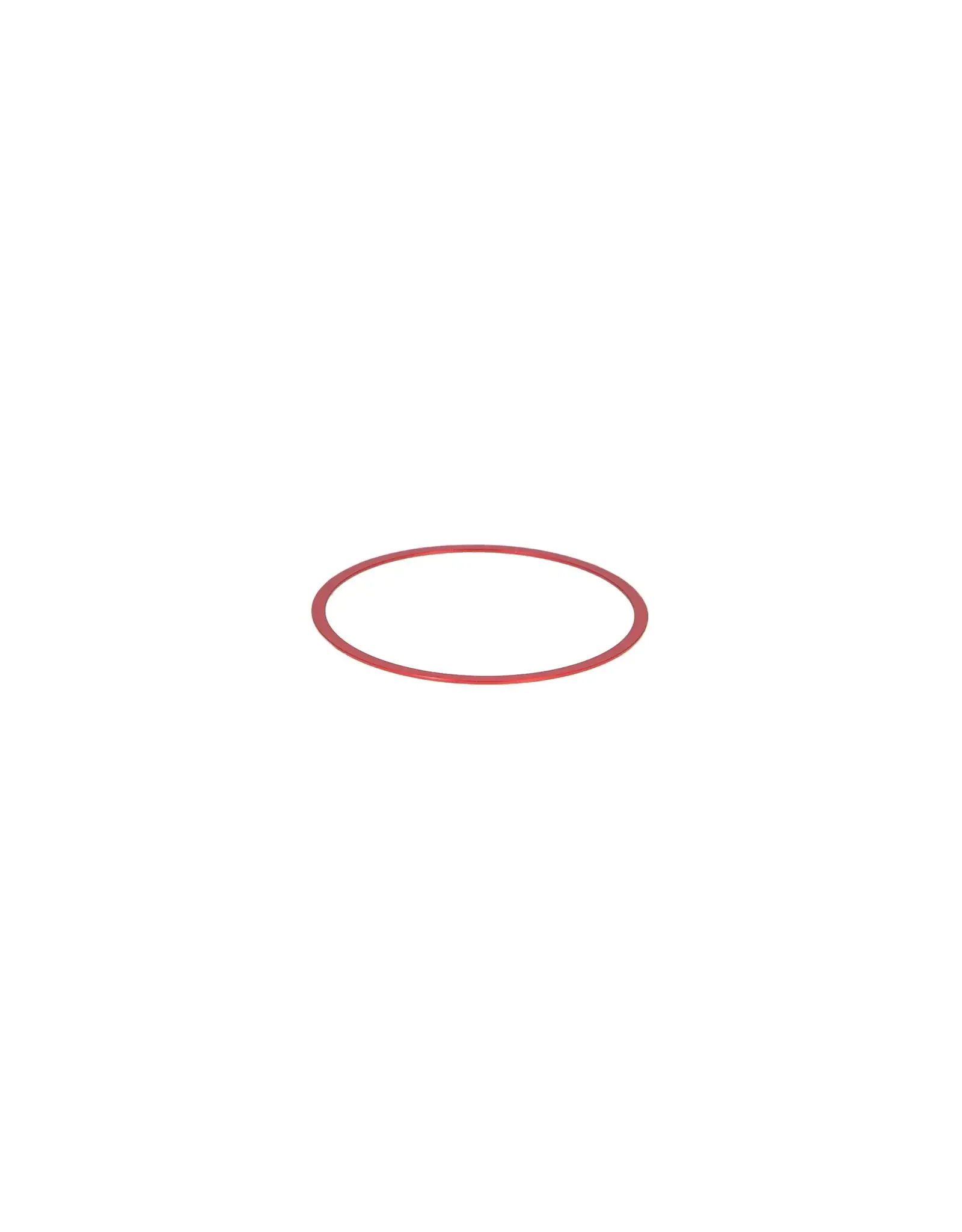

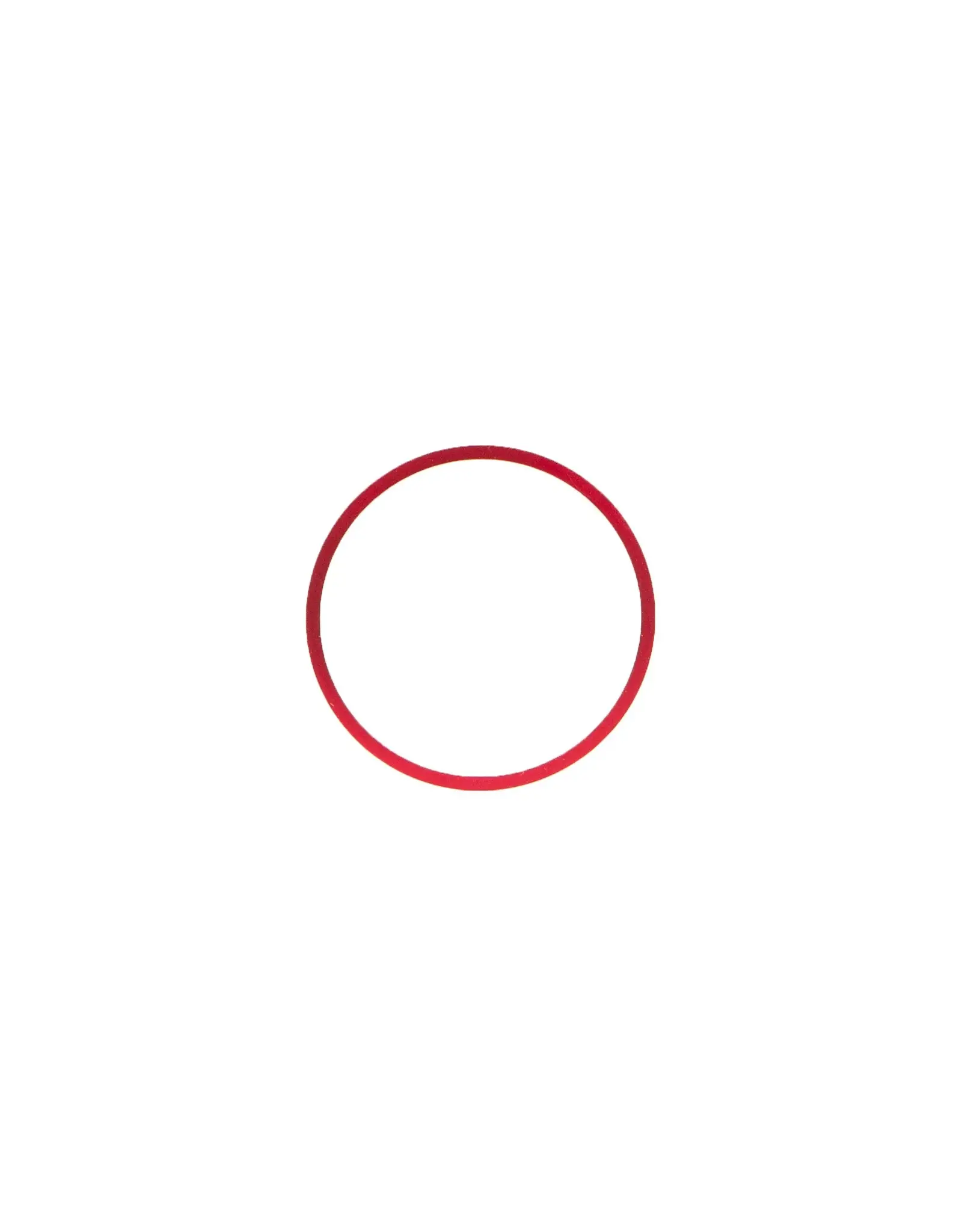

0.5 mm
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2457912 |
| WEIGHT (NETTO) | 0.01 |
| OPTICAL LENGTH (MM) | 0,5 |
| INNER DIAMETER / CLEAR APERTURE (MM) | T-2 (42 mm) |
| OUTER DIAMETER | 45,75 mm |
| INNER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| TYPE OF ADAPTER | Extension |

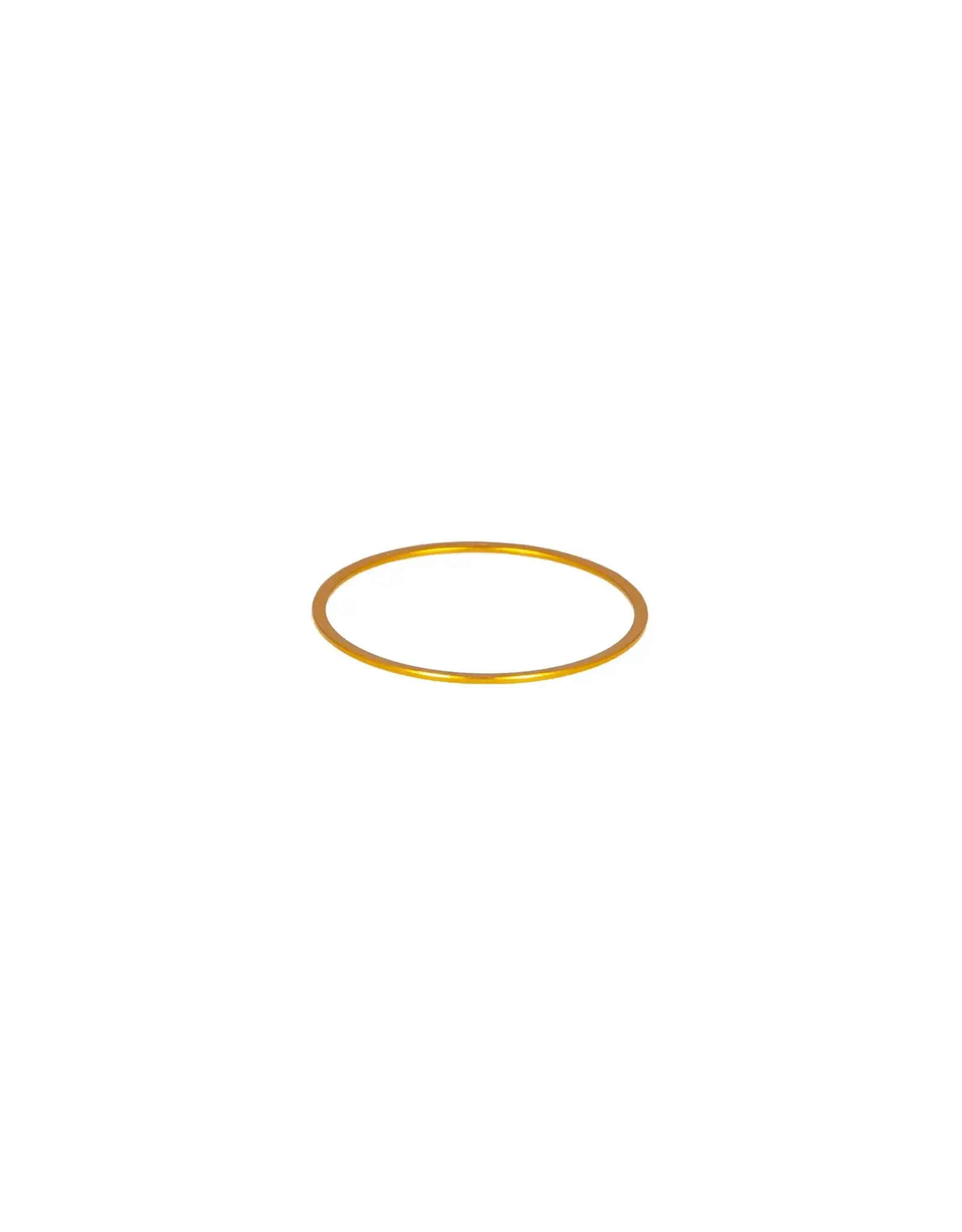

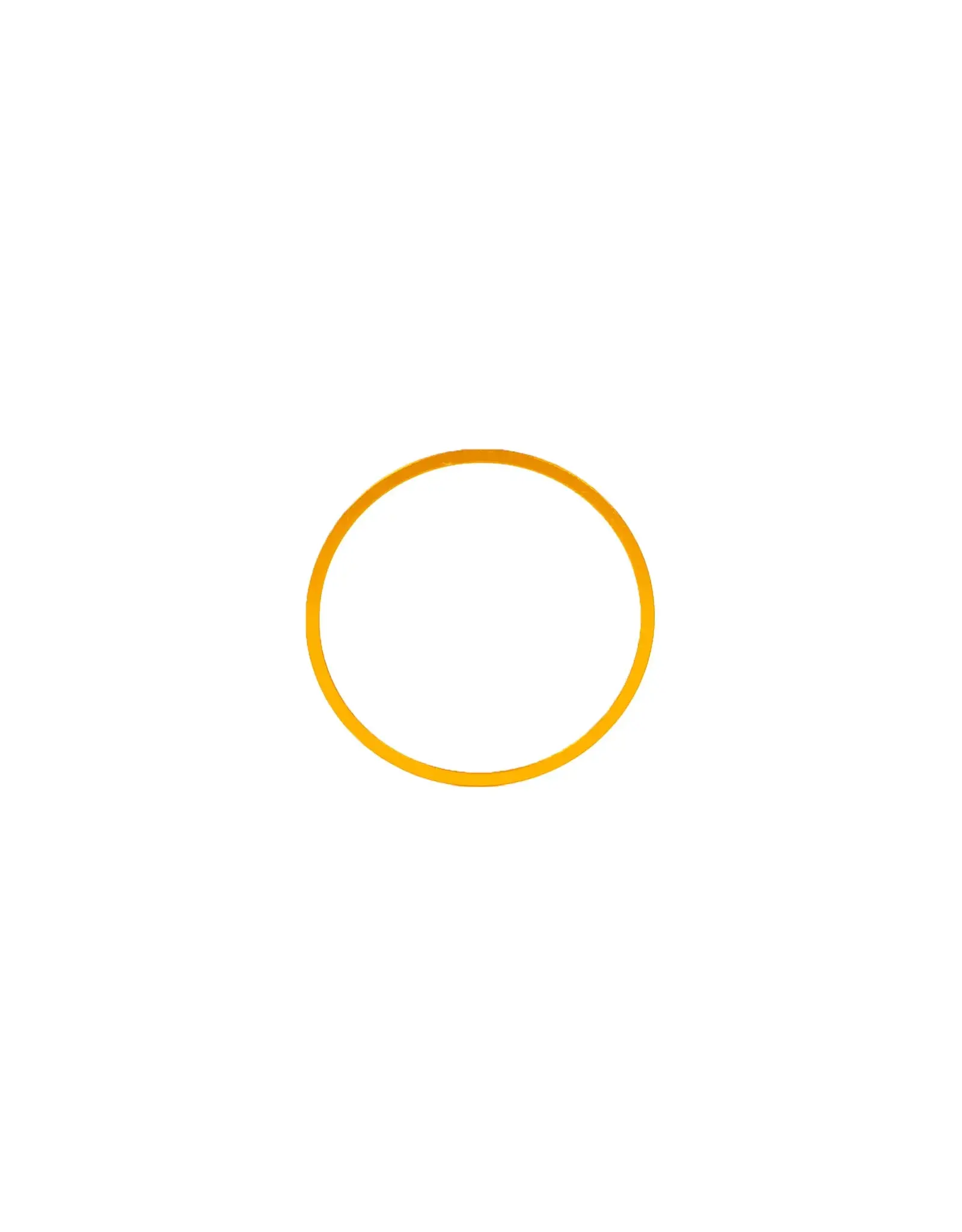

1 mm
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2457913 |
| WEIGHT (NETTO) | 0.01 |
| OPTICAL LENGTH (MM) | 1 |
| INNER DIAMETER / CLEAR APERTURE (MM) | T-2 (42 mm) |
| OUTER DIAMETER | 45,75 mm |
| INNER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| TYPE OF ADAPTER | Extension |
Set
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2457910 |
| EAN CODE | 4047825039637 |
| WEIGHT (NETTO) | 0.03 |
| OPTICAL LENGTH (MM) | 0,3mm (scharz), 0,5mm (rot), 1mm (gold) |
| INNER DIAMETER / CLEAR APERTURE (MM) | T-2 (42 mm) |
| OUTER DIAMETER | 45,75 mm |
| INNER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (LENS SIDED) | T-2 (M42 x 0,75) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | T-2 (M42 x 0,75) |
| TYPE OF ADAPTER | Extension |
