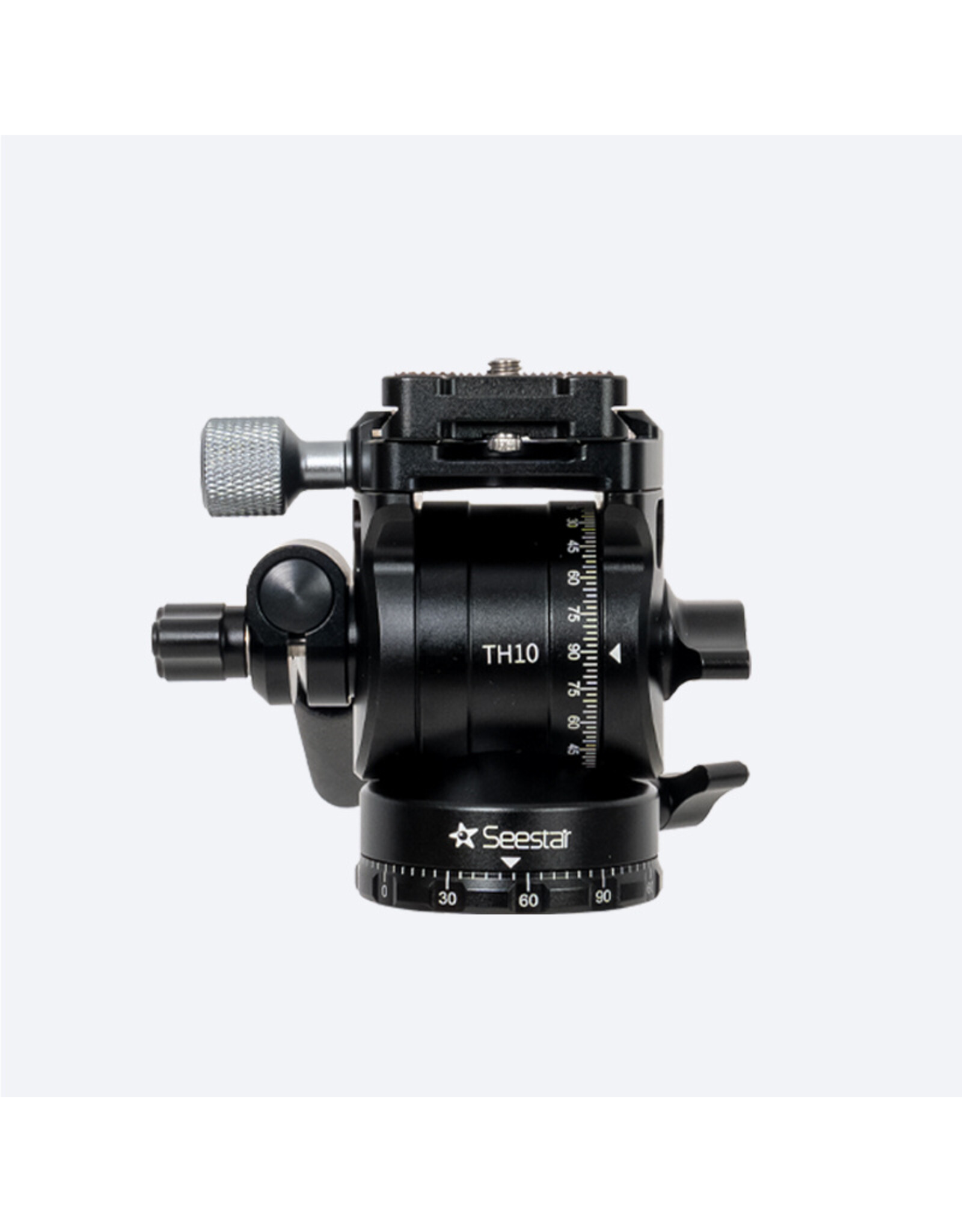

ZWO Seestar TH10 Fluid Tripod Head
| Article number: | SS TH10 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
Seestar TH10 hydraulic tripod head is specially designed for use with Seestar smart telescopes in equatorial mode. It is also compatible with most SLR cameras, mirrorless cameras, video cameras, and more.
Made of durable full-metal construction, Seestar TH10 tripod head is compatible with most tripods and accessories on the market. It comes with a quick-release plate that supports both 3/8″ and 1/4″ screws, allowing for easy setup with a wide variety of devices. With a self weight of 411g, this tripod head can carry a large payload of 5kg.
Note: The TC20 + S50 setup is not supported in regions with a latitude below 15° when used in equatorial mode.
Why Choose the Seestar TH10 Tripod Head?
- Compact and Portable: Weighs only 411g
- Hydraulic Damping System: Ergonomic design for fluid and precise control every time
- Wide Range of Shooting Angles: 360° pan and 180° tilt adjustment for maximum flexibility
- Heavy Duty Payload: Supports up to 5kg, perfect for professional camera equipment
- Broad Compatibility: Compatible with most DSLRs, mirrorless cameras, and camcorders
Compact and Portable: With a height of just 84mm and a weight of only 411g, the TH10 is built from CNC-machined aluminum alloy for premium durability.
Hydraulic Damping System: Makes polar alignment smoother than expected with ergonomic pan and tilt adjustments.
Wide Range of Shooting Angles: 360° pan and -90° to 90° tilt with intuitive knobs and smooth damping.
Wide Compatibility: Supports 1/4″ and 3/8″ threads, and can hold up to 5kg. Compatible with Seestar, DSLRs, mirrorless cameras, and more.
Connection Method: TC20 with TH10 is not recommended below 15° latitude. Follow setup and leveling instructions carefully for best performance.
Step 1: Install TH10 by screwing the adapter into the Seestar.
Step 2-3: Attach and secure the quick-release plate.
Step 4: Align dovetail groove to North and secure with knob.
Step 5: Mount and secure the Seestar on the TH10.
Seestar TH10 hydraulic tripod head enables the Seestar S50 and S30 to operate in equatorial (EQ) mode.
Note: When using the Seestar S50 in equatorial (EQ) mode with the TH10 tripod head and the TC20 tripod (included with the Seestar S50), please note that the equipment may collide with the tripod legs at certain angles. Therefore, this setup is not recommended for use in regions below 15° latitude.
Structural Design
What's in the Box?
