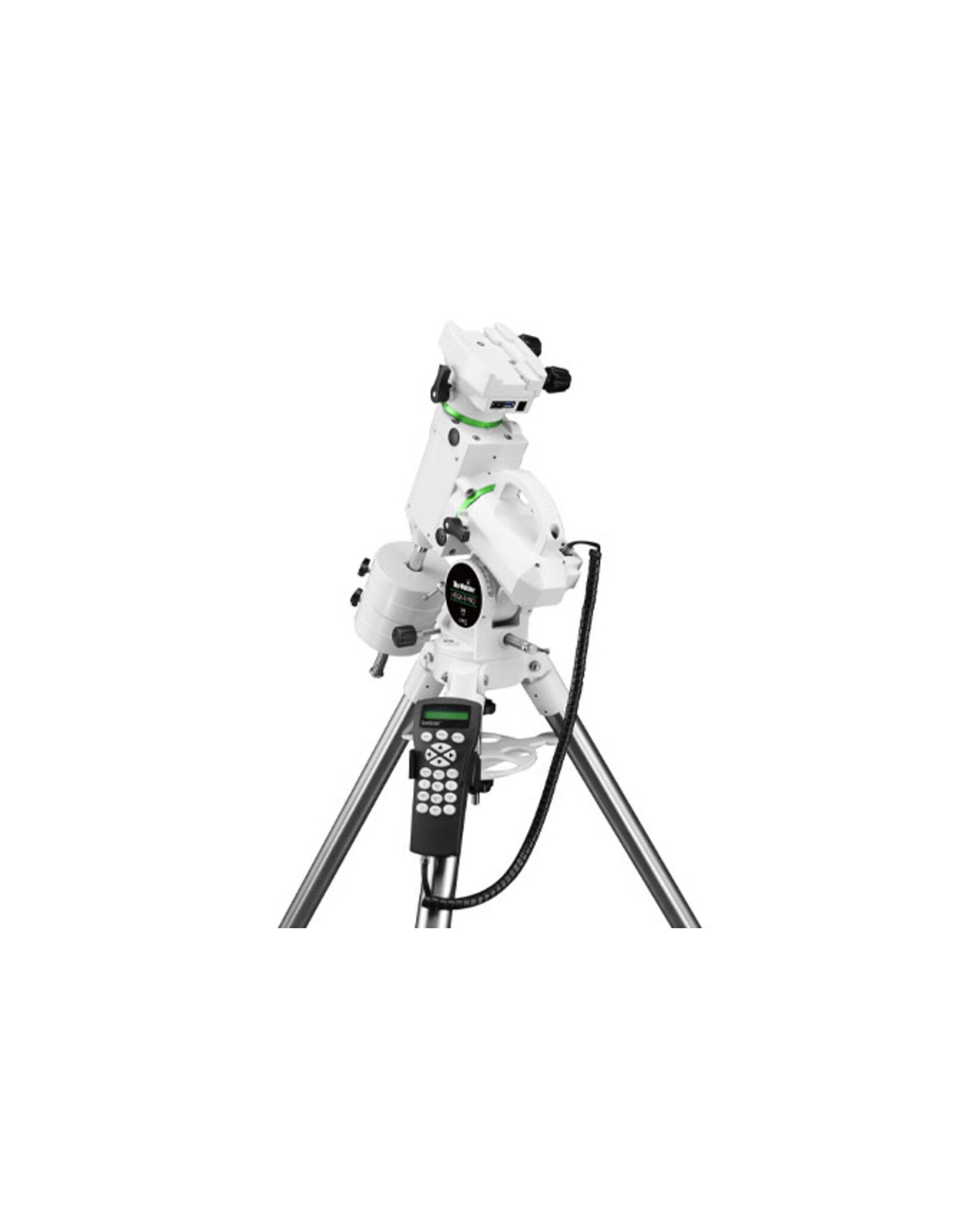

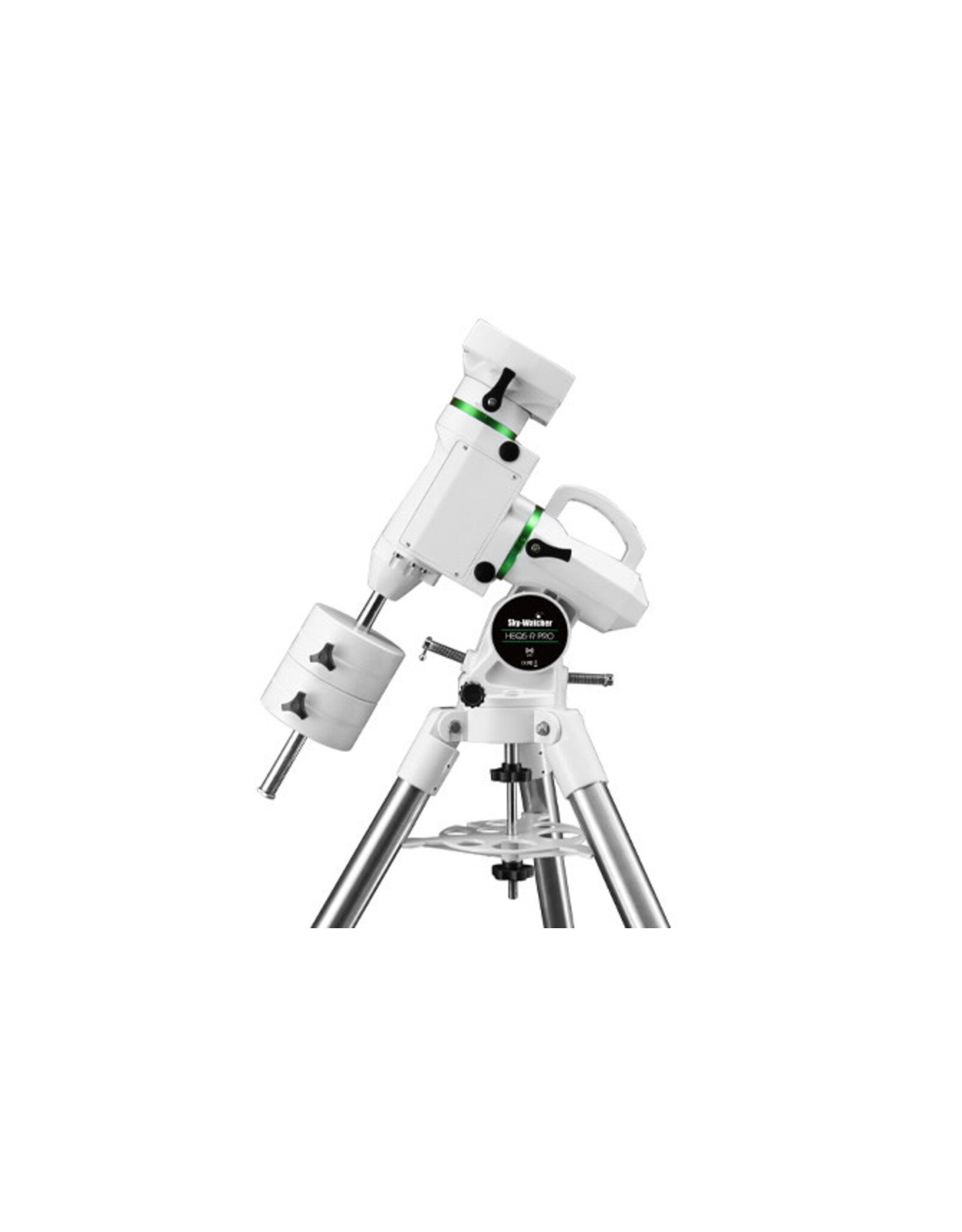

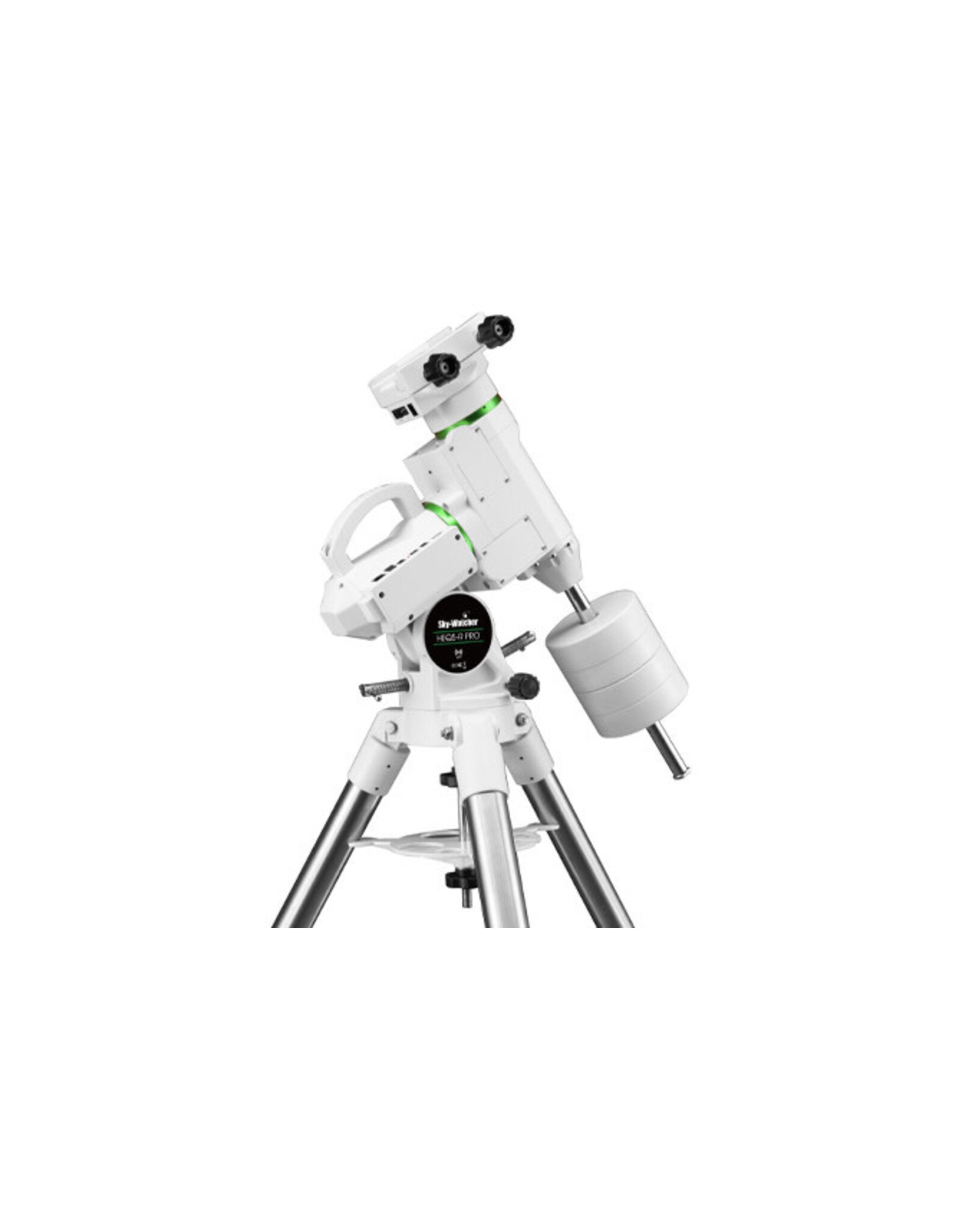

Sky-Watcher HEQ5-R Mount - S30450
| Article number: | S30450 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
-
The new HEQ5-R Synscan™ Computerised Go-To mounting is an exciting evolutionary progression of the highly esteemed HEQ5. The modern optimised design of the HEQ5-R PRO incorporates features that serious imagers will immediately appreciate, such as;
► Increased Stability & Payload capacity of 15kg for Astro-Photography due to larger Worm Wheel axis diameter
► Increased Accuracy for Tracking & Guiding with more teeth on R.A. & DEC Worm Wheels

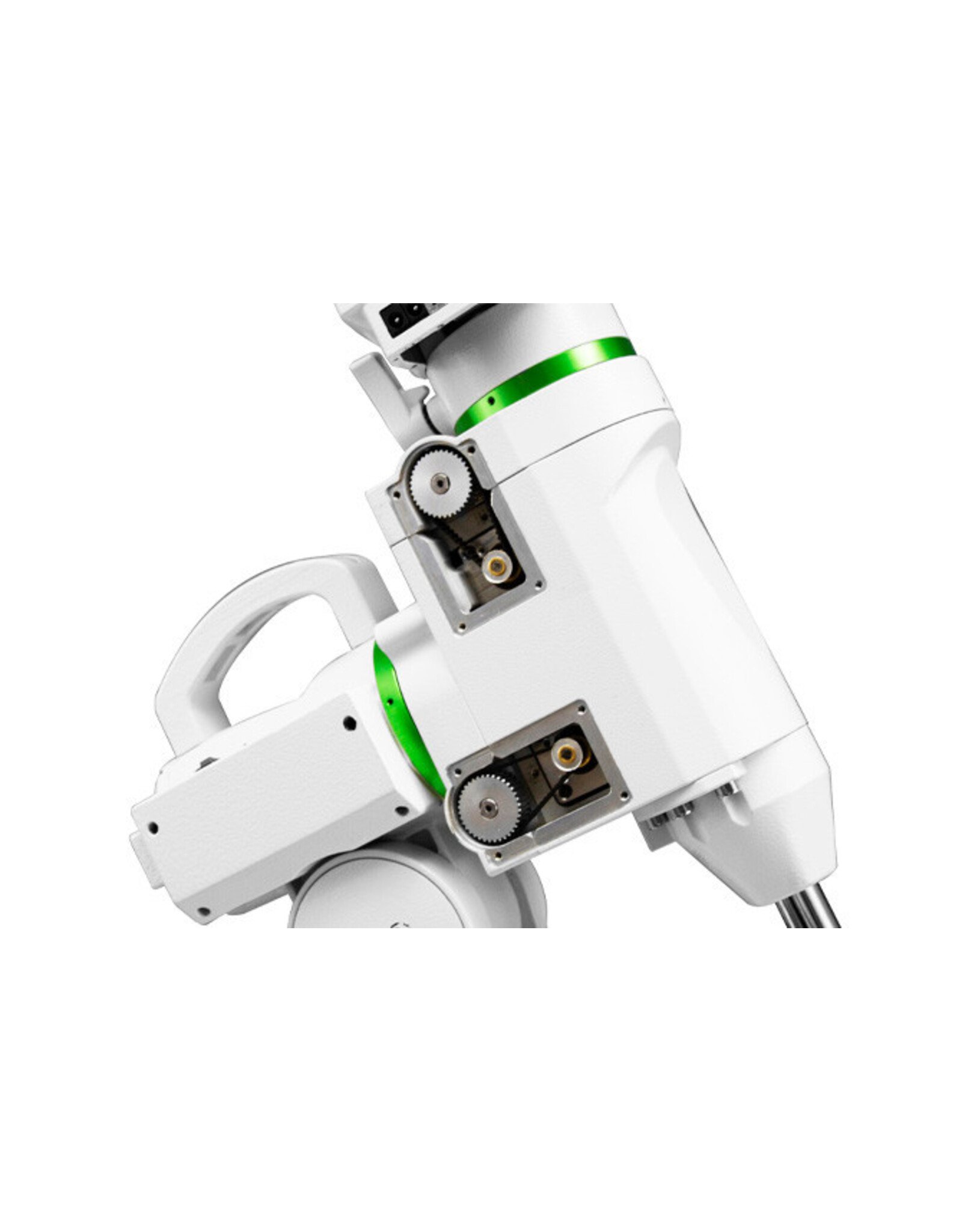

► Synchronous Belt Driven, resulting in minimal backlash - Even quieter, smoother operation with higher torque and better results when guiding.

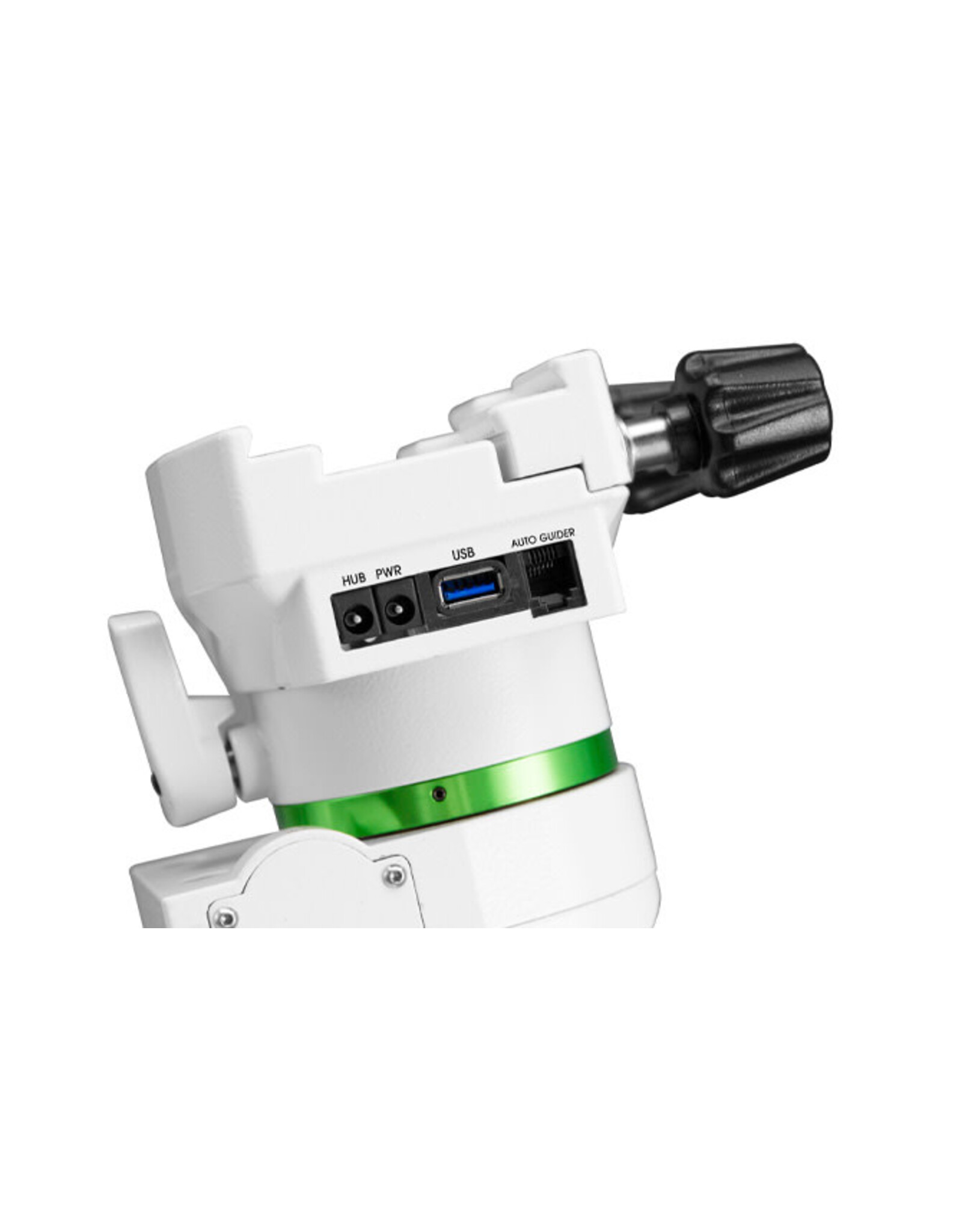

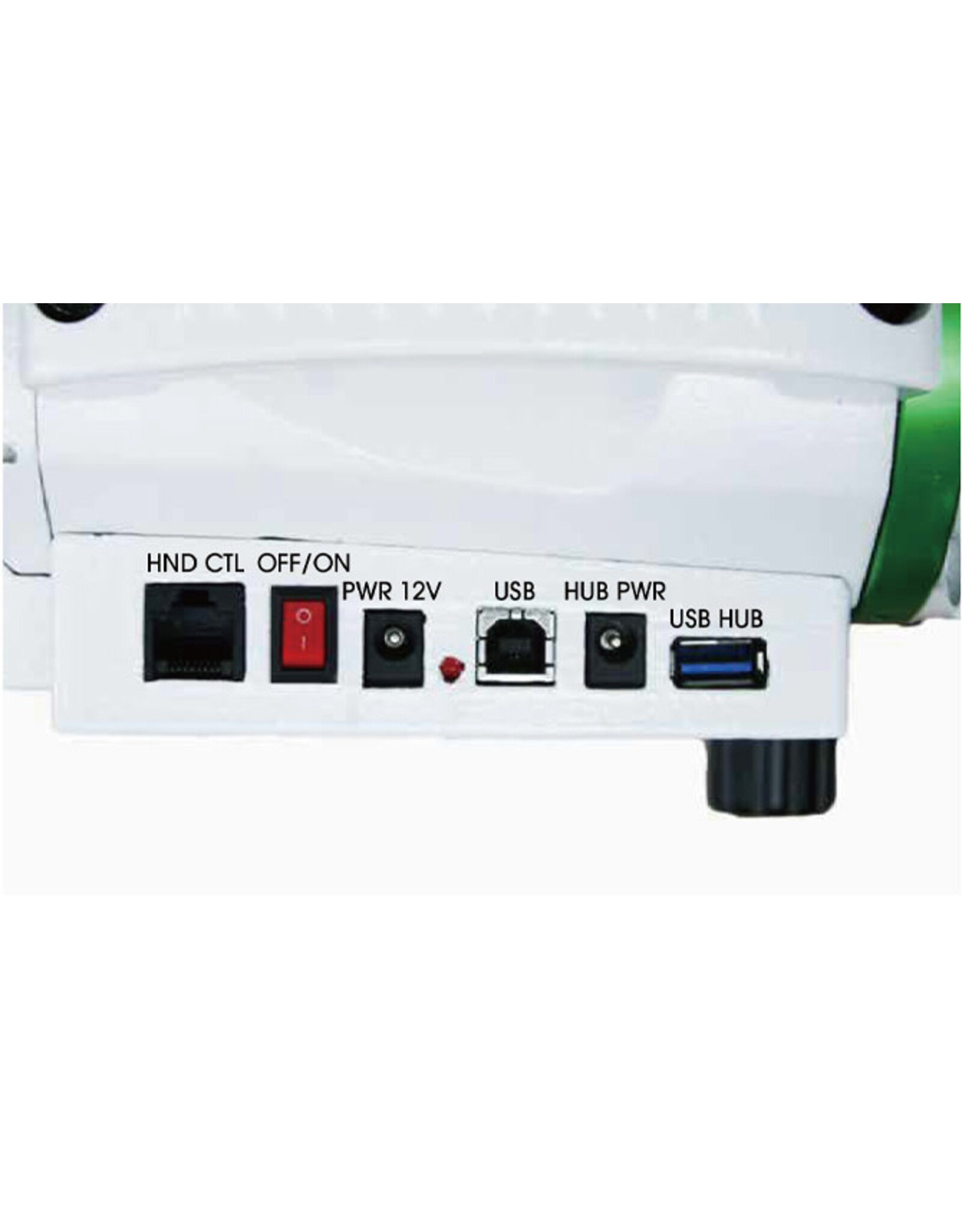

► Easier Connectivity with external power and USB Ports
► Superior Latitude adjustment controls with greater range of latitudes possible
► Built-in SNAP camera control port
► PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
► Built-in carrying handle for convenient transportation
Shipping:
head: 24 lbs 18x18x13
Tripod: 44lbs 45x11x15SpecificationsMount Type German Equatorial Latitude adjustment range 5º to 72º Tracking Rates Sidereal rate, solar rate, lunar rate Payload 15kg Power Requirement DC9~12.6V 3A Transmission 160 teeth for RA worm wheel & 144 teeth for DEC worm wheel + 36:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive Mount Weight (Tripod excluded) 12 kg Azimuth Adjustment Range About ±15 º Counterweights Supplied 2 x 5.3kg Tripod Supplied 1.75-inch stainless steel, 5.2kg Weight Counterweight Rod 20mm Diameter, Length 310mm + 200mm Motors 1.8 º Hybrid Stepper Motors Gear Ratio 480 for RA axis, 432 for DEC axis R.A. Resolution RA Resolution: 6144000 Rev. 0.21 arc-second DEC Resolution 5529600 Rev. 0.23 arc-second Maximum Slewing Speed 3.2 degrees/second Tracking Mode Equatorial mode
