Baader SLOAN/SDSS Filters- Photometric
Article number: | FSLN-1U |
Availability: | More on the Way to us |
Delivery time: | More on the Way to Us |

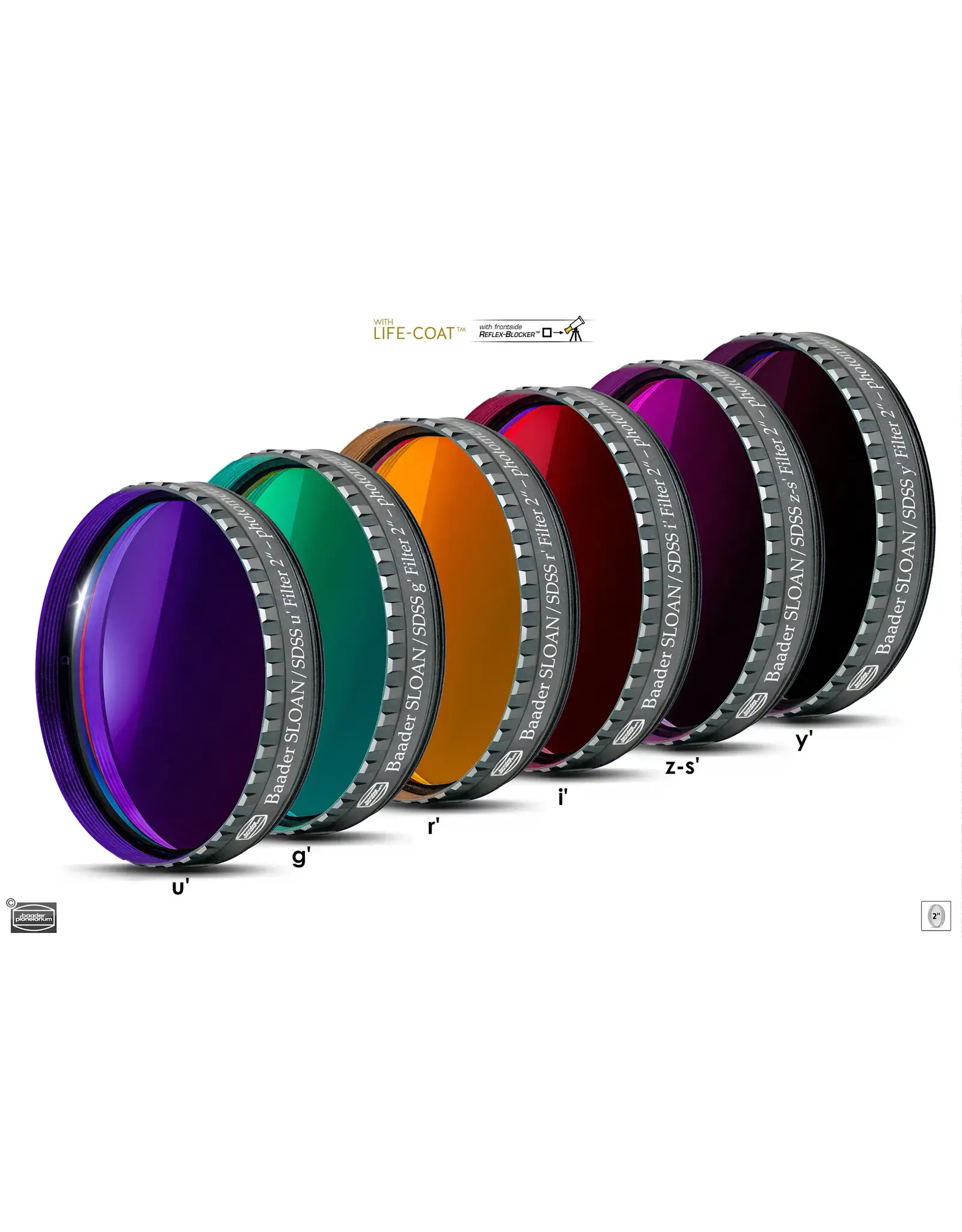

- Baader SLOAN-ugriz' Bandpass Filter Set, suitable from f/15 to f/1.8

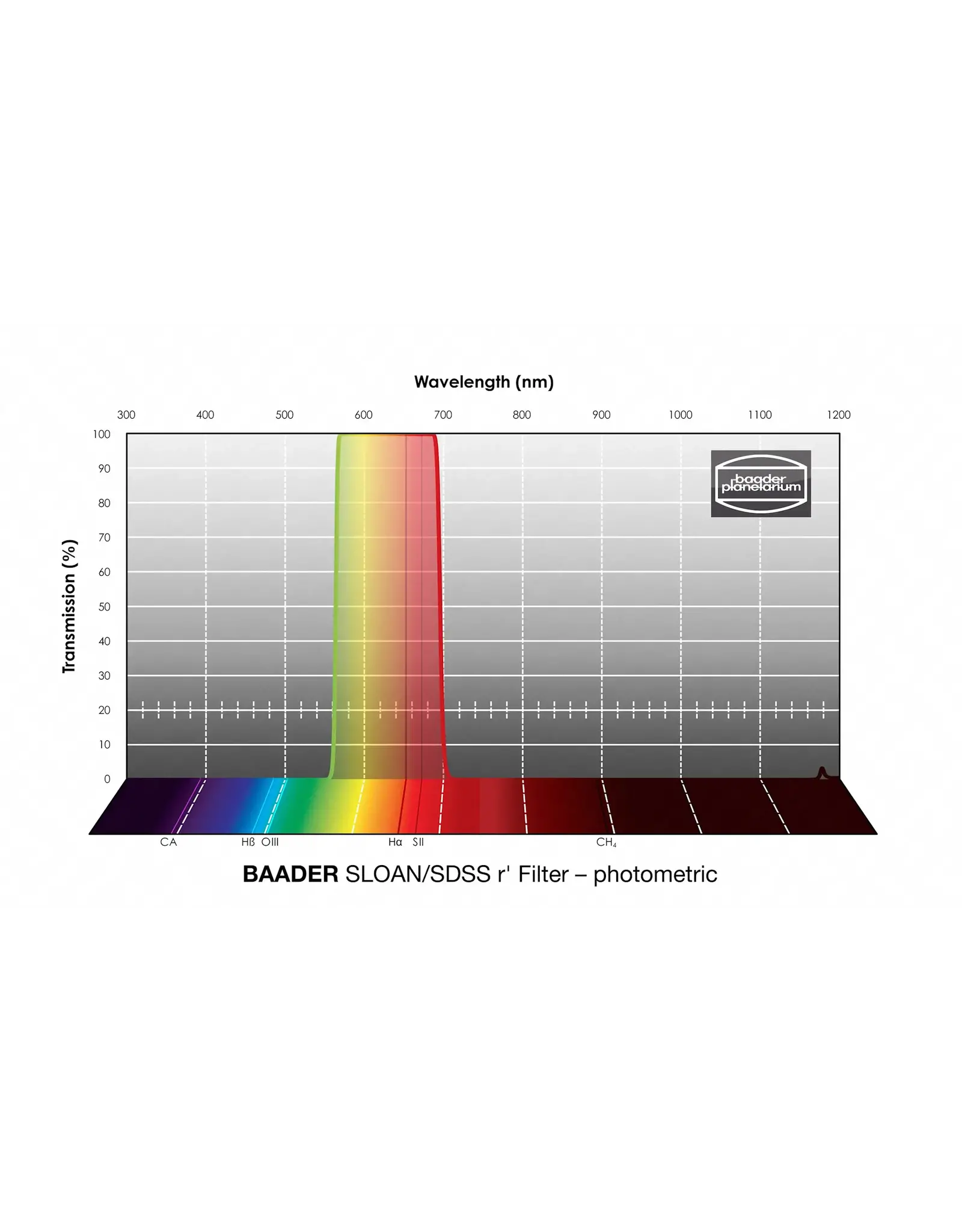

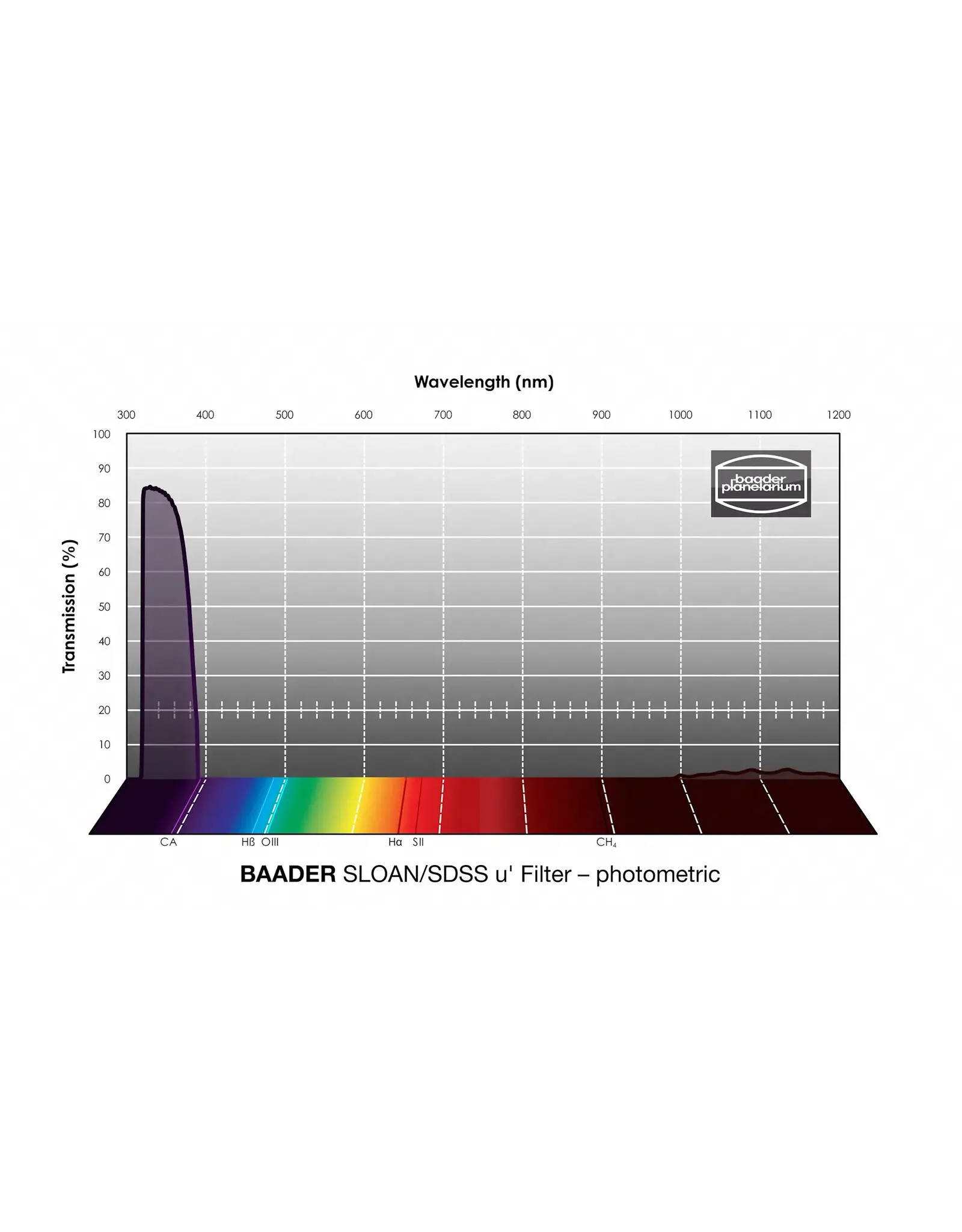

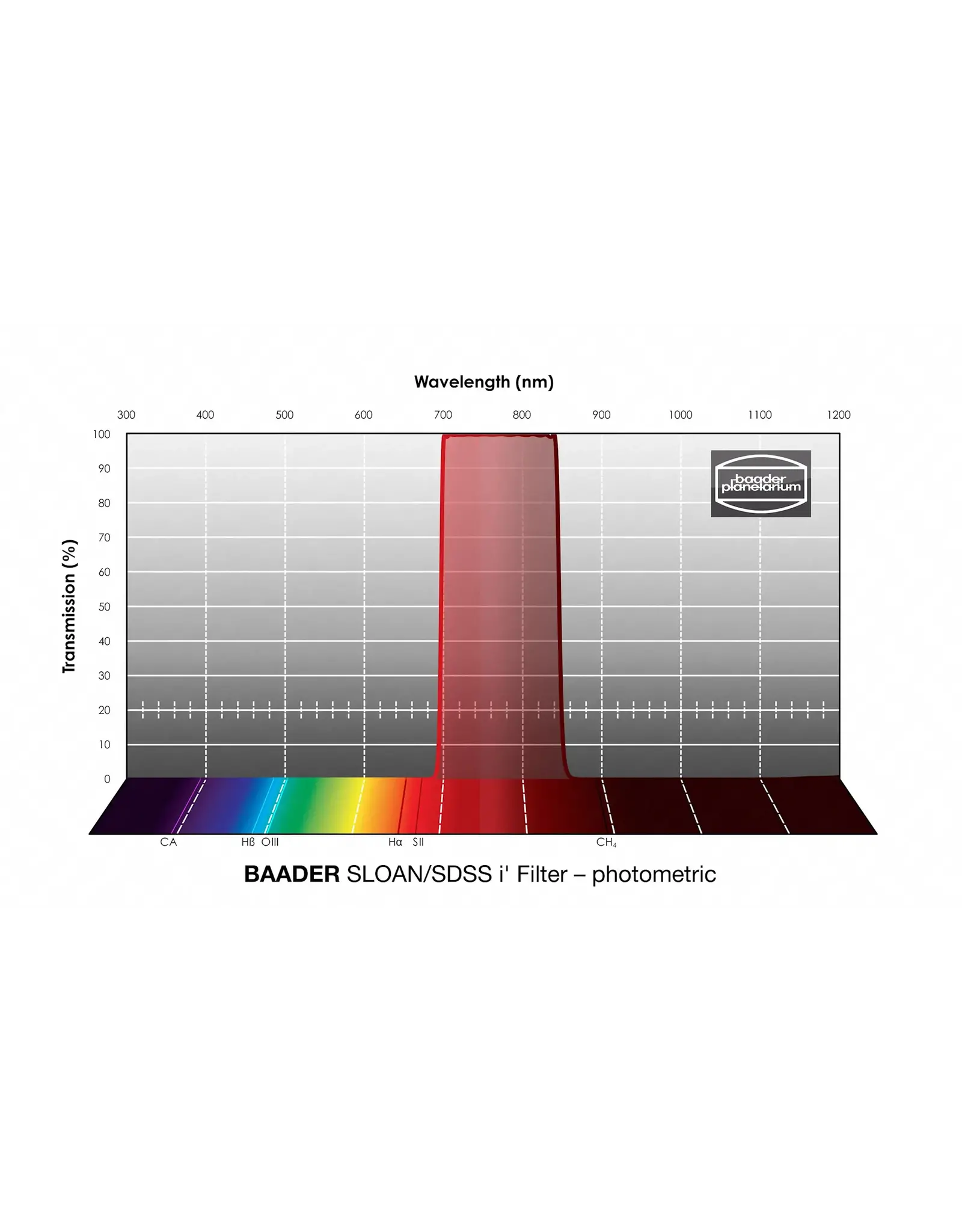

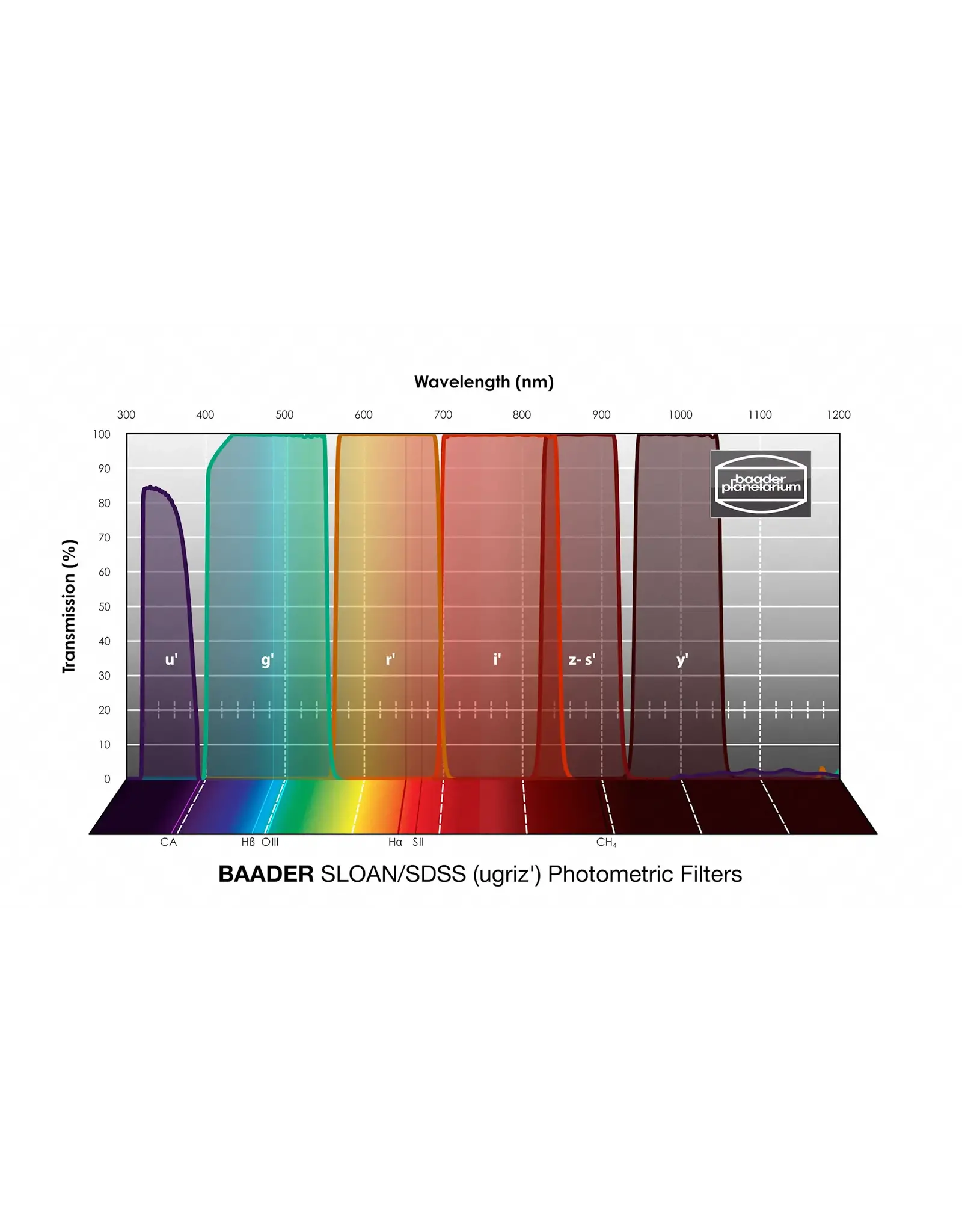

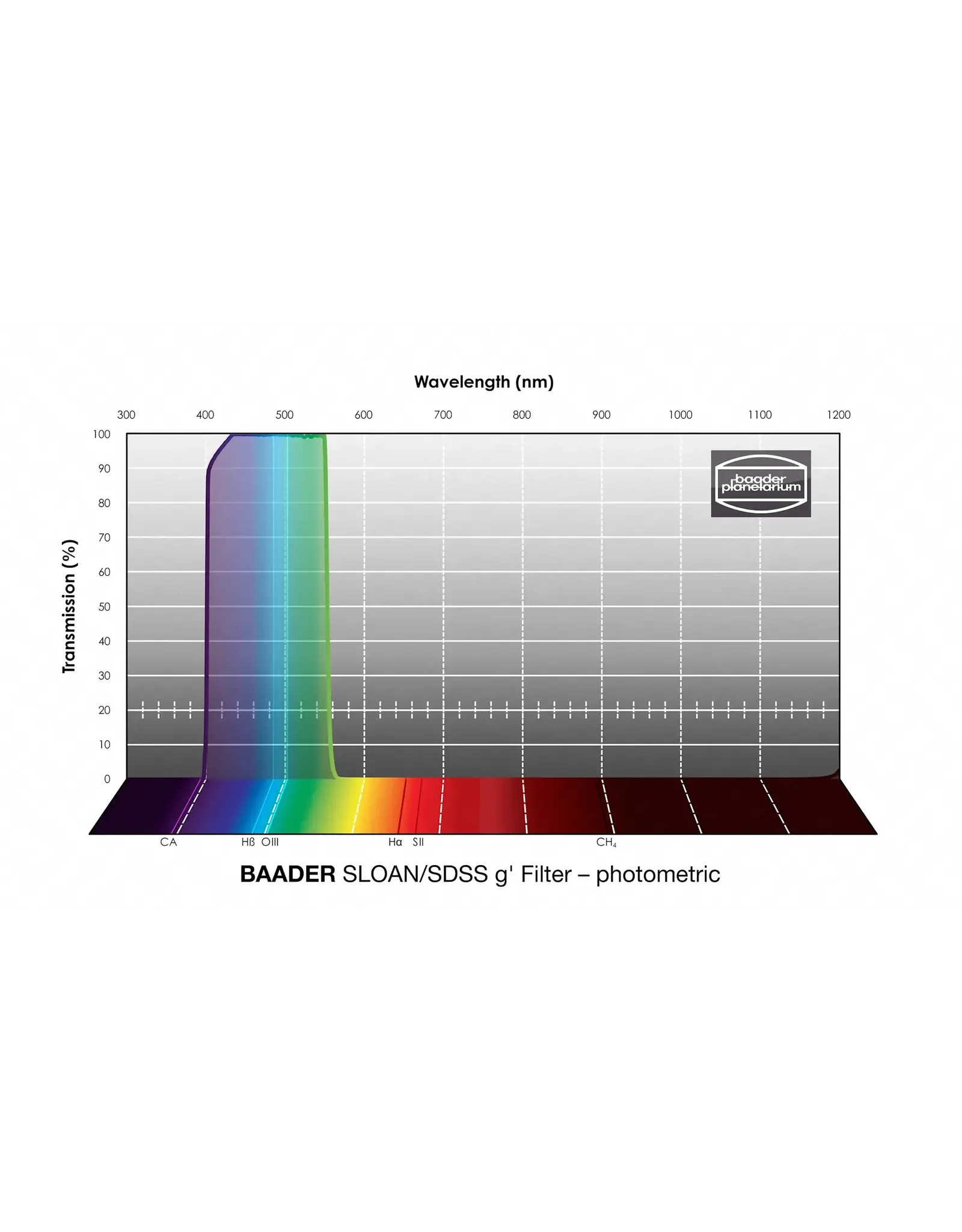

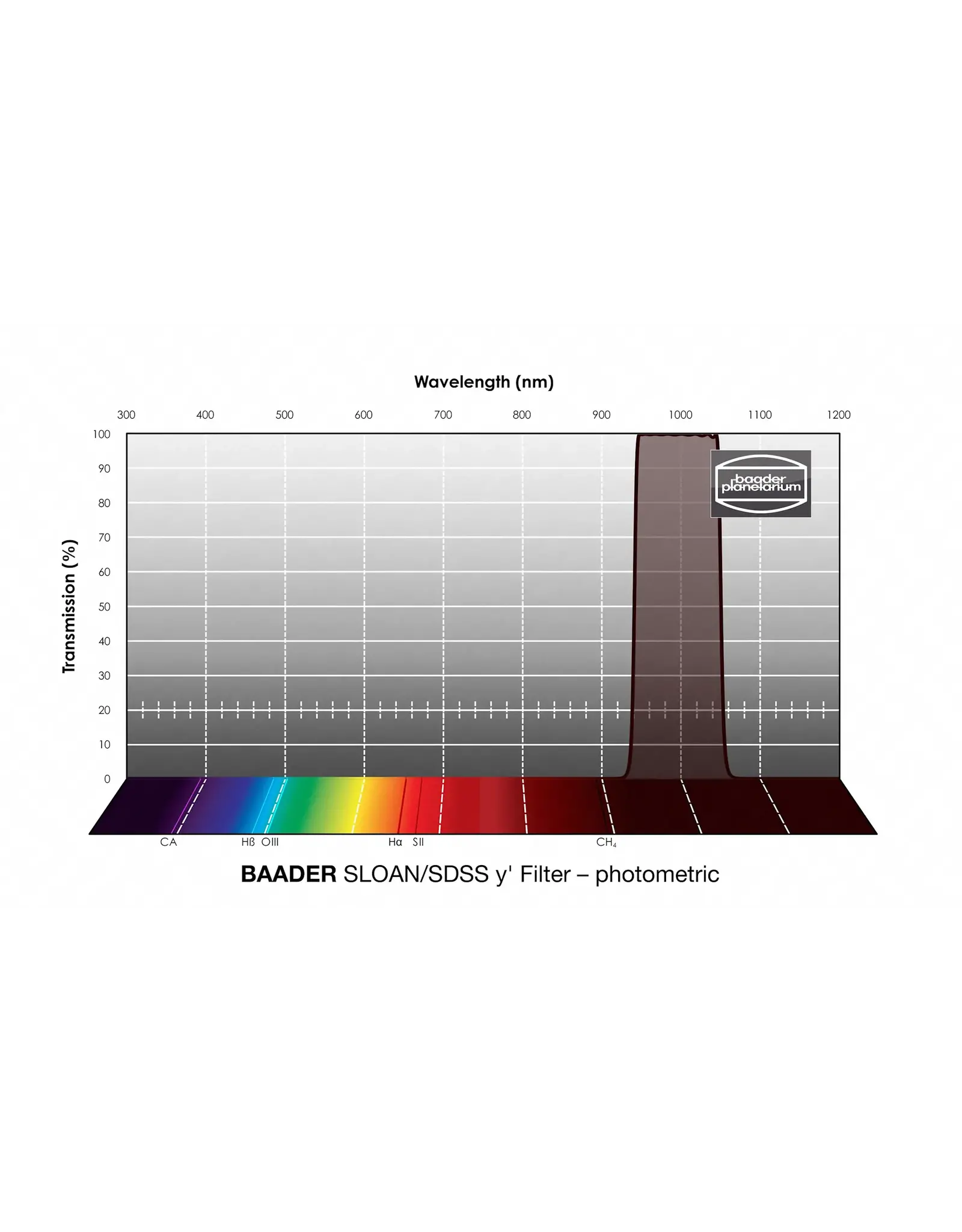

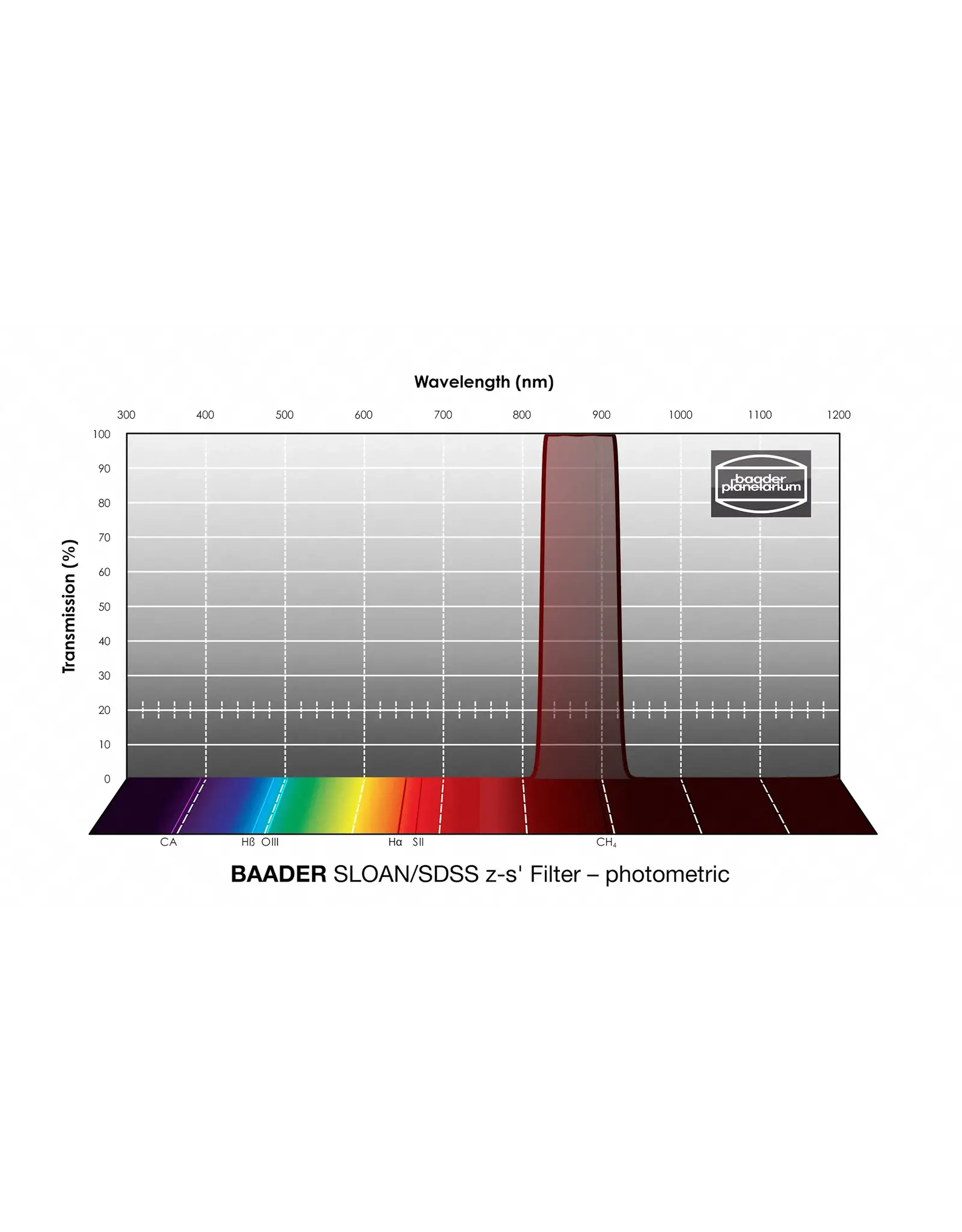

- SLOAN/SDSS (ugriz) photometric filters with transmission according to SLOAN-specification
- Manufactured with most advanced ion beam coating technology / Daylight-Proof
- Reflex-BlockerTM hard coated and planeoptically polished- with sealed coating edges (Life-CoatTM)
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
- Equally suitable for modern CMOS cameras as well as for older CCD camera technologies
The new generation of Baader CMOS-optimized filters features:
- Reflex-BlockerTM coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed read more)
- Life-CoatTM: evermore hard coatings to enable a non-aging coating for life- even in a most adverse environment
Limited-Lifetime-Warranty for CMOS-optimized Baader filters
A Baader Planetarium exclusive. Filters incorporating Baader Planetariums Life-CoatTM technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-CoatTM using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-CoatTM coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.
Baader Planetarium guarantees their Life-CoatTM coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.
MANUFACTURER | Baader Planetarium |
---|---|
COLOUR | Black |
TRANSMISSION RANGE | Transmission according to SLOAN-Specification |
FILTER THICKNESS (WITHOUT CELL) |
|
CWL (CENTRAL WAVELENGTH) | SLOAN |
AR-COATING | Reflex-BlockerTM hard coated, planeoptically polished |
SPECIAL FEATURES | Life-CoatTM Warranty |
FILTER SIZE | 1 25 inch, 2 inch, 36 mm, 50.4 mm, 50 x 50 mm, 65 x 65 mm, 100 x 100 mm |
FILTER USAGE | SLOAN, CMOS, CCD |
FILTER MOUNTED | Mounted (LPFC 6mm) / Unmounted |
TYPE OF FILTER | Bandpass |
SINGLE OR SET? | Single and Filterset |
FILTER SHAPE | round or square |
