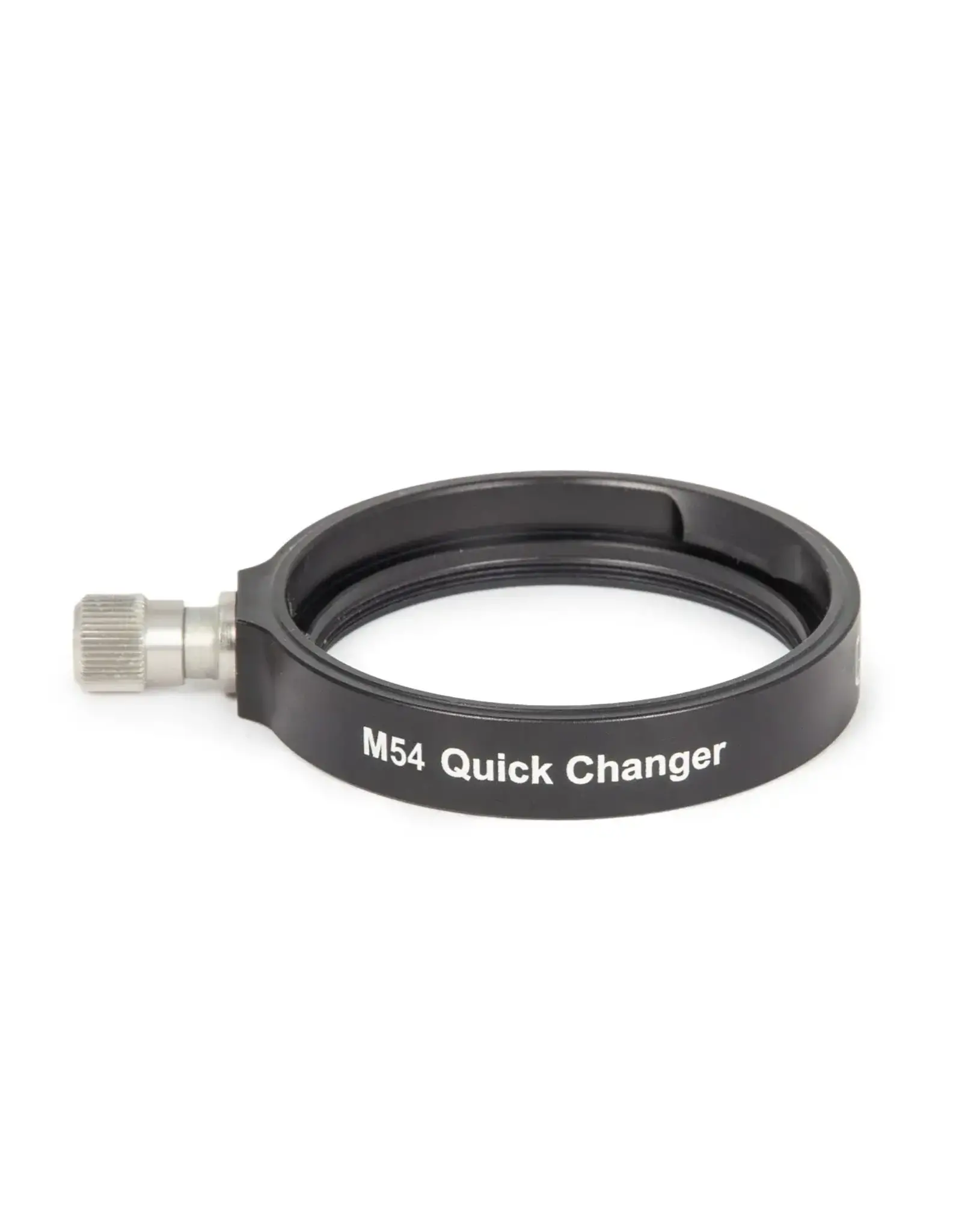

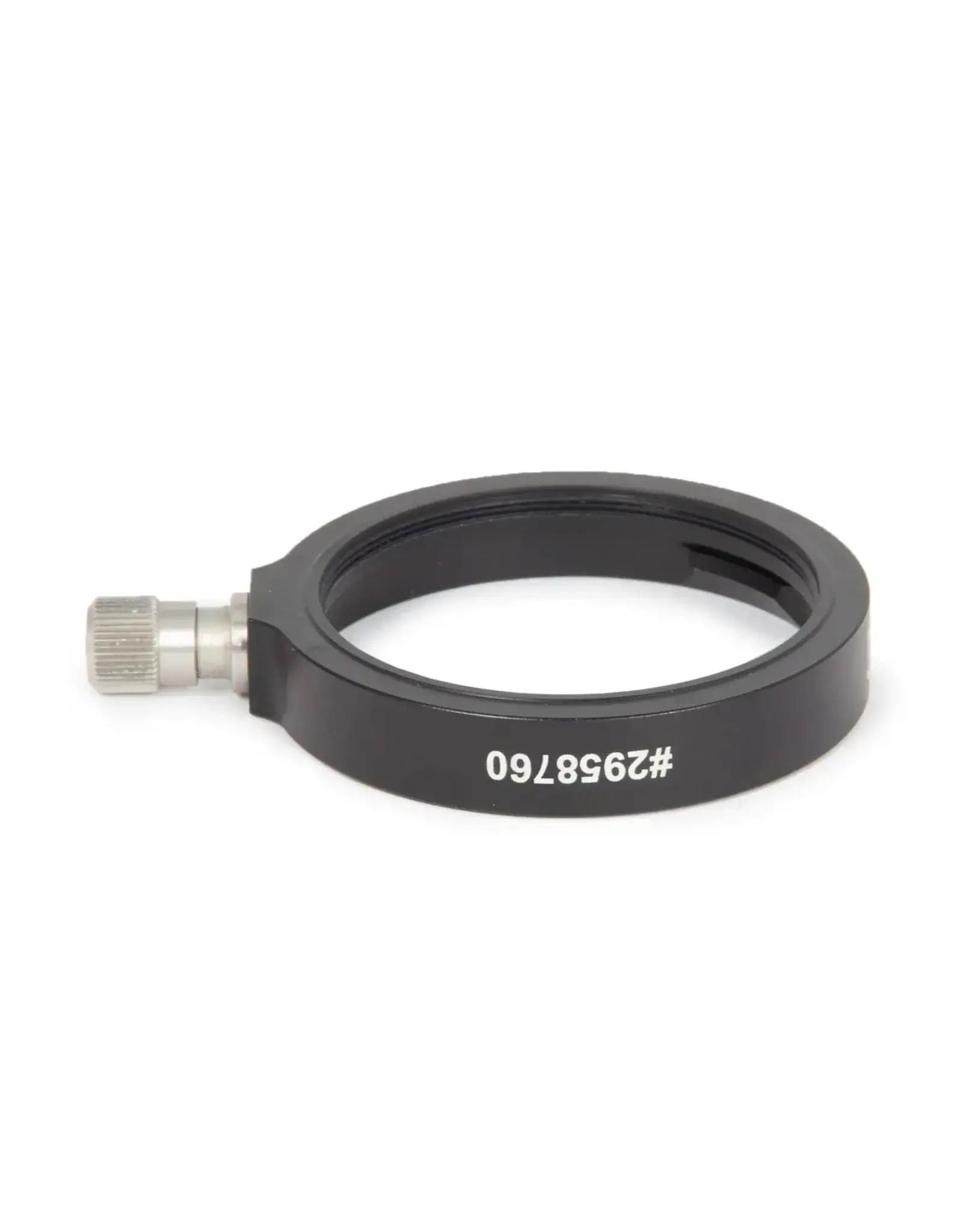

Baader M54 Heavy Duty QuickChanger with Optical length 11mm
| Article number: | M54-QC |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
- M54 female thread Heavy Duty Quick Changer
- Creates with the M54a Change Ring with S54a ring dovetail (#2958765) a quick-change and rotating device with the highest load capacity (also available as set: M54 Heavy-Duty Quick Change System – Changer and change ring (#2958766))
- Optical path length: 11 mm
- Quick release clamping for heavy accessories - with brass-clamping
- The changing system fits between any M48 connection
- 1x M54 Metal Dustcap with S54a ring dovetail (#2958702) included
Heavy Duty M54 Quick Changer
The Baader Heavy Duty M54 Quick Changing System enables the rotation-proof mounting of heavy accessories as well as the easy rotation of cameras, bino-viewers and other accessories.
The quick changer has a built-in M54 internal thread and a high-quality thrust piece, so that even heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. Together with the M54a Change Ring with S54a ring dovetail (#2958765) it fits between any M54 thread and allows accessories to be exchanged or easily aligned. Quick Changer and Quick Changing Ring are also available together as M54 Heavy-Duty Quick Change System – Changer and change ring (#2958766).
| SKU | 2958760 |
|---|---|
| EAN Code | 4047825052292 |
| Manufacturer | Baader Planetarium |
| Adapters Family | M54 System |
| Optical length (mm) | 11 |
| Type of Adapter | Same-Thread Adapter |
| Usage | for heavy-duty accessories |
| Camera Adaptable | M54 thread |
| Clamping System | Screw clamps |
| Inner Connection (eyepiece/-camera-sided) | S54 |
| Inner Connection (lens sided) | M54 x 0.75 |
| Screw Type | Large clamping screw with brass pressure plate |
| Inner Diameter / Clear Aperture (mm) | 54 mm |
| Net weight (kg) | 0.00 |
| Outer Diameter | 64 mm |
