Article number: |
M48/5 |
Availability: |
More on the Way to us |
Delivery time: |
More on the Way to Us |

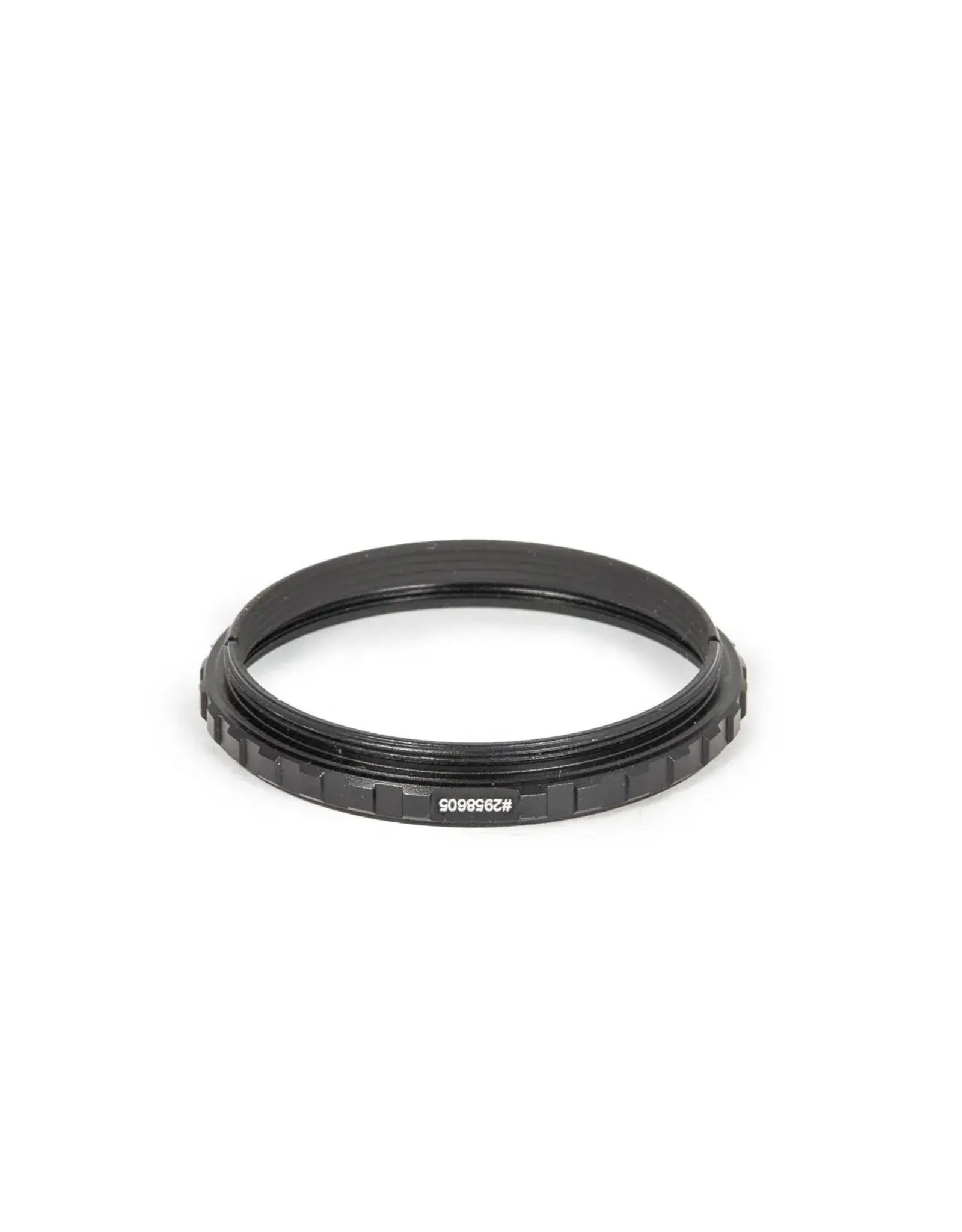

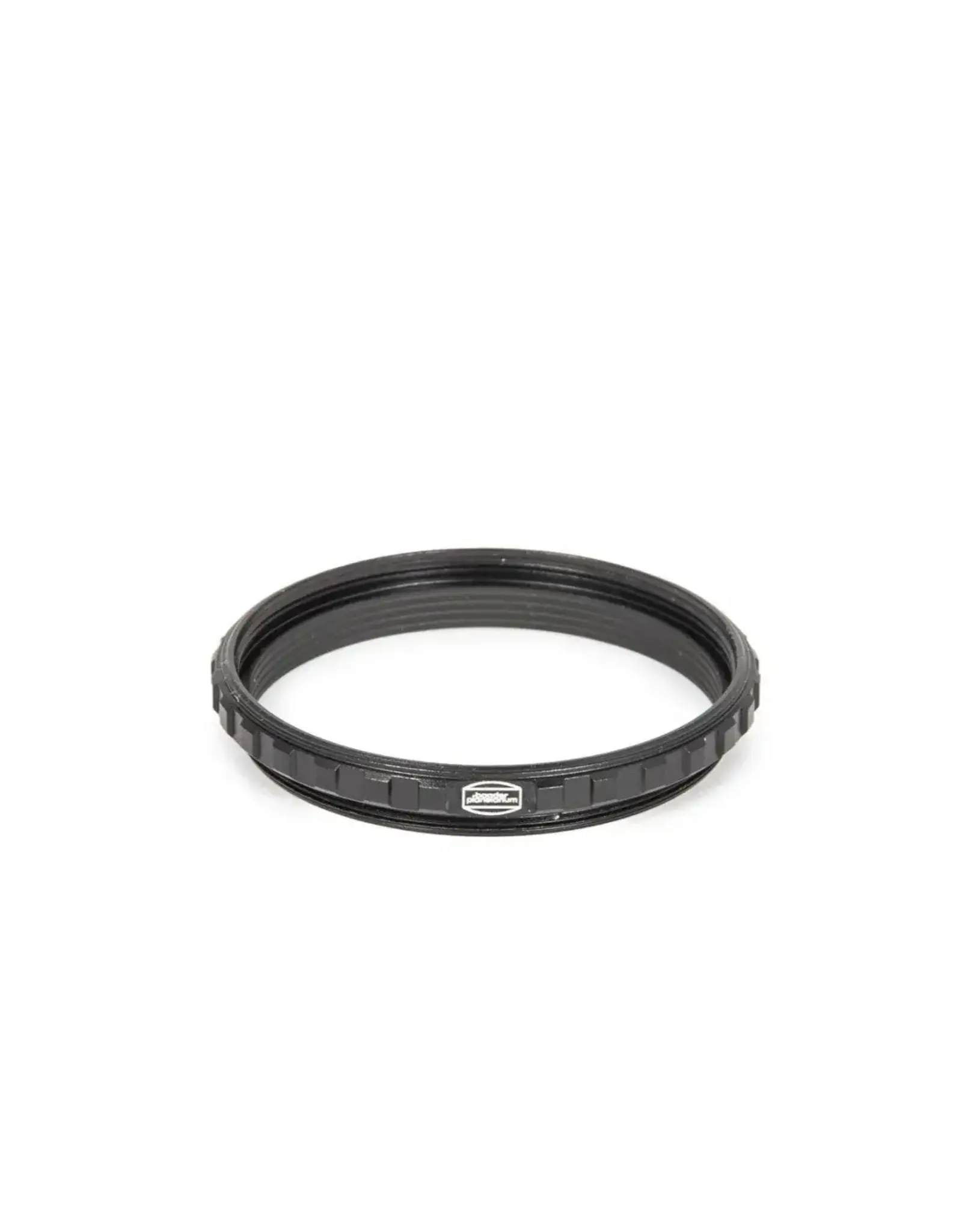

- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 5 mm optical path length
- Aluminium
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
MANUFACTURER |
Baader Planetarium |
SKU (#) |
2958605 |
EAN CODE |
4047825042828 |
OPTICAL LENGTH (MM) |
5 |
CLAMPING SYSTEM |
no clamp |
USAGE |
Adjusting the distances of accessories with M48 thread |
INNER DIAMETER / CLEAR APERTURE (MM) |
45 mm |
OUTER DIAMETER |
53 mm |
INNER CONNECTION (LENS SIDED) |
Thread, M48 |
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) |
Thread, M48 |
COMPATIBLE BRANDS |
Baader Planetarium |
TYPE OF ADAPTER |
Extension |
