Article number: |
M48/30 |
Availability: |
More on the Way to us |
Delivery time: |
More on the Way to Us |

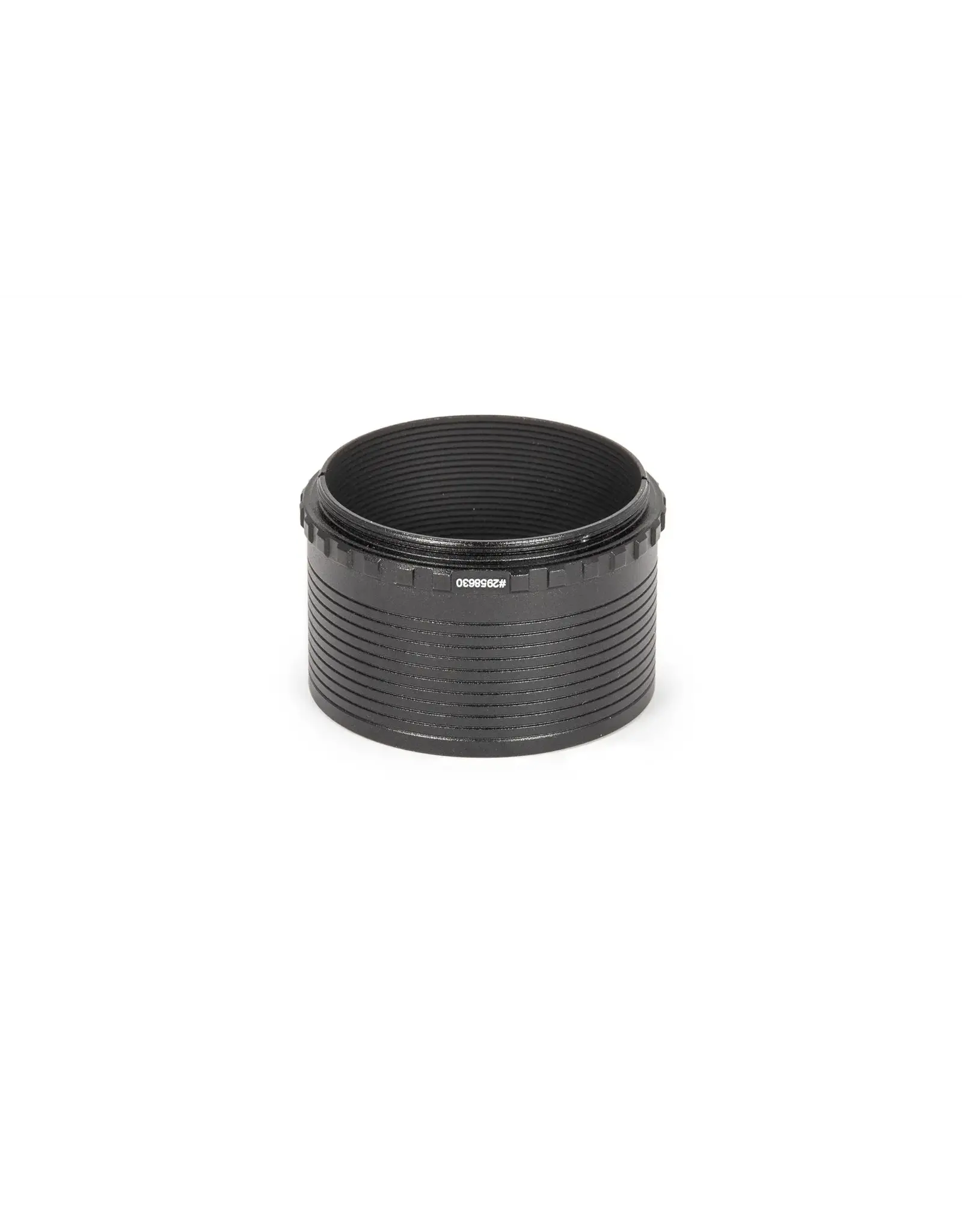

- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece side M48 external thread, 3 mm depth
- 30 mm optical path length
- Also used as M48 / 2" nose piece with 26 mm insertion depth, safety kerfs and 5mm optical height
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
MANUFACTURER |
Baader Planetarium |
SKU (#) |
2958630 |
EAN CODE |
4047825042859 |
OPTICAL LENGTH (MM) |
30 (or 5) |
CLAMPING SYSTEM |
no clamp |
USAGE |
Adjusting the distances of accessories with M48 thread, M48 / 2" nosepiece |
INNER DIAMETER / CLEAR APERTURE (MM) |
45 mm |
OUTER DIAMETER |
53 mm |
INNER CONNECTION (LENS SIDED) |
Barrel, Thread, M48, 2" (50,8mm) |
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) |
Thread, M48 |
COMPATIBLE BRANDS |
Baader Planetarium |
TYPE OF ADAPTER |
Extension |
