Compact and portable Advanced VX mount offers a maximum instrument capacity of 30 lb with the same rigidity as our larger mounts and minimal flexure
Every feature an astroimager wants: PEC, an autoguider port, the ability to image across the meridian, and more.
Dual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail.
Accessories included: 25mm eyepiece, 1.25” Star Diagonal, and a 6x30 finderscope
Includes These Celestron Technologies

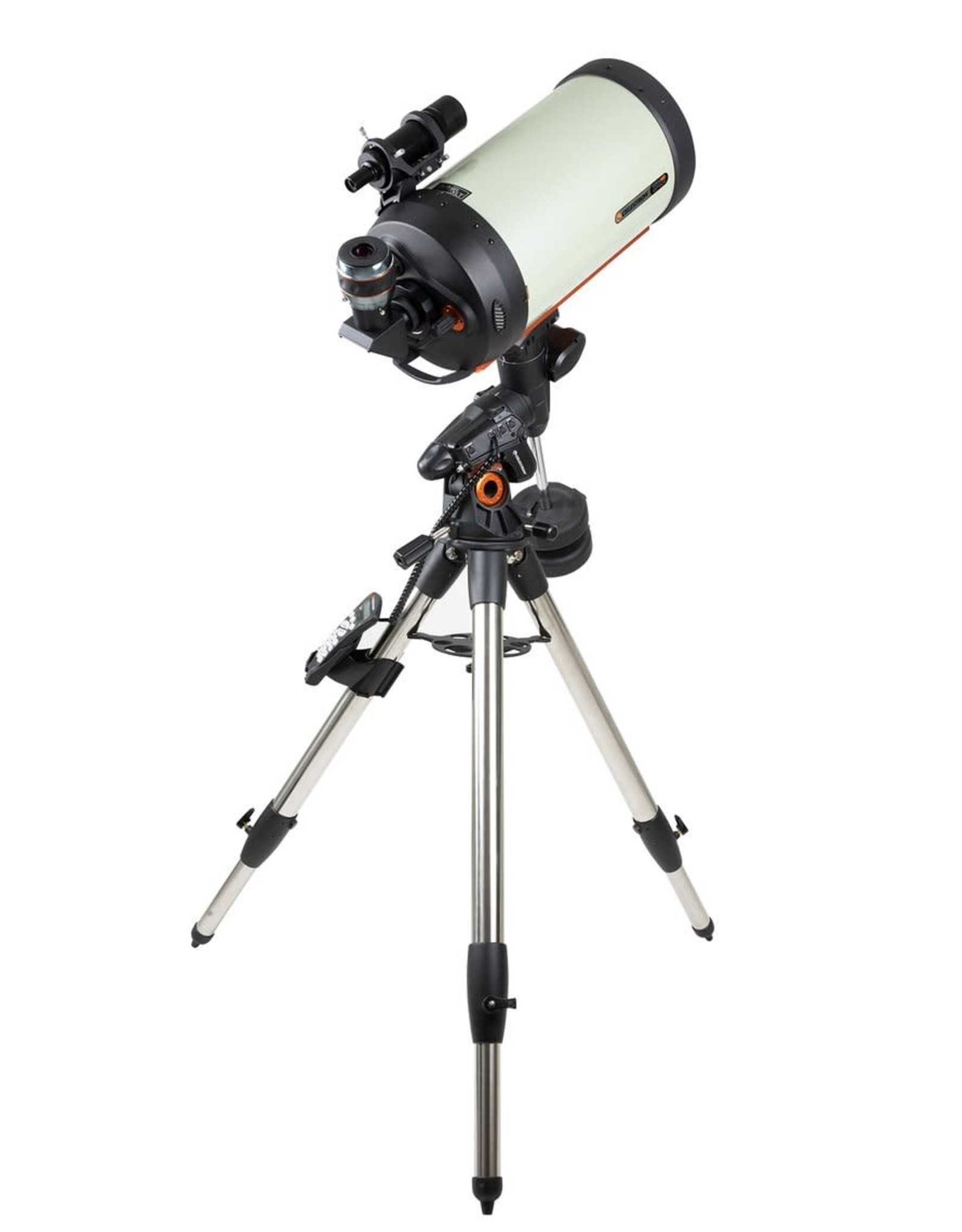

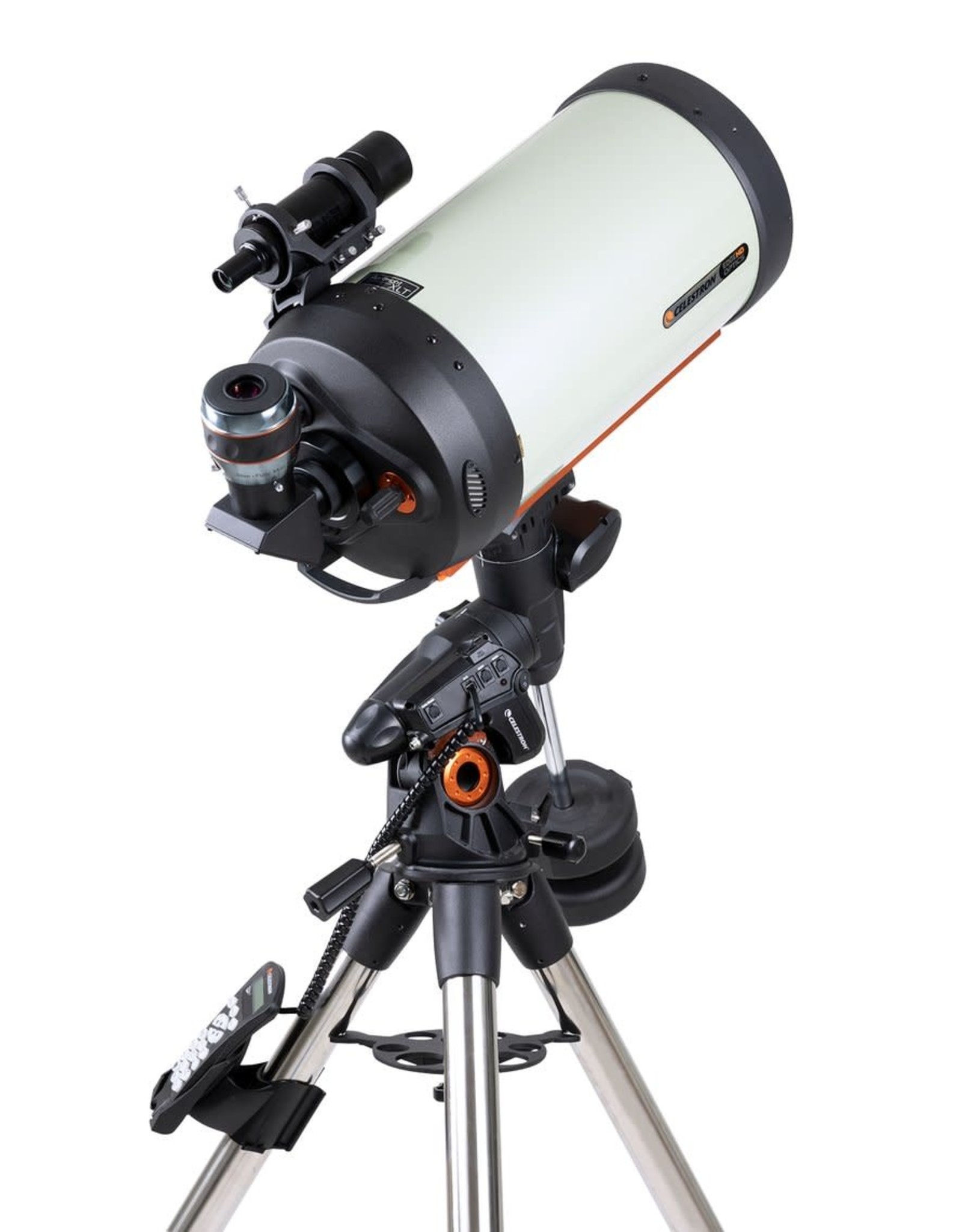

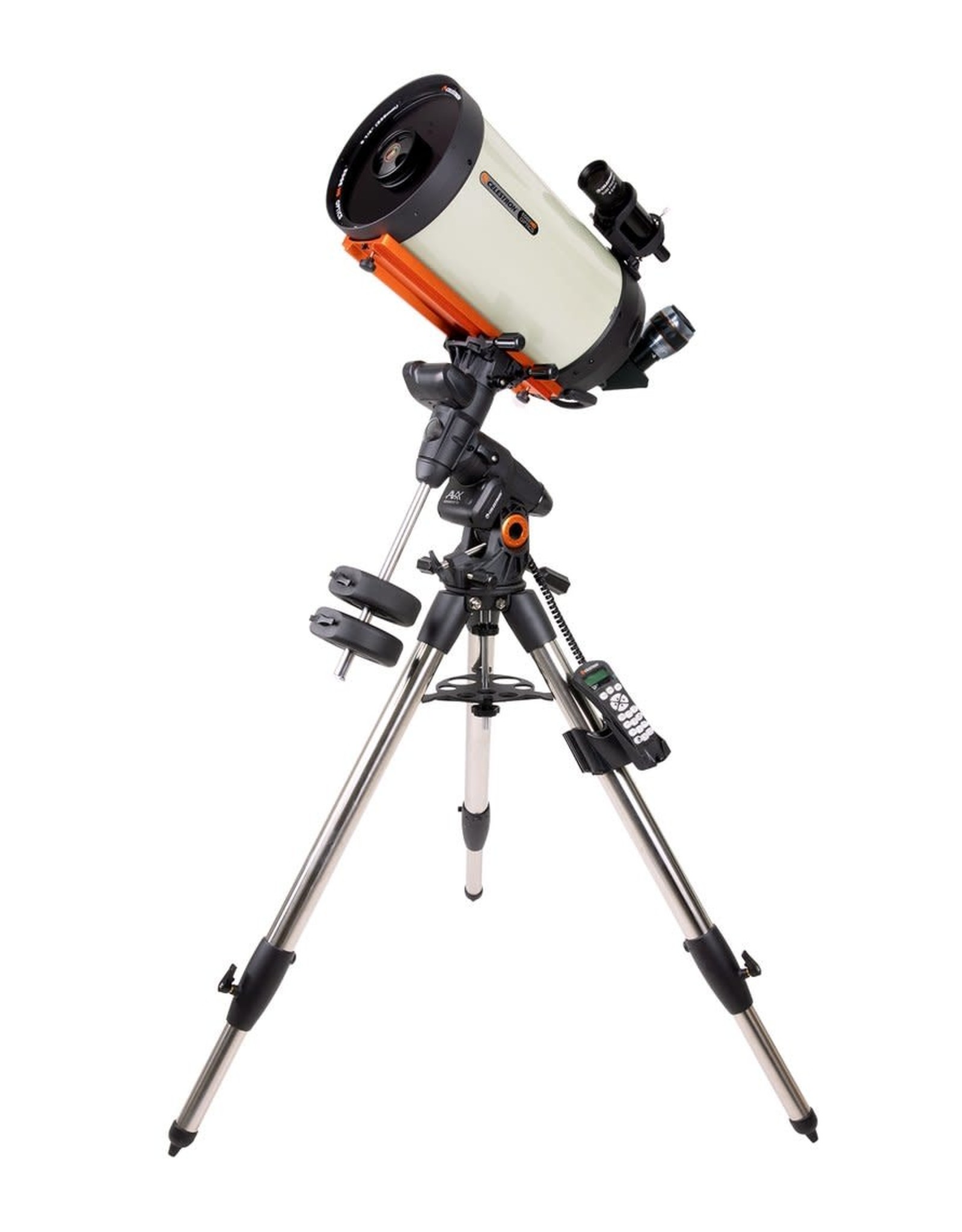

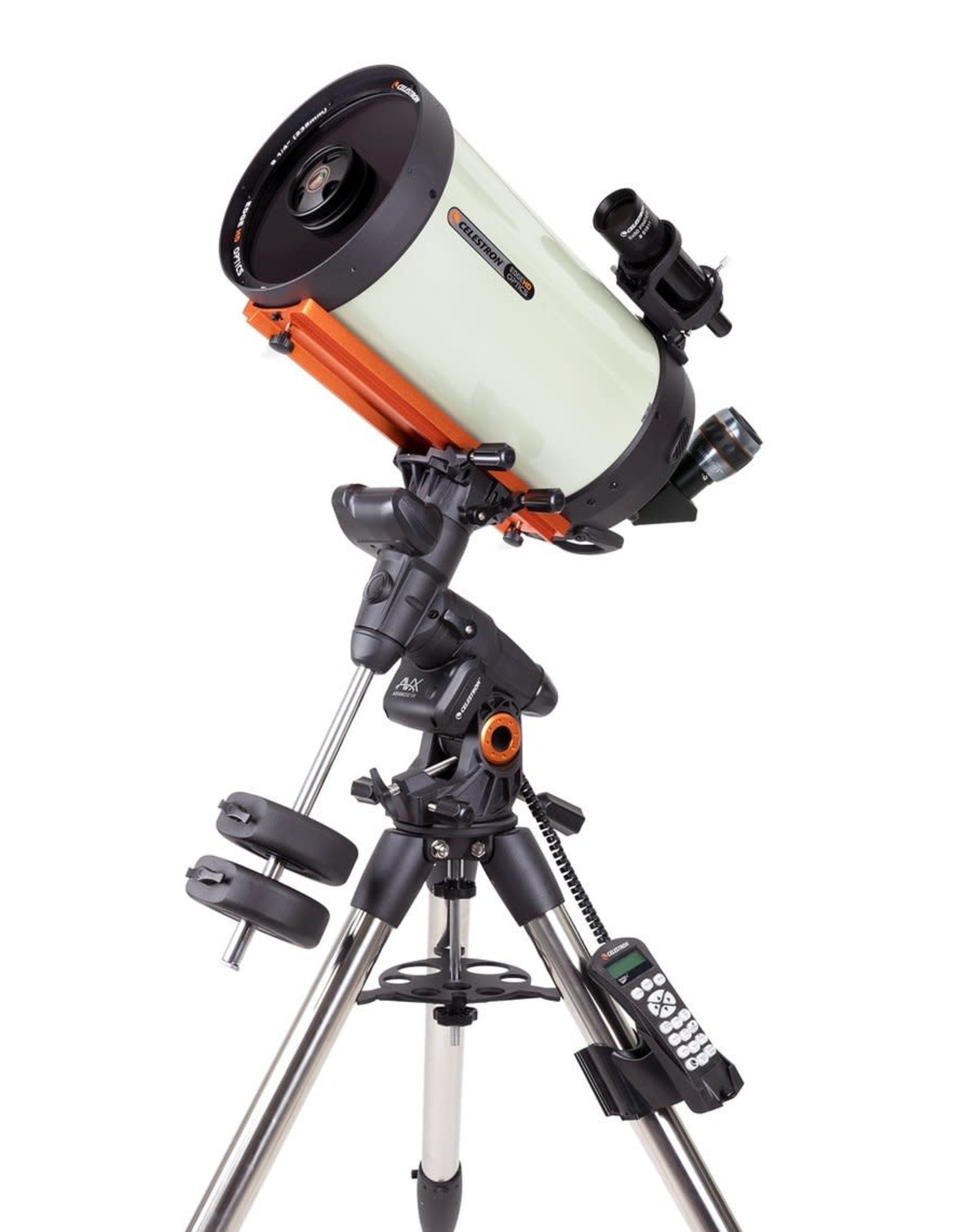

The 9.25” EdgeHD Advanced VX (AVX) telescope is a specialized instrument designed for astrograph-quality images that sets a new standard in mid-level telescopes. With its EdgeHD optical tube and the sturdy Advanced VX equatorial mount and tripod, this kit provides unparalleled views of the planets, up-close views of the lunar surface (including craters and maria), and stunning deep sky images.
EdgeHD Optical Design
EdgeHD is an aplanatic, flat field Schmidt optical system that produces aberration-free images across a wide visual and photographic field of view. The optical system reduces more than just off-axis star coma; it provides an astrograph-quality flat focal plane all the way to the edge of the field of view.
EdgeHD optics produce a focal plane more than three-times flatter than a standard Schmidt-Cassegrain telescope and dramatically flatter than competing coma-free designs. This guarantees you visibly sharp stars across the largest imaging sensors available today. Learn more about EdgeHD technology.
Advanced VX Mount & Tripod
The Advanced VX mount is designed to provide superior performance for smaller telescopes while taking advantage of Celestron’s most advanced technologies: All-Star Polar Alignment, Celestron PWI telescope control software, SkyAlign, and permanently programmable periodic error correction (PPEC).
If you’re an experienced imager, you’ll love taking this portable mount to a dark sky site and enjoying all the conveniences of a larger observatory mount. Or, if you’re new to imaging, Advanced VX will help you get started with the hobby and keep up with your needs for years to come.

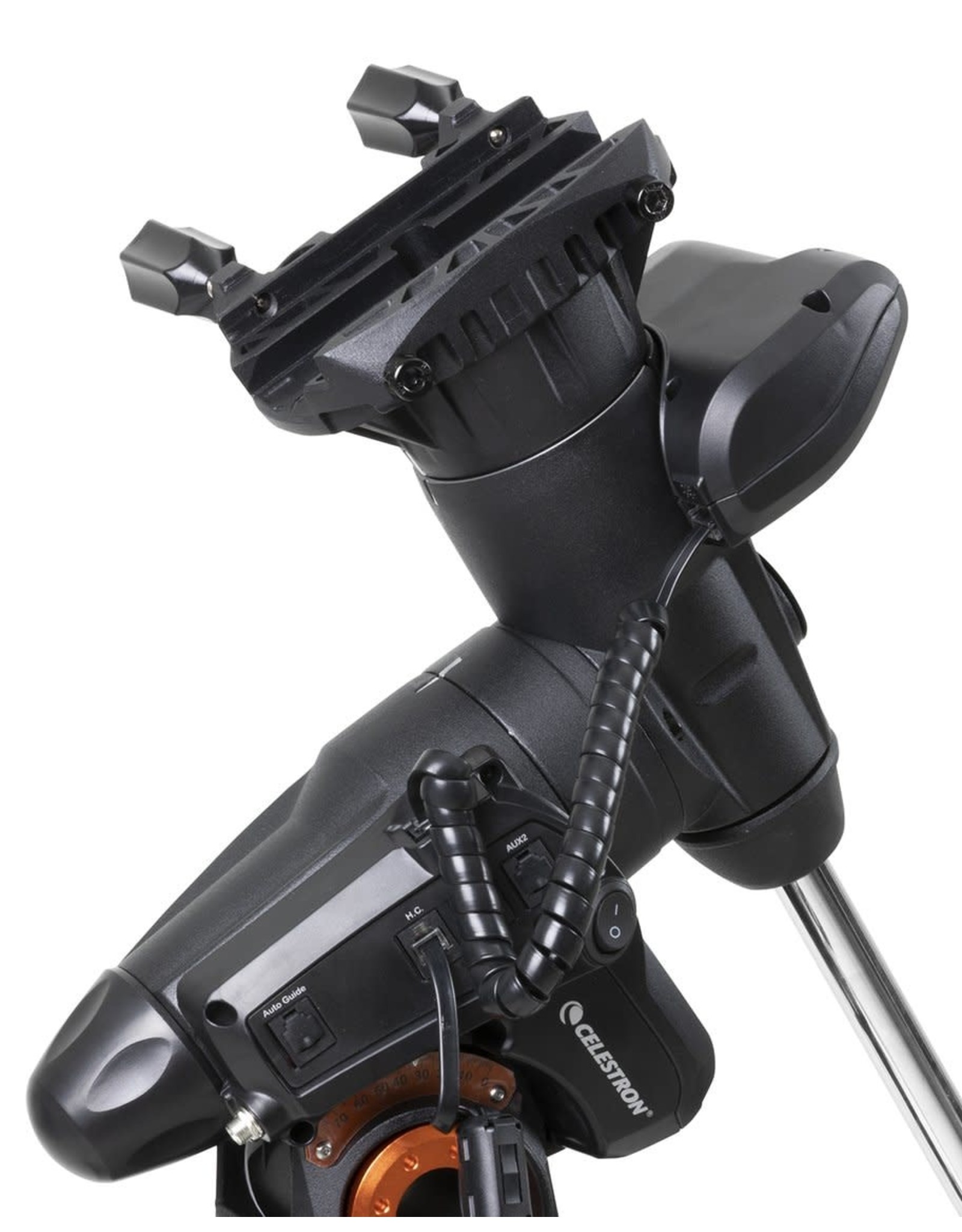

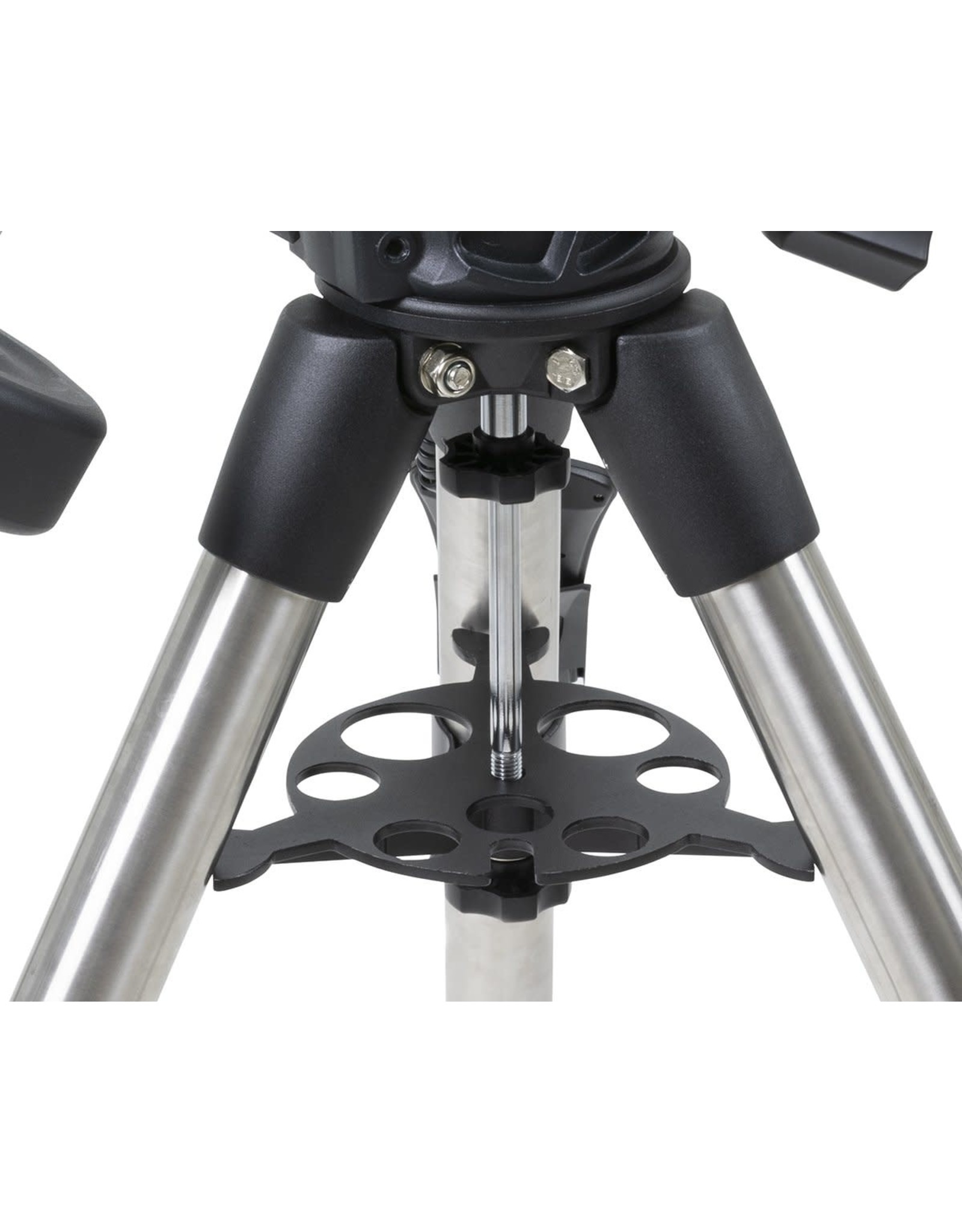

Computerized German Equatorial mount - The Advanced VX is the smallest of Celestron’s German equatorial mounts. The computerized GoTo capability automatically tracks objects as they move across the night sky. The Advanced VX mount includes ports for a hand control, an autoguider, and 2 AUX ports for optional accessories. The NexStar+ hand control gives you instant access to all the functions your mount has to offer. With automatic slewing and menu descriptions, astronomers of all skill levels can master this mount in just a few observing sessions. The Advanced VX also has an impressive tripod for its class with 2”-diameter steel tripod legs, providing an extra-wide stance for improved stability.
Payload capacity - The payload capacity for the Advanced VX is 30 pounds. It offers a sturdy platform for the 9.25” EdgeHD optical tube, even when paired with optional accessories like StarSense AutoAlign, Focus Motor, a finderscope, and a camera. Celestron's payload capacity does not include the weight of the counterweights.
Dual saddle plate - As of early 2019, Advanced VX mounts now include a new dual saddle plate that accommodates both CG-5 and CGE-style dovetails. Switching between the two saddle plates is as simple as moving the hand knobs into a separate set of holes. This means you can use your Advanced VX mount not only with the 9.25” EdgeHD, but virtually any optical tube within Advanced VX’s weight limit. The mount is compatible with Vixen format dovetails 100mm or longer, but not compatible with Losmandy D format plates (regardless of plate manufacturer).
Celestron PWI Telescope Control: Your Ultimate Astronomy Software - All current Celestron computerized telescopes include Celestron PWI (CPWI), the most advanced astronomy software provided with any consumer-grade telescope. Celestron’s experts co-developed CPWI with the engineers at PlaneWave Instruments. The result is an all-in-one solution offering you many of the same features used on PlaneWave’s observatory-class telescopes.
Graphical planetarium interface with PointXP advanced mount modelling allows you to add 100+ points to your alignment model for the most accurate pointing and tracking possible
Ideal for remote observatory setups: save and re-load your alignment and park your scope
Provides a complete ASCOM telescope interface to allow control of the telescope from third party software applications
For more information on CPWI and to see the user interface, click here.
Starry Night Software - Also included with your purchase is a free download of Celestron’s Starry Night Special Edition Software. This advanced software by Simulation Curriculum offers detailed information about celestial objects and helps you plan your next observing or imaging session. The Special Edition software also includes telescope control via your PC.
The Advanced VX 9.25” EdgeHD comes complete with a 25mm eyepiece, a 1.25” star diagonal, and a 6x30 finderscope. To increase your field of view without sacrificing performance, add the optional EdgeHD reducer lens, bringing your focal ratio down to f/7. An optional Barlow lens can provide additional magnification for high-resolution planetary, lunar, and solar imaging. And, of course, all EdgeHD optical tubes are Fastar-compatible for ultra-fast f/2 wide field imaging. Each EdgeHD tube is fitted with a removable secondary mirror and is opto-mechanically aligned on a laser bench to ensure it is axially symmetric in any configuration.
Focal Length of Eyepiece 1
Magnification of Eyepiece 1
2" with 1.25" adapter
Highest Useful Magnification
Lowest Useful Magnification
Limiting Stellar Magnitude
.59 arc seconds
.49 arc seconds
Light Gathering Power (Compared to human eye)
Secondary Mirror Obstruction
Secondary Mirror Obstruction by Diameter
Secondary Mirror Obstruction by Area
Optical Tube Length
Optical Tube Diameter
Optical Tube Weight
21 lbs (9.53 kg)
CGE Dovetail bar
Instrument load capacity
30 lbs (13.6 kg)
Height adjustment range (includes mount and tripod)
1118mm - 1626mm (44" – 64")
Tripod Leg Diameter
50.8mm (2") Stainless Steel
Latitude adjustment range
7° - 77°
Mount Head Weight
17 lbs (7.71 kg)
18 lbs (8.16 kg)
Weight of Counterweights
2 x 12 lbs
9 slew speeds - max speed 4°/second
Sidereal, Solar and Lunar
EQ North & EQ South
Dual saddle plates (CG-5 and CGE saddle)
Number of Auxiliary ports
3 Aux ports (1 hand control and 2 AUX ports for optional accessories
Yes, input on Hand Control
12V DC 3.5A (tip positive)
DC servo motors
2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
Periodic Error Correction
Computerized Hand Control
2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 port for PC connection
40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Celestron's Starry Night Special Edition Software, SkyPortal App
Total Kit Weight
47 lbs (21.31 kg)
Advanced VX Equatorial Head | Tripod | Accessory Tray | 2 x 12 lbs counterweights | NexStar+ Hand Control | DC Power Cable (item# 18769) | Hand Control Holster
