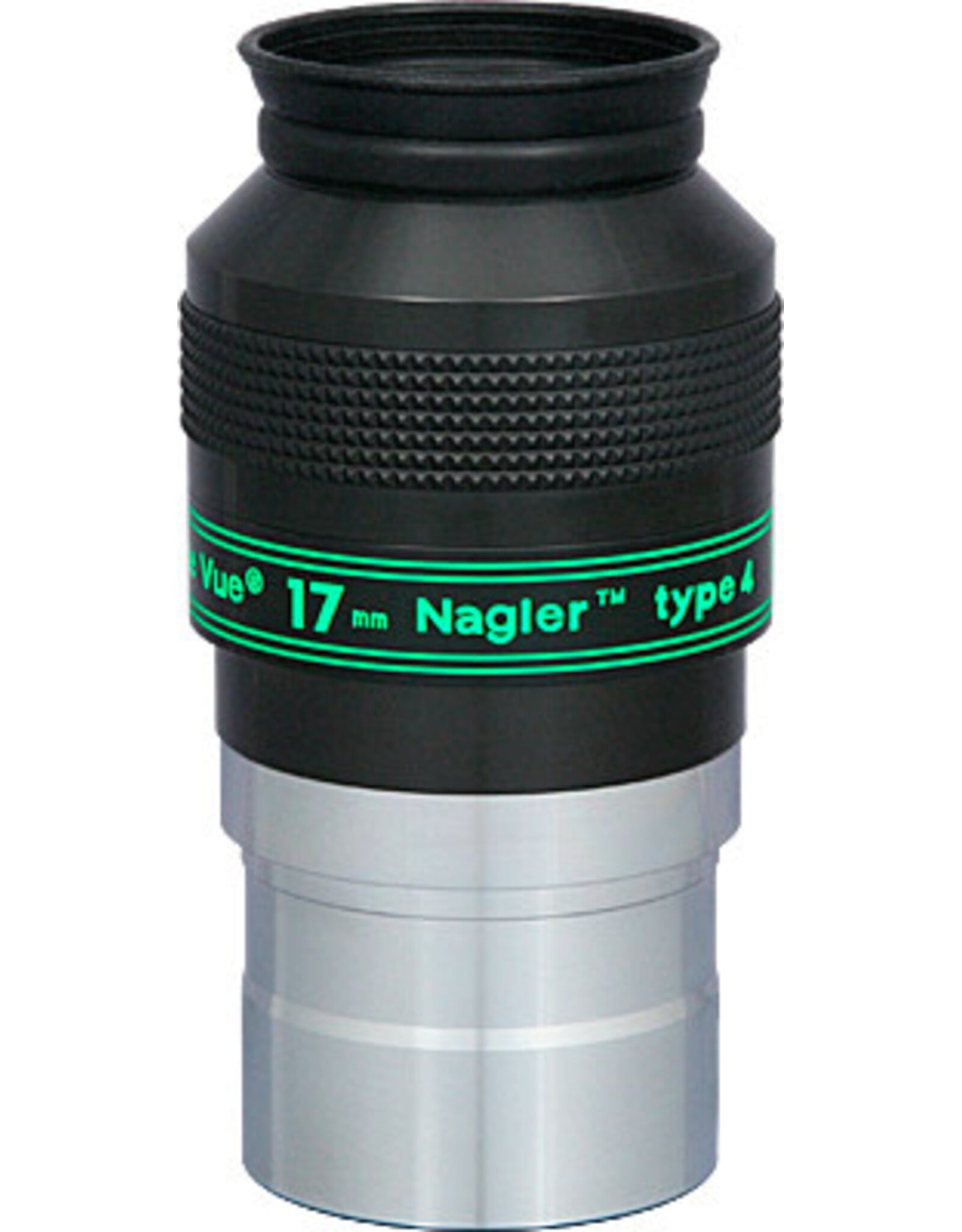

Tele Vue 17mm Nagler Type 4 Eyepiece - 2

$397.01
Article number: EN4-17.0
Availability: Order Now!
Delivery time: Ships in 2-3 business days from our Warehouse
17-mm
Model # EN4-17.0
Focal Length (mm) 17
Barrel Size (in.) 2"
Apparent Field of View (deg.) 82
Eye Relief (mm) 17
Weight (lb / oz) 1.60 / 25.6
Field Stop (mm) 24.3
Compare to similar focal lengths

image...

image...




Related Links
Nagler Type-4 Eyepieces

Applying the experience of the Radian development to the 82° Nagler series, yielded more contrast, reduced pincushion, more true field, and longer eye-relief. With added eye-relief, the click-stop Instadjust eyeguard helps maintain proper eye distance and centration.

For deep sky viewing, the comfort, clarity and contrast gets us closer to our "spacewalk" viewing goal.

Why Are There 3 Types of Naglers?

To achieve the full magnification range over 82° apparent field of view requires two types: Nagler Type-5 with focal lengths of 31, 16mm and Nagler Type-6 with focal lengths of 13, 11, 9, 7, 5, 3.5, 2.5mm.

The Type-5 permits the largest true field possible (31mm has 42mm field stop).

Type-6 models have shorter focal lengths, are parfocal, with similiar size and weight, and all with a comfortable 12mm eye relief.

The Type-4 models feature about 18mm of eye relief and with the "instajust" eyeguard are best for eyeglass wearers or Dioptrx users in their 22, 17, 12mm focal length range.
