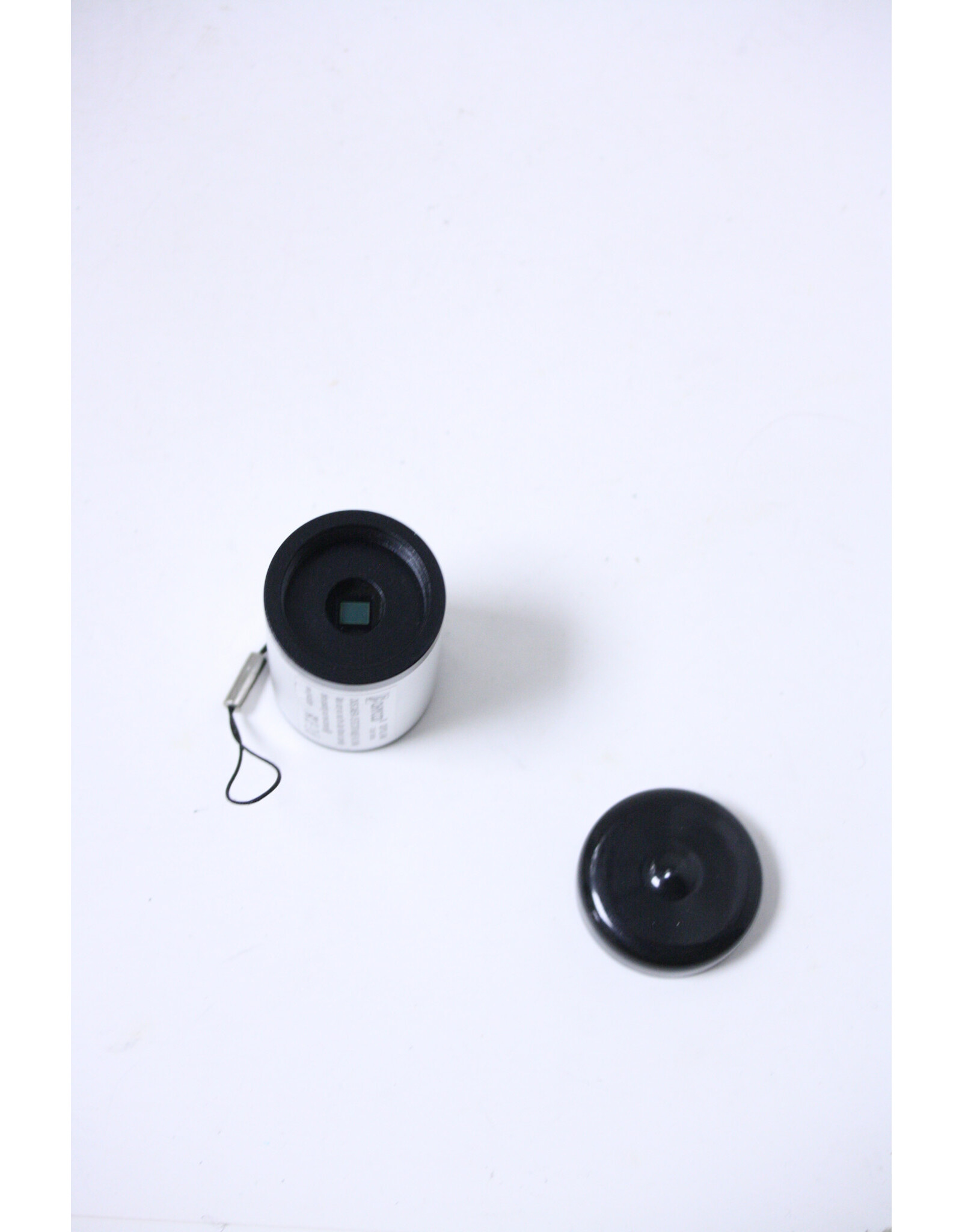

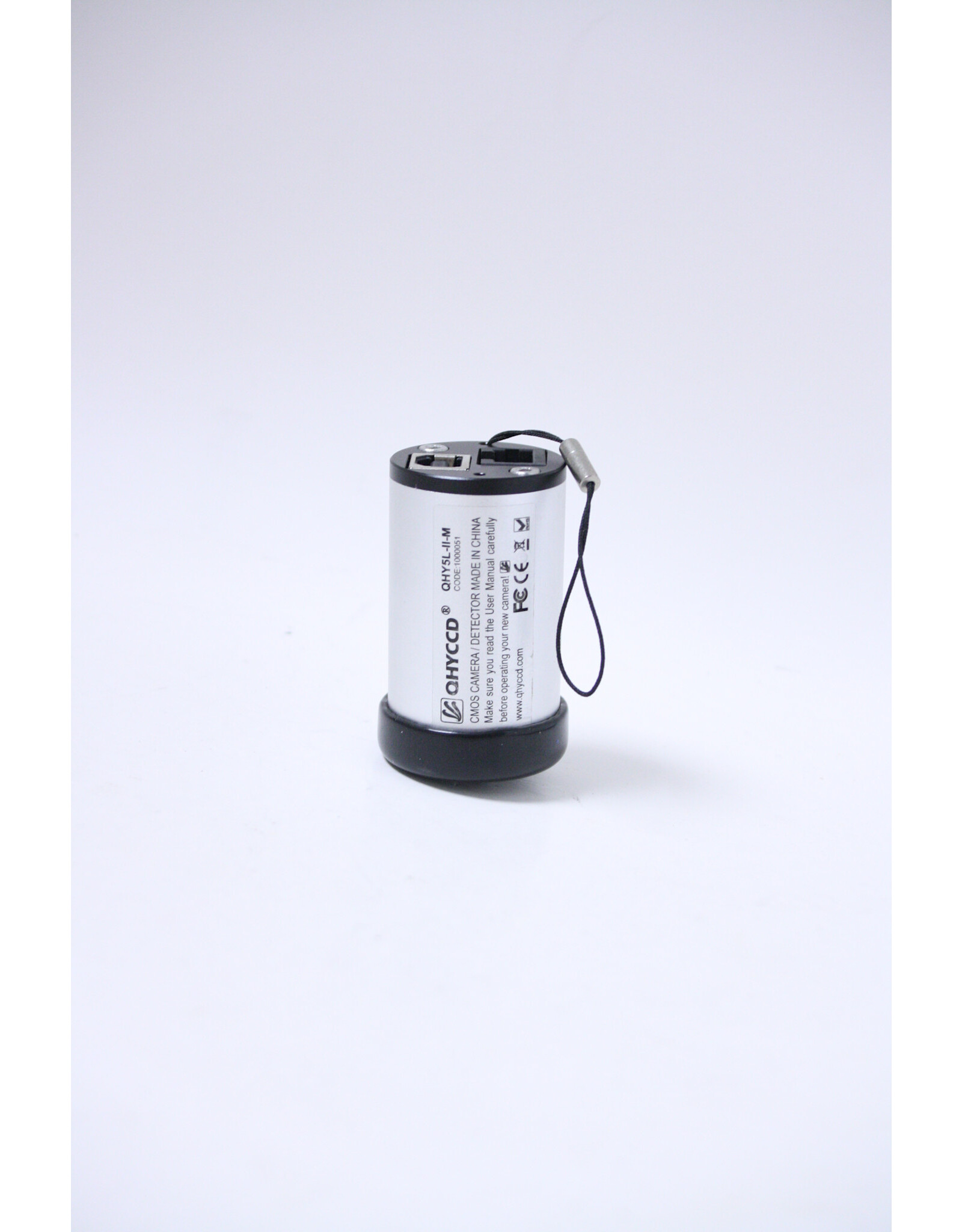

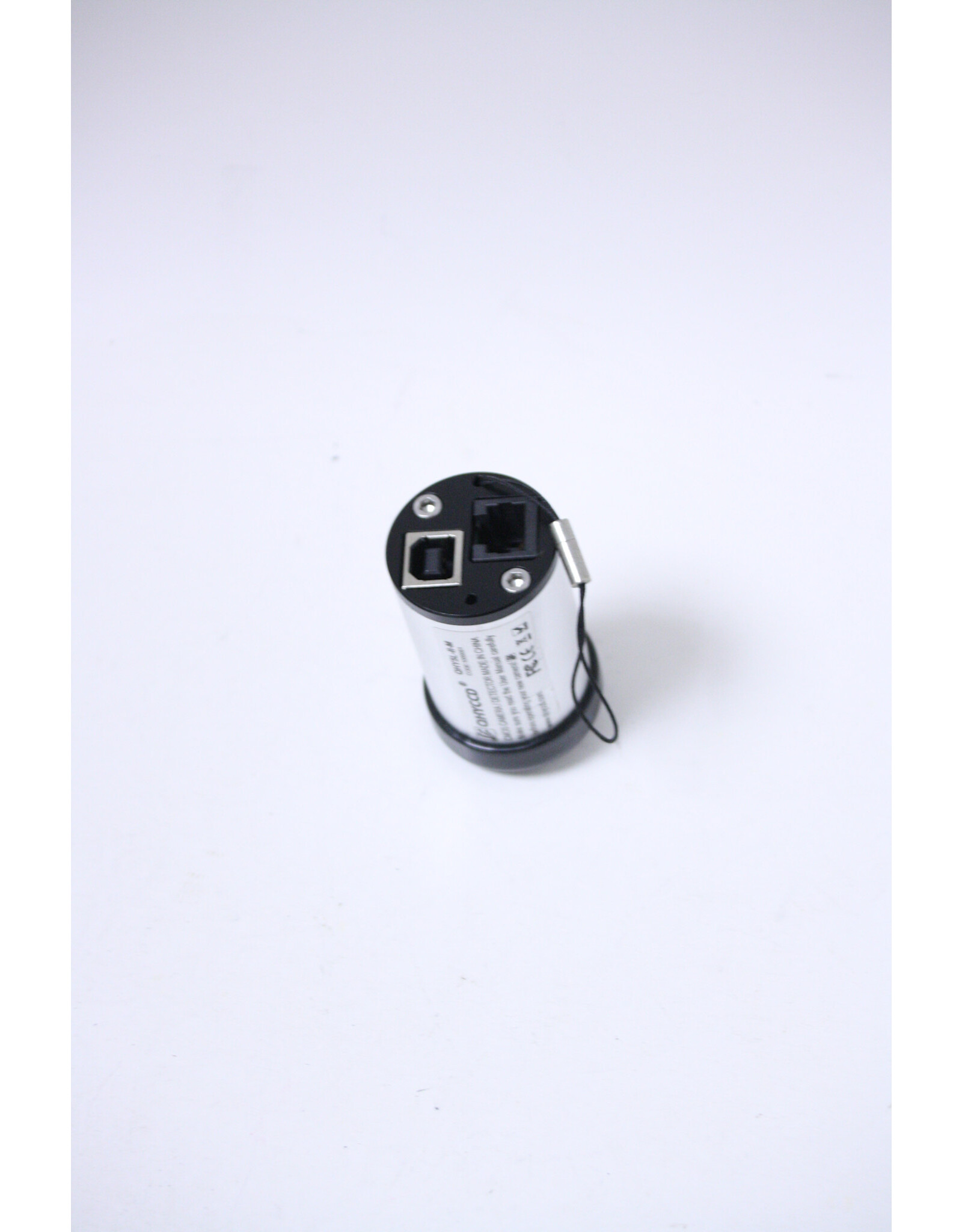

QHYCCD QHY5L-II-M Imager (Pre-Owned)

QHYCCD QHY5L-II-M Monochrome CMOS Planetary and Autoguider Camera

Precision Imaging in a Compact Design

The QHY5L-II-M is a high-performance monochrome CMOS camera designed for planetary imaging, autoguiding, and deep-sky observations. Housed in a compact 1.25" form factor, it seamlessly fits into standard eyepiece holders, making it an ideal choice for astronomers seeking portability without compromising on performance. Equipped with the OnSemi MT9M034 sensor, this camera boasts a 74% quantum efficiency and a low readout noise of approximately 4 electrons, ensuring clear and detailed images even under high gain settings.

Whether you're capturing the intricate details of planetary surfaces, guiding your telescope with precision, or exploring deep-sky objects, the QHY5L-II-M offers versatility and reliability. Its USB 2.0 interface ensures fast data transfer, achieving up to 30 frames per second at full resolution and 106 frames per second at VGA resolution.

Specifications

• Sensor: OnSemi MT9M034 CMOS

• Resolution: 1280 x 960 pixels

• Pixel Size: 3.75 µm

• Optical Format: 1/3-inch

• Quantum Efficiency: 74%

• Readout Noise: ~4 electrons

• Frame Rate:

  • 30 FPS at full resolution

  • 106 FPS at 640 x 480 resolution

• Interface:

  • USB 2.0

  • 6-pin RJ11 guider port

• Telescope Interface: 1.25-inch, CS-Mount

• A/D Converter: 12-bit
