Pegasus Astro Indigo Filter Wheel (7 position / 2-inch filters) - PEG-INDIGOFW7-2

$516.53
Article number: PEG-INDIGOFW7-2
Availability: More on the Way to us
Delivery time: More on the Way to Us

Pegasus Astro's new high-quality Indigo Filter Wheel has a 7 position carousel and can house 2inch mounted or 50mm unmounted filters.



FEATURES:

One cable operation

Filter Wheel requires a USB2 (TypeB) cable only. This simplifies the connectivity as it does not require a separate power supply when used with USB control.

Thin Design

The body of the Indigo filter wheel is aluminum CNC milled. High quality aluminum alloy allowed us to design the filter wheel as thin as possible (19.0mm, 19.6mm with adapters installed on both sides).

Orientation on both adapters

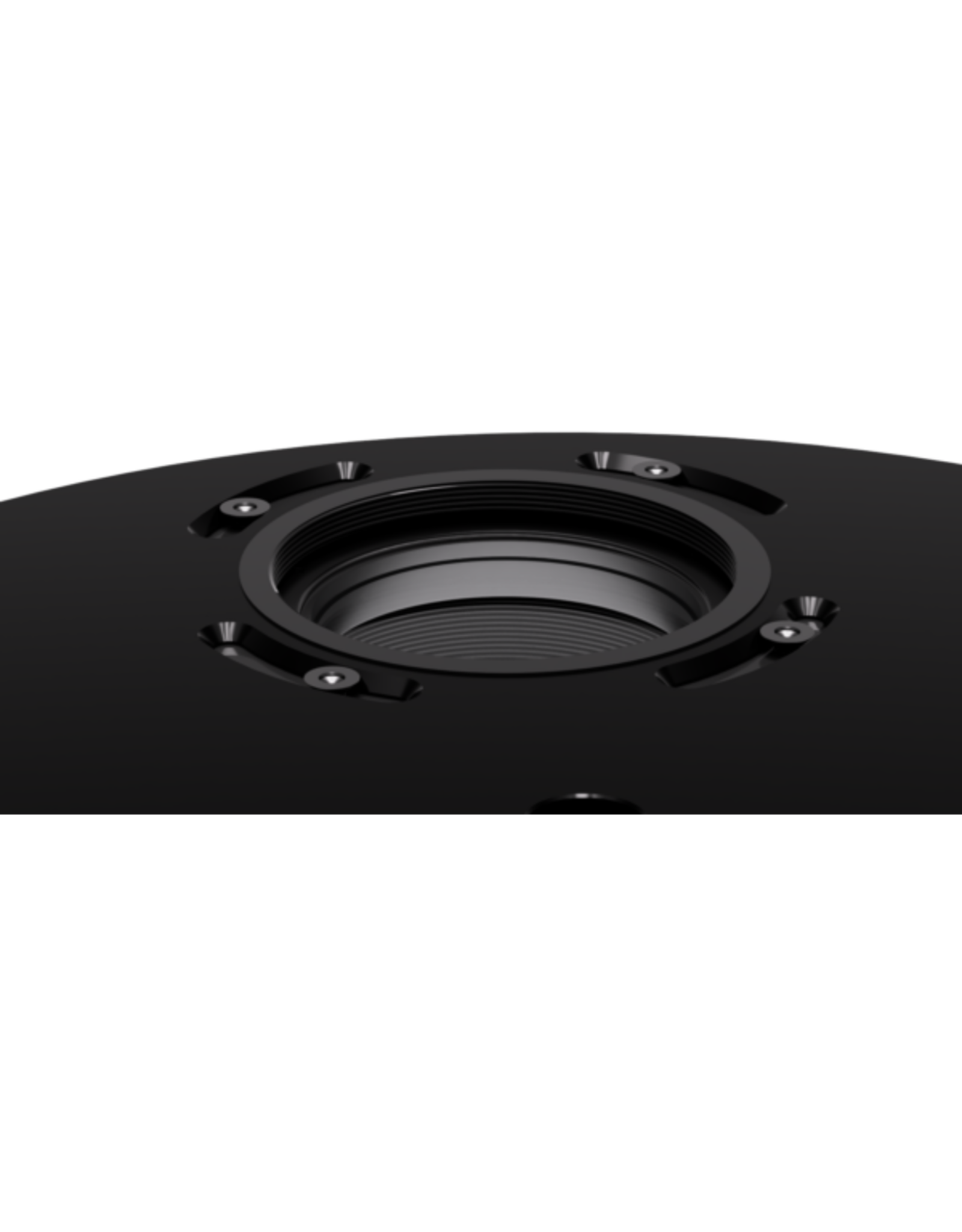

Both sides of the filter wheel have M54 openings. The screw slide adapter (image below) allows you to properly align the orientation of your camera or telescope side. Just untie the screws and rotate the adapter to the desired orientation.

Accurate filter selection

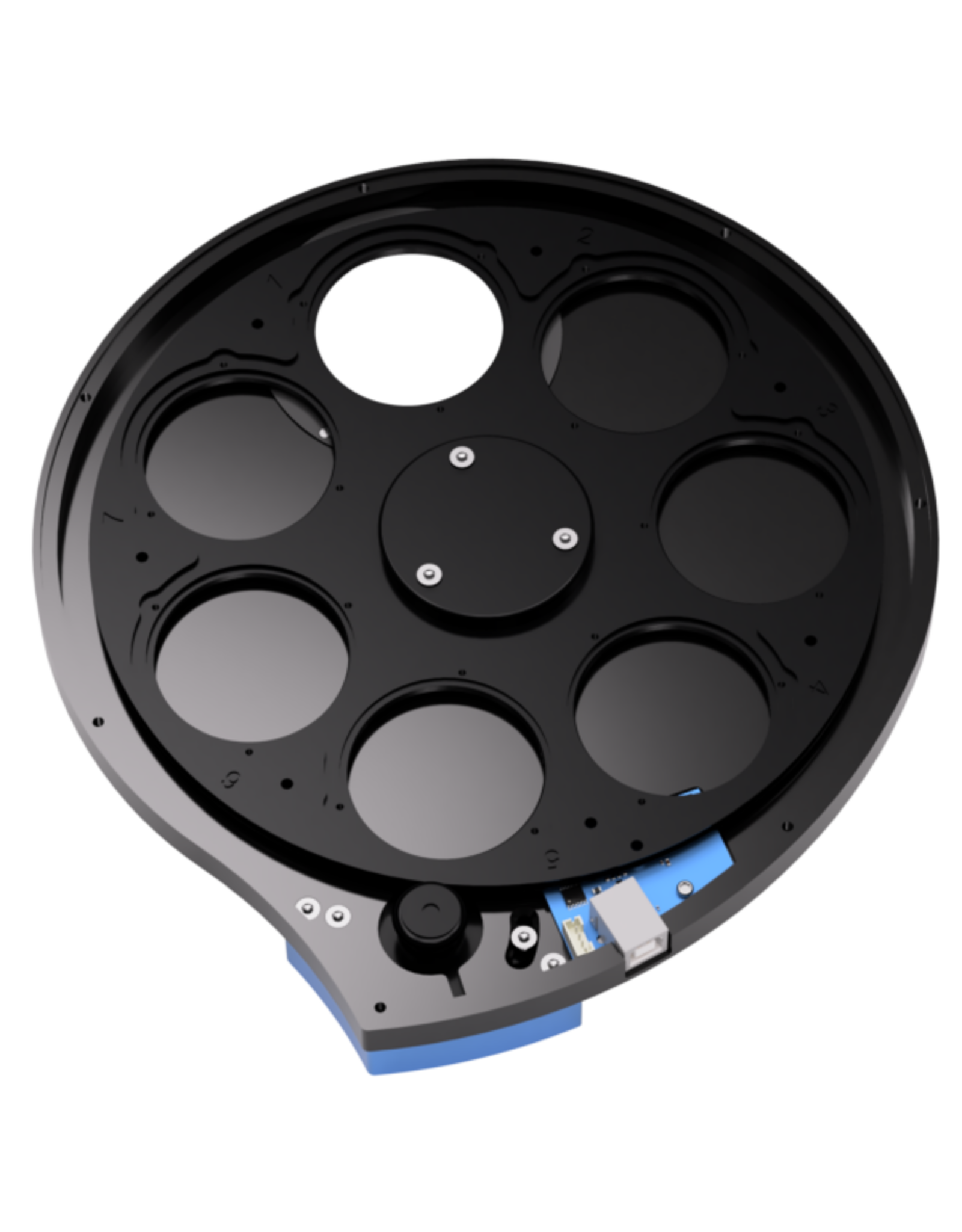

The carousel has seven (7) slots and accepts 2-inch mounted or 50mm unmounted filters. (Max filter diameter should be 50.8mm)

Filter Wheel rotates clock or counterclockwise direction for filter selection. A combination of a direct drive stepper motor and optical encoders ensures that your filter selection is precise, and deadly accurate on every filter location.

We strongly suggest the photographic 2-inch filters in combination with the Indigo Filter Wheel.

Camera Connection

The 6 screw holes on the camera side allow direct connection with astronomical cameras that follow the same 6 x hole pattern (62mm diameter pattern) – can accept M3 or M2.5 screws). A neat feature allows you to reduce the total back focus instead of placing adapters.



DOCUMENTATION

Product Manual for Indigo Filter Wheel

SOFTWARE

Unity Platform (ASCOM driver is in installation)

3D FILES

Mask for umounted filters (2mm & 3mm thickness) – 3d STL
