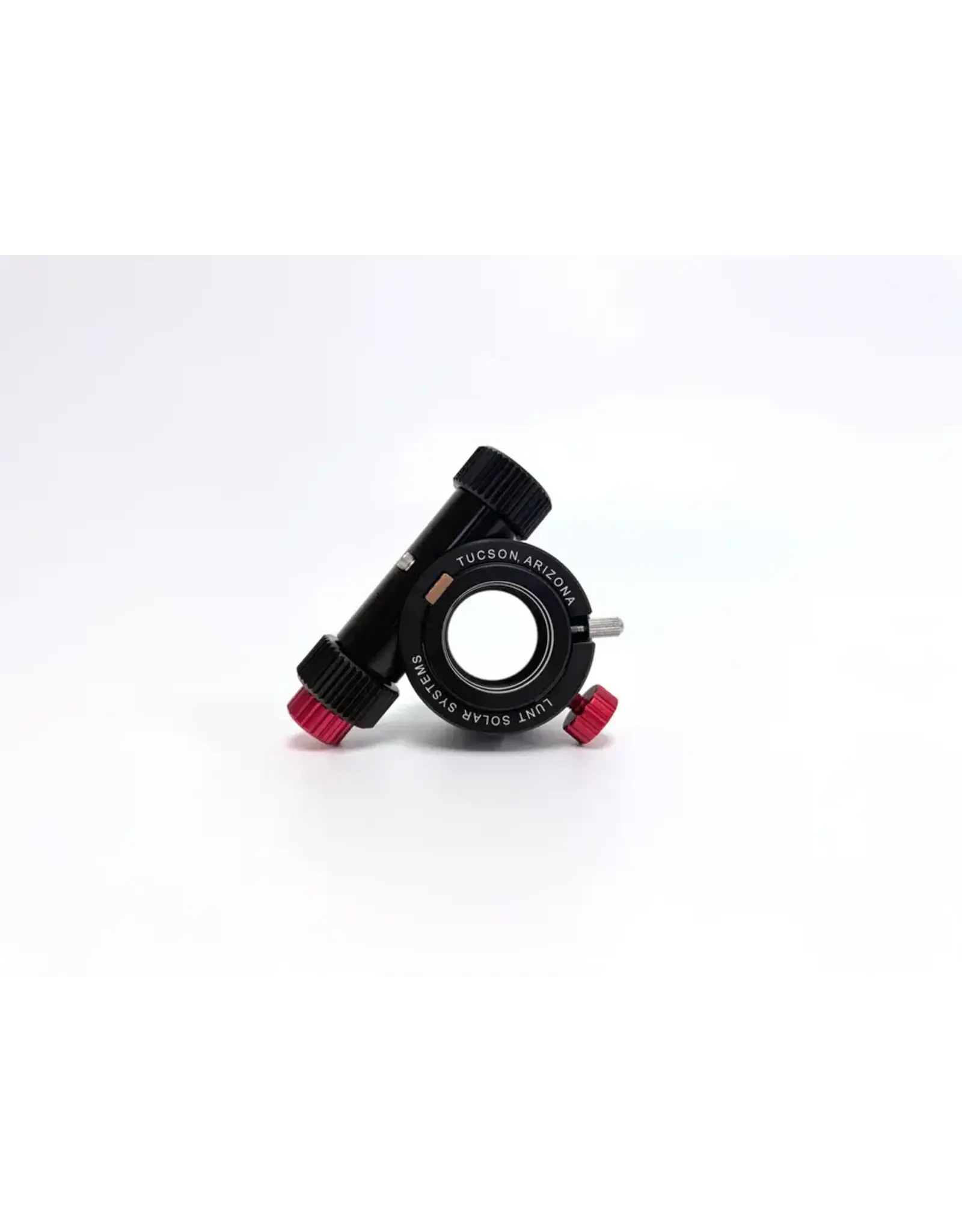

Lunt Solar 1.25" Rack & Pinion Focuser with 10:1 Fine Focus
| Article number: | 001-148 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
Precision focusing at high magnifications demands more than standard rack and pinion
mechanisms can deliver. While our standard focuser addresses the fundamental limitations of helical systems, the 10:1 dual-speed variant takes focus control to an entirely new level of refinement.
The integrated 10:1 reduction gearing provides the micro-adjustment capability essential for critical focus applications like solar imaging, planetary observation, and high-power visual work where the difference between good focus and perfect focus determines image quality.
Dual-Speed Mechanism
The focuser incorporates a precision planetary gear reduction system alongside the primary rack and pinion drive. The coarse focus knob provides rapid positioning across the full travel range, while the 10:1 fine focus knob enables micro-adjustments measured in thousandths of an inch.
Key Specifications:
|
Parameter |
Value |
|
Focuser Size |
1.25" |
|
Draw Tube Drive |
Rack and Pinion |
|
Fine Focus Ratio |
10:1 reduction |
|
Draw Tube Travel |
0.5" |
|
Coarse Focus Resolution |
Standard rack engagement |
|
Fine Focus Resolution |
±0.0002" per knob rotation |
|
Rotatable |
Yes |
|
Compression Ring |
Yes |
|
Positioning Accuracy |
±0.001 inches (±0.025mm) |
|
Load Capacity |
6-8 pounds (2.7-3.6 kg) |
|
Backlash |
<0.0005 inches when properly adjusted |
|
Materials |
CNC machined Aluminum and Brass |
The Lunt Solar 1.25" 10:1 focuser employs CNC-machined aluminum and brass components,
providing optimal thermal expansion characteristics and corrosion resistance for even the most
rigorous astronomical applications. The dual-speed mechanism utilizes hardened steel gearing within the reduction assembly to ensure consistent performance across thousands of focus cycles.
