Lunt LS80MT Premium Kit - 80mm Double Stack Modular Telescope

LS80MT Premium Kit — 80mm Universal Day & Night Modular Telescope Flagship double-stack performance. FPL53 ED optics. The finest 80mm solar telescope Lunt makes.

Now with new-generation etalons — every unit individually tested on Lunt's precision metrology equipment. Every specification is verified, not estimated.

The LS80MT Premium Kit is the finest 80mm solar telescope Lunt makes. Built around a premium FPL53 ED doublet objective with ion-assisted broadband AR coatings, it delivers exceptional contrast and colour correction for both solar and nighttime observation. The SFPT internal double-stack module places two independently pressure-tuned etalons in series, reducing combined system bandpass to <0.28Å — with dual independent Doppler True pressure tuners giving you complete control over bandpass optimisation.

Two pressure-tuned etalons working in series, each with its own tuning knob, each responding instantly to adjustment. The internal architecture maintains perfect optical alignment across the entire bandpass adjustment range. The result is sub-quarter-angstrom performance with the tuning flexibility that only dual pressure systems can provide.

What You'll See

At <0.28Å combined bandpass through 80mm of premium FPL53 ED optics, the chromosphere reveals structure that single-stack instruments at any aperture struggle to match. Plage boundaries resolve into sharp cellular networks. Filaments show multi-strand complexity with defined dark cores. Active regions display their full magnetic architecture — penumbral detail, light bridges, and small-scale evolution visible in real time. Prominences show internal threading and flow patterns from base to tip with a clarity that rewards patient observation.

By night, remove the H-alpha module and you have a premium 80mm f/7 FPL53 ED doublet refractor. The same glass that delivers exceptional solar contrast delivers the colour correction and contrast that serious observers demand for lunar, planetary, and deep-sky work. The same 2" dual-speed focuser. The same optical quality. A complete second telescope built into the one you already own.

The 7.2–21.5mm zoom eyepiece provides continuous magnification from full-disk context to tight active-region crops without changing glass — critical during sessions when conditions shift and you need to move between targets and magnifications without missing a moment.

Why This Package

The SFPT internal double-stack module is included. The internal double-stack architecture means both etalons benefit from pressure tuning rather than mechanical tilt, maintaining perfect optical alignment across the entire bandpass adjustment range. Two independent tuners give you separate control over each etalon for maximum flexibility in dialling in the exact bandpass position you want. The B1800 blocking filter provides 18mm of clear aperture for full-frame imaging capability. The 2" dual-speed focuser with 10:1 fine focus and ZWO EAF compatibility handles every accessory and imaging workflow you throw at it.

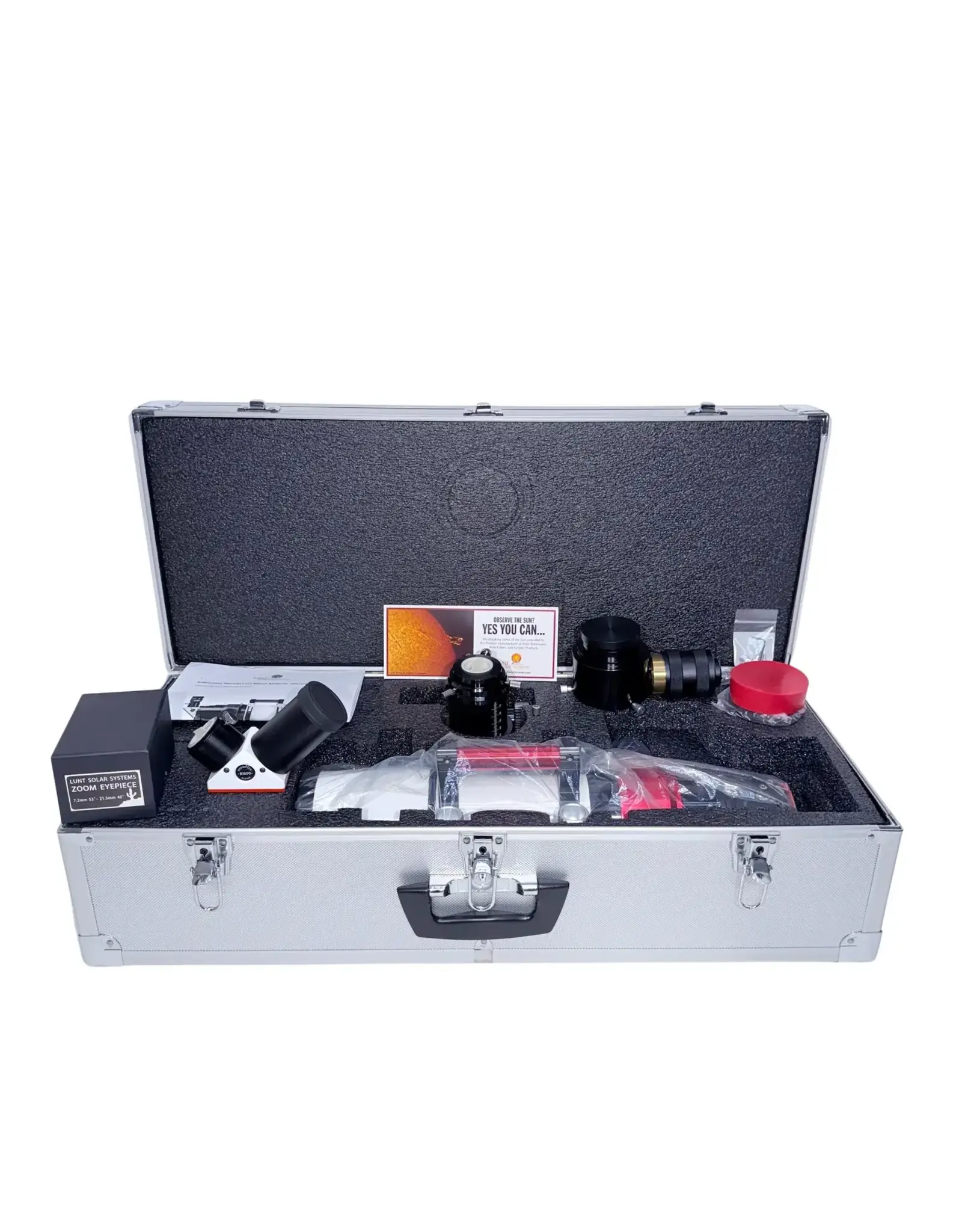

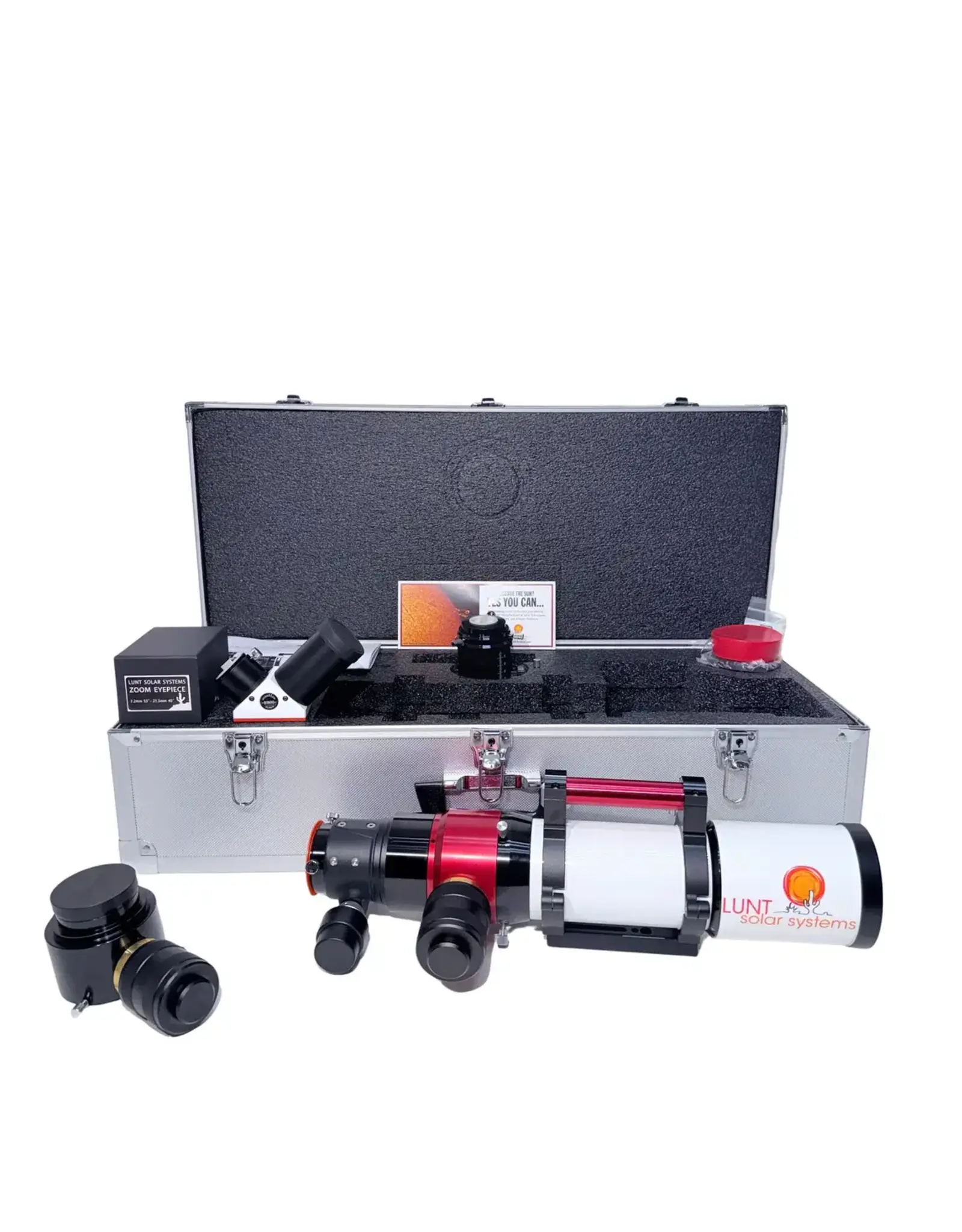

Package Includes

• LS80MT OTA: 80mm aperture, 560mm f/7. FPL53 ED doublet with ion-assisted broadband AR coatings. Internal pressure-tuned etalon (Doppler True), 0.45Å bandpass. Modular design for day/night use.

• SFPT Internal Double Stack: Combined system bandpass <0.28Å. Dual independent Doppler True pressure tuners. Internal architecture maintains optical alignment across full tuning range.

• B1800 Blocking Filter: 18mm clear aperture. Full-frame sensor coverage. Imaging and wide-field visual.

• 2" R&P Focuser (10:1): Dual-speed with 10:1 fine focus. ZWO EAF compatible for motorised focus control.

• Solar Handle w/ Red Dot Finder: Integrated tube ring assembly. Built-in solar finder stays permanently aligned.

• 5.5" Vixen Dovetail: Black anodised aluminium. Universal mount compatibility.

• Hard Case: Aluminium hard case with custom-fit foam insert.

• 7.2–21.5mm Zoom Eyepiece: 7 elements/4 groups. 0.1% AR coatings. 15mm eye relief. 53°–40° FOV. Near-parfocal.

Key Specifications

• Aperture: 80mm

• Focal Length: 560mm f/7

• Objective: FPL53 ED Doublet — ion-assisted broadband AR coatings

• Etalon System: Internal pressure-tuned (Doppler True) + SFPT internal double stack

• Tuning: Dual independent Doppler True Barometric pressure tuners

• Single Stack Bandpass: 0.45Å — individually verified

• Double Stack Bandpass: <0.28Å combined — individually verified

• Blocking Filter: B1800 (18mm clear aperture, full-frame compatible)

• Focuser: 2" R&P dual-speed 10:1, ZWO EAF compatible

• Eyepiece: 7.2–21.5mm zoom — 7 elements, 15mm eye relief, 0.1% AR

• Night Use: Yes — remove solar modules for 80mm f/7 FPL53 ED refractor

• Telescope Type: Universal day/night modular
