iOptron iPolar Electronic Polar Scope
| Article number: | 3339A-040 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |

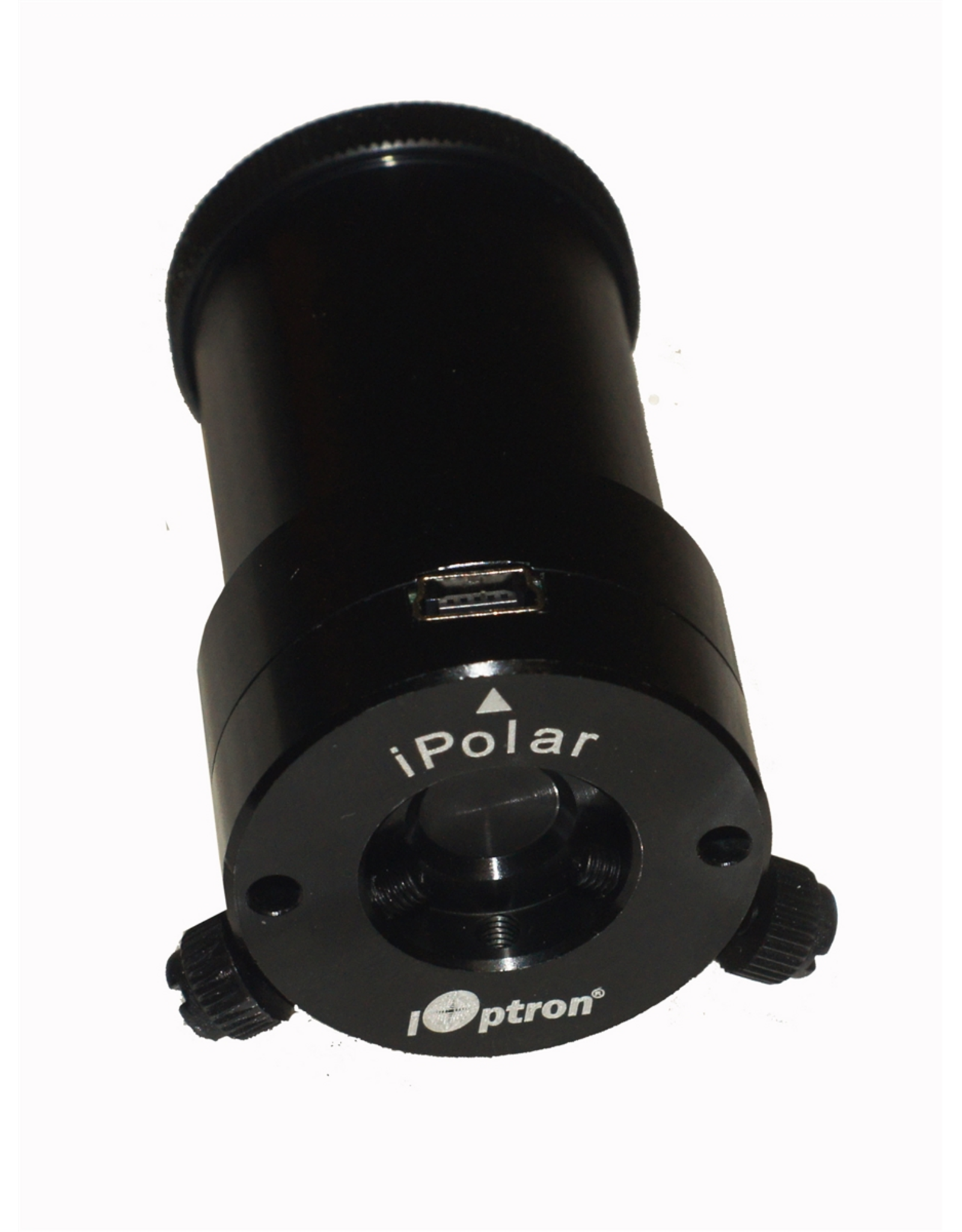

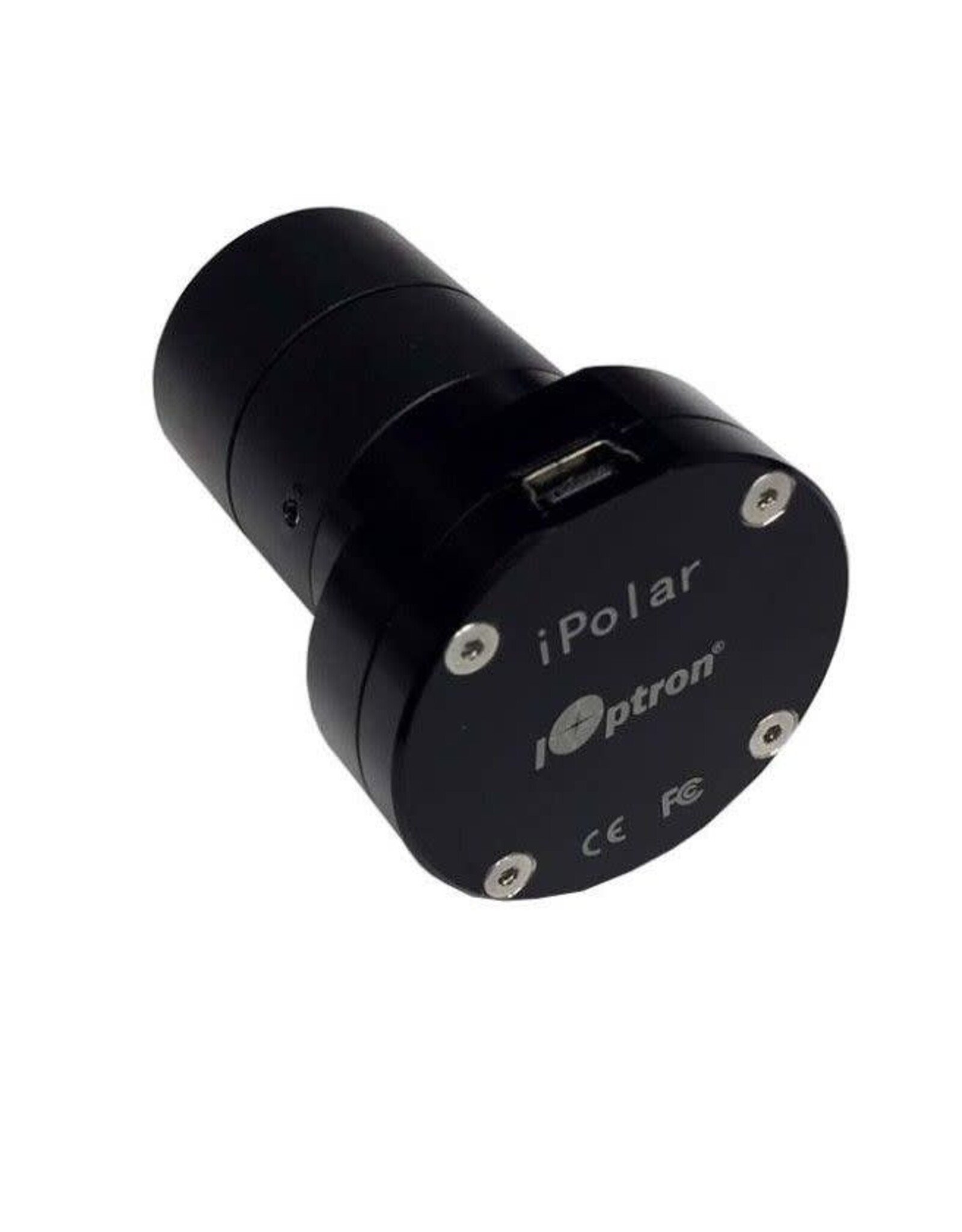

Introducing iOptron iPolar™ - a high precision, easy to use electronics polar scope (e-PS).
What makes iPolar unique?
1. Can be easily installed inside the RA shaft on all iOptron equatorial mounts (except SmartEQ Pro).
2. Can be used on any mounts with adapters either internally or externally.
3. USB plug and play (no driver needed)
4. Works globally, no need to set northern and southern hemispheres.
5. No visible Polaris (north) or Sigma Octantis (south) is necessary.
6. No need to rotate the mount during polar align.
iPolar is a smart electronic polar scope for everyone.
Features
- Fast and easy to use
- High precision (30 arcsec)
- No need to see the Pole Star
- No need to rotate the mount during alignment
- Unique imaging enhancement technique
- Smart plate solving
- On screen instruction during alignment
- Capable under poor sky visibility condition
- Compatible to most equatorial mount with a proper adapter
Currently Supported Mounts:
Please select the correct mount from pull-down manual when ordering.
- HEM15/HEM27/HEM44 (#3339A-HEM)

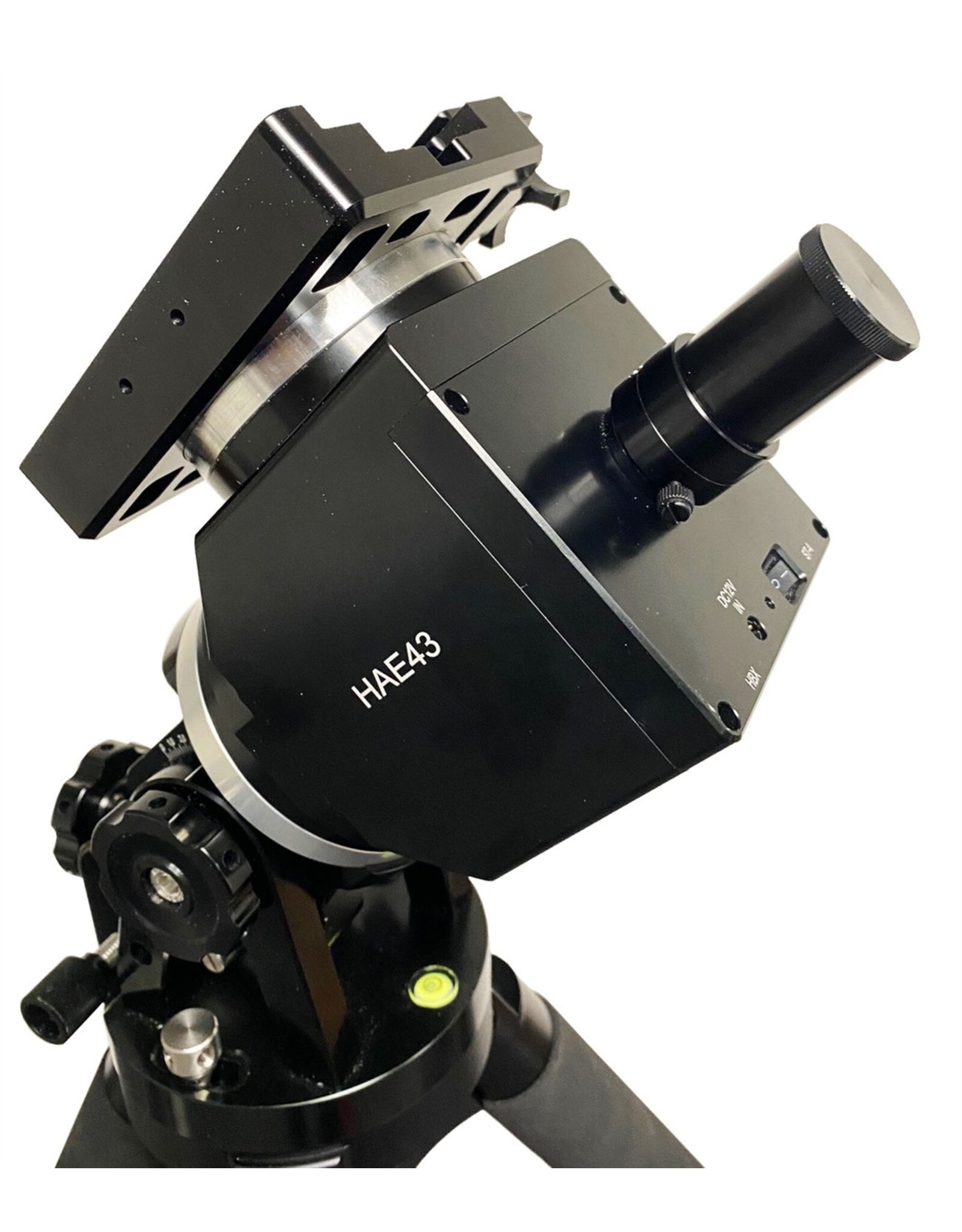

- HAE16C/HAE18/HAE29/HAE43/HAE69 (#3339)
- SkyHunter (#3339)
- CEM120/CEM120EC/CEM120EC2 (#3339A-120 or #3339A for replacement)
- CEM70/CEM70G/CEM70EC/CEM79EC2/CEM70NUC (#3339A for replacement)

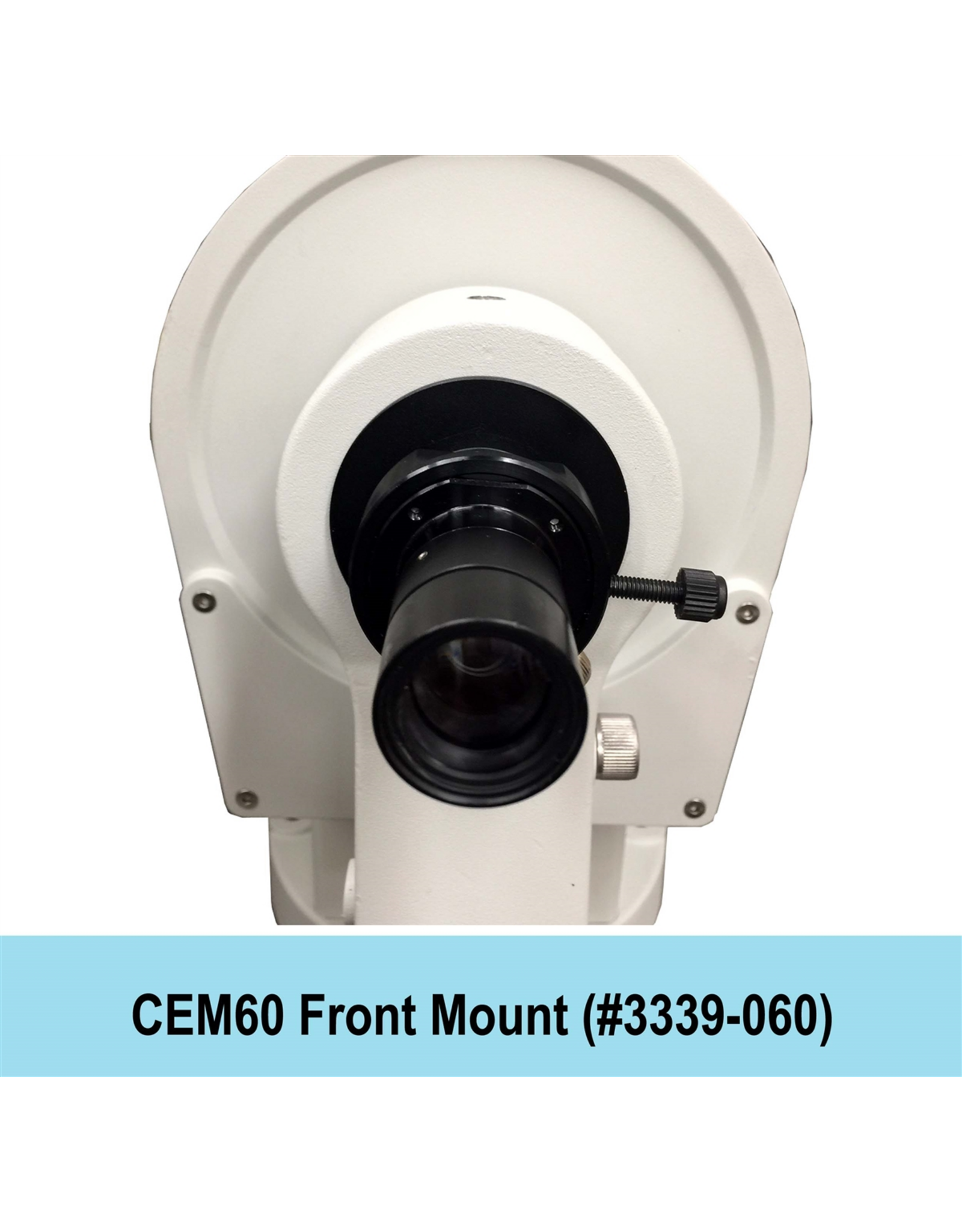

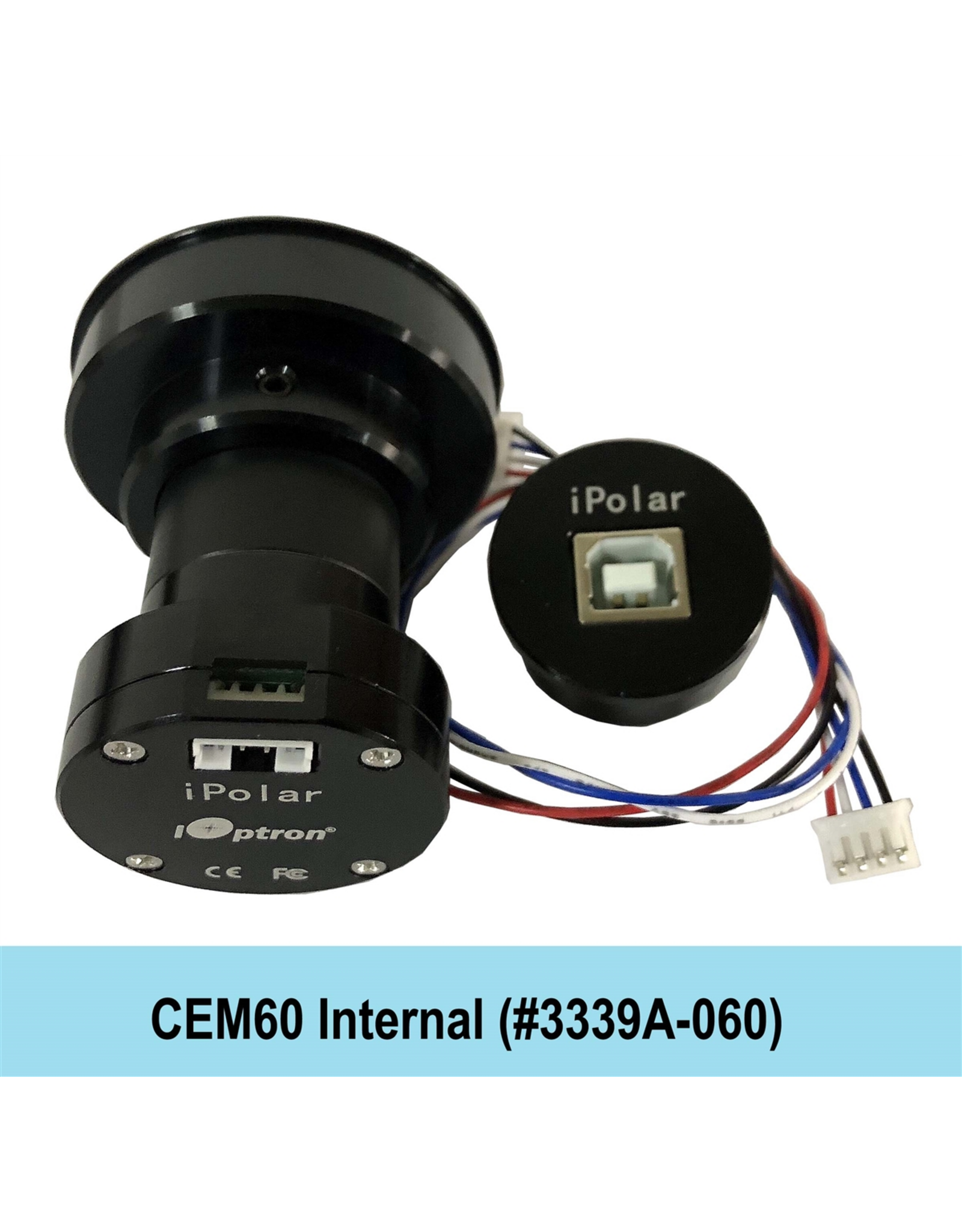

- CEM60/CEM60EC (#3339-060 or #3339A-060:Will it fit my CEM60 internally?)

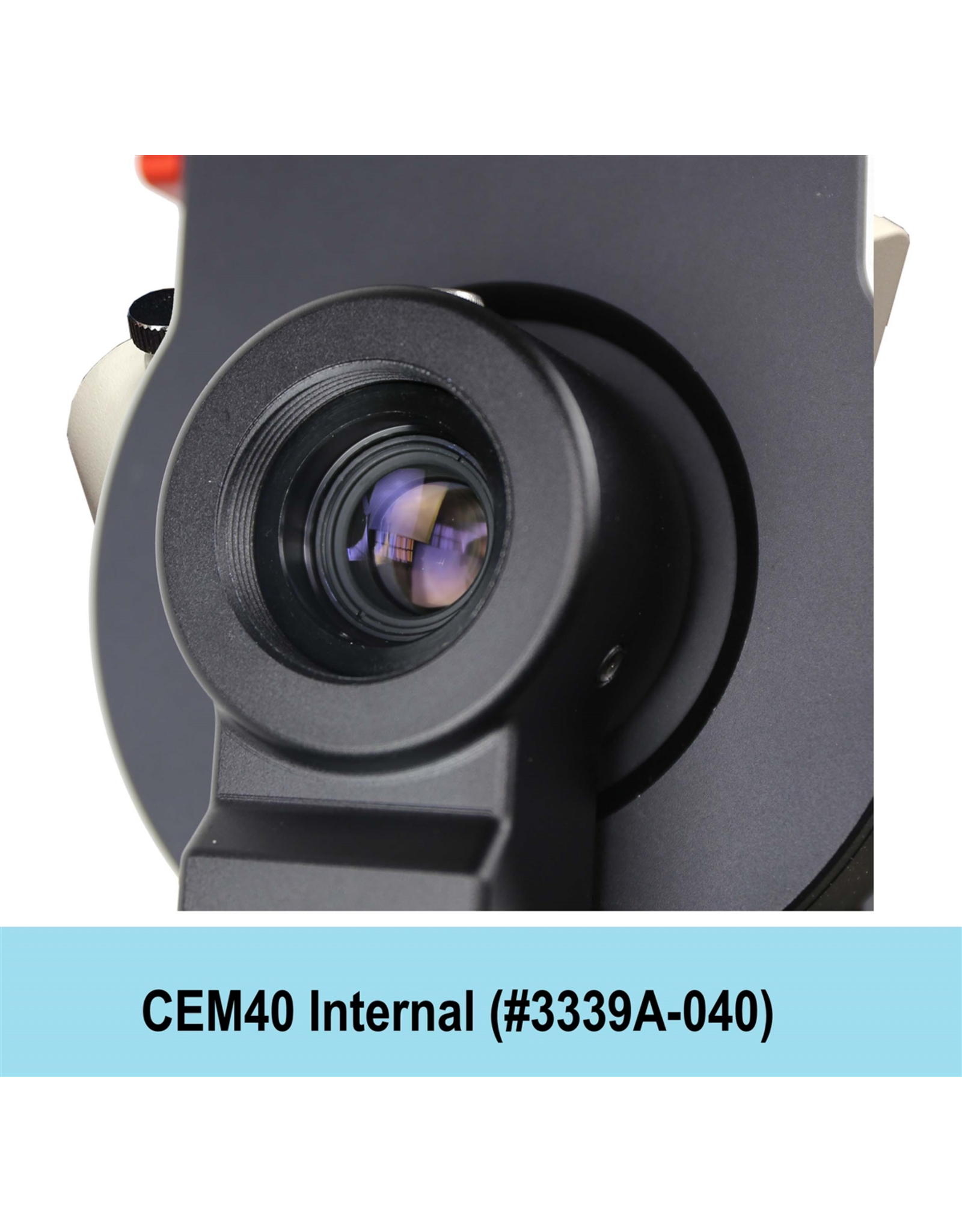

- CEM40/CEM40EC/CEM40G/CEM40NUC (#3339A-040 or #3339A for replacement)
- GEM45/GEM45EC/GEM45G/GEM45NUC (#3339A-HEM or #3339A for replacement)
- CEM26/GEM28 (#3339R)

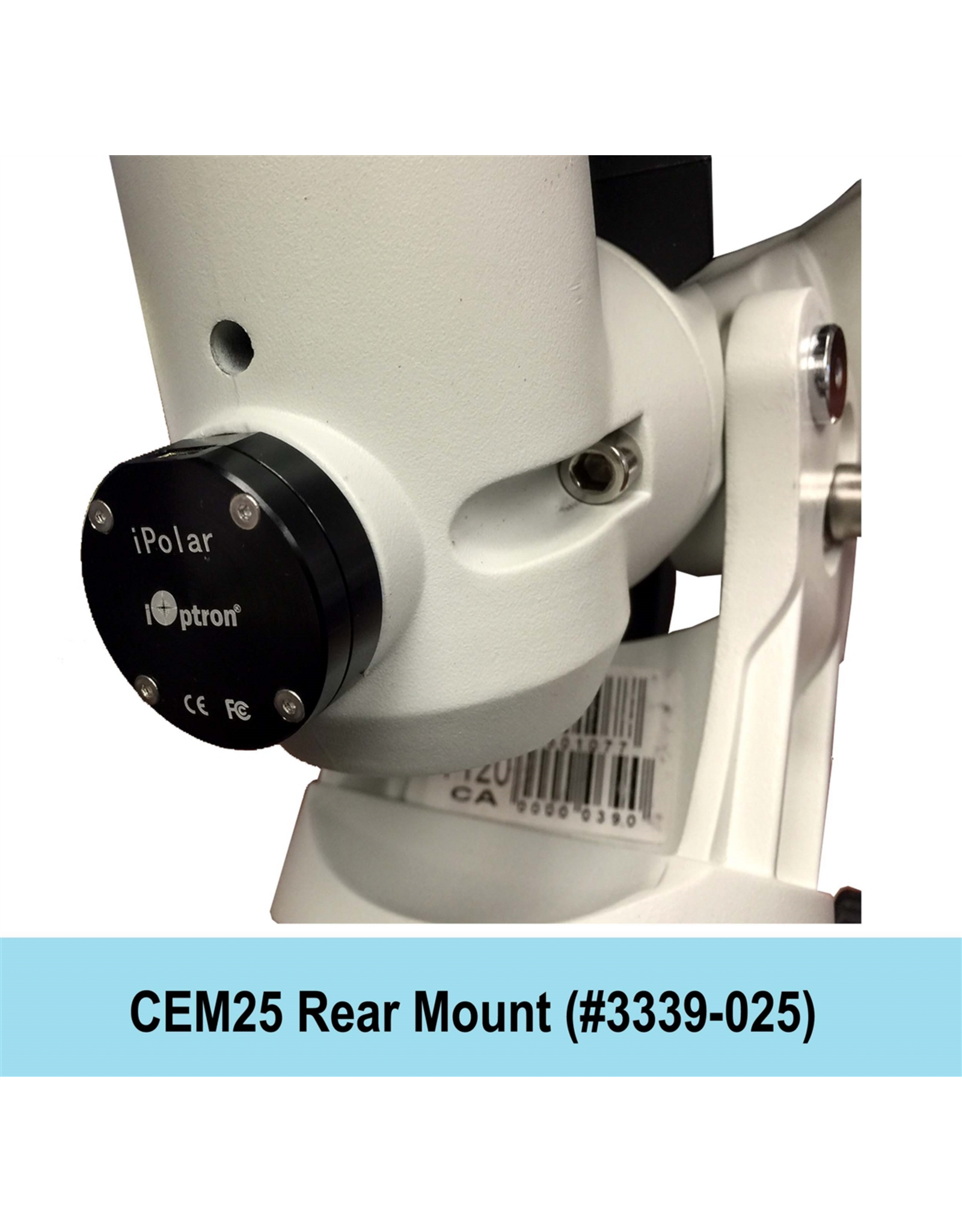

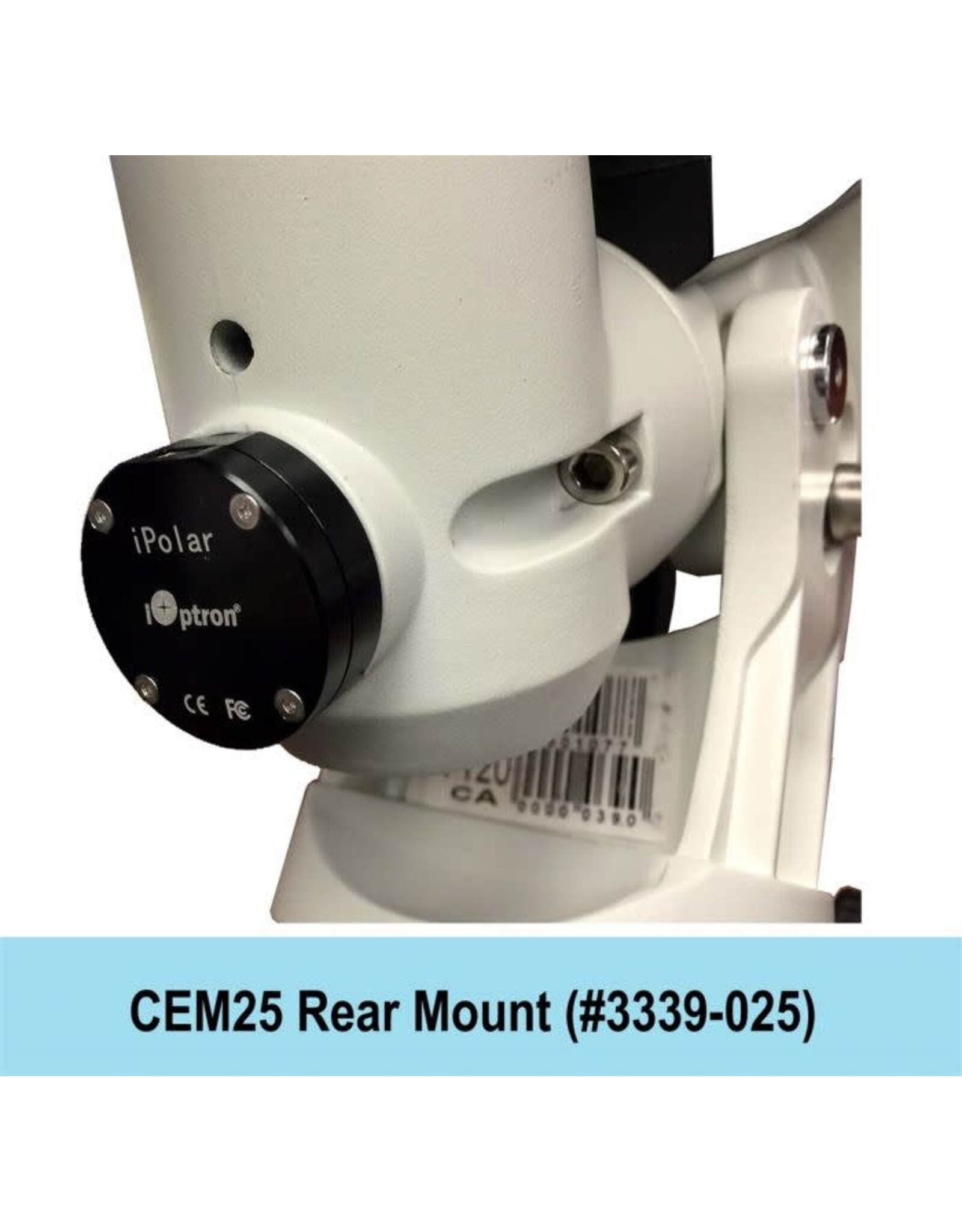

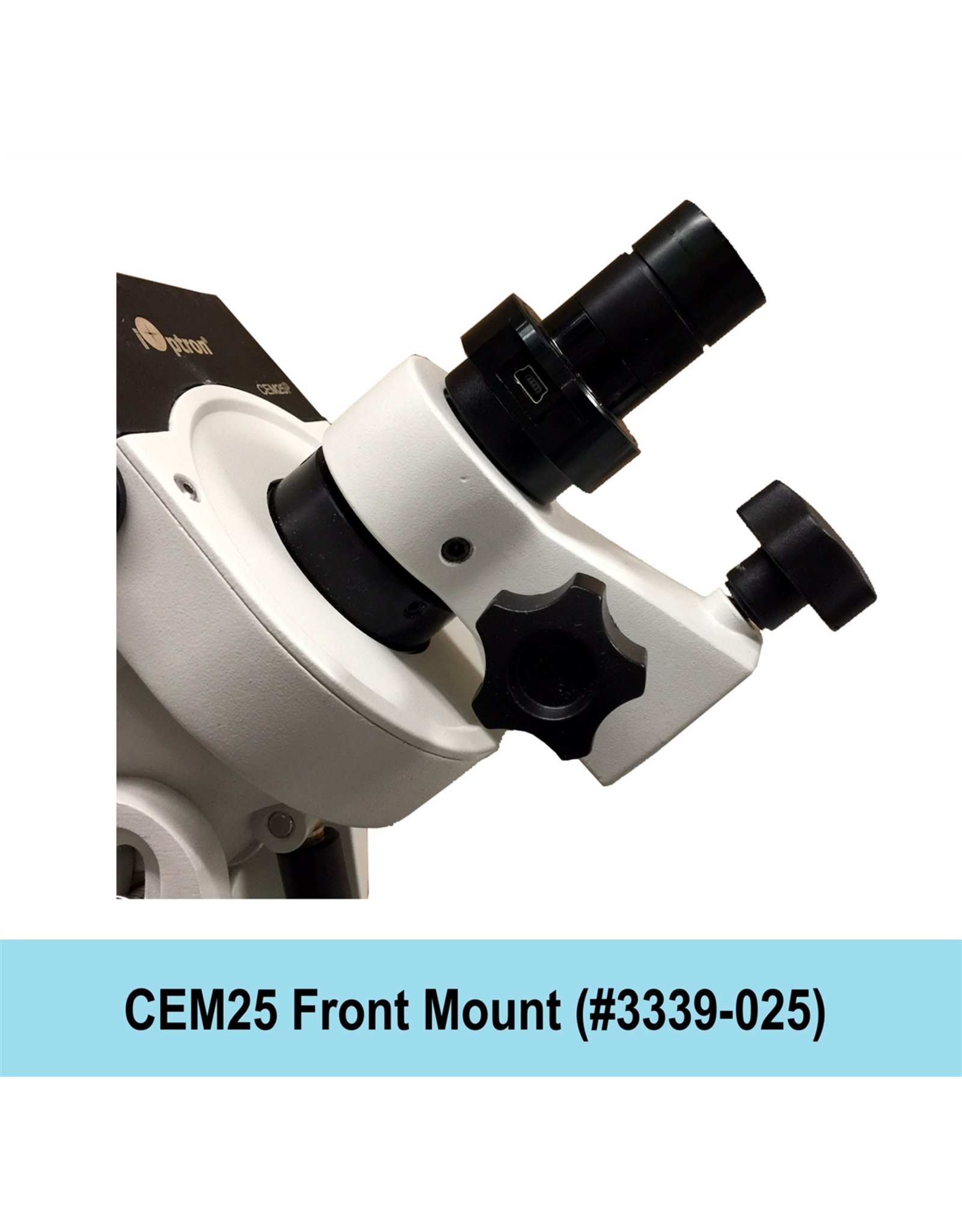

- CEM25/CEM25EC/ZEQ25 (#3339-025)
- iEQ45Pro/iEQ45 (#3339-034)
- iEQ30Pro/iEQ30 (#3339-034)
- SkyGuider Pro (#3339R, for late production)

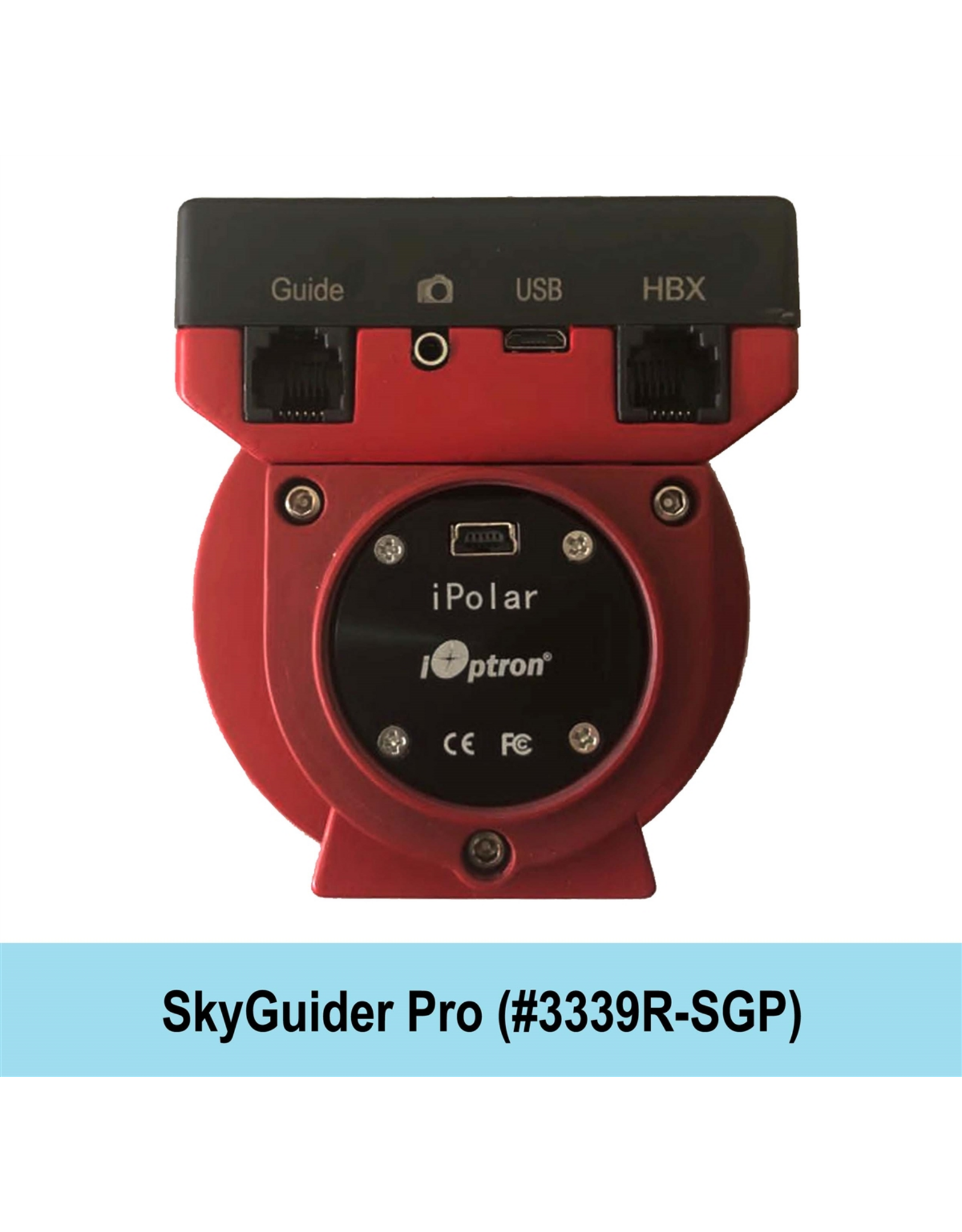

- SkyGuider Pro (#3339R-SGP, ONLY for earlier production with 32mm dia. polar scope opening)
- SkyGuider (#3339 or #3339R)

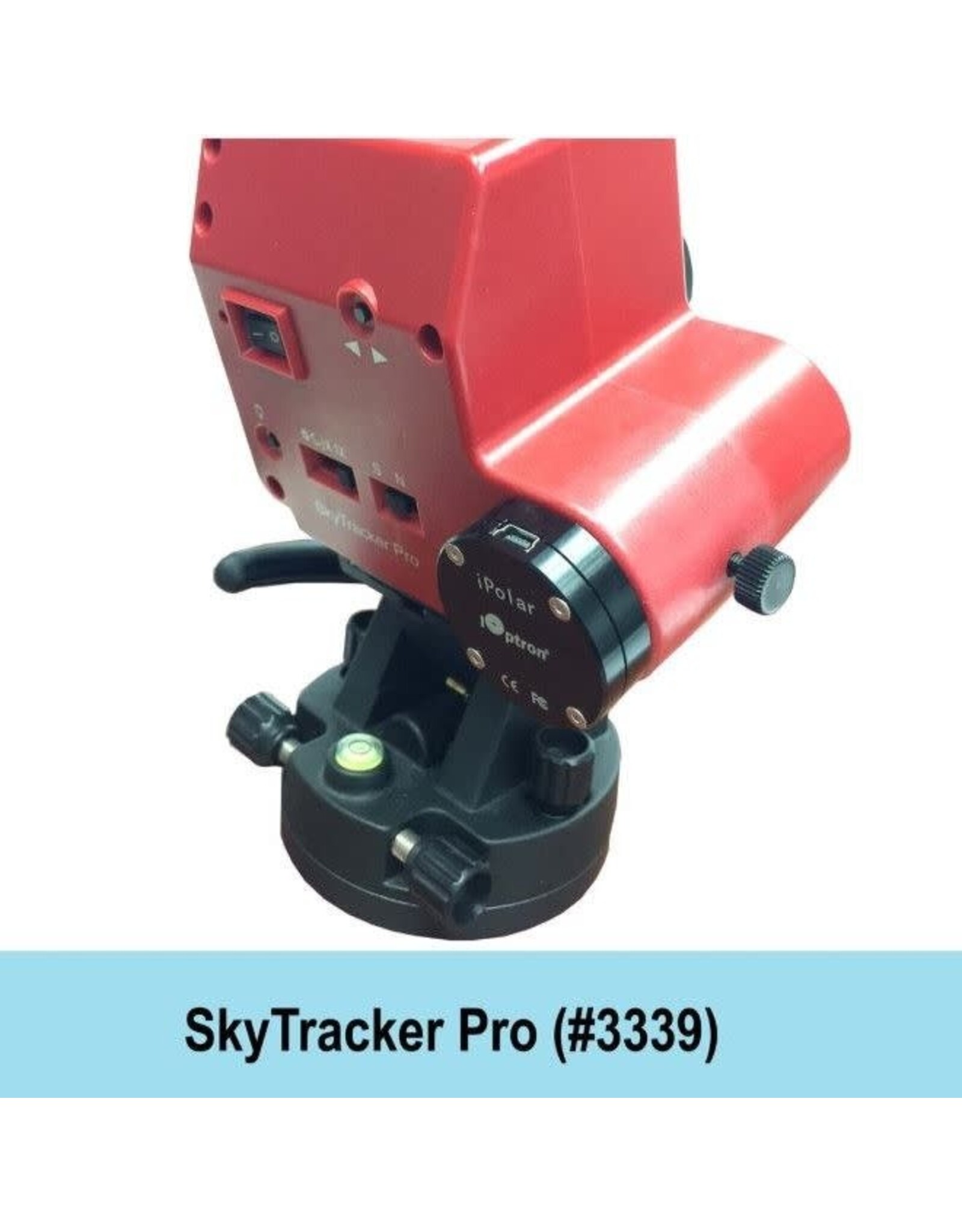

- SkyTracker Pro (#3339 or #3339R)

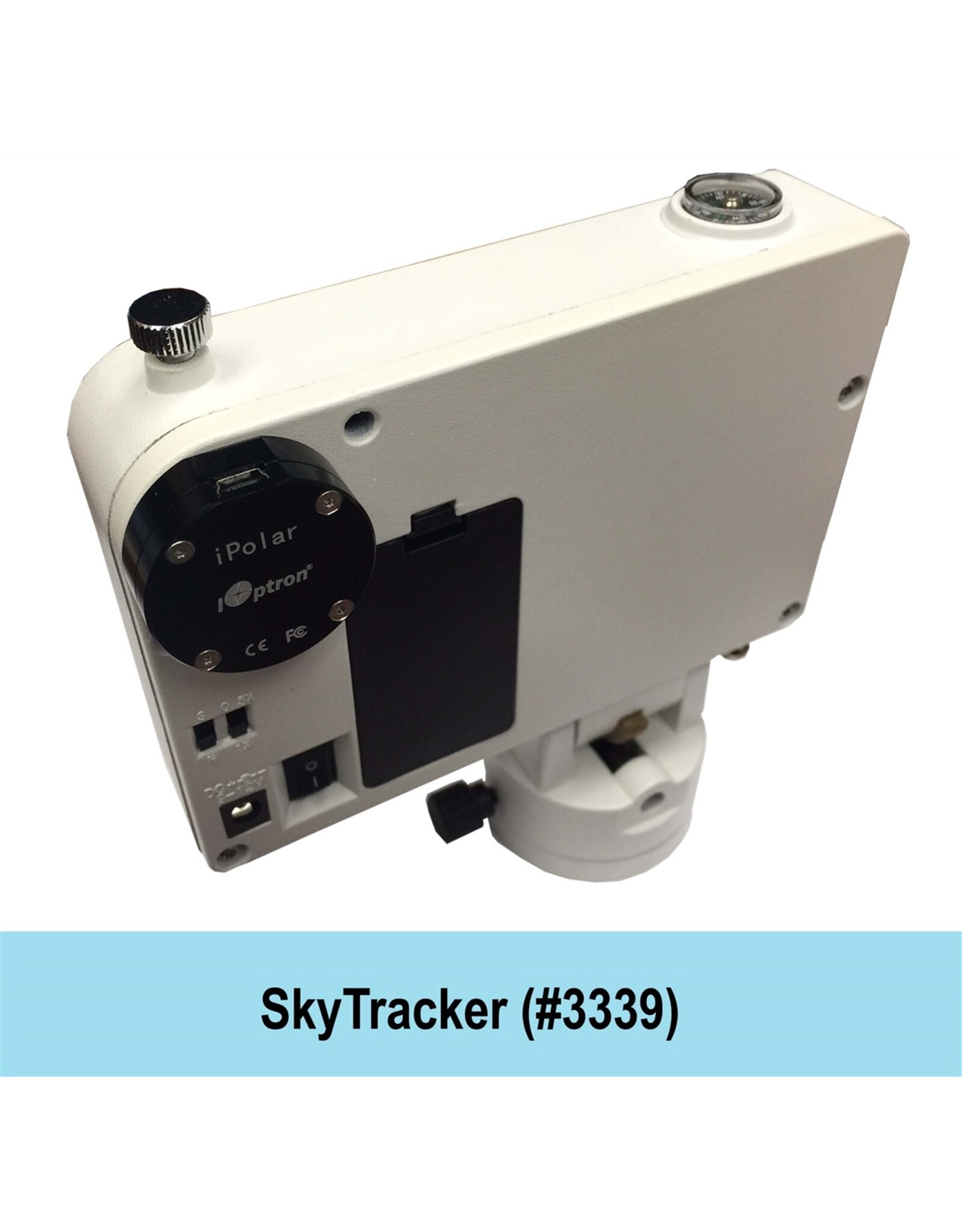

- SkyTracker (#3339 or #3339R)
- AVX mount (#3339-AVX)
- CGEM/NEQ6/AZEQ6 mount (#3339-CGEM)
- HEQ5 mount (#3339-HEQ5)
- Takahashi mount (#3339-TAK)
- Losmandy mount (#3339-034 for GM8xx mount, #3339-G11 for G11)
- Other mounts
Please check this iPolar Compatibility Chart for more information. Or send a question to [email protected] for assistance.
| Field of View (FOV) | ~ 13 degree |
| Resolution | 30 arcsec approx. |
| Alignment Precision (Max.) | 30 arcsec |
| Interface | USB2.0 |
| Software | iPolar Software |
| Operation System | Windows 7/8.1/10/11, 64 bit, with Microsoft .NET Framework 4.8 or later installed |
| Gross weight and dimension | 1 lb, 6 x 5 x 3 in |
| Warranty | One year limited |
Manual:
iPolar Operation Manual (Updated 1/22/2022)
Installation-HEM (#3339A-HEM)
Installation-CEM25/ZEQ25 (#3339-025)
Installation-iEQ/iEQ Pro mount (#3339-034)
Installation-CEM60 Internal (#3339A-060) Please check if your mount needs a different adapter
Installation-CEM120 Internal (#3339A-120) Please read instruction before placing order
Installation-SkyGuider Pro (#3339R-SGP)
Installation-SkyGuider (non-pro) (#3339 or #3339R)
Installation-AVX,CGEM,HEQ5,TK (#3339-AVX and others)
Software and Driver:
The software is tested virus free. Please add it to your Windows defender/antivirus software White/Exclusion List if it is alarmed containing malware/virus.
iPolar Software (V2.7.6.0, released on 5/11/2025, needs Windows 64 bit system)
iPolar Software V2.50 (last version for Win32 system)
Version History
iPolar for Mac (from mac store)
Frequently Asked Questions:
Please read
Firmware Upgrade:
Firmware for iPolar
