iOptron Carbon Fiber Tripod for HEM27, CEM40, SkyHunter, SkyGuider - 8061A
| Article number: | 8061A |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |

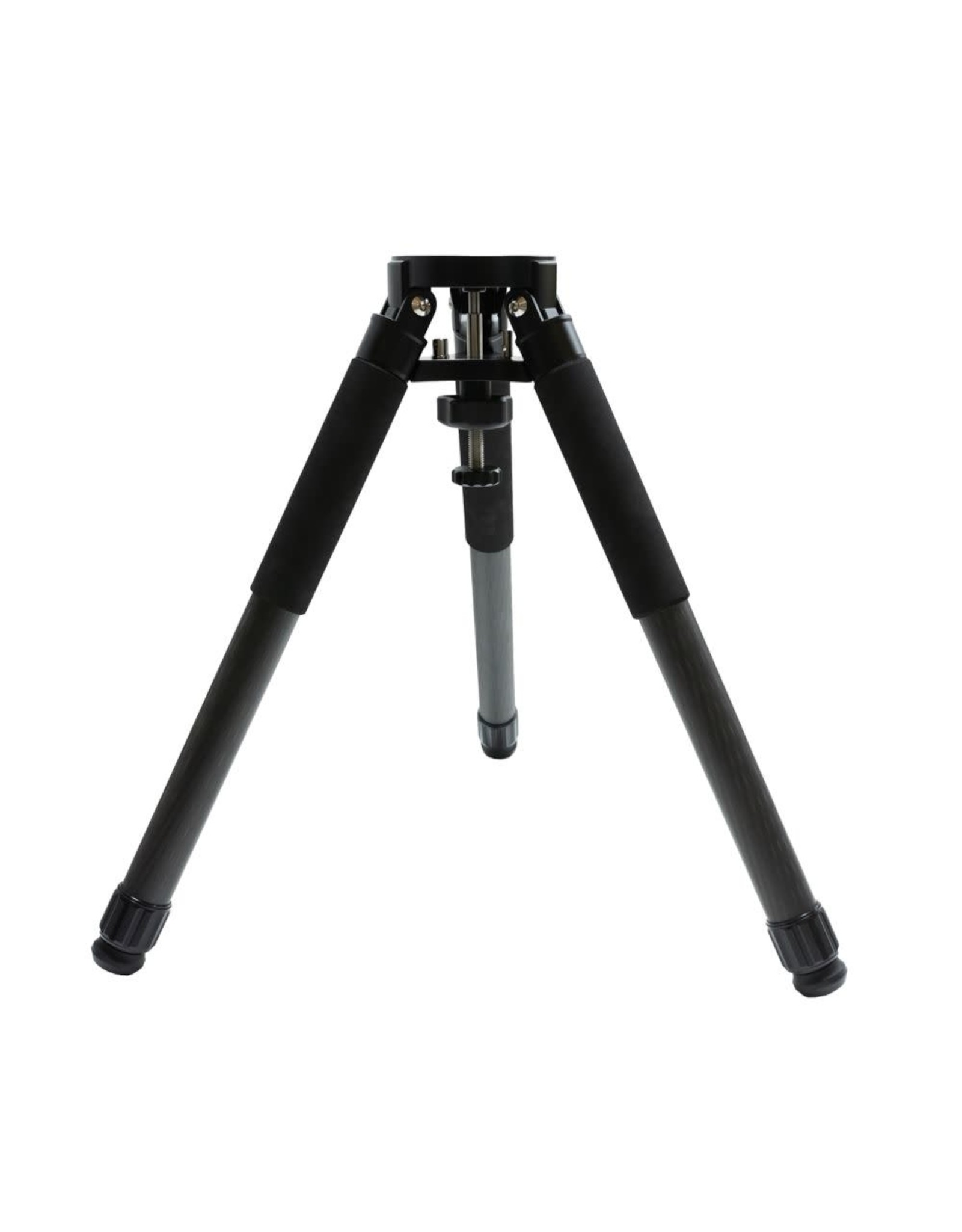

The iOptron carbon fiber tripod provide a lightweight yet strong support for iOptron mounts. It fits these iOptron mounts (may need extra mounting accessories):
- HEM15/HEM27/HEM44
- HAE29/HAE43
- HAZ31/HAZ46 (ESPECIALLY w/ #8042 pier)
- CEM40
- GEM45(may limit low latitude application)
- CEM26
- GEM28
- SkyHunter
- SkyGuider Pro
- iEQ30/iEQ30 Pro (may limit low latitude application)
- Camera with 3/8 mounting hole
- Other equipment with 3/8 mounting hole
- Will NOT fit HAE69/CEM70/CEM60/iEQ45
Collapsed Length: 597 mm (23.5")
| Max Payload | 50 kg (110 lbs) |
| Self Weight | 2.29 kg (5 lbs) |

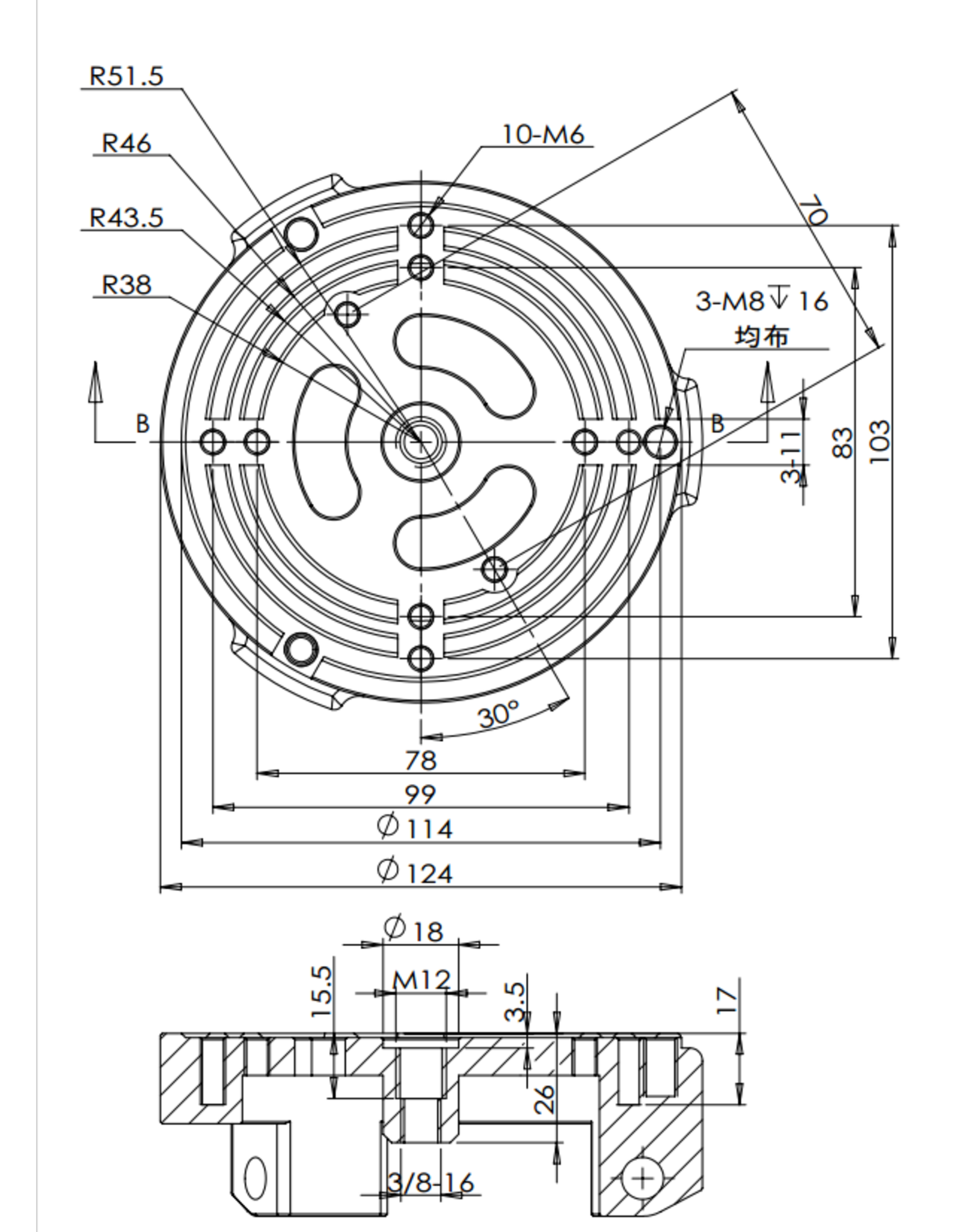

| Plate Diameter | 120mm (~4.7") |
| Adjustable Height | 535 - 935 mm (21"- 36.8") |
| Tube Size | Ø40mm (upper)/Ø36mm (lower) (Ø1.6"/Ø1.4") |
| Gross weight and dimension | 7 lbs, 27 x 7 x 7 in |
| Warranty | One year limited |
Manual:
8061 Assembly
