Feathertouch FTF3545B-A--3.5" Diameter Dual Speed Focuser Kit, 4.5" Draw tube travel, and Brake

$885.00
Article number: FTF3545B-A
Availability: Order Now!
Delivery time: Ships in 2-3 business days from our Warehouse

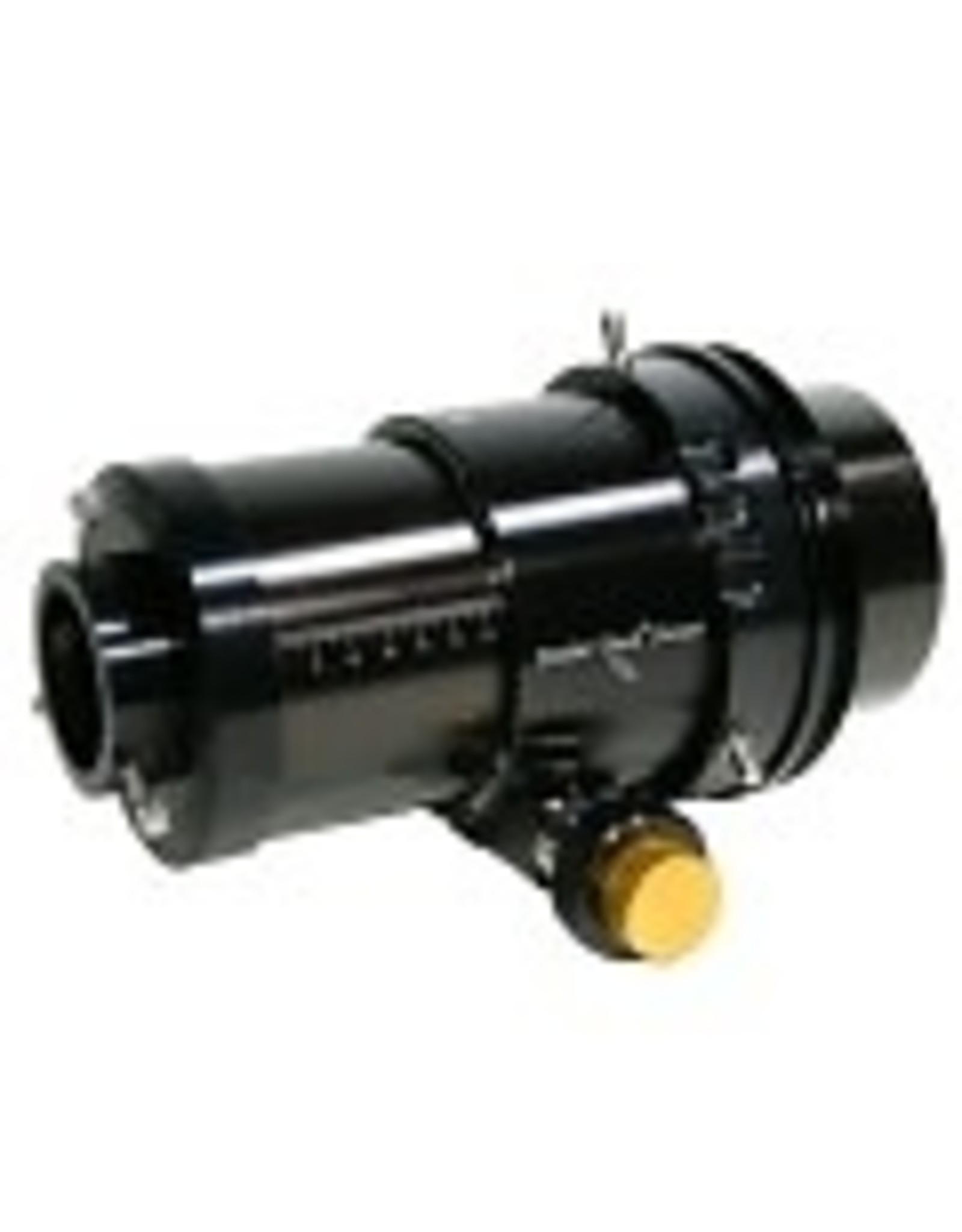

Feather Touch® 3.5" Diameter Dual Speed Telescope Focuser Kit, 4.5" DTT, and Brake.

The photo of the 2 telescopes with Feather Touch focusers is courtesy of Bill McLaughlin.

The telescope must have at least 4.35" of clearance for the draw tube to go inside of the telescope, if not the draw tube will "bottom-out" and give you more back focus.

Please select the proper tube adapter ring and end cap that are needed.  If you need a Finder Scope Bracket, in the drop down box please pick the one that you want.  If you do not need one, please pick the not interested box.

Make your selections from the drop down boxes that are to the right of the image of the focuser.

Known To Fit Large Refractors
Lifting Capacity 18-20 pounds
Draw Tube Travel 4.5"/114.30MM
Accessory Locking Collar 5.125x24 Female Thread
Other Info Focuser weighs 6 pounds
Draw Tube Drive Mechanism Rack/Pinion
Finderscope hole thread dimension 8-32
Reduction Ratio 10:1
Weight of focuser 5.938 pounds of which includes the standard adapter and 2" compression ring end cap
Focuser Housing / Base 4 3/32 X24TPI thread on visual side of draw tube
Racked In from Mounting Face 5.236 w/Compression Ring End Cap
Racked Out from Mounting Face 9.736" w/Compression Ring End Cap
