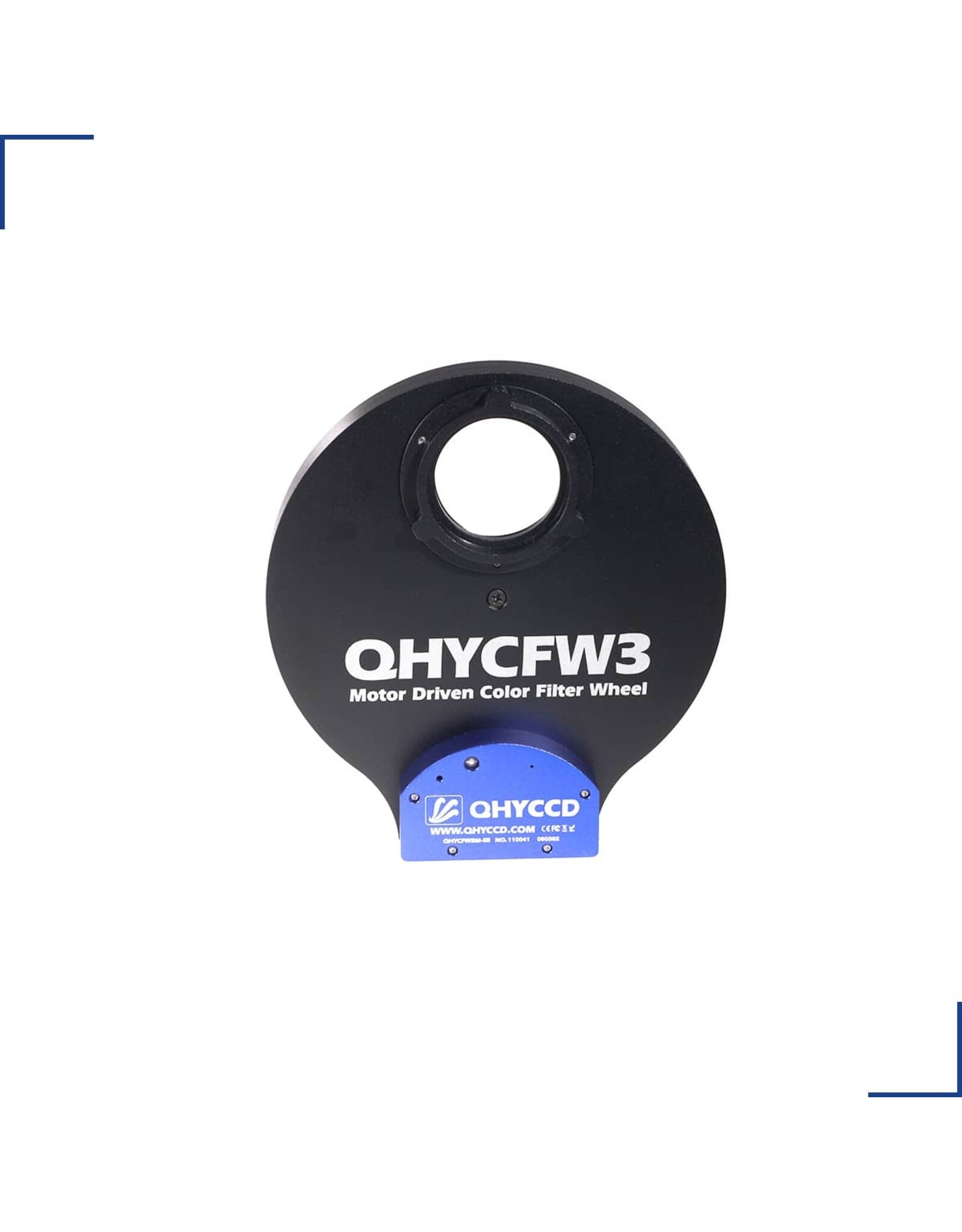

QHYCCD CFW3-L 7x50 Filter Wheel

$619.00
Article number: QHYCFW3-L 7x50
Availability: More on the Way to us

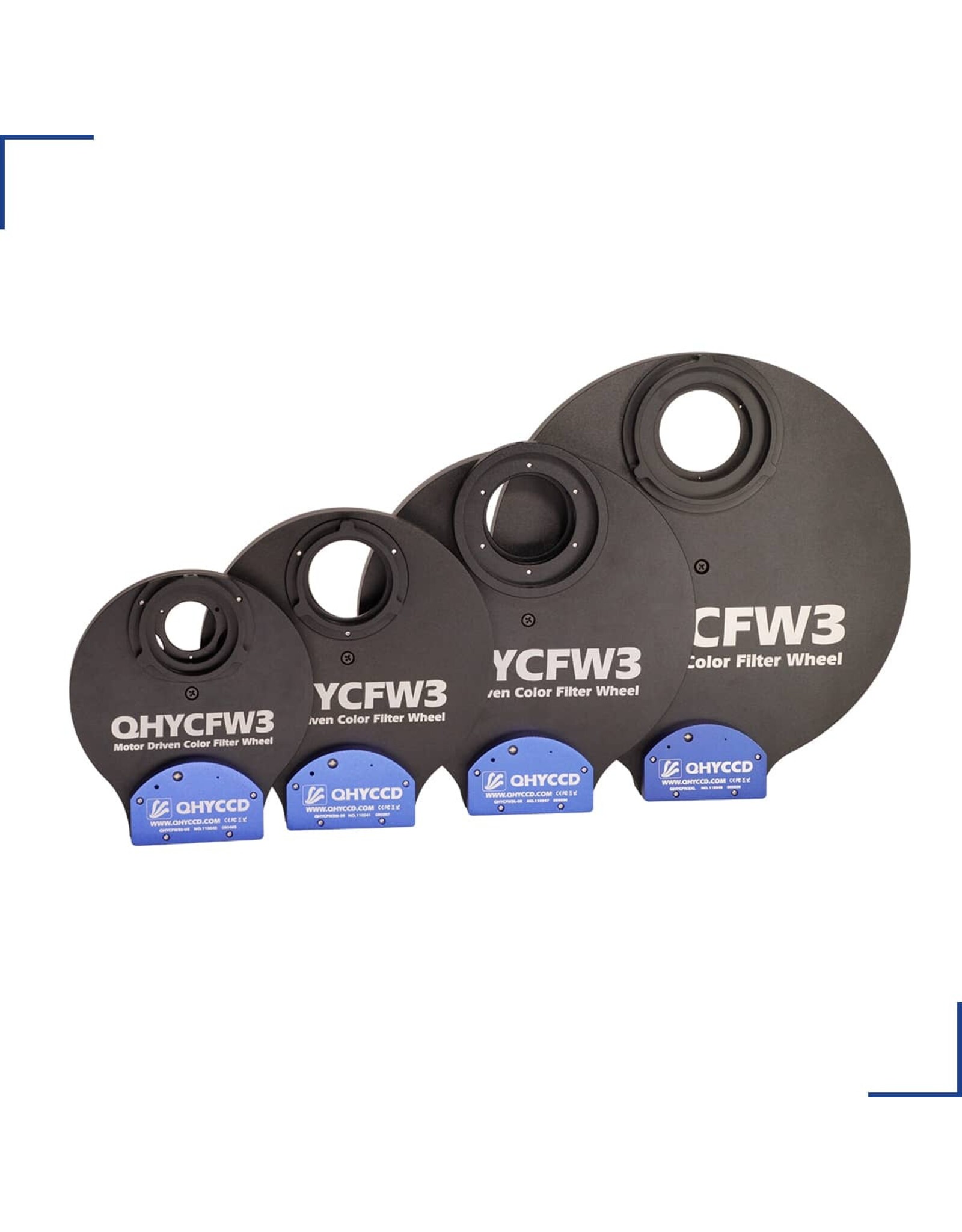

The new CFW3 series filter wheels are available in four sizes to accommodate filters from 1.25-inch to 50 millimeters square.

For filter wheel control a custom QHY 4-pin filter wheel port is included that provides power and control signals for QHY dual control filter wheels like the series 3 filter wheels.  Both the series 2 and new series 3 filter wheels can be controlled by either an independent external program using the filter wheel’s USB port or via the QHY 4-pin serial port. When connected to the QHY 4-pin port there is no need for an additional power cable or control program.  All of the filter wheel functions are controlled through the camera and its operating Software.

The series 3 filter wheels utilize a new motor with direct drive and will reverse direction to take the shortest path when moving from one filter to another. For Example, in this demonstration the wheel moves from filter position 1 to position 2 to position 3 and then back to 1 again, over to position 7 and back to position 1 without ever making a complete rotation of the carousel.  This saves time if you’re doing a lot of filter changes in one imaging session.

LED changes color for each filter position.  The tricolor LED assigns one unique color or combination of colors to each filter position so you can tell if it’s moved to the correct position without removing it from the Telescope.

The CFW3 is also thin.  This feature and the short back focus of the COLDMOS cameras means you can add one of several camera lens adapters for Canon and Nikon camera lenses for wide field imaging with the filter wheel.

In the center of the back plate is a 12-volt DC power port.  This port is threaded for a short extension cable that is supplied with the camera that securely attaches such that it will not accidentally disconnect while you are imaging.

Recommended Combos
Filter Wheel Recommended Gears Note
CFW3S-SR QHY533M, QHY183M There’s no difference between S-SR and S-US expect their depth, so S-SR can be compatible with thicker 1.25” mounted filters.
CFW3S-US QHY5III Mono Planetary Cams CFW1.25”Adapter needed
CFW3M-SR (2”*5) QHY268M, QHY600M
CFW3M-US (36mm*7) QHY163M, QHY294M, QHY268M,
CFW3L (2”*7) QHY600M (PH/Pro)
CFW3XL QHY461PH  A special adapter needed when connecting QHY600 SBFL and CFW3XL, see https://www.qhyccd.com/qhy600sbfl-cfw3xl-adapter/
Fix filters and match the camera

Specifications
Model Back Focus Consumed* Filter Supported Available height limitation



(shall consider leaving the gap

Weight Reference Retail Price
CFW3XL 21.5mm Slot1: 9 position 2inch mounted/ 50mm unmounted



Slot2: 7 position 50mm*50mm square

10mm 1500g USD1199
CFW3L 21.5mm 7 posiition 2inch mounted/50mm unmounted 10mm 911g USD619
CFW3M-SR 20.5mm+2mm 5 position 2inch mounted/50mm unmounted 10mm 728g USD349
CFW3M-US 17mm+2mm 7 position 36mm unmounted 5.5mm 691g USD349
CFW3S-SR 20mm+4mm 7 position 1.25inch mounted/31mm unmounted 10mm 446g USD279
CFW3S-US 15.5mm+4mm 7 position 1.25inch mounted/31mm unmounted 5.5mm 419g USD279



*Back Focus Consumed

For the convenience of calculation, all the data displayed are the increase in the back focal length taken up by using the adapter, which is not necessarily equal to the thickness of the component itself.  All the adapter data provided by QHYCCD are based on the focal length increment. For More information please see: https://www.qhyccd.com/astronomical-camera-adapter-bfl-solution/

The Calculation of Filter Wheel’s back focus consumed includes two parts: The thickness of  the filter wheel body (like the 15.5mm of CFW3S-US),   and the back focus consumed (like 4mm of CFW3S-US).

We list BFL Consumed data of both CFW body and adapter at our Adapter Solutions Page.

Mechanical Dimensions

QHYCFW3-S-SR

QHYCFW3-S-US



QHYCFW3-M-SR

QHYCFW3-M-US

QHYCFW3-L



QHYCFW3-XL



Firmware Update(202207)

Click here to update the firmware of your filter wheel. http://www.qhyccd.com/…/latestSo…/other/arduloadeFW3.zip

This firmware can keep your filter wheel rotate in one direction rather than two directions.
