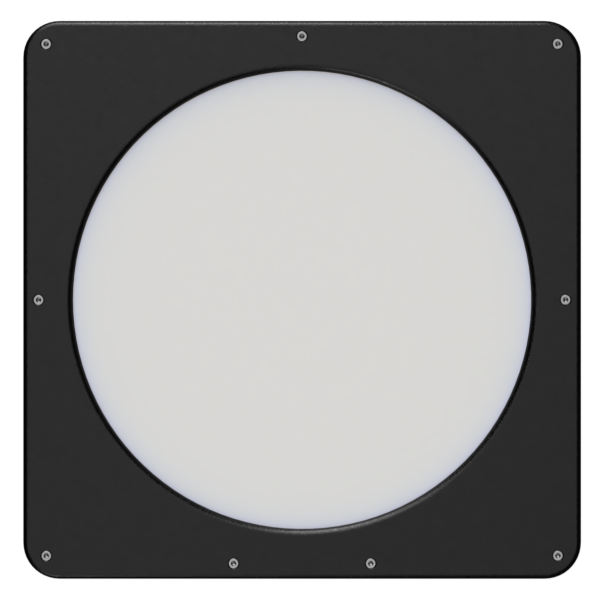

Dimmable Panel
Unlike other panels in the market, the FlatMaster can adjust its brightness from 0 to 100%. Forget sheets of paper between your telescope and the panel. Remote control the brightness of your panel. Store the brightness per filter and immediately retrieve the value you need.
The Flatmaster 250L can go up to very high brightness levels so it can easily support short exposures (2-3 seconds at f/7) with 3nm narrowband imaging filters
Manual Button
Device has a small push button which sets five (5) levels of brightness. In case you would like to manually operate the FlatMaster, no problem, just click the push button to control the brightness.
One cable operation
Only one cable (USB) is required to provide power and control of your flatpanel.
Unity Platform support
Unity Platform allows you to set filter names and store / retrieve brightness levels of your FlatMaster panel
FlatMaster is supported by most popular imaging software like SGPro, APT Voyager and N.I.N.A
Sequence Generator Pro (SGPro)
Voyager Astrophotography Automation
Astrophotography Tool (APT)
Nighttime Imaging ‘N’ Astronomy (N.I.N.A)
In the box
- Flatmaster 250
- USB type B 1.8m cable
Technical Specifications
| Type | Electroluminescent Panel (White) |
| Dimmable | Yes – (0-100%) |
| Manual Push Button | 5 brightness levels |
| Usable diameter of circle | 250 mm / 10 inches |
| Power requirements | 5V DC provided by USB type B cable |
| Size | 320 mm / 12.6 inches |
| Weight | 600g |
