Deep Sky DAD AF3s Focuser for Askar 200mm dovetail kit - DAD-AF3-ACL200

$239.95
Article number: DAD-AF3-ACL200
Availability: More on the Way to us
Delivery time: More on the Way to Us

AF3s Askar 200mm dovetail kit

Askar ACL200 lens is specifically designed for astrophotography. It comes with Vixen style dovetail and helical focuser. Focusing can be quite time consuming process even with the Bahtinov mask (especially with narrowband filters). Additionally, focus can shift with temperature change during the night. We have solved this for you with our dovetail kit mount. It works on the same principle as our hit product - WO RedCat autofocuser!

If you are an ASIAIR adopter, check out our dovetail kit mounting solution for the ZWO EAF autofocuser.

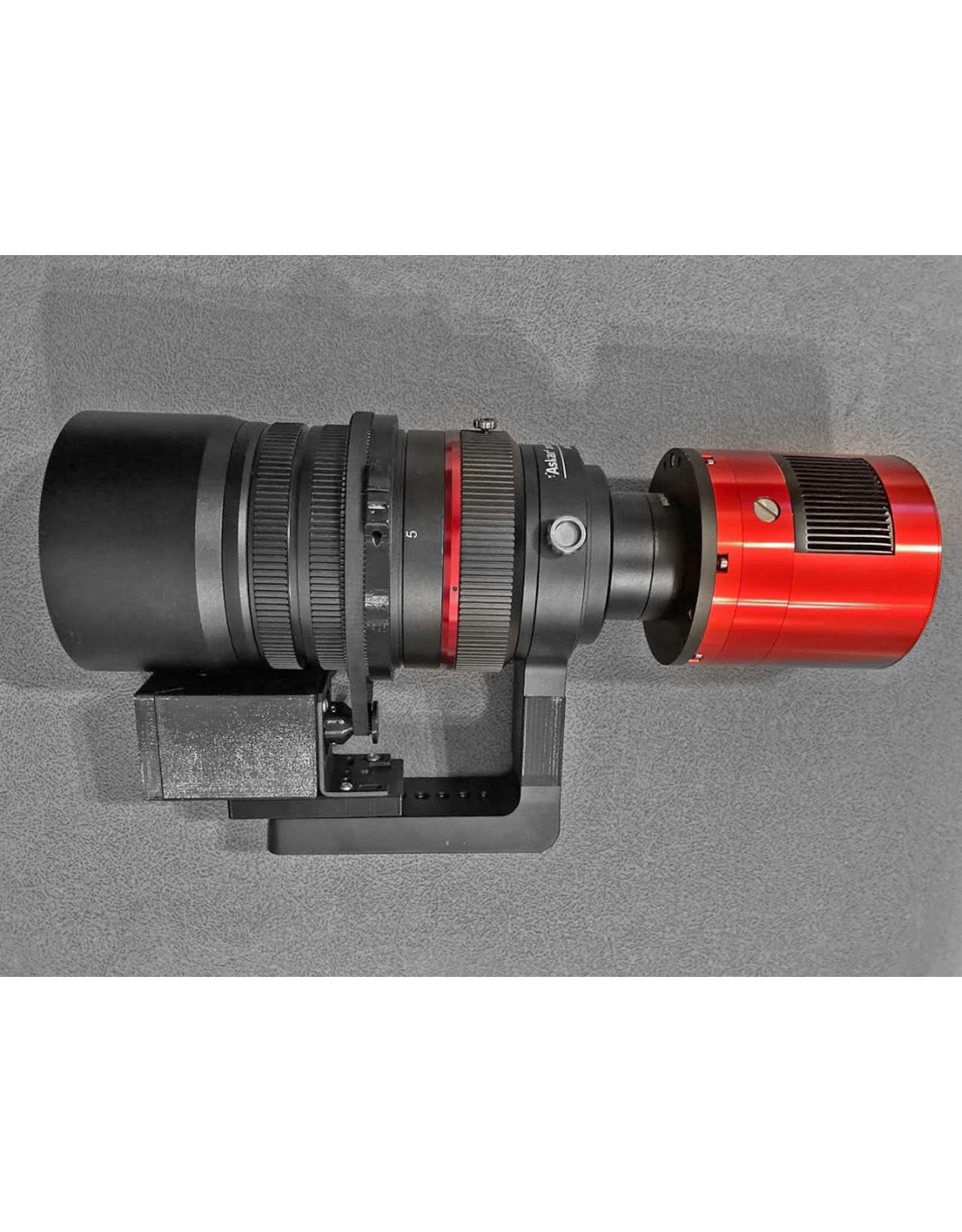

With the aluminium extension block, we raised the ACL200 just high enough, to snugly fit the AF3 motor between the lens and the dovetail. This results in a balanced, compact solution.

You are getting:


OPTION: temperature sensor
OPTION: remote controller

  • 1x AF3s unit
  • 1x 3D printed mounting plate
  • 1x 3D printed 16T MXL pulley
  • 1x 3D printed helical focuser MXL ring
  • 1x MXL timing belt
  • 8x 6mm M3 bolt (for mounting the motor to the plate/L bracket)
  • 2x 10mm M3 bolt (for ring)
  • 2x 16mm M6 bolt (for attaching mounting plate to the dovetail)
  • 1x 60mm M5 bolt (for attaching dovetail and extension block)
  • 1x ALU extension block
