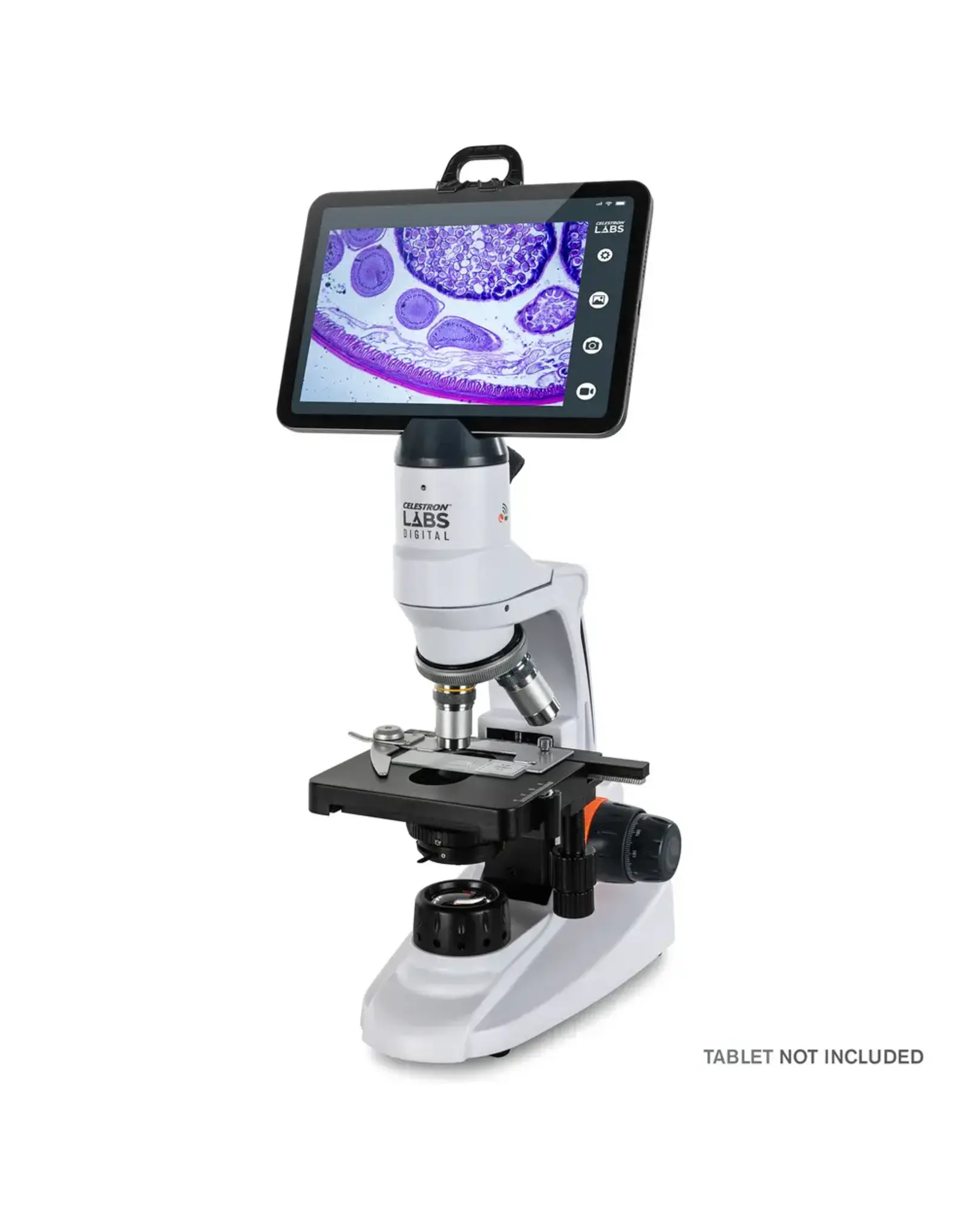

Celestron Labs Digital Wi-Fi Desktop Microscope - Model 44351
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
Celestron Labs Digital Wi-Fi Desktop Microscope - Model 44351
- ADVANCED OPTICAL MICROSCOPE WITH INTEGRATED WI-FI: Three plan achromatic objectives (4x, 10x, 40x) and a 12x digital eyepiece deliver 48x, 120x, and 480x magnification with built-in wireless imaging and control.

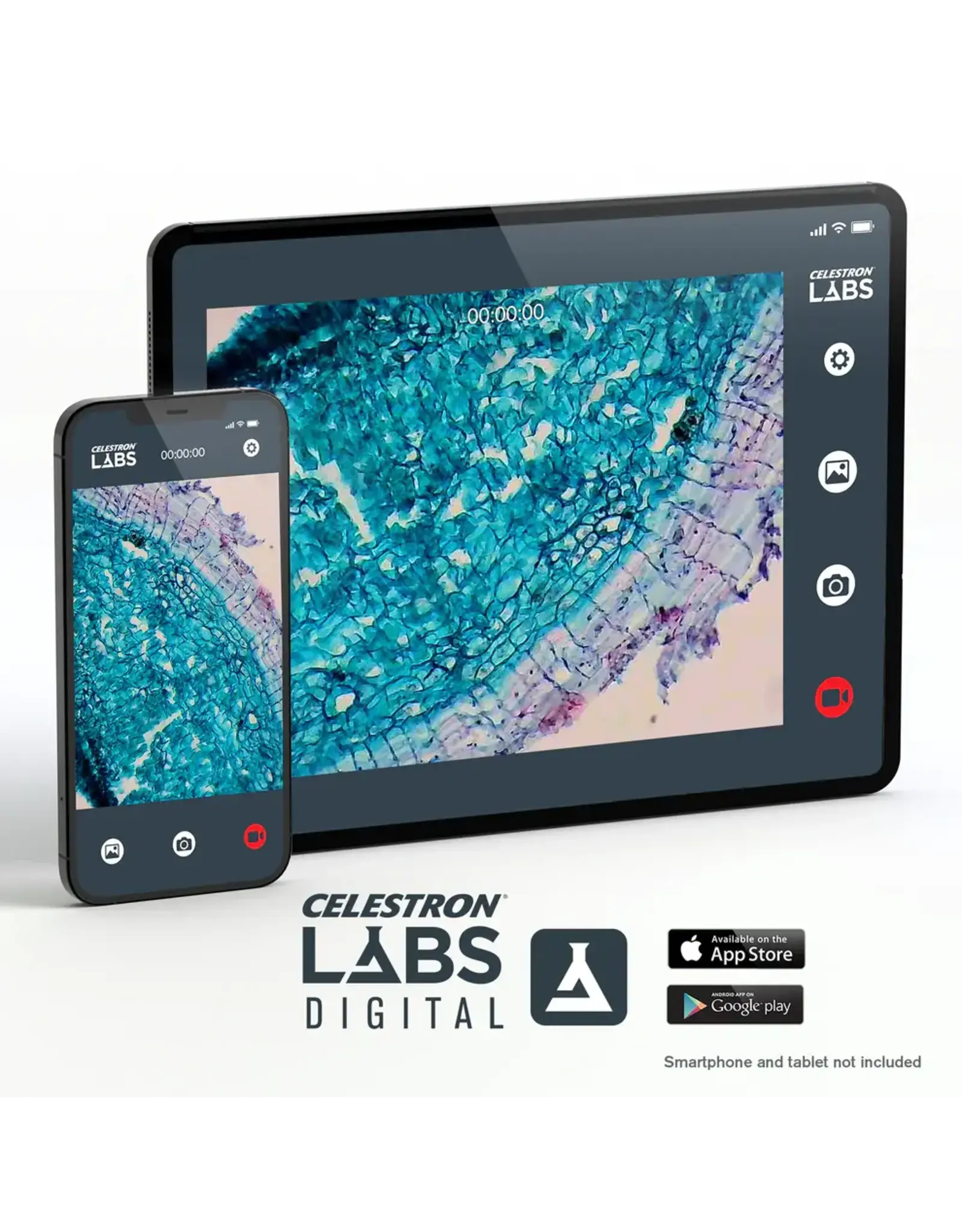

- SMART DEVICE VIEWING AND CAPTURE: Stream live images, record video, and measure specimens directly through the Celestron Labs Digital Wi-Fi App for iOS and Android.

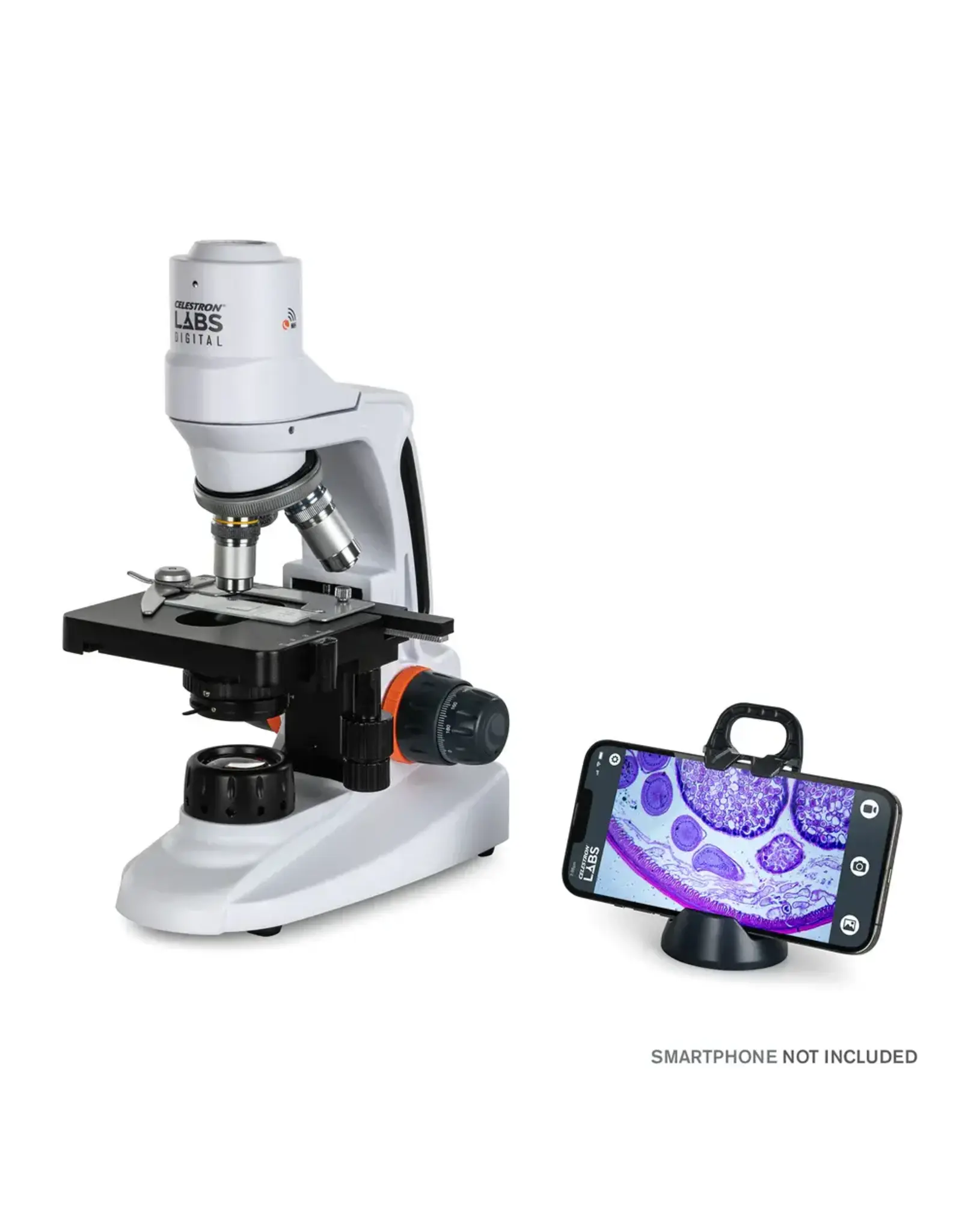

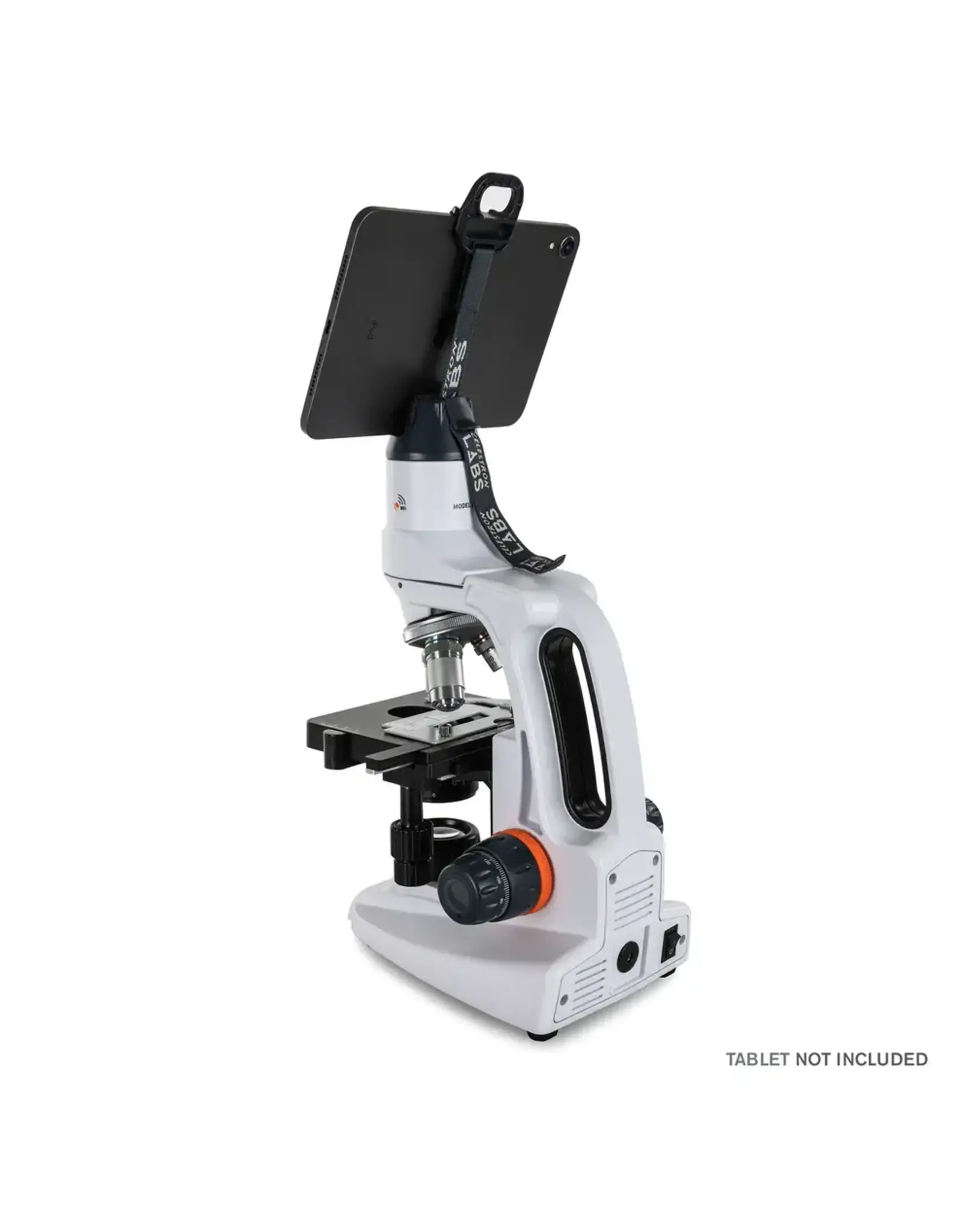

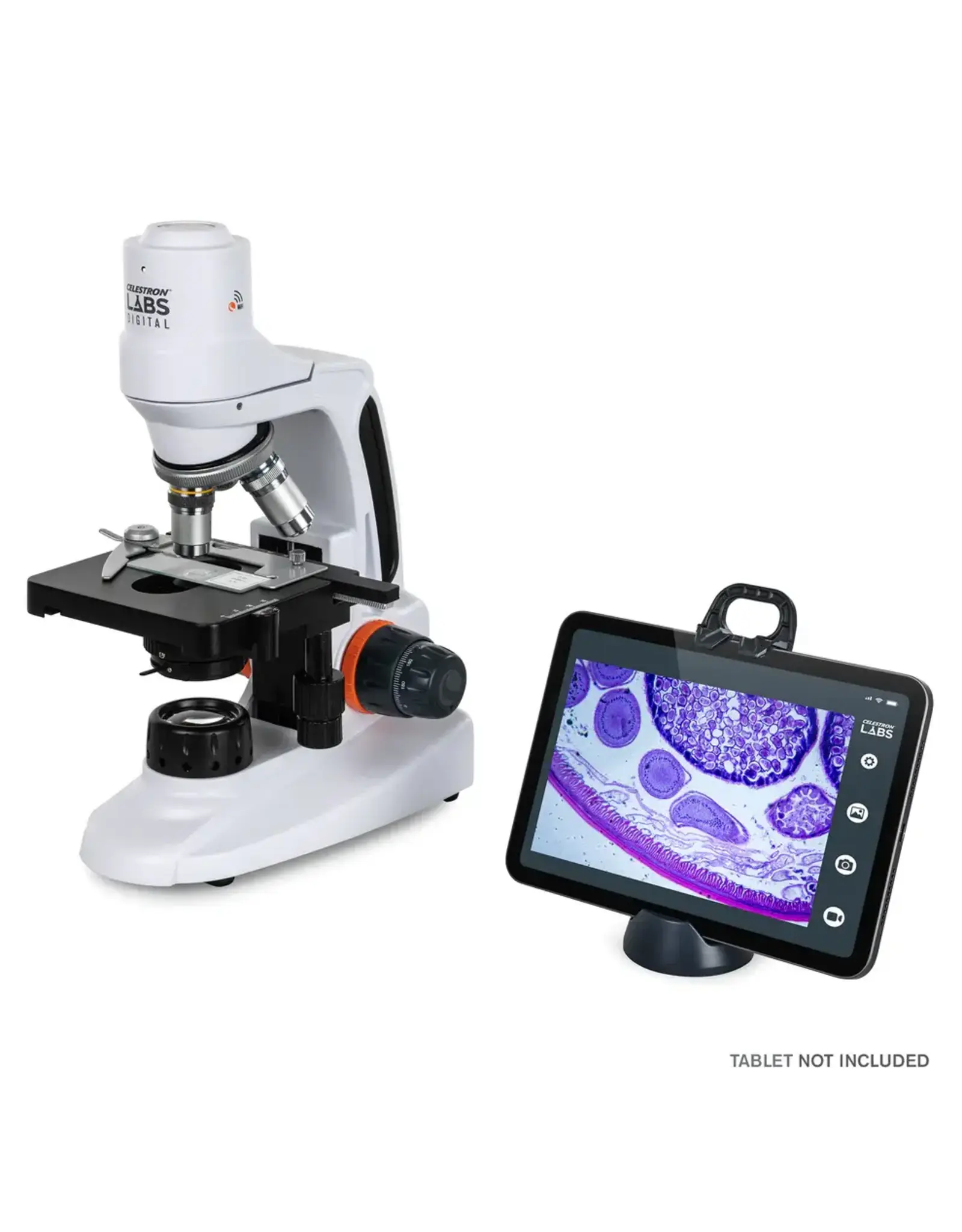

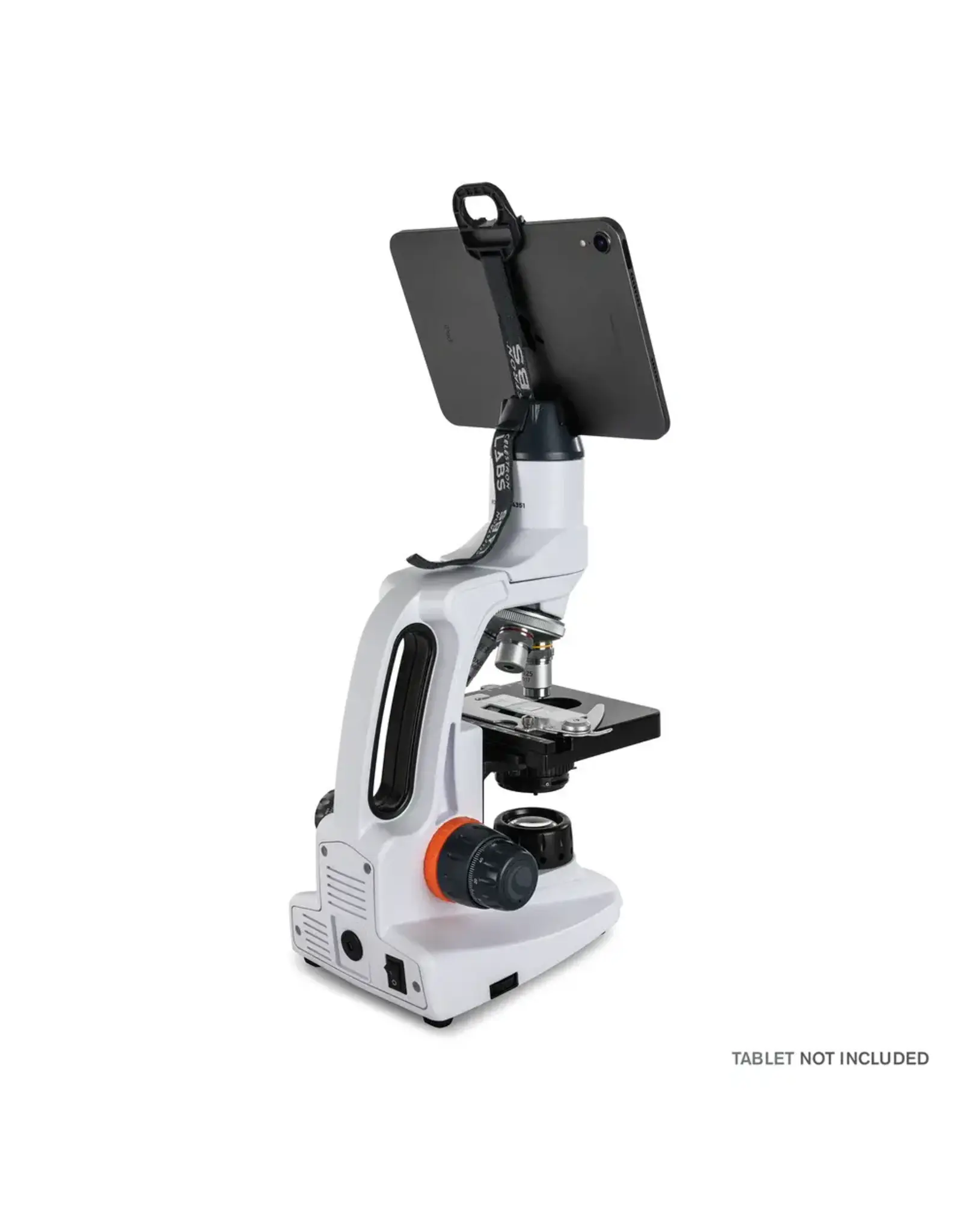

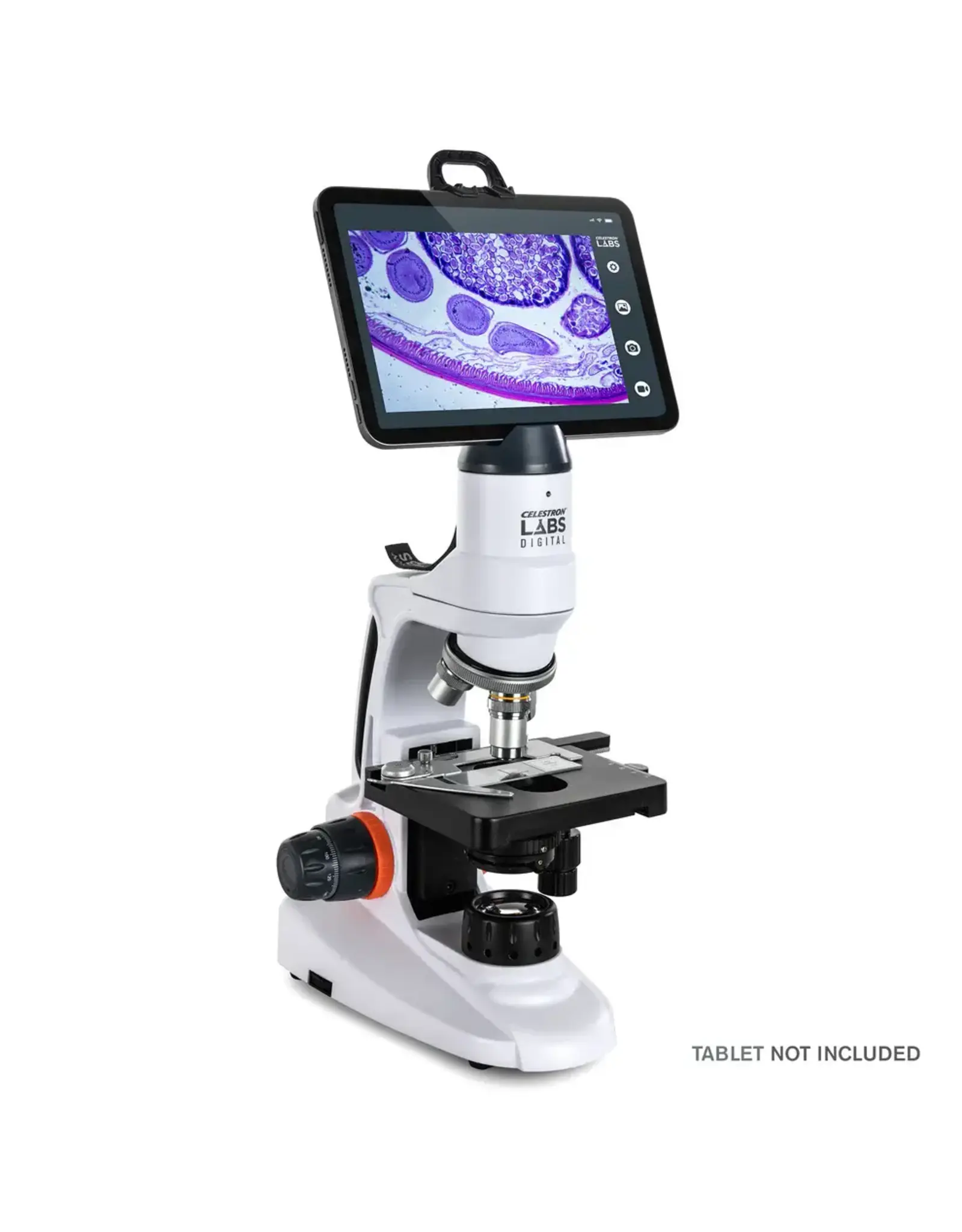

- FLEXIBLE VIEWING AND PORTABLE DESIGN: Use your smart device on the magnetic stand, in your hand, or beside the microscope. The durable housing and integrated carry handle make it easy to move between classrooms, labs, and workspaces.

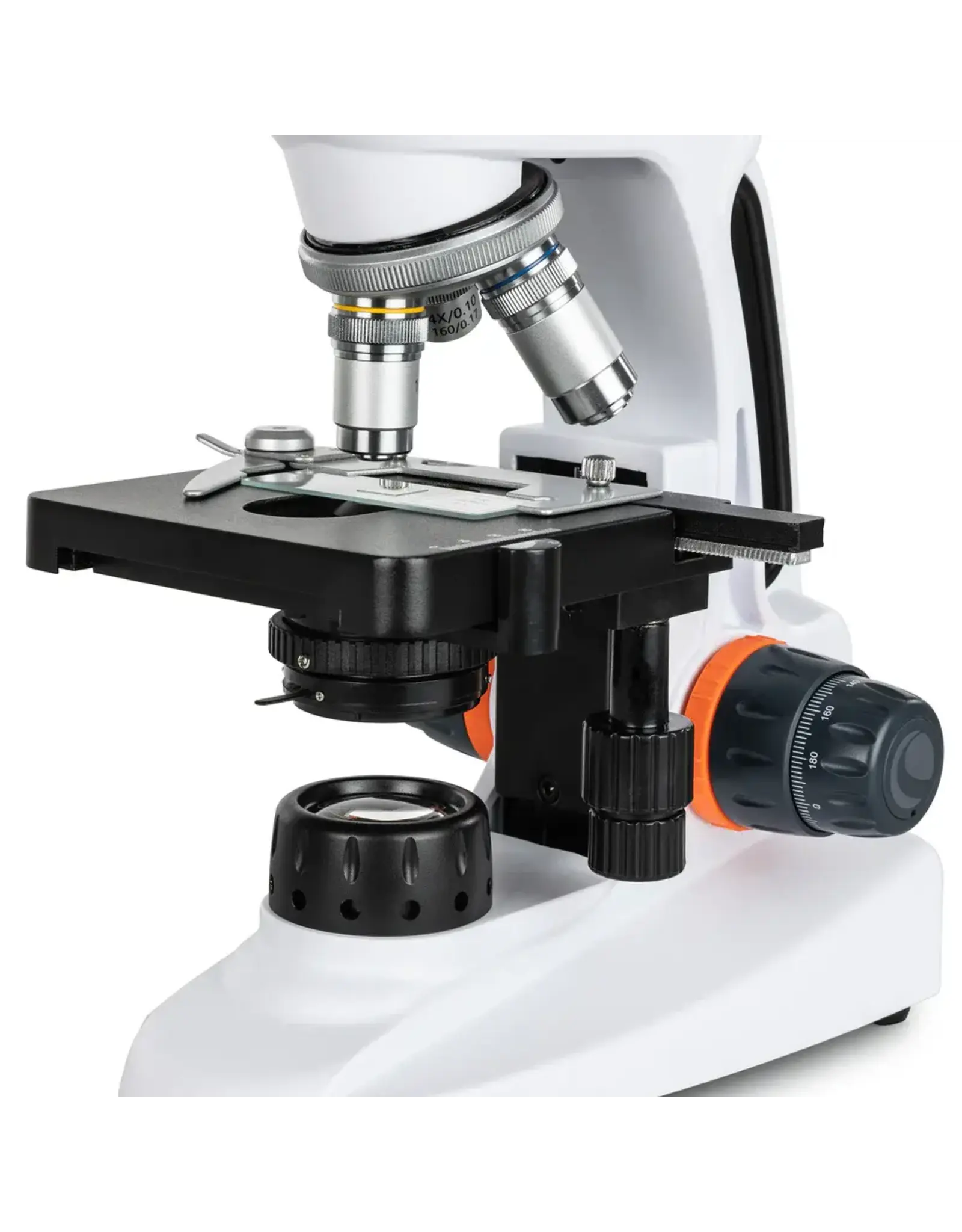

- ADJUSTABLE MECHANICAL STAGE WITH LED ILLUMINATION: Smooth X/Y slide controls let you move your specimen, while the adjustable bottom LED lighting provides even illumination.

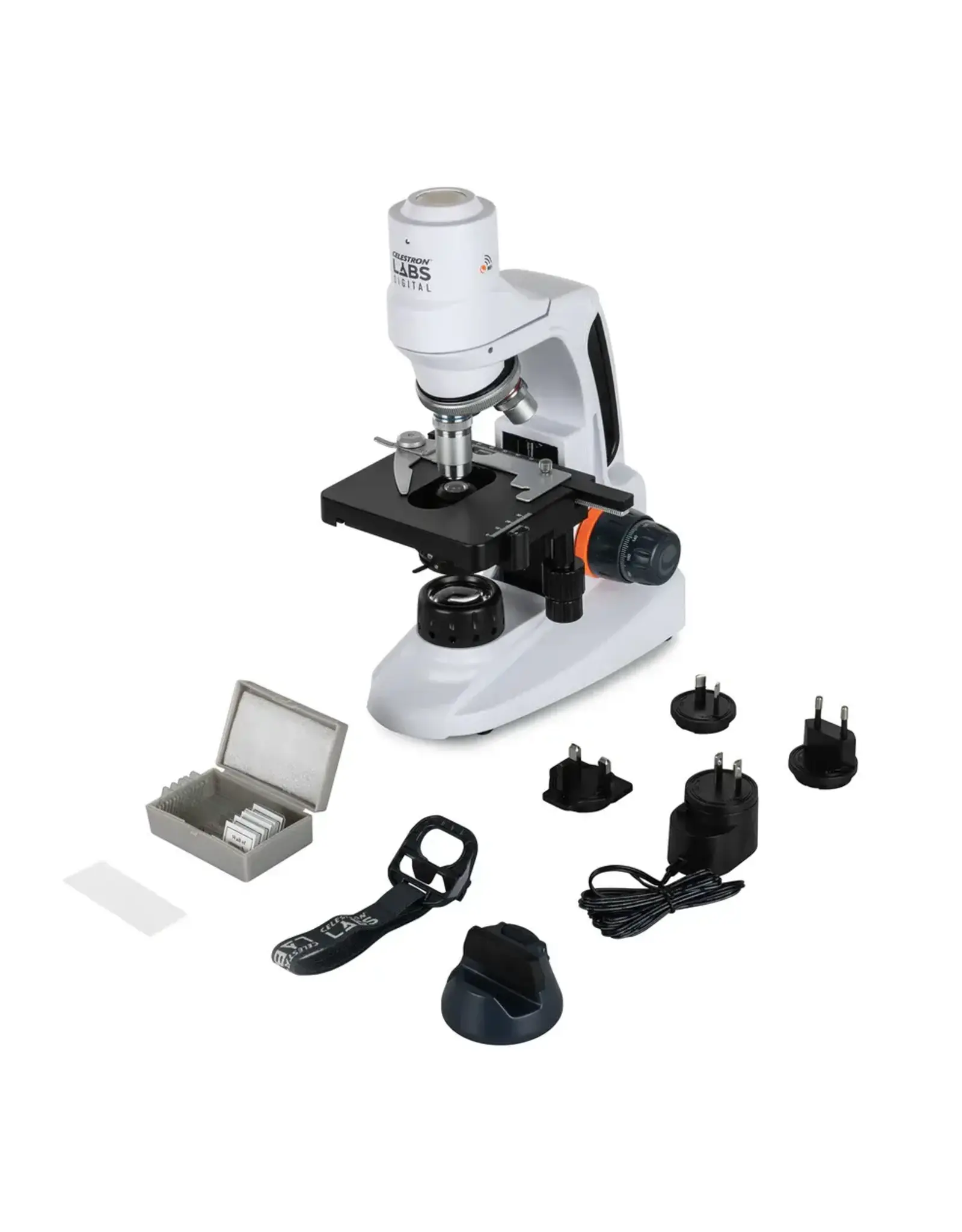

- COMPLETE ACCESSORY KIT INCLUDED: You get 5 prepared slides, a calibration ruler, an international AC adapter, and a magnetic smart device stand to get started right away.
Specs:
| Type of Microscope: | Wi-Fi Desktop /w triple objectives |
|---|---|
| Head: | Head has sensor and Wi-Fi module for sending wireless streaming images |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece (12x magnification) |
| Sensor Size: | 2MP | 1/2.8" Sony IMX290 LQR-XC |
| Stage Type: | Mechanical -Double Layer, 115mm x 125mm (4.52" x 4.92") |
| Sensor magnification: | 12x |
| Pixel Size: | 2.9 μm x 2.9 μm |
| Memory Type: | No memory- uses smart device memory to save images and video |
| Still image capture resolution: | 640x480 | 1280x720 | 1920x1080 |
| Video resolution: | 640x480 | 1280x720 | 1920x1080 |
| Shutter trigger position: | In device APP |
| Software: | Celestron Labs Digital Wi-Fi APP |
| Software Compatability: | iOS and Android |
| Nosepiece: | Triple with click stop |
| Objective(s) Type: | (3) Finite Plan Achromatic CF objectives on turret |
| Objective(s) Standard: | DIN 35 RMS |
| Objective(s) Magnification | 4x, 10x, 40x |
| Magnification Range: | 48x, 120x, and 480x |
| FOV: | 4x: 37.5mm | 10x: 6.7mm | 40x: .65mm |
| Objective(s) Thread: | WJ 4/5" x 1/36" |
| Focus Type(s): | Course and Fine Focus |
| Focus Travel (per rotation): | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Illumination Type: | LEDs (3W/4V- 220V/110V) |
| Illumination Position(s): | Bottom Illuminator |
| Illumination Adjustability Mechanism: | Adjustment dial on base |
| Power Source: | Universal AC Adapter* 100 to 240V, 50/60 hz multi-country plug |
| Battery Option: | Yes. 3AA Batteries for (2 hours) backup power- if needed |
| Stage: | Double layers mechanical stage Stage size：115mm×125mm (4.5" x 4.9") Moving range：70mm×30mm (2.75" x 1.18") |
| Condenser Type: | Abbe condenser with iris diaphragm & filter |
| Condenser N.A.: | N.A. 1.25 |
| Port(s) In: | AC Adapter/ 5-6V DC, 200-1000mA tip positive electrical input. (Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long) (Final TBD) |
| Port(s) Out: | N/A |
| AC Adapter: | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long (Final TBD) |
| Microscope Dimensions: | 170mm x 140mm x 330mm (6.7" x 5.5" x 13") |
| Microscope Weight: | 56 oz (1600g) |
| Included Items: | 5 Prepared Slides Calibration slide AC adapter (4 plug for International) Unique, optional smart device holder with safety strap |
