Celestron T Adapter Wide 48mm EdgeHD 9.25/11/14

$49.95
Article number: 93622
Availability: In stock
Delivery time: Ships Next Day



  • Produces better illumination for today's larger full-frame imaging sensors, all the way to the corners
  • Reduces vignetting–darkening around the edges of the image sensor–by providing unobstructed light to the camera

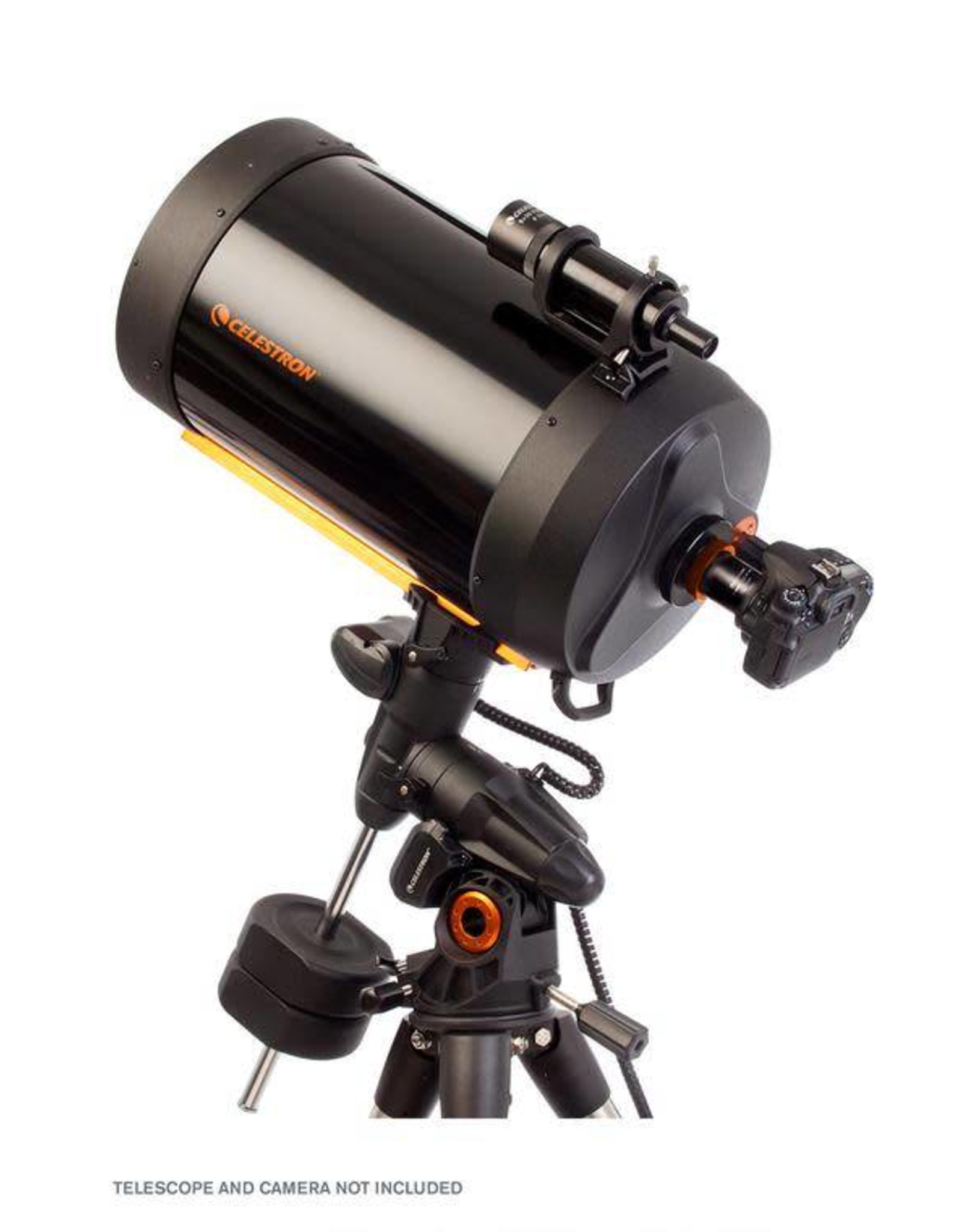

The 48 mm T-Adapter is the accessory of choice if you’d like to attach your full frame DSLR or astronomical camera to a Celestron EdgeHD optical tube. With DSLR CCD chips getting larger, Celestron created the 48 mm T-Adapter to reduce vignetting and provide a larger light path to your camera’s sensor, producing exceptional astrophotos.

The standard T-Adapter for EdgeHD 9,25", 11", and 14" comes with a 42 mm T-Thread for a 42 mm T-Ring. This smaller 42 mm T-Adapter truncates the light cone coming from the back of the EdgeHD optical tubes, which creates vignetting in the corners of full frame imaging sensors. The 48 mm T-Adapter has a larger T-Thread opening, allowing the unhindered light to illuminate the entire sensor, optimizing your full-frame sensor’s capabilities.

Below, you will find the difference between the 42 mm and the 48 mm T-Rings to give you an idea of the space the 42 mm and 48 mm T-Threads on the T-Adapter will provide.

Note: The 48 mm T-Adapter will not offer any advantage to imagers with smaller APS-C sensors.  For this, Celestron still recommends the 42 mm T-Adapter (#93646) and 42 mm T-Rings for your specific model of camera. T-Rings are sold separately. See our 42 mm Nikon T-Ring or Canon eos T-Ring.

Celestron does not offer 48 mm T-Rings, however, we do recommend the ones sold by Sky-Watcher USA.  They offer the most popular models for Canon, Nikon, and Sony cameras.

The chart below shows the relative illumination of the sensor in a 42 mm and a 48 mm T-Adapter. The X-axis is the distance from the center of the camera sensor.  The Y-Axis is the amount of light being received. As you can see, the 48 mm receives more light than the 42 mm T-Adapter and will reduce vignetting in your images.

Compatible Telescopes: Fits all EdgeHD 9.25”, 11”, and 14” Telescopes
T-Rings Threads M48 x 0.75|NOTE: This adapter will not work with M42 x0.75 T-Rings
Flange distance 91 mm
Outside diameter 72 mm
Weight 8 oz
