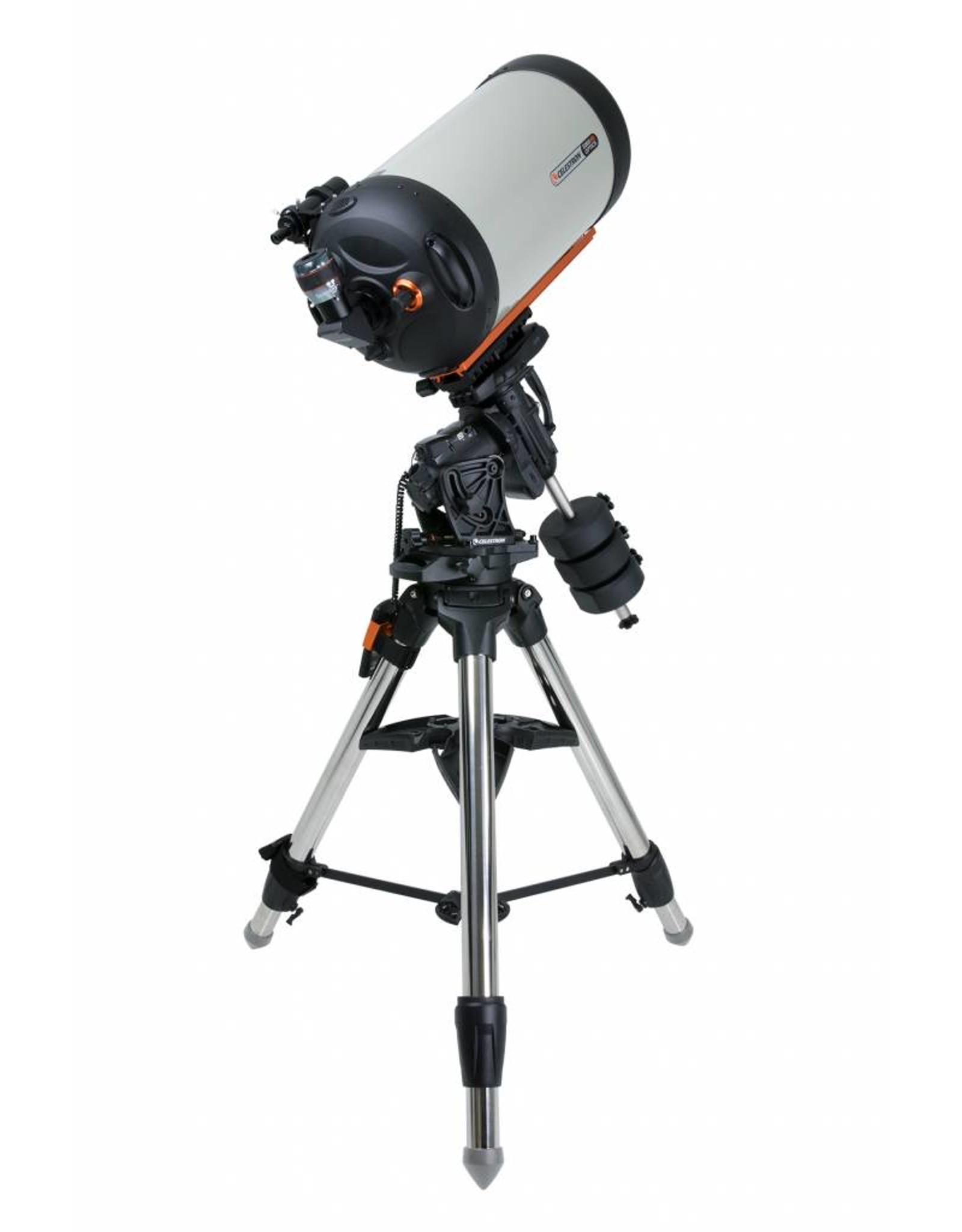

Celestron CGX-L Equatorial 1400 Edge HD Telescope

$10,999.00
Article number: 12077
Availability: More on the Way to us
Delivery time: More on the Way to Us

Celestron Wifi Technology Logo

Starsense Logo

General Features

  • 14" EdgeHD Optics
  • Celestron premium StarBright XLT coatings
  • CGX-L computerized Equatorial mount
  • Heavy Duty stainless steel tripod adjustable from 38 - 55
  • 9x50 finderscope with quick release bracket to help accurately find objects
  • 2" Star diagonal provides more comfortable viewing position when observing objects that are high in the sky

HD Features

  • New aplanatic Schmidt telescope design produces aberration-free images across a wide field of view
  • Mirror tension locks hold the primary mirror in place and reduce image shift
  • Cooling vents allow hot air to be released from behind the primary mirror
  • Fastar compatible for fast f/2 imaging

Computerized Mount Features:

New CGX-L Features

Increased 75 lb load capacity.  Exceptional load capacity to weight ratio

Additional Aux accessory ports and autoguider port on the Dec axis for better cable management

Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads

Longer 270 mm dovetail saddle to better support larger optical tubes

Massive 70 mm stainless steel tripod legs with a wider stance for improved stability under heavy loads

New accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet

Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights

Optional add-on polar axis finderscope custom designed for CGX and CGX-L

Supports WiFi and wireless operation accessories such as StarSense AutoAlign and SkyPortal WiFi Module (sold separately)

Mount Features:

Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time

Improved motors provide more torque, better slewing and tracking under heavy loads

Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity

Clear windows built into motor covers so pulleys and belts can be monitored

Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh

Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags

Internal hard stops for both axes prevent cable tension and tripod strike

Internal optical sensors on both axes for simple and safe remote operation

-Home sensors allow the mount to always start in the index position regardless of orientation before a power reset

-Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe

Includes Celestron's new PWI telescope control software, co-developed by PlaneWave Instruments.  Software features multi-point mount modeling for extremely precise pointing accuracy

Software Polar Align: “All-Star Polar Alignment” allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance

Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3º-65º latitude range

Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle

+20º of additional tracking past the meridian on either side

Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback

Tripod legs can be collapsed with accessory tray installed for faster setup and transport

Improved Ergonomics:

Integrated handles for easy transport and portability

All-new ergonomically designed dovetail clamping knobs

Innovative and improved polar alignment adjustment system

All-new ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a newly-designed linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load.  No more binding, rough adjustments!

Easy to read latitude scale

Electronics:

NexStar+ hand control with USB port

USB 2.0 port used to connect directly to PC with PWI Software

2 available autoguider ports for optimum cable management

PEC sensor and PPEC ready

Threaded 12VDC power input barrel connector

Internal Real Time Clock (keeps time and site information saved)

On/Off rocker switch with red LED

Celestron's newly designed CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series.  Capable of carrying  Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport.  COMPACT.  ERGONOMIC.  INNOVATIVE.

Specifications

Optical Tube Info:
Optical Design EdgeHD
Aperture (mm) 356 mm (14 in)
Focal Length 3910 mm (154 in)
Focal Ratio 11
Focal Length of Eyepiece 1 (mm) 23 mm (0.91 in)
Magnification of Eyepiece 1 170 x
Finderscope 9x50
Star Diagonal 2" with 1.25" adapter
Mount Info:
Mount German Equatorial
Instrument load capacity 75 lb
Tripod height adjustment range 35.75” to 52.75”
Tripod leg diameter 2.75"
Latitude adjustment range 3º-65º
Tripod Weight 46.2 lb
EQ Head Weight w/o Counterweight Shaft 47 lb
Total EQ Head Weight 52.6 lb
Max Slew Speed 4º/second (3º/second is default)
Tracking Rates Sidereal, Solar and Lunar
Number of Auxiliary ports (for hand control and accessories) 4
Autoguide port Yes
USB Port Yes
Software PWI Telescope Control Software
Included Items
  CGX-L Equatorial Head
  CGX-L Tripod
  Accessory Tray
  3 x 22 lb Counterweight
  NexStar+ Hand Control
  DC Power Cable (plugs into cigarette lighter socket)
  8 mm Allen Wrench (contained in rear carry handle)
