Askar V Modular Telescope System
| Article number: | ASKAR V |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar V is a versatile modular apochromatic refractor system designed for astrophotography and visual observation. Instead of being limited to a single focal length, the Askar V includes interchangeable 60mm and 80mm triplet APO objective lenses, along with a reducer, field flattener, and focal extender.
Both objective lenses use a triplet air-spaced APO design with two ED glass elements for improved chromatic aberration correction and image clarity. By changing the objective lens and optical accessory, the Askar V can be configured for a wide range of focal lengths from 270mm to 600mm.
This makes the Askar V particularly useful for astrophotographers who want multiple imaging configurations without having to maintain several separate telescopes.
The included reducer provides a faster focal ratio and wider field of view for large deep-sky targets, while the field flattener is designed to improve edge-of-field performance for astrophotography. The 1.2x extender increases focal length for applications where additional image scale is desired.
The Askar V also features a 360° camera rotator, 1.25" and 2" visual adapters, a multifunctional handle, finder base, and M48/M54 photographic connections. A built-in 2" filter thread is provided on the photographic accessories.
FEATURES:
• Modular telescope system with interchangeable 60mm and 80mm objectives
• Triplet air-spaced APO optical design
• Two ED glass elements in each objective
• Six primary imaging configurations using the included optical accessories
• Focal lengths ranging from 270mm to 600mm
• Compatible with full-frame cameras
• Includes reducer, field flattener, and focal extender
• 360° camera rotator
• 1.25" and 2" visual adapters
• M48 and M54 photographic adapters
• Built-in 2" filter thread
• Multifunctional handle and finder base
• Includes tube ring and Vixen-style dovetail plate
• Includes carrying case
OPTICAL CONFIGURATIONS:

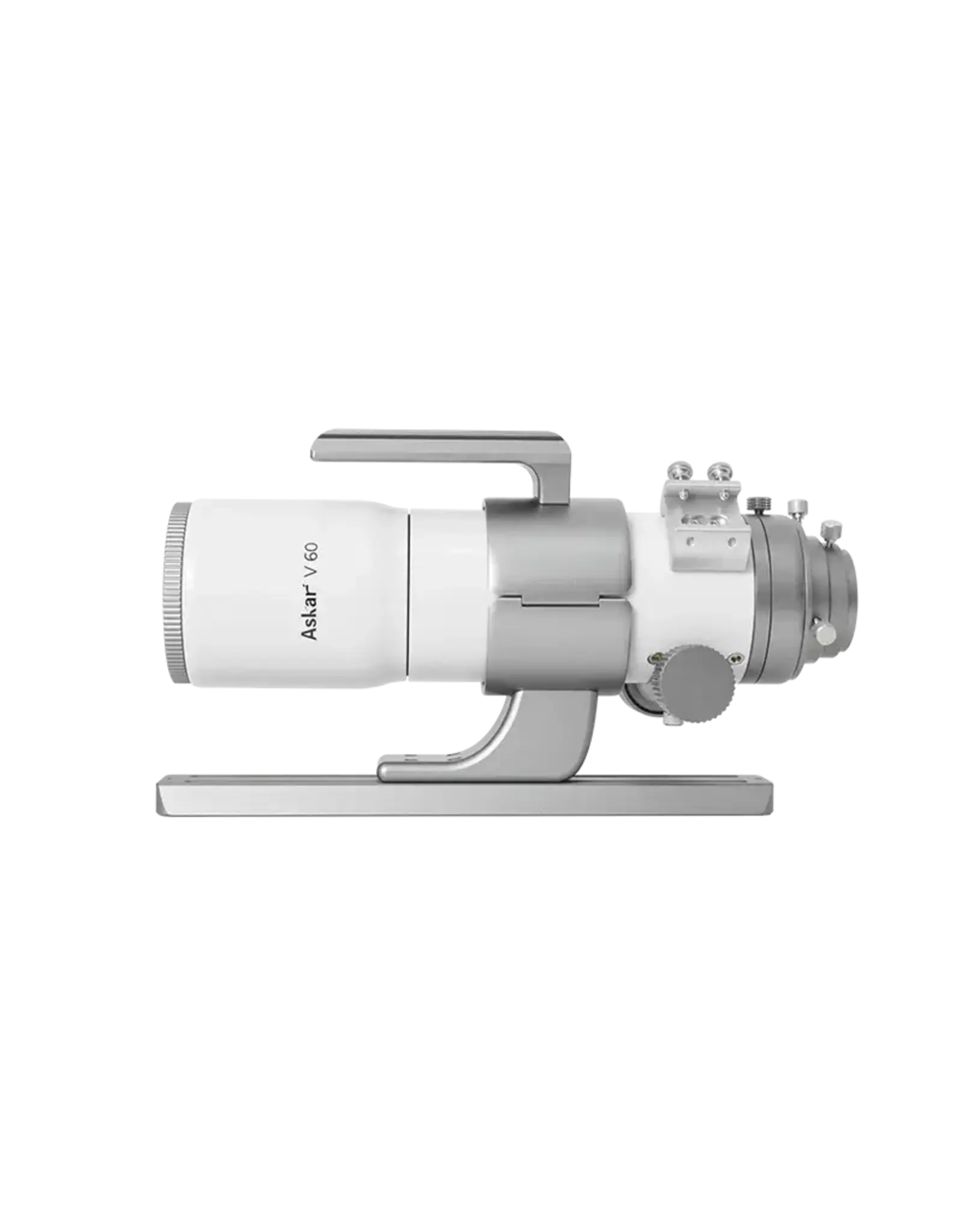

60mm Objective
• Native: 60mm aperture, 360mm focal length, f/6
• With Reducer: 270mm focal length, f/4.5
• With Flattener: 360mm focal length, f/6
• With Extender: 446mm focal length, f/7.43

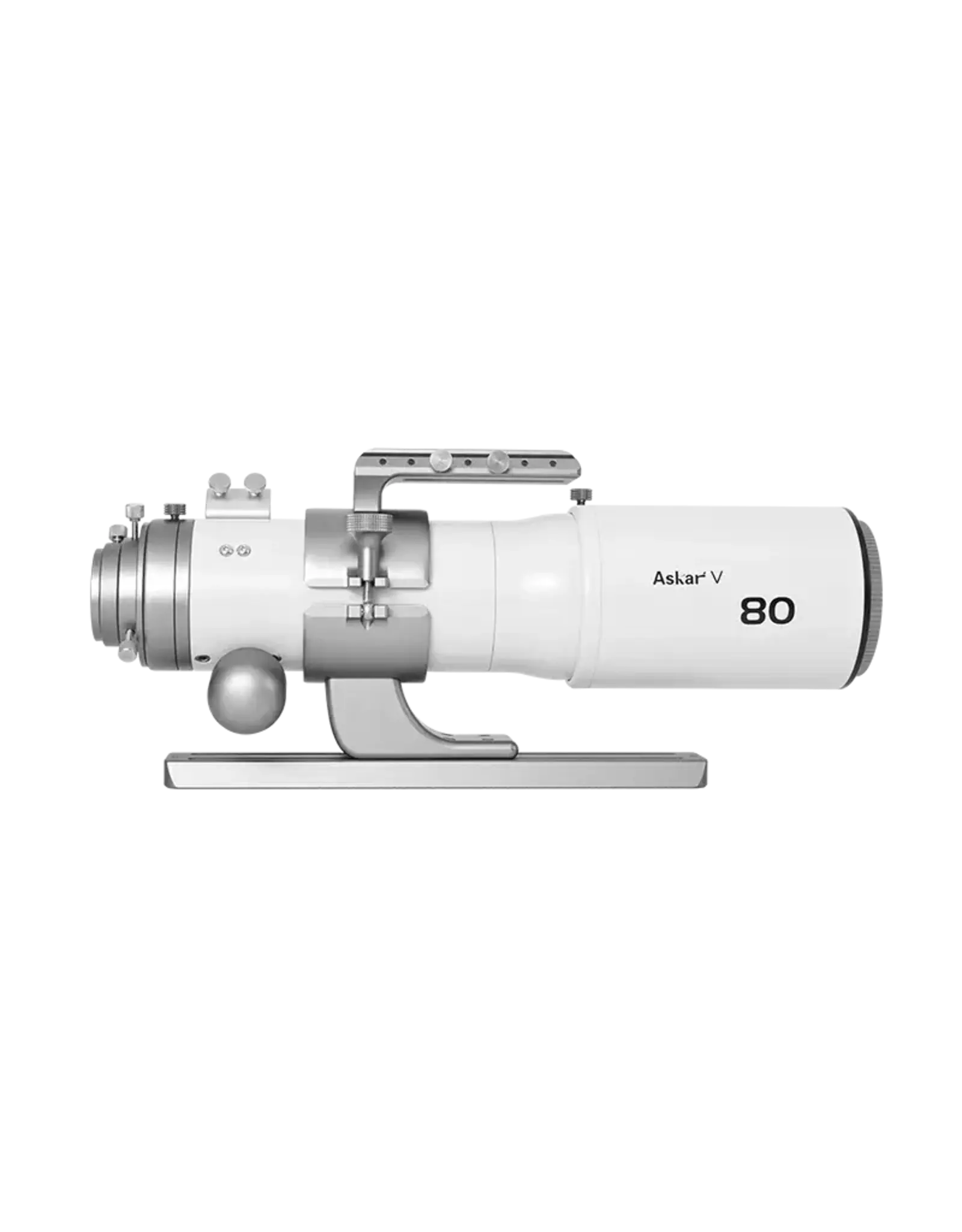

80mm Objective
• Native: 80mm aperture, 500mm focal length, f/6.25
• With Reducer: 384mm focal length, f/4.8
• With Flattener: 495mm focal length, f/6.18
• With Extender: 600mm focal length, f/7.5
SPECIFICATIONS
Optical Design: Triplet Air-Spaced APO
ED Elements: 2
Image Circle: 44mm
Objective Options: 60mm and 80mm
60mm Objective:
Aperture: 60mm
Focal Length: 360mm
Focal Ratio: f/6
Length: 318.5mm
Weight with Tube Ring & Dovetail: Approximately 2.8 kg / 6.3 lb
80mm Objective:
Aperture: 80mm
Focal Length: 500mm
Focal Ratio: f/6.25
Length with Dew Shield Retracted: 411mm
Length with Dew Shield Extended: 479mm
Weight with Tube Ring & Dovetail: Approximately 3.4 kg / 7.5 lb

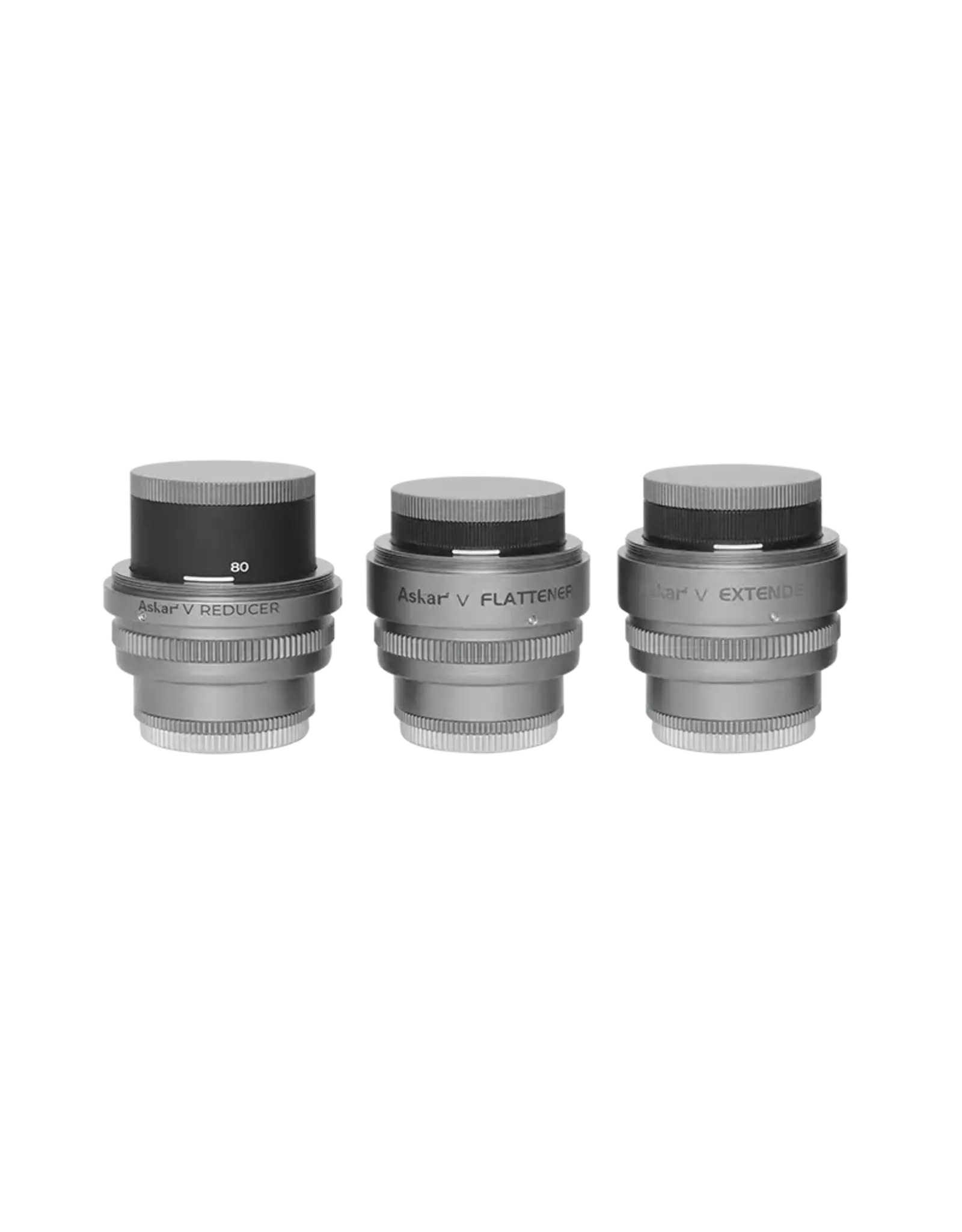

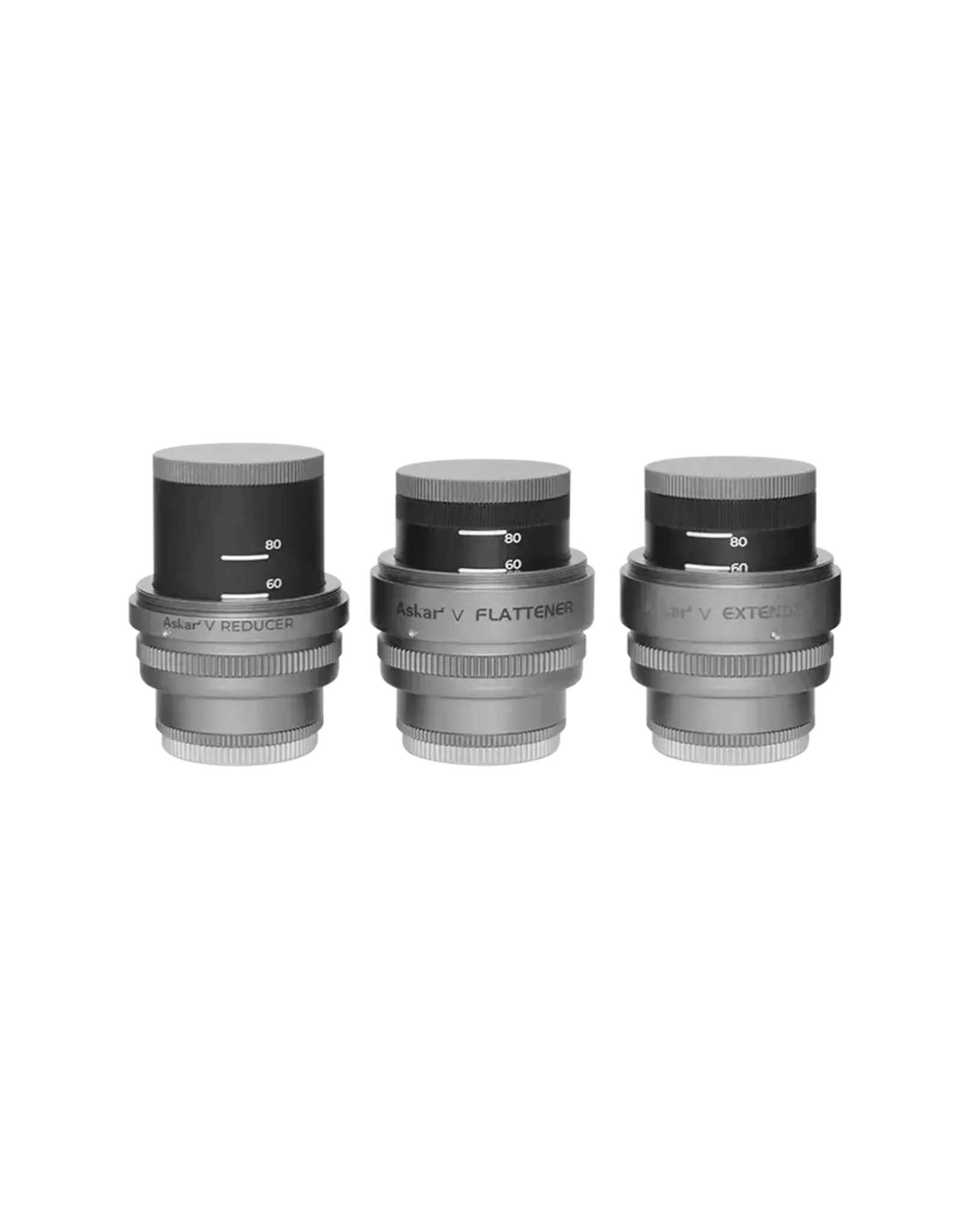

Included Optical Accessories
V Reducer:
60mm configuration: 270mm, f/4.5
80mm configuration: 384mm, f/4.8
Weight: Approximately 0.44 kg / 1.0 lb
V Flattener:
60mm configuration: 360mm, f/6
80mm configuration: 495mm, f/6.18
Weight: Approximately 0.48 kg / 1.1 lb
V Extender:
60mm configuration: 446mm, f/7.43
80mm configuration: 600mm, f/7.5
Weight: Approximately 0.46 kg / 1.0 lb
Photographic Connections:
M48 x 0.75
M54 x 0.75
Built-in 2" filter thread
Back Focus:
55mm from the M48 adapter

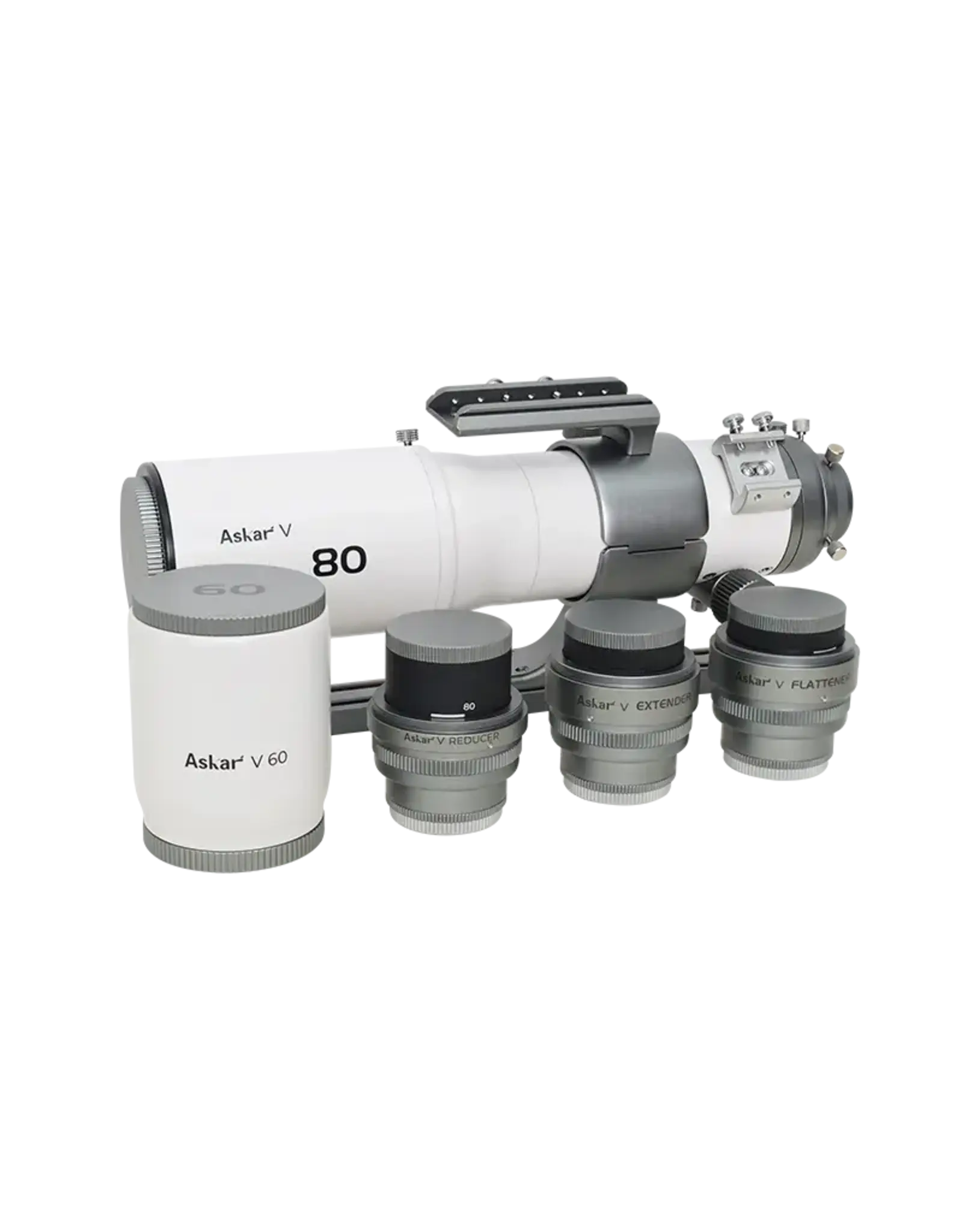

INCLUDED ITEMS:
• Askar V Telescope Body
• 60mm Triplet APO Objective
• 80mm Triplet APO Objective
• Askar V Reducer
• Askar V Field Flattener
• Askar V Extender
• Rear-End Adapter
• Multifunctional Handle Bar
• Finder Base
• Tube Ring
• Dovetail Plate
• 1.25" Visual Adapter
• 2" Visual Adapter
• Carrying Case
