Askar SQA85 Petzval Refarctor Telescope
| Article number: | ASKAR-SQA85 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar SQA85 is a fast, wide-field astrograph designed for deep-sky astrophotography and full-frame imaging. It features an 85mm aperture, 408mm focal length, and fast f/4.8 focal ratio, providing a wide field of view that is well suited for large nebulae, galaxies, star fields, and other extended deep-sky targets.
The SQA85 uses a five-element, fully air-spaced Petzval APO optical design incorporating two SD glass elements. The Petzval design provides built-in field flattening, allowing the SQA85 to produce a flat imaging field without requiring a separate field flattener. The 44mm image circle supports full-frame cameras.
The SQA85 features a 2.8" dual-speed rack-and-pinion focuser with 32mm of travel. A built-in 360° rotator allows the camera orientation to be adjusted while maintaining a rigid connection to the optical system.
The retractable dew shield helps reduce the telescope's overall size for storage and transportation. The integrated tube ring features multiple threaded mounting points and a multifunctional handle/finder base for attaching accessories. A 290mm Vixen-style dovetail plate is included.

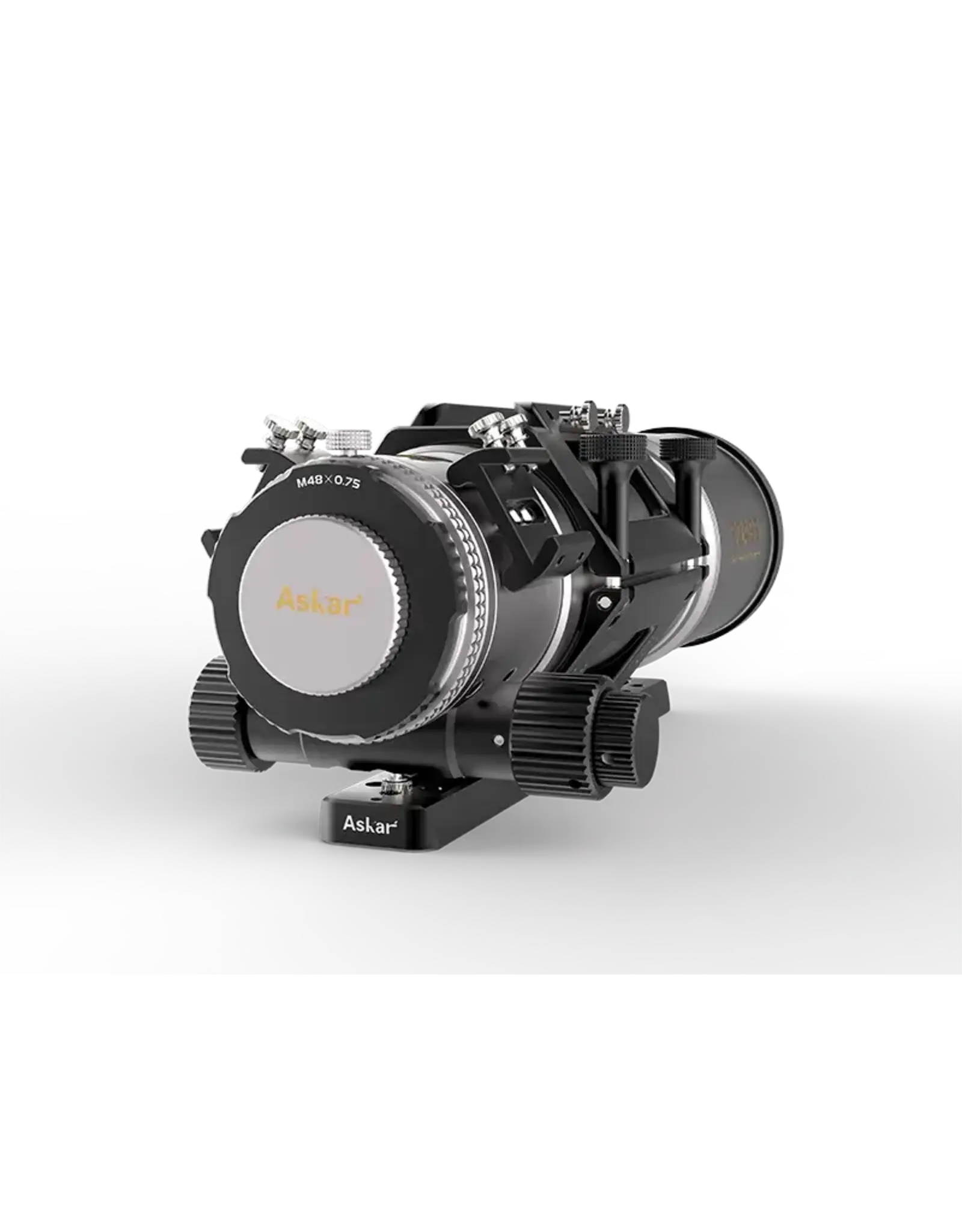

The rear of the telescope includes interchangeable M48, M54, and M68 adapters. The SQA85 supports a rear connection distance from 40mm to 70mm, with 55mm recommended.
FEATURES
• 85mm aperture
• 408mm focal length
• Fast f/4.8 focal ratio
• Five-element fully air-spaced Petzval APO optical design
• Two SD glass elements
• 44mm image circle
• Full-frame compatible
• Built-in Petzval field flattening
• Designed for wide-field deep-sky astrophotography
• 2.8" dual-speed rack-and-pinion focuser
• 32mm focuser travel
• Built-in 360° rotator
• Retractable dew shield
• M48, M54, and M68 rear adapters
• Adjustable rear connection distance from 40–70mm
• Recommended 55mm connection distance
• Integrated tube rings
• Multifunctional handle/finder base
• Two additional finder bases on the focuser
• 290mm Vixen-style dovetail plate
• Includes Oxford cloth carrying case
OPTICAL SPECIFICATIONS
Aperture: 85mm
Focal Length: 408mm
Focal Ratio: f/4.8
Optical Design: Quintuplet Air-Spaced Petzval APO
SD Glass Elements: 2
Image Circle: 44mm
Format: Full Frame
MECHANICAL SPECIFICATIONS
Focuser: 2.8" Dual-Speed Rack-and-Pinion
Focuser Travel: 32mm
Rotator: 360°
Dew Shield: Retractable
Length with Dew Shield Retracted: 403mm
Length with Dew Shield Extended: 439mm
Rear Adapters: M48 / M54 / M68
Rear Connection Distance: 40–70mm
Recommended Connection Distance: 55mm
Dovetail: 290mm Vixen-style
WEIGHT
OTA Weight: 3.64 kg / 8.02 lb
Weight with Tube Ring and Dovetail Plate: 4.62 kg / 10.19 lb
INCLUDED
• Askar SQA85 Optical Tube
• Multifunctional Handle
• 290mm Vixen-style Dovetail Plate
• M48 Adapter
• M54 Adapter
• M68 Adapter
• Oxford Cloth Carrying Case
• Inspection List
• User Manual
