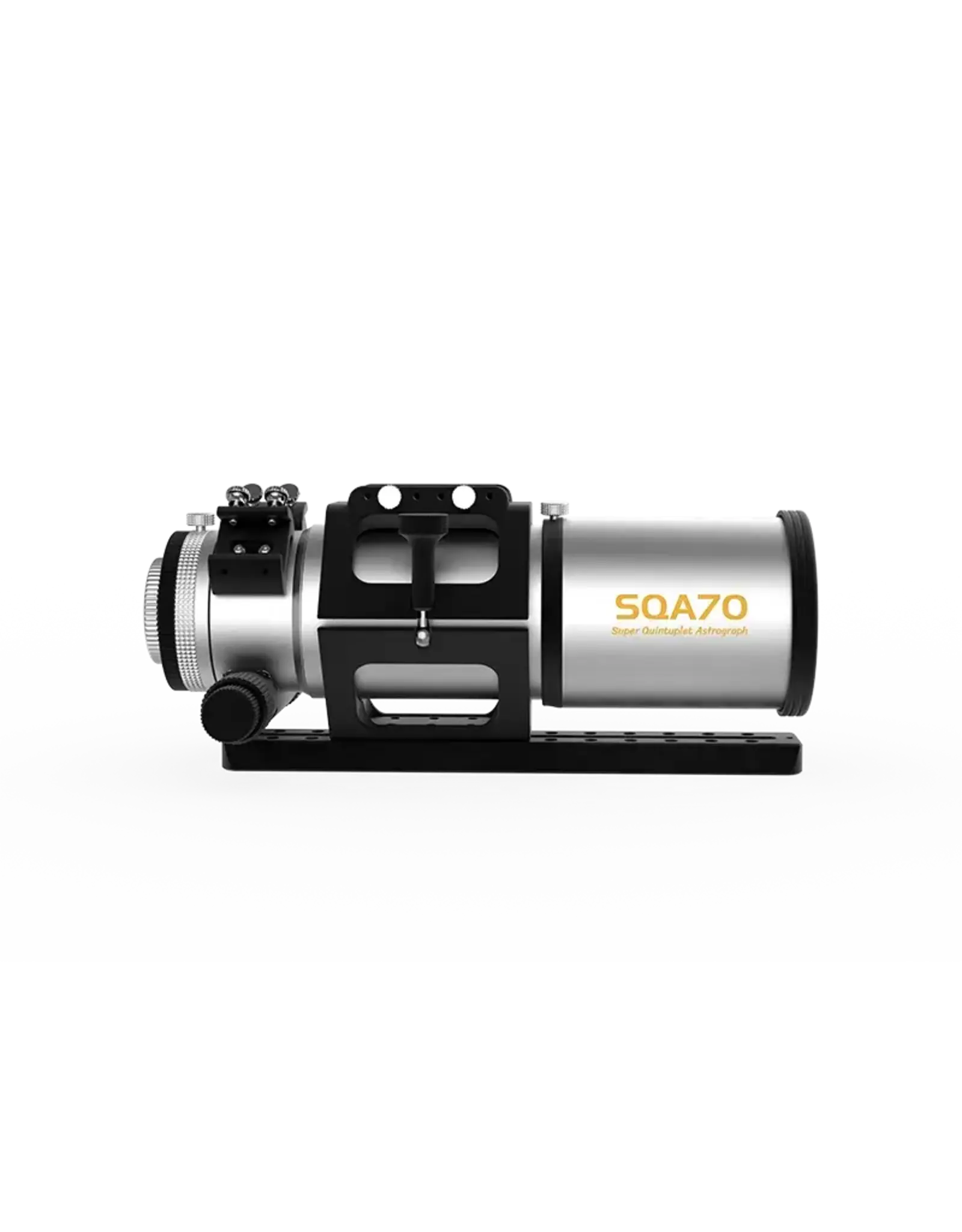

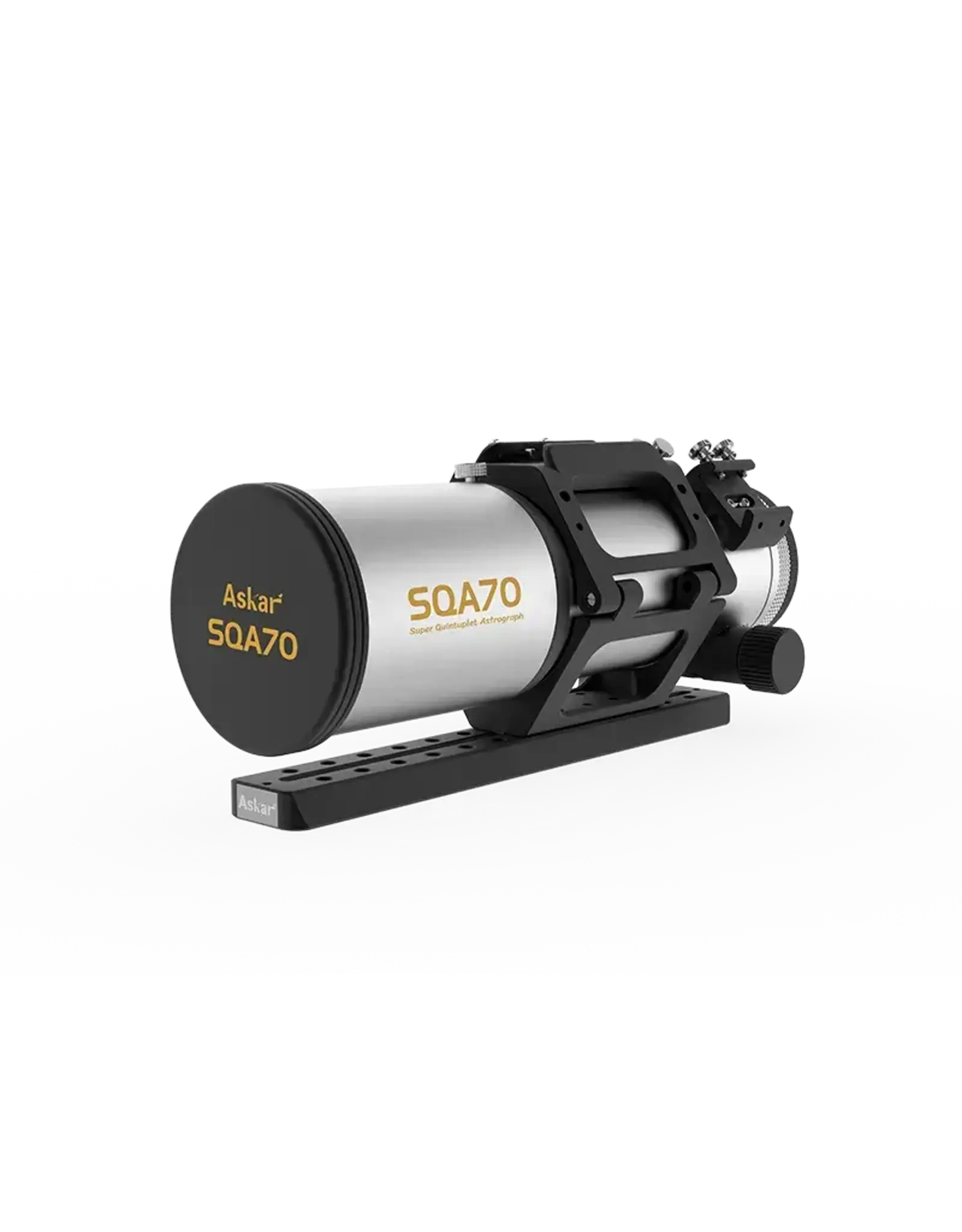

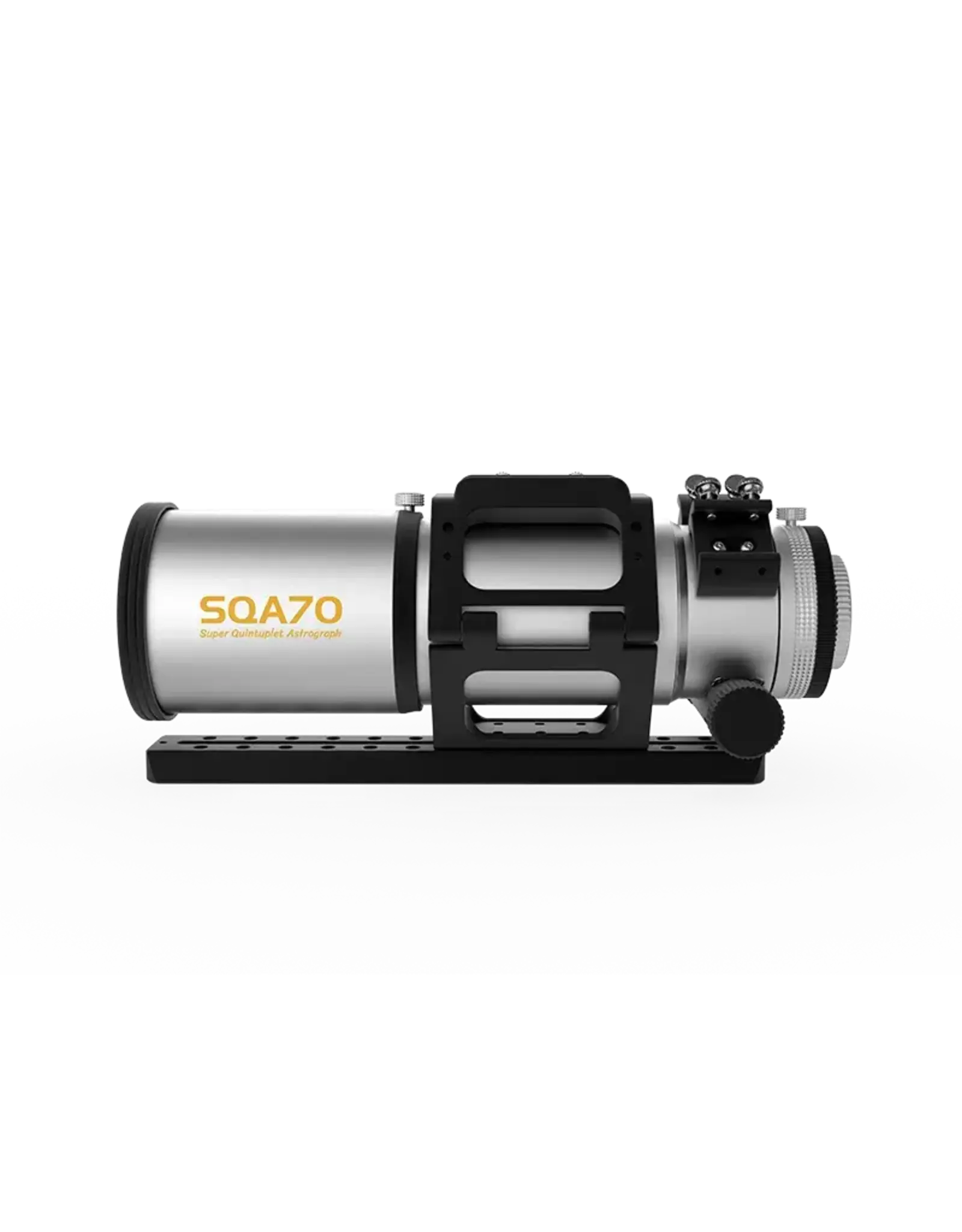

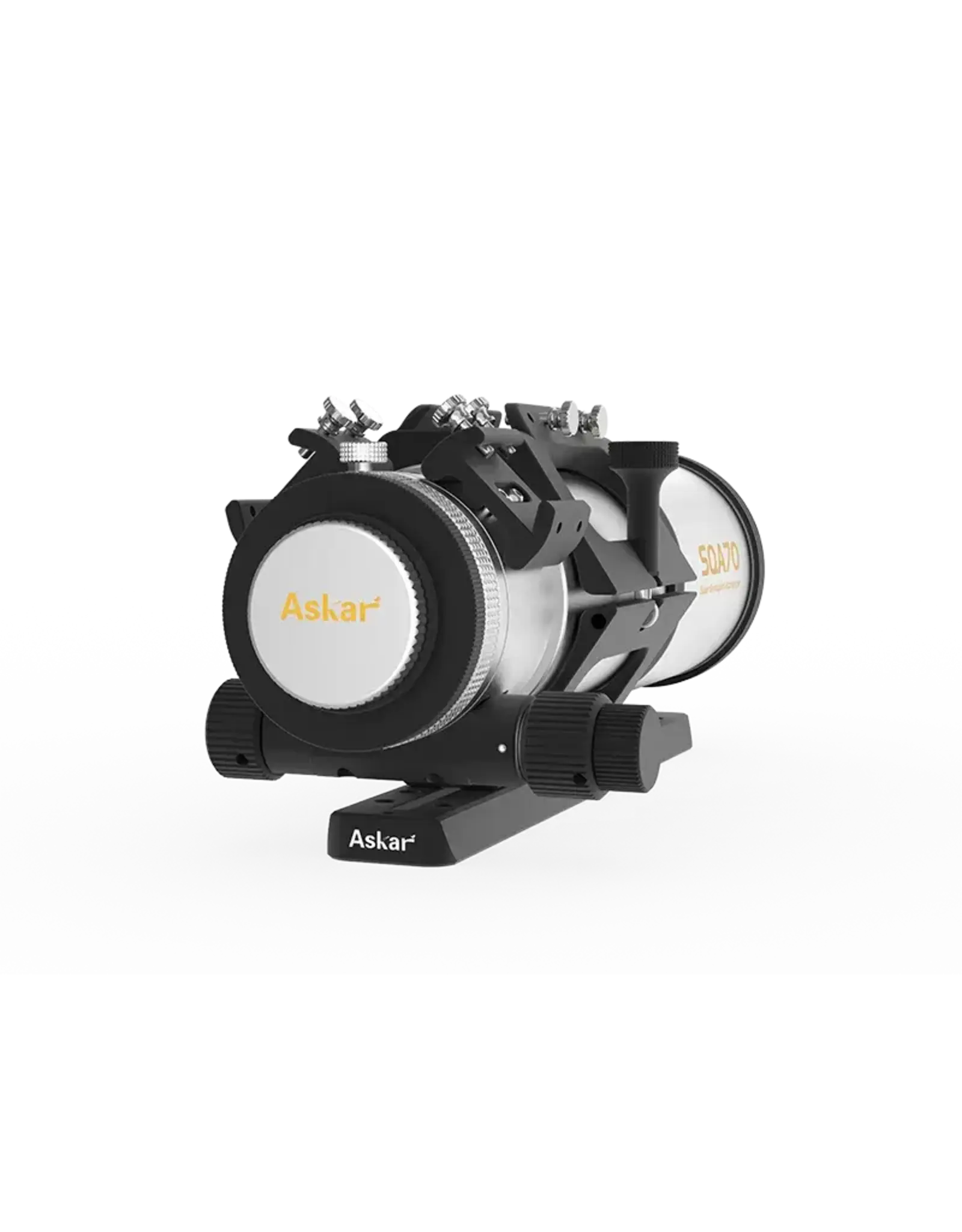

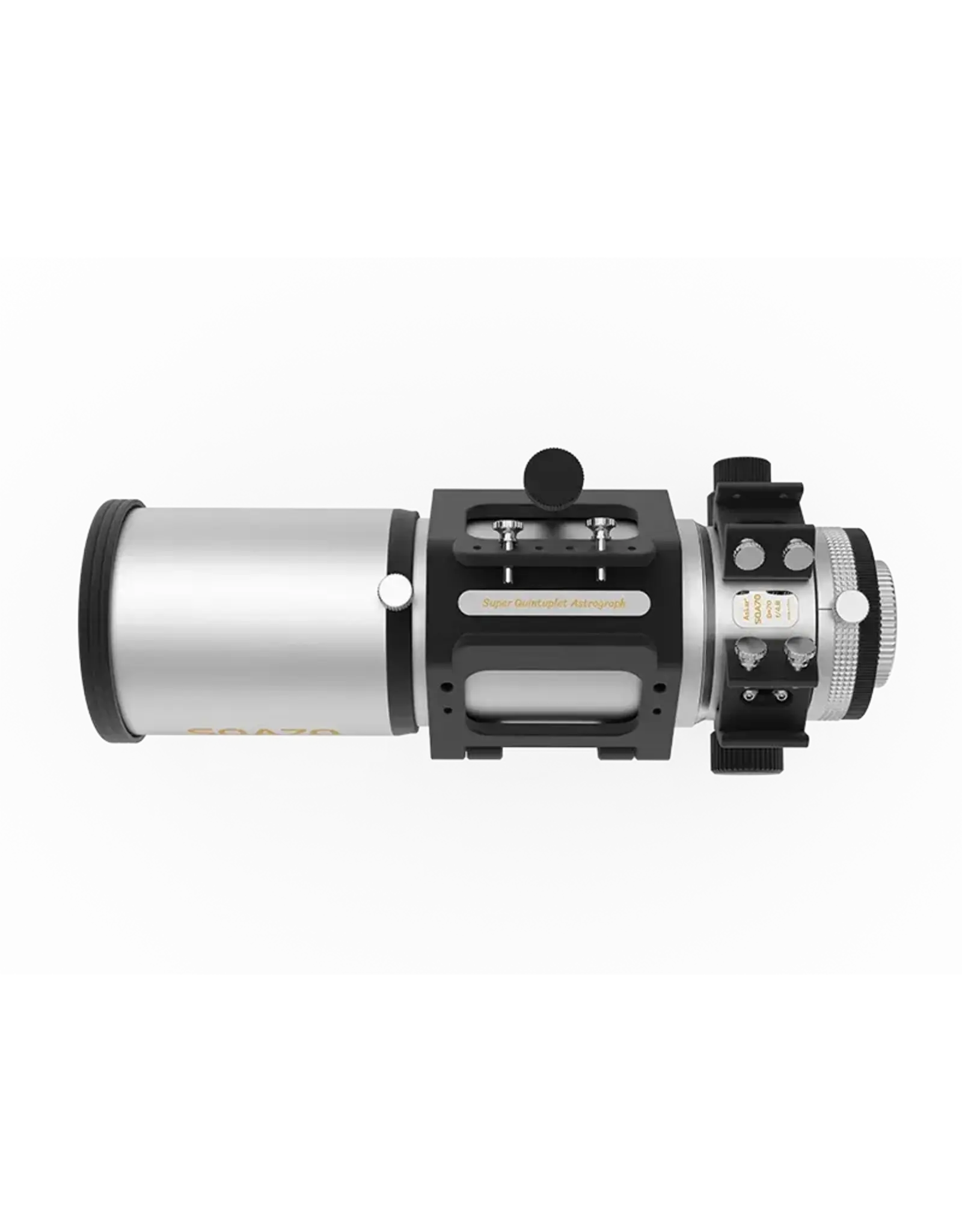

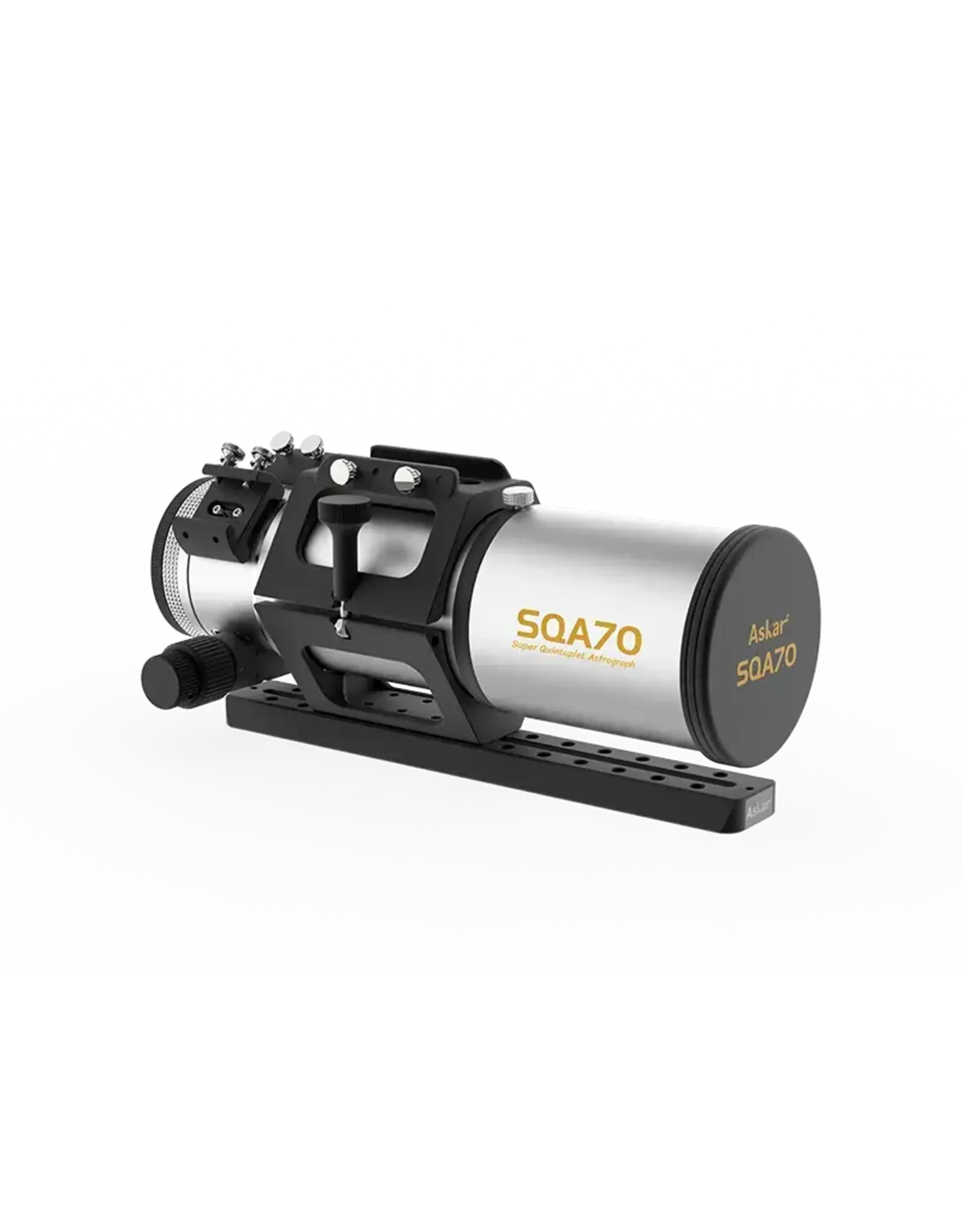

Askar SQA70 Petzval Refractor Telescope
| Article number: | ASKAR-SQA70 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar SQA70 is a compact, fast astrograph designed for wide-field deep-sky astrophotography. It features a 70mm aperture, 336mm focal length, and fast f/4.8 focal ratio, making it well suited for capturing large nebulae, star fields, and other extended deep-sky objects.
The SQA70 uses a five-element, air-spaced Petzval APO optical design incorporating two ED glass elements. Its 44mm image circle provides full-frame coverage, while the Petzval design incorporates field flattening directly into the optical system. This allows the SQA70 to be used for astrophotography without requiring a separate field flattener.
The optical system is designed to provide sharp stars across the full-frame image circle, with the manufacturer specifying an RMS star radius of less than 1.84 µm at the center and less than 2.4 µm at the edge of the field.
The SQA70 features a 2.5" dual-speed rack-and-pinion focuser with 32mm of travel and an integrated 360° rotator. The rear of the telescope includes M42, M48, and M54 adapters, providing flexibility when connecting cameras and other astrophotography accessories.
The rear connection distance can be adjusted between 37mm and 68mm, with 55mm recommended. The M48 adapter also includes a 2" filter thread.
FEATURES
• 70mm aperture
• 336mm focal length
• Fast f/4.8 focal ratio
• Quintuplet air-spaced Petzval APO optical design
• Two ED glass elements
• Full-frame 44mm image circle
• Built-in Petzval field flattening
• Designed for wide-field deep-sky astrophotography
• 2.5" dual-speed rack-and-pinion focuser
• 32mm focuser travel
• Integrated 360° rotator
• M42, M48, and M54 rear adapters
• M48 adapter includes 2" filter thread
• Adjustable rear connection distance from 37–68mm
• Recommended 55mm connection distance
• Retractable dew shield
• Integrated tube rings
• Vixen-style dovetail plate
• Multiple accessory mounting points
• Includes carrying case
OPTICAL SPECIFICATIONS
Aperture: 70mm
Focal Length: 336mm
Focal Ratio: f/4.8
Optical Design: Quintuplet Air-Spaced Petzval APO
ED Glass Elements: 2
Image Circle: 44mm
Format: Full Frame
MECHANICAL SPECIFICATIONS
Tube Length with Dew Shield Retracted: 332mm
Tube Length with Dew Shield Extended: 372mm
Dew Shield Diameter: 96mm
Focuser: 2.5" Dual-Speed Rack-and-Pinion
Focuser Travel: 32mm
Rotator: 360°
Rear Adapters: M42 / M48 / M54
Rear Connection Distance: 37–68mm
Recommended Connection Distance: 55mm
M48 Filter Thread: 2"
WEIGHT
OTA Weight: Approximately 2.68 kg / 5.9 lb
Weight with Tube Rings and Dovetail Plate: Approximately 3.5 kg / 7.7 lb
INCLUDED ITEMS
• Askar SQA70 Optical Tube
• Tube Rings
• Vixen-style Dovetail Plate
• M42 Adapter
• M48 Adapter
• M54 Adapter
• Oxford Cloth Carrying Case
• Inspection List
• User Manual
