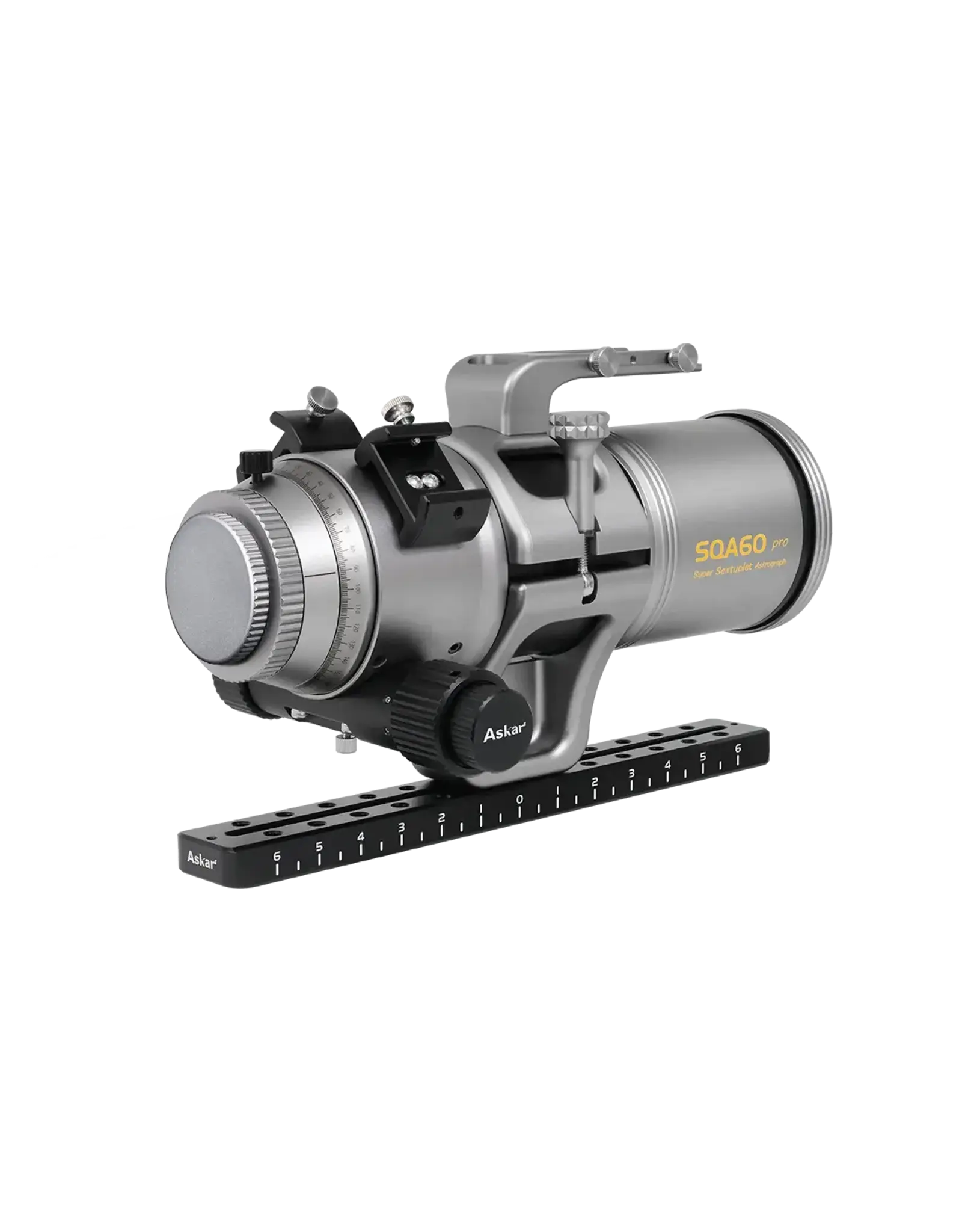

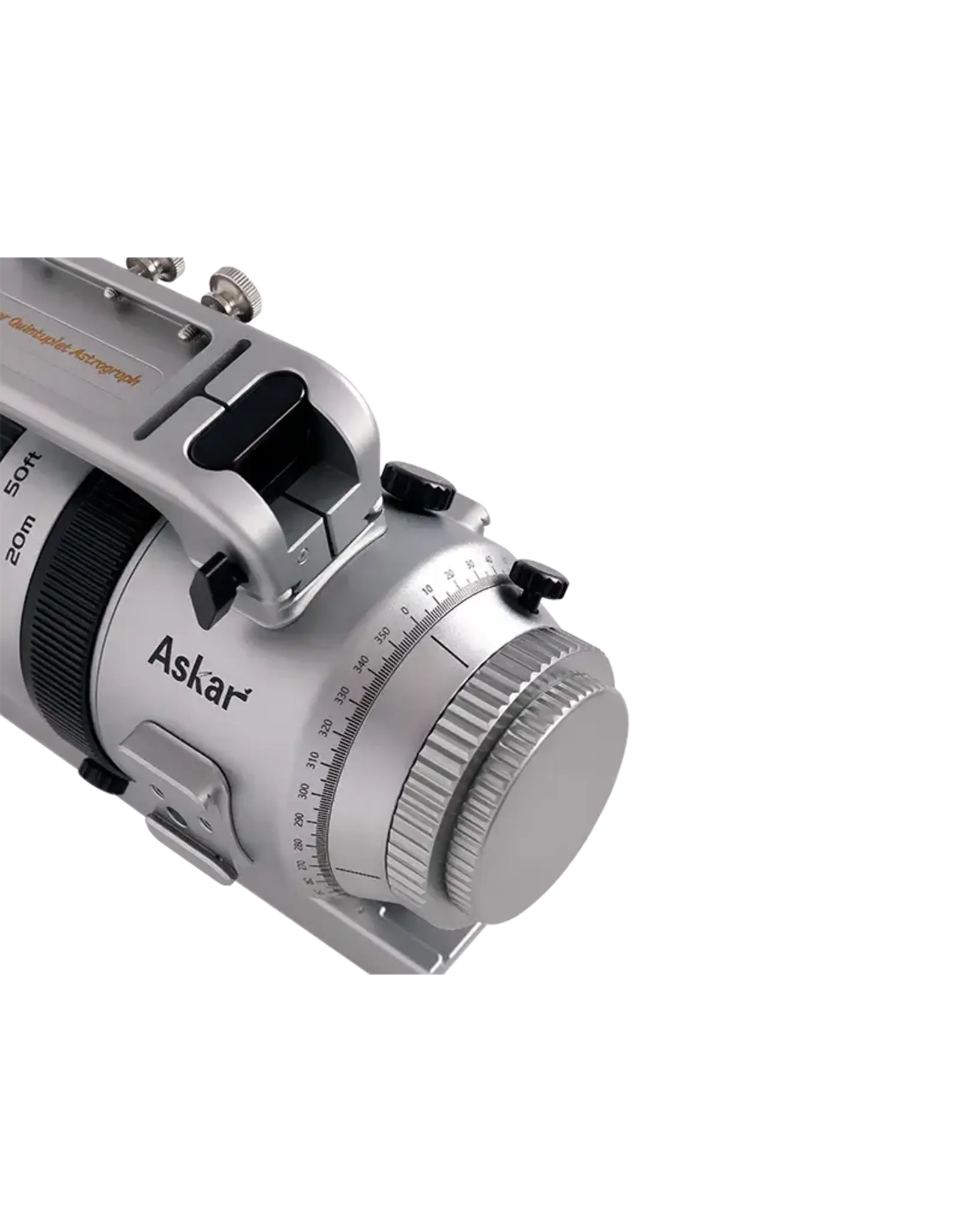

Askar SQA60 Pro Sextuplet Petzval Telescope
| Article number: | ASKAR-SQA60Pro |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar SQA60 Pro is a compact, fast astrograph designed specifically for wide-field deep-sky astrophotography. It features a 60mm aperture, 276mm focal length, and fast f/4.6 focal ratio, making it well suited for capturing large nebulae, star fields, and other extended deep-sky objects.
The SQA60 Pro uses a six-element, fully air-spaced Petzval APO optical design incorporating two SD glass elements for improved chromatic aberration correction and sharp, well-controlled stars across the image. The optical system provides a 44mm image circle, making the SQA60 Pro compatible with full-frame cameras.
With its short 276mm focal length and fast f/4.6 focal ratio, the SQA60 Pro provides a wide field of view while collecting light efficiently. The Petzval optical design also provides a naturally corrected field without requiring a separate field flattener.
The SQA60 Pro features an M48 rear photographic connection with a built-in 2" filter thread. The rear connection distance can be adjusted from 41mm to 66mm, with 55mm recommended for standard imaging setups.
A compact 283mm overall length and approximately 3.54 kg weight including the tube ring and dovetail plate make the SQA60 Pro a portable option for astrophotographers looking for a capable wide-field imaging system.
FEATURES
• 60mm aperture
• 276mm focal length
• Fast f/4.6 focal ratio
• Six-element fully air-spaced Petzval APO optical design
• Two SD glass elements
• 44mm image circle
• Full-frame compatible
• Designed for wide-field deep-sky astrophotography
• Compact 283mm overall length
• M48 rear photographic connection
• Built-in 2" filter thread
• Adjustable rear connection distance from 41–66mm
• Recommended 55mm rear connection distance
• Includes tube ring and dovetail plate
• Includes Oxford cloth carrying case
OPTICAL SPECIFICATIONS
Aperture: 60mm
Focal Length: 276mm
Focal Ratio: f/4.6
Optical Design: Sextuplet Air-Spaced Petzval APO
SD Glass Elements: 2
Image Circle: 44mm
Format: Full Frame
MECHANICAL SPECIFICATIONS
Overall Length: 283mm
Rear Connection: M48 adapter
Rear Filter Thread: M48 × 0.75 / built-in 2" filter thread
Supported Rear Connection Distance: 41–66mm
Recommended Rear Connection Distance: 55mm
WEIGHT
OTA Weight: 2.79 kg / 6.15 lb
Weight with Tube Ring and Dovetail Plate: 3.54 kg / 7.80 lb
INCLUDED ITEMS
• Askar SQA60 Pro Optical Tube
• Tube Ring
• Dovetail Plate
• Oxford Cloth Carrying Case
