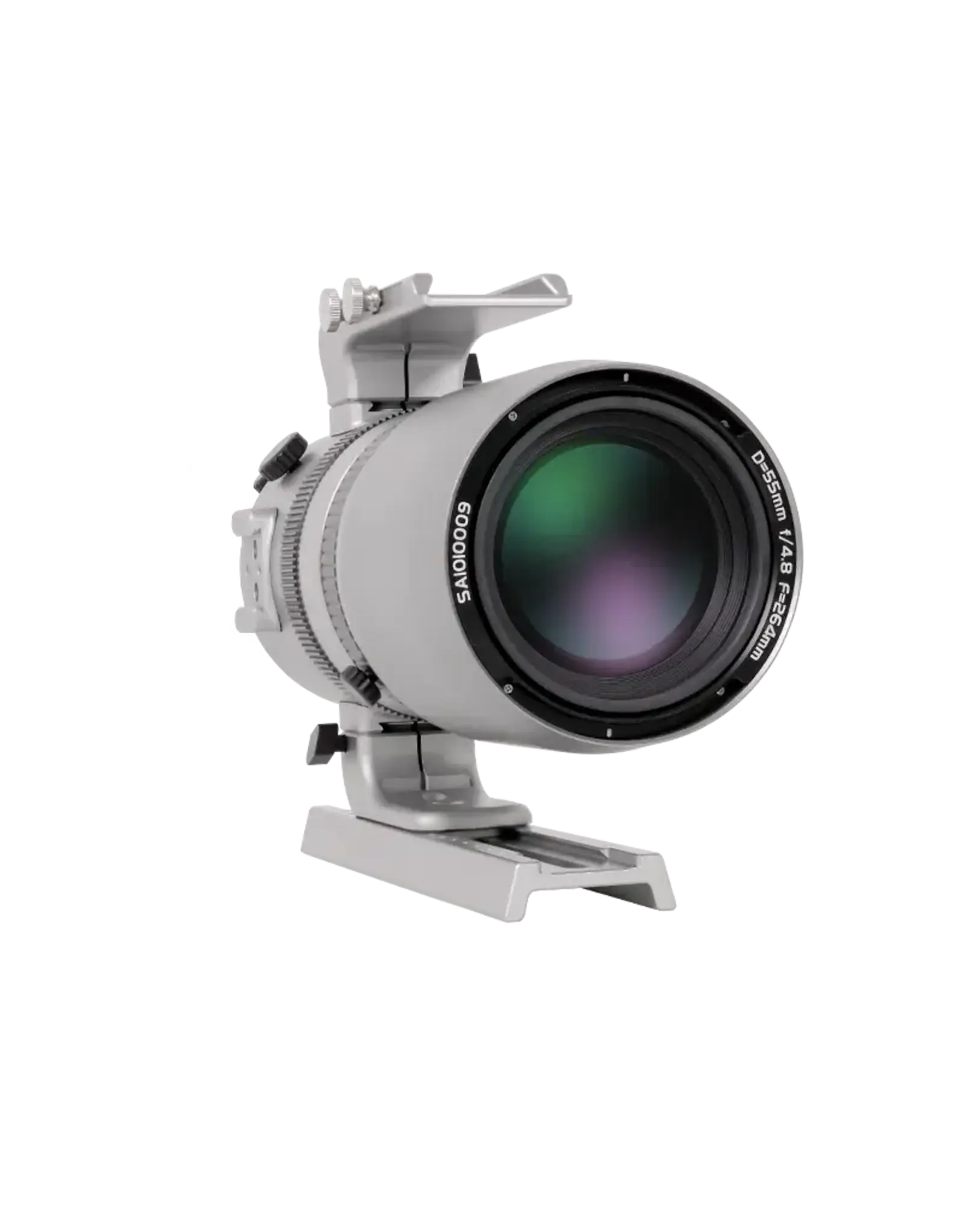

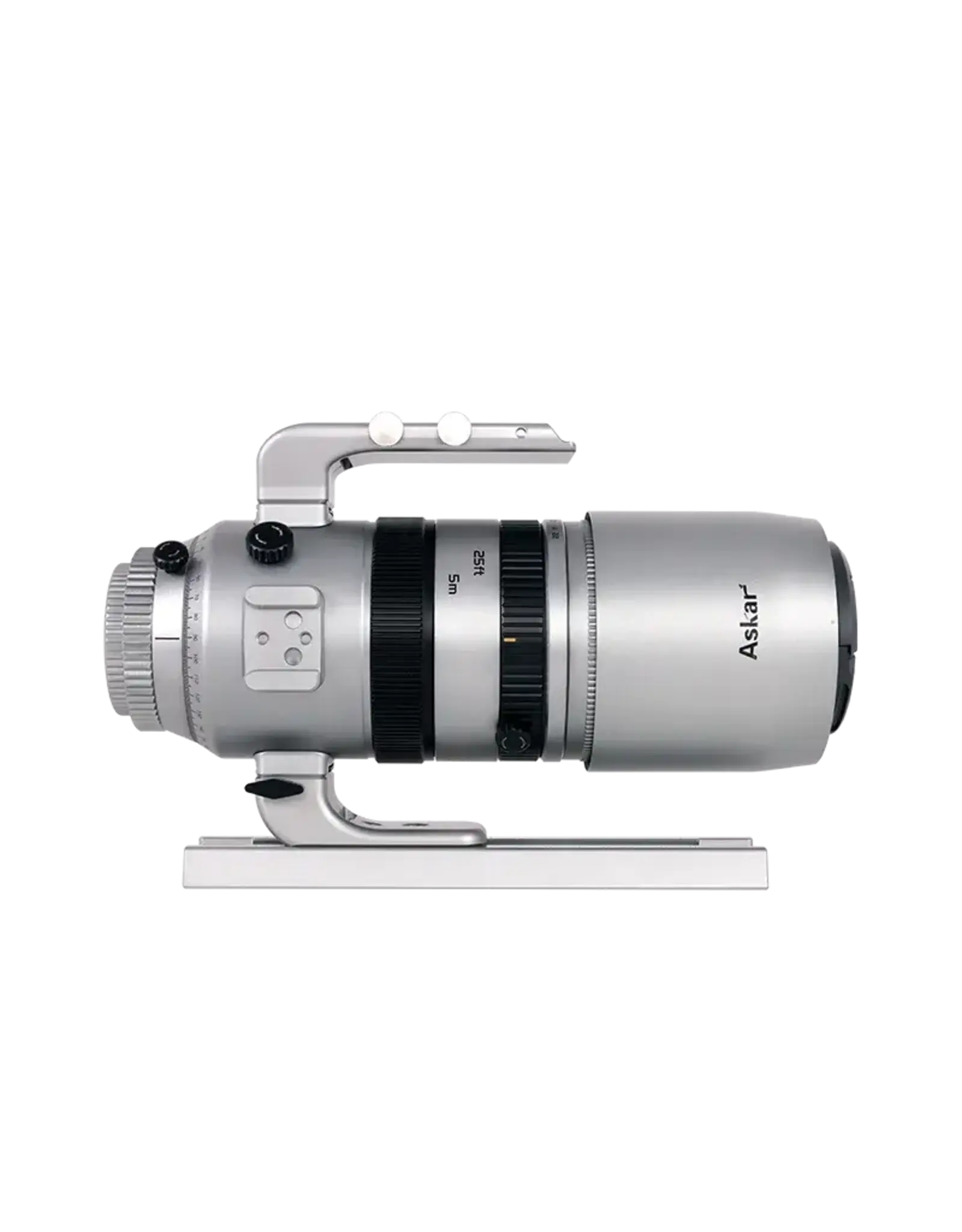

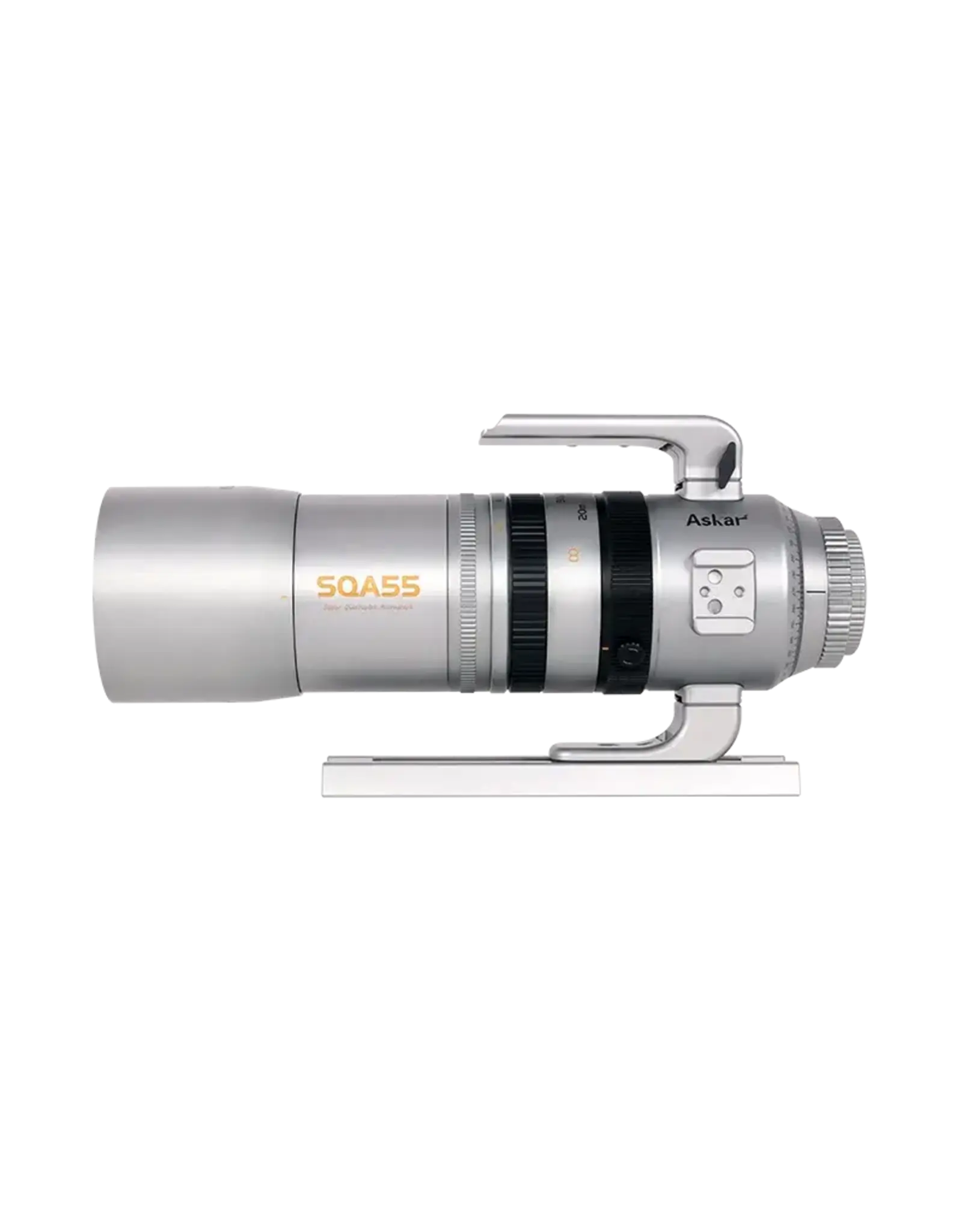

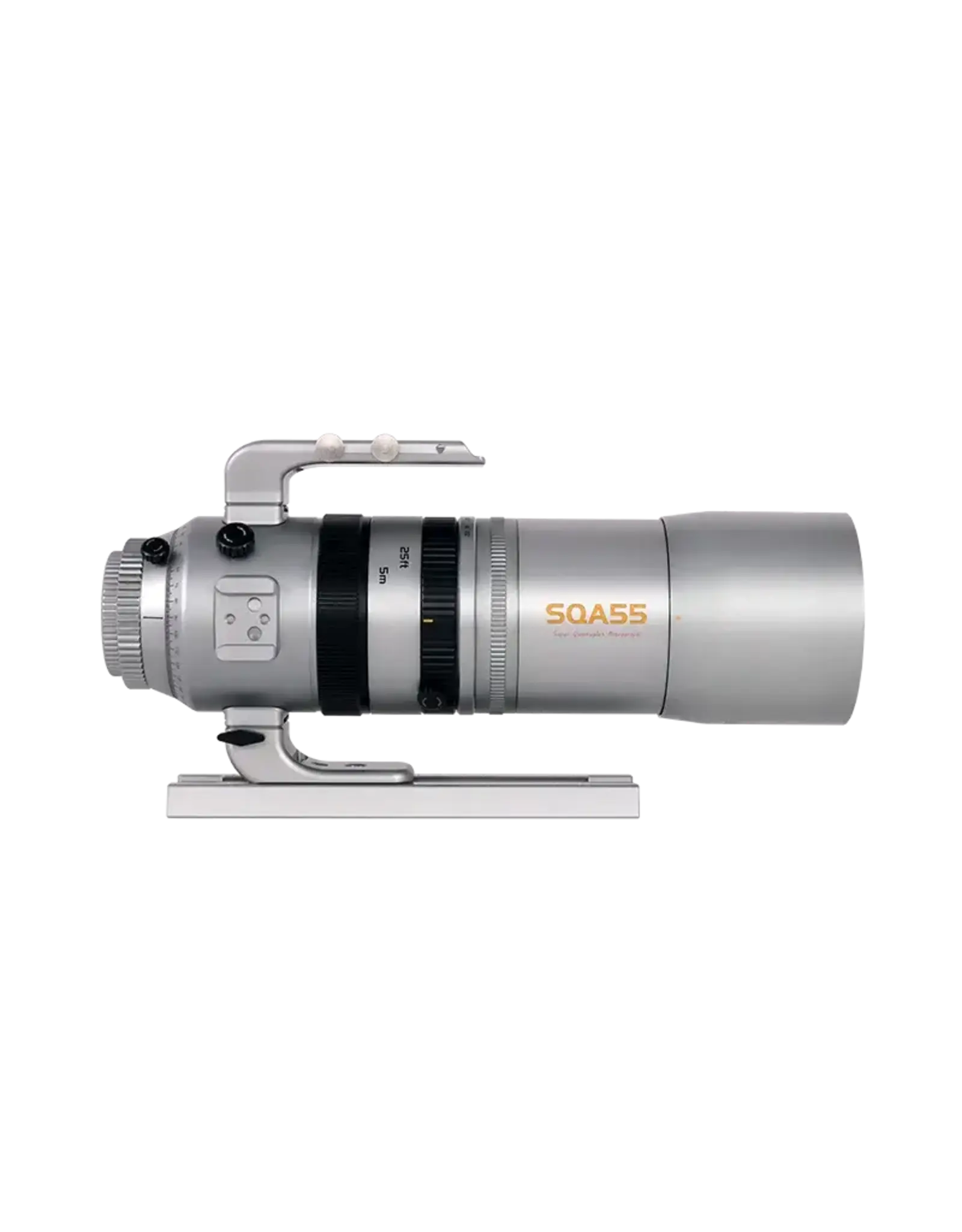

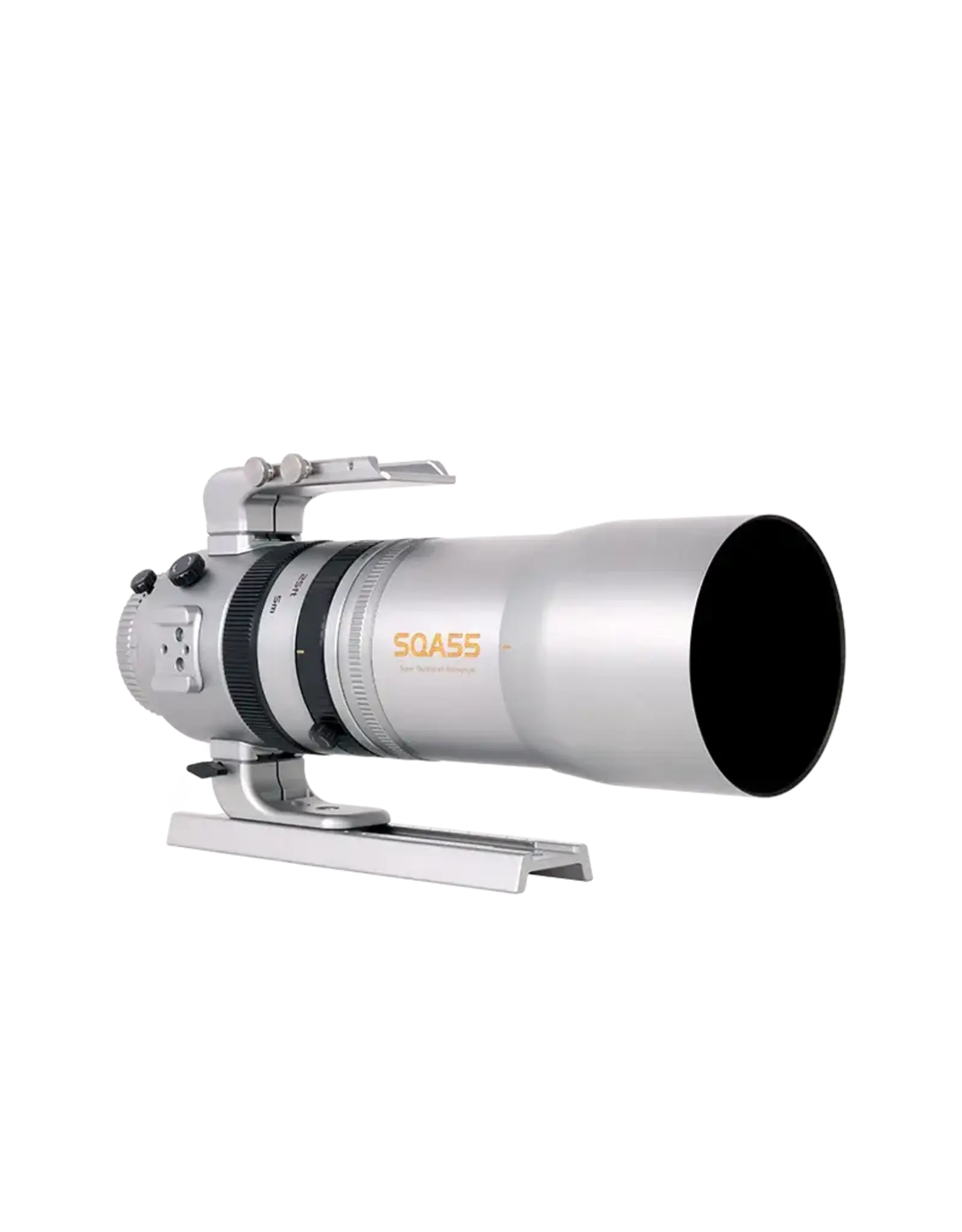

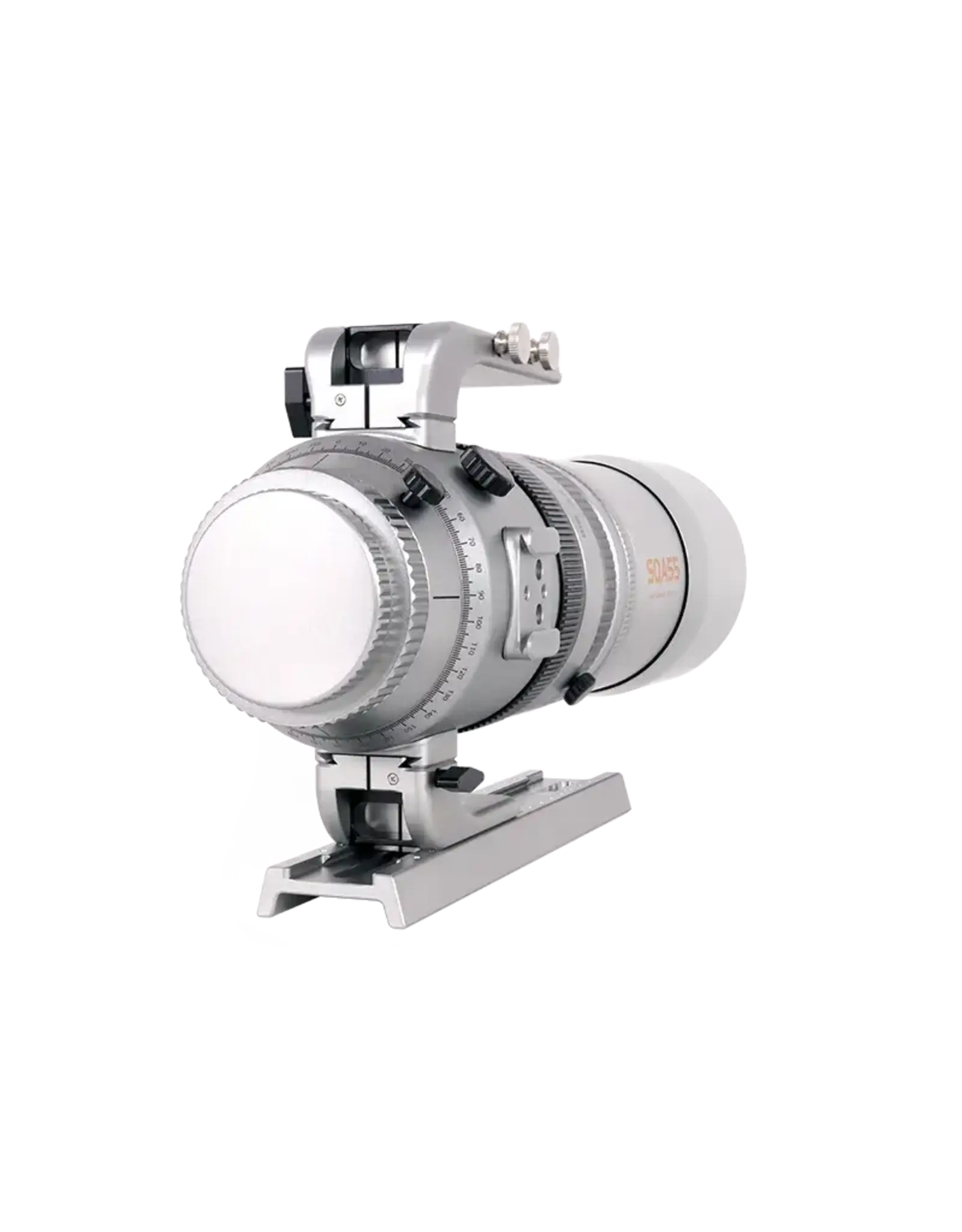

Askar SQA55 Petzval Refractor Telescope
| Article number: | ASKAR SQA55 |
| Availability: | Out of stock |
The Askar SQA55 is a compact, fast astrograph designed for both deep-sky astrophotography and general photography. It features a 55mm aperture, 264mm focal length, and fast f/4.8 focal ratio, making it well suited for wide-field imaging of large nebulae, star fields, and other deep-sky objects.
The SQA55 uses a five-element, air-spaced Petzval APO optical design incorporating one SD glass element and one ED glass element. Its 44mm image circle provides coverage for full-frame cameras, while the Petzval design provides a naturally flat field without requiring a separate field flattener.
The telescope has a 14-blade adjustable aperture ranging from f/4.8 to f/22, allowing it to function as both an astronomical imaging telescope and a general-purpose photographic lens. The front of the telescope features an M67 filter thread, while the rear M48 adapter incorporates a 2" filter thread.
A built-in 360° rotator allows the camera orientation to be adjusted for astrophotography, and the included multifunctional handle provides mounting points for accessories. The bottom of the telescope includes a Vixen-style 200mm dovetail plate as well as 1/4"-20 and 3/8"-16 tripod mounting threads.
FEATURES
• 55mm aperture
• 264mm focal length
• Fast f/4.8 focal ratio
• Quintuplet air-spaced Petzval APO optical design
• One SD glass element and one ED glass element
• 44mm image circle for full-frame cameras
• 14-blade adjustable aperture
• Aperture range of f/4.8 to f/22
• Excellent choice for wide-field astrophotography
• Can also be used for general photography

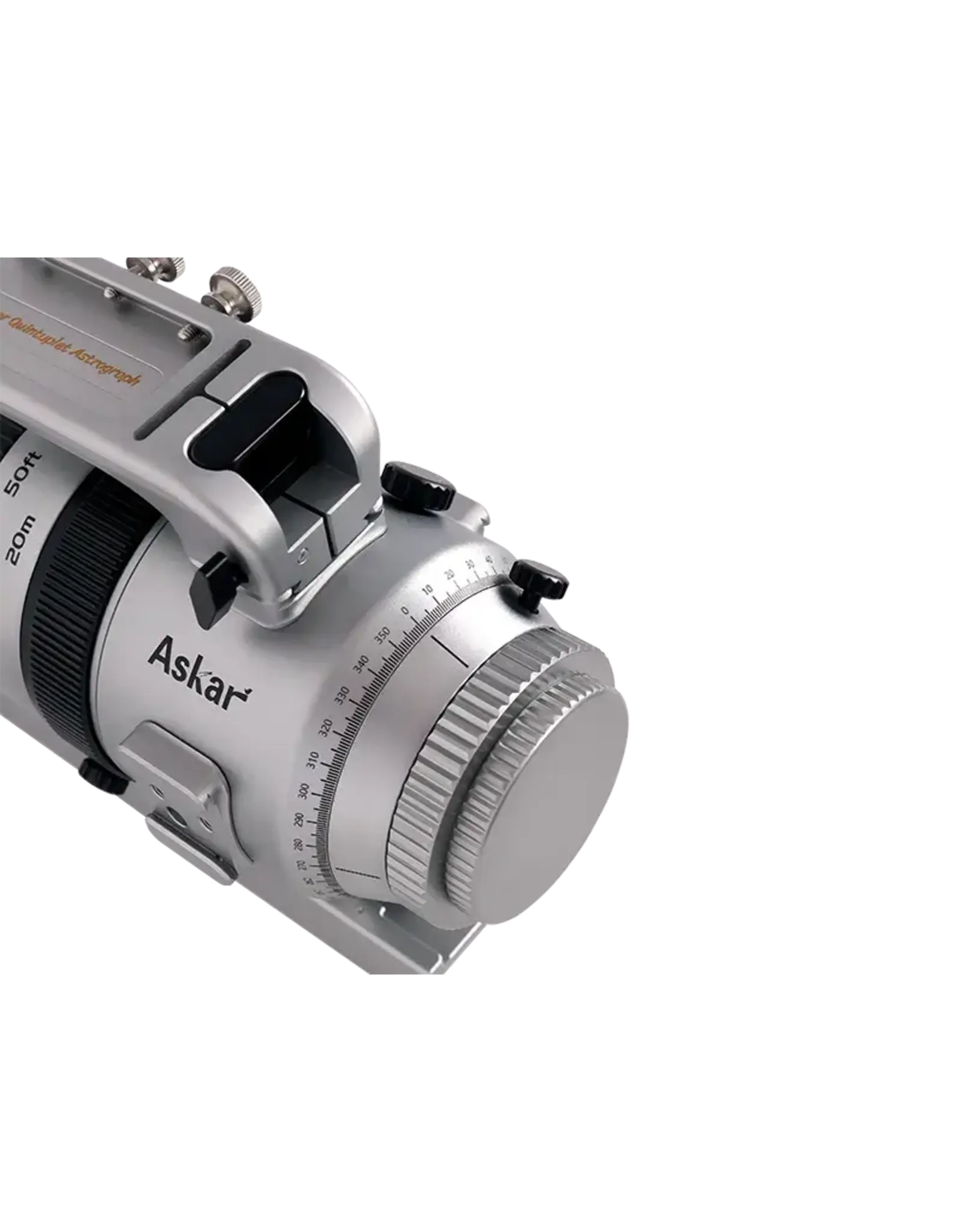

• Built-in 360° image-field rotator
• Two-speed manual focusing system
• M67 front filter thread
• M48 x 0.75 rear connection
• Built-in 2" filter thread
• Supports 50–60mm rear connection distance
• Recommended rear connection distance: 55mm
• Multifunctional quick-release handle
• Vixen-style 200mm dovetail plate
• 1/4"-20 and 3/8"-16 tripod mounting threads
• Quick-release dew shield
OPTICAL SPECIFICATIONS
Aperture: 55mm
Focal Length: 264mm
Focal Ratio: f/4.8
Optical Design: Quintuplet Air-Spaced Petzval APO
ED Glass: 1 element
SD Glass: 1 element
Image Circle: 44mm
Aperture Blades: 14
Adjustable Aperture: f/4.8–f/22
Minimum Focus Distance: 5m
Focusing: Manual, coarse and fine adjustment
MECHANICAL SPECIFICATIONS
Front Filter Thread: M67
Rear Connection: M48 x 0.75
Rear Filter Thread: Built-in 2" filter thread
Recommended Connection Distance: 55mm
Supported Connection Distance: 50–60mm
Total Length with Dew Shield: 316mm
Length without Dew Shield: 244mm
WEIGHT
OTA Weight: 1.84 kg / 4.06 lb
Weight with Handle and Dovetail Plate: 2.18 kg / 4.81 lb
INCLUDED ITEMS
• Askar SQA55 Optical Tube
• Multifunctional Handle
• Vixen-style 200mm Dovetail Plate
