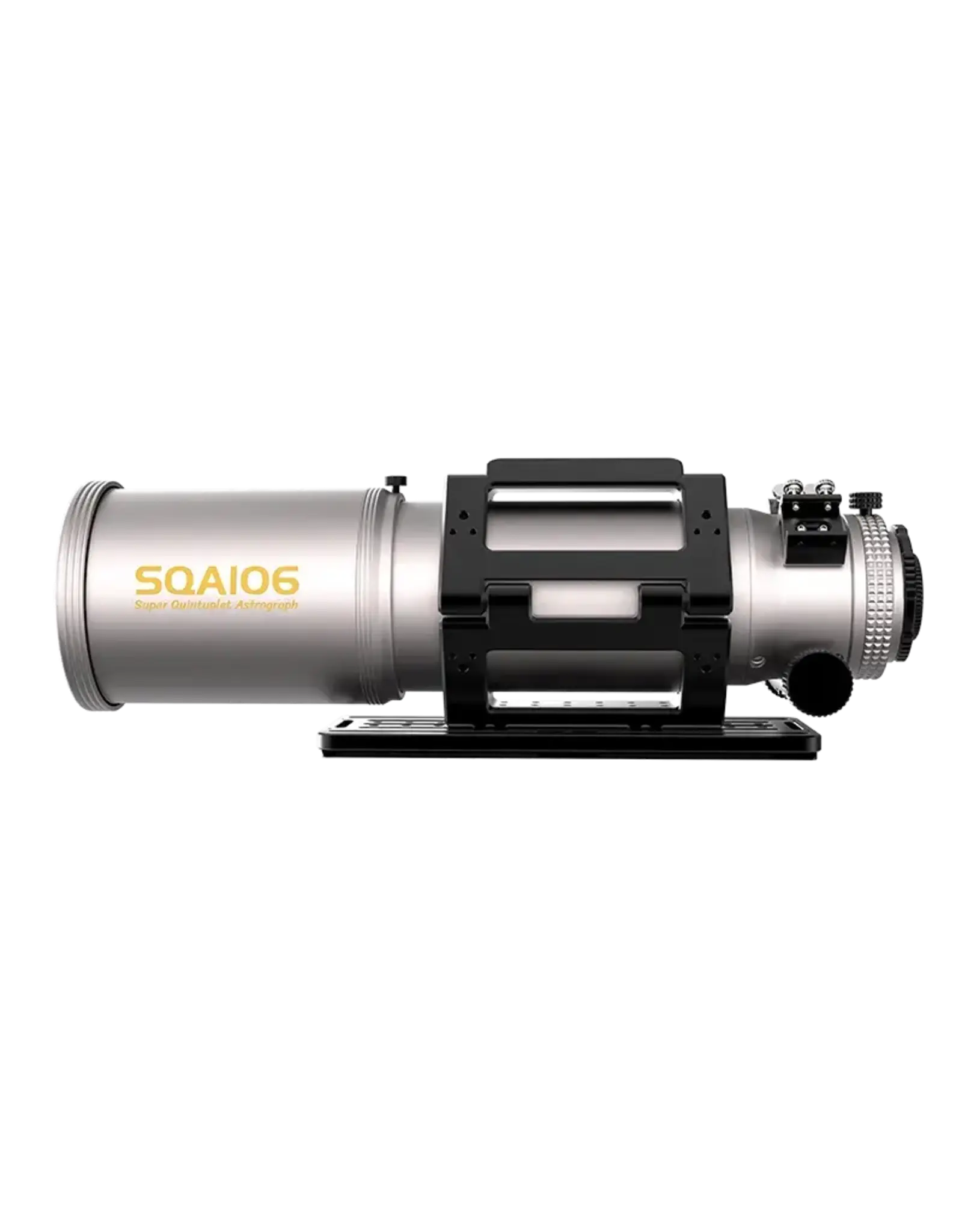

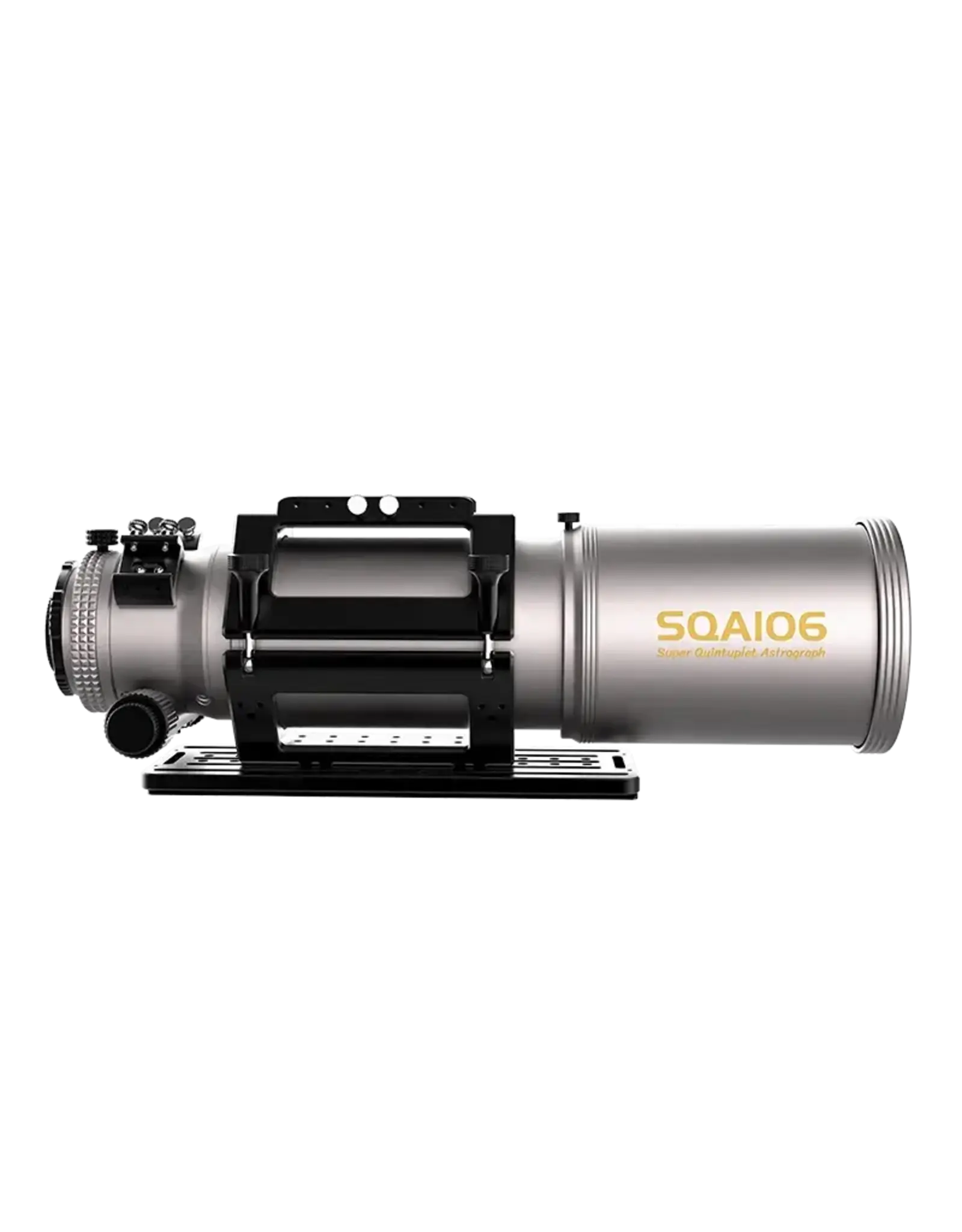

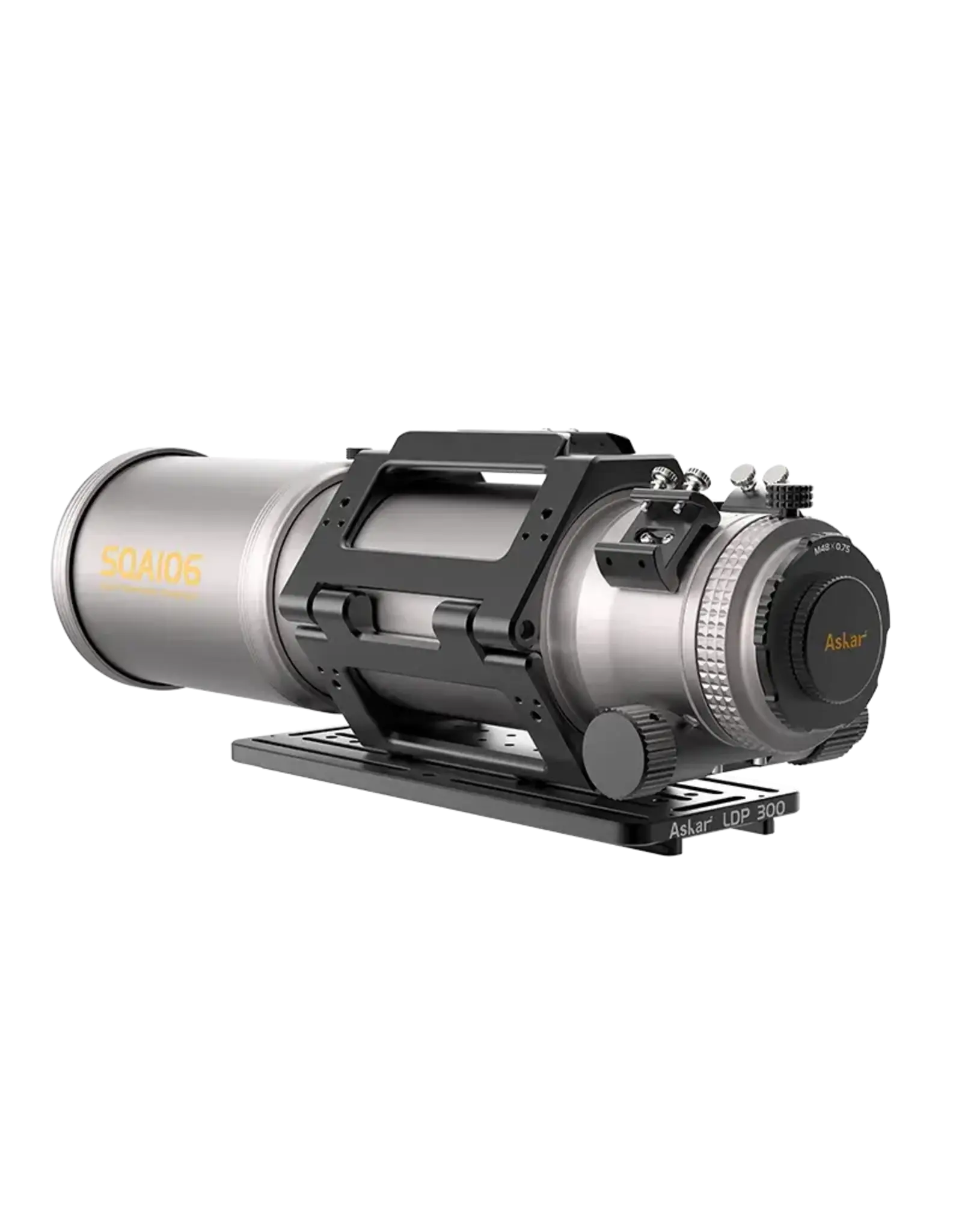

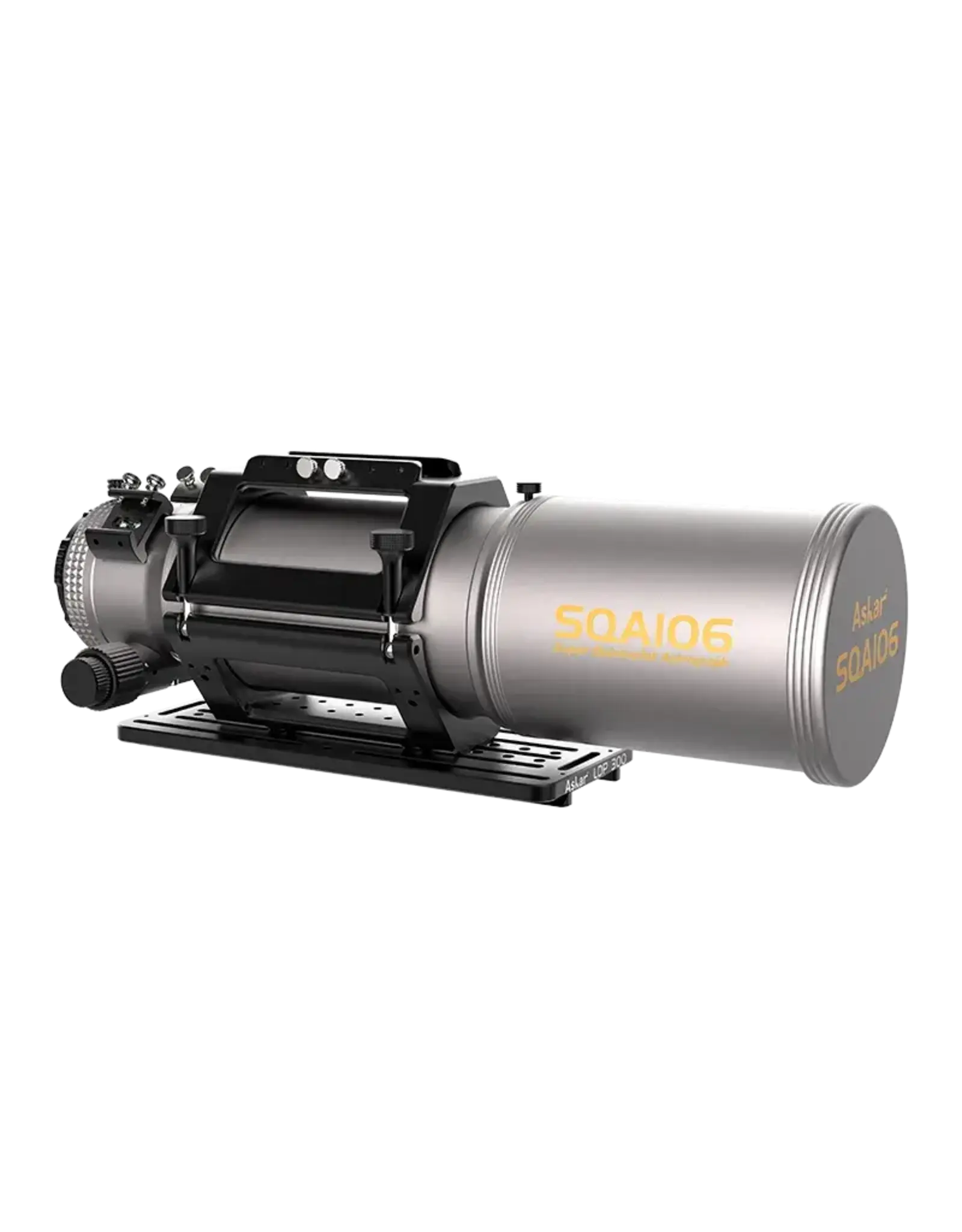

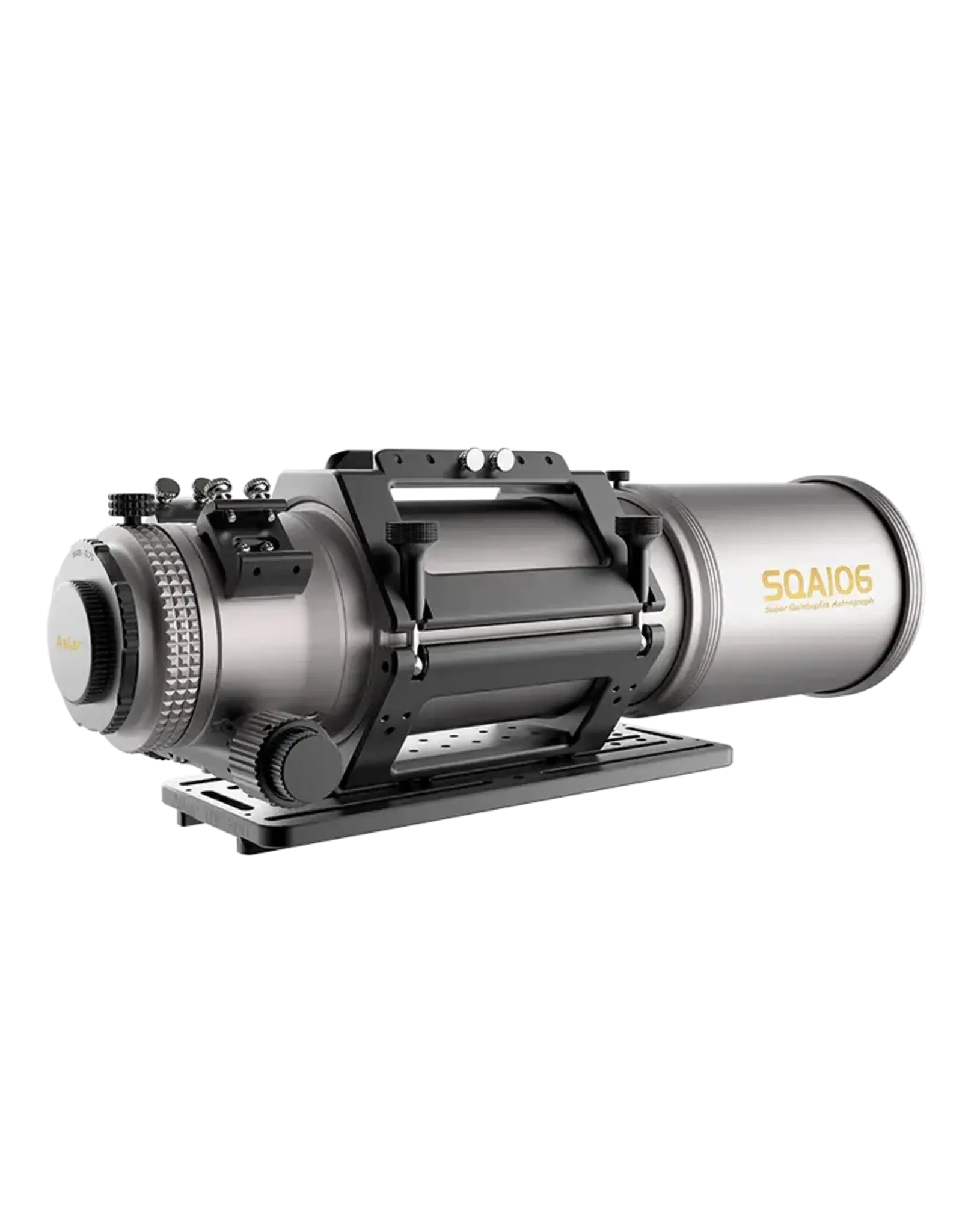

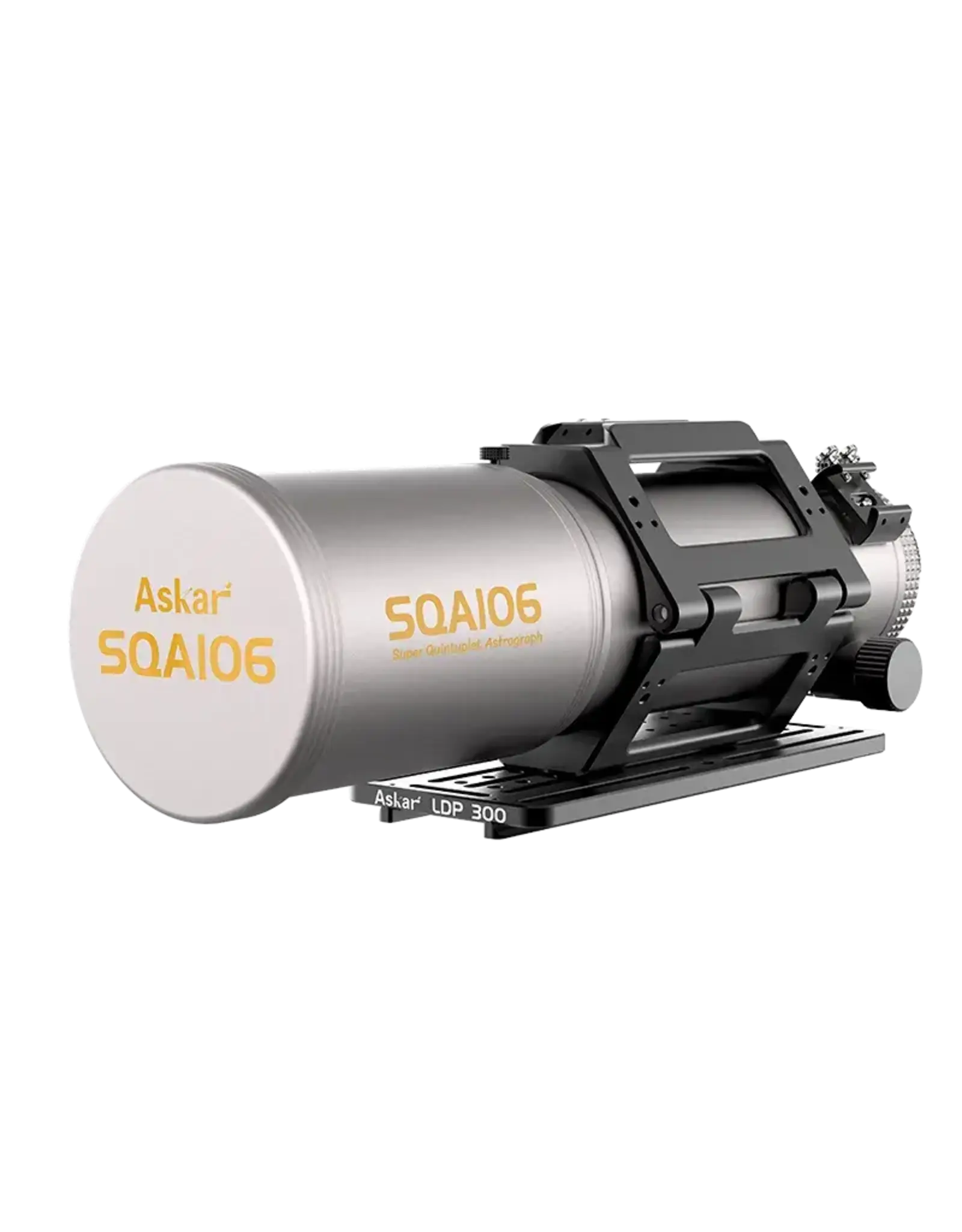

Askar SQA106 Petzval Refractor Telescope
| Article number: | ASKAR-SQA106 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar SQA106 is a high-performance wide-field astrograph designed for deep-sky astrophotography and high-resolution imaging. It features a 106mm aperture, 509mm focal length, and fast f/4.8 focal ratio, providing a wide field of view while gathering substantial light for astrophotography.
The SQA106 uses a five-element, fully air-spaced Petzval APO optical design incorporating two SD glass elements. The Petzval design provides integrated field flattening, eliminating the need for a separate field flattener and simplifying camera setup.
One of the standout features of the SQA106 is its large 55mm image circle. It fully covers standard full-frame sensors with a 44mm image circle and can also support medium-format imaging up to 55mm.
The SQA106 is designed to provide excellent star performance across the imaging field. Sharpstar specifies an RMS star radius of less than 1.65 µm at the center of the field and less than 2.2 µm at the corner.
The telescope features a retractable dew shield to reduce its overall length during storage and transport. Its integrated tube-ring assembly provides multiple mounting points for accessories, while the included 300mm Losmandy-style dovetail plate provides a solid connection to compatible equatorial mounts.
The rear of the telescope accepts M48, M54, and M68 adapters and supports a connection distance between 48mm and 78mm, with 55mm recommended for optimal performance.
FEATURES
• 106mm aperture
• 509mm focal length
• Fast f/4.8 focal ratio
• Five-element fully air-spaced Petzval APO optical design
• Two SD glass elements
• 55mm image circle
• Full-frame coverage at 44mm
• Supports medium-format imaging up to 55mm
• Integrated Petzval field flattening
• No separate field flattener required
• Excellent wide-field star performance
• Retractable dew shield
• Integrated tube rings
• M48, M54, and M68 rear adapters
• Adjustable rear connection distance from 48–78mm
• Recommended 55mm connection distance
• Includes 300mm Losmandy-style dovetail plate
• Multifunctional handle
• Includes Oxford cloth carrying case
OPTICAL SPECIFICATIONS
Aperture: 106mm
Focal Length: 509mm
Focal Ratio: f/4.8
Optical Design: Quintuplet Air-Spaced Petzval APO
SD Glass Elements: 2
Image Circle: 55mm
Full-Frame Coverage: 44mm
Medium-Format Coverage: 55mm
MECHANICAL SPECIFICATIONS
Length with Dew Shield Retracted: 516mm
Length with Dew Shield Extended: 586mm
Rear Adapters: M48 / M54 / M68
Rear Connection Distance: 48–78mm
Recommended Connection Distance: 55mm
Dovetail Plate: 300mm Losmandy-style
Dew Shield: Retractable
WEIGHT
OTA Weight: 5.82 kg / 12.83 lb
Weight with Tube Rings and Dovetail Plate: 8.12 kg / 17.90 lb
INCLUDED ITEMS
• Askar SQA106 Optical Tube
• Multifunctional Handle
• 300mm Losmandy-style Dovetail Plate
• M48 Adapter
• M54 Adapter
• M68 Adapter
• Oxford Cloth Carrying Case
• Inspection List
• User Manual
