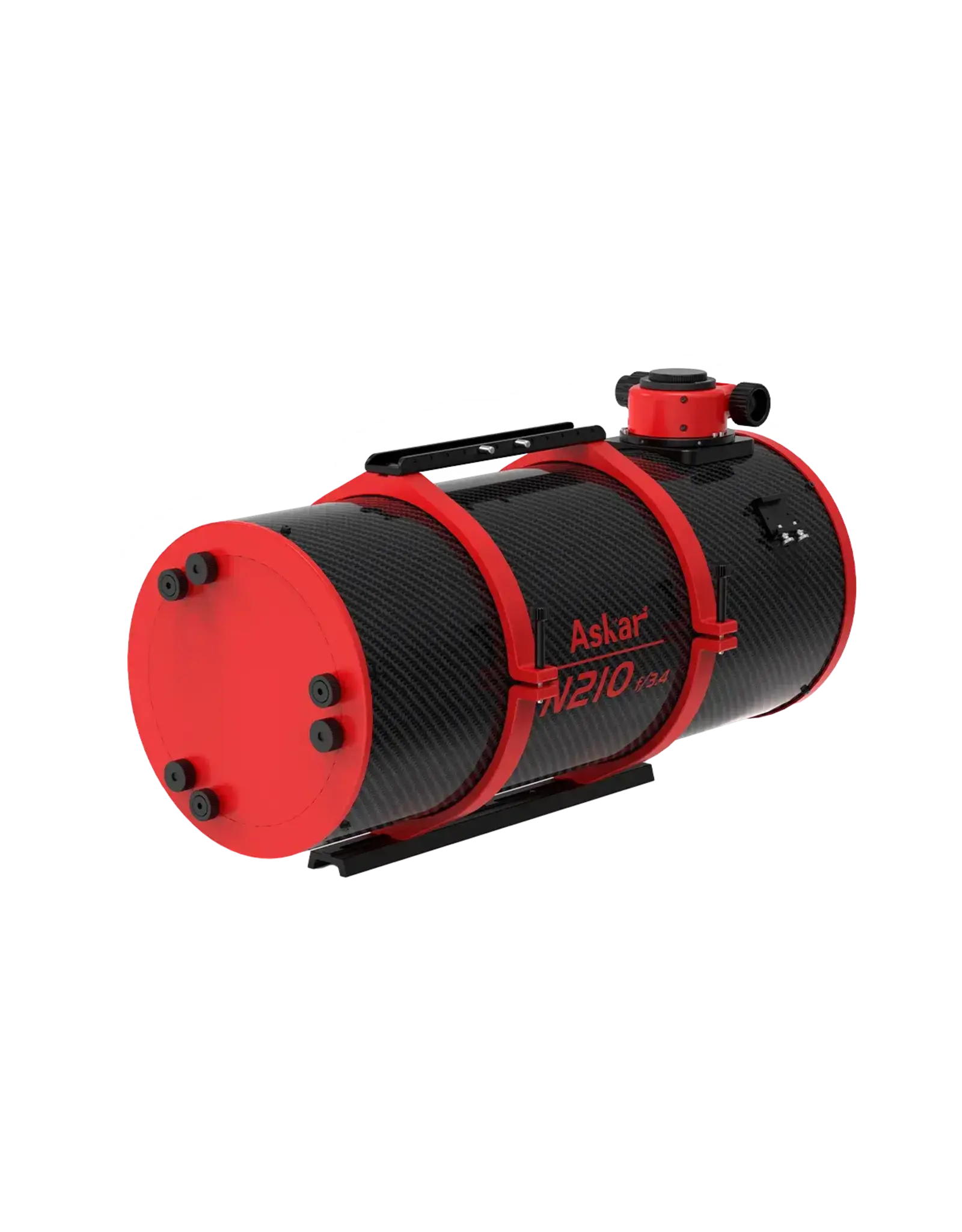

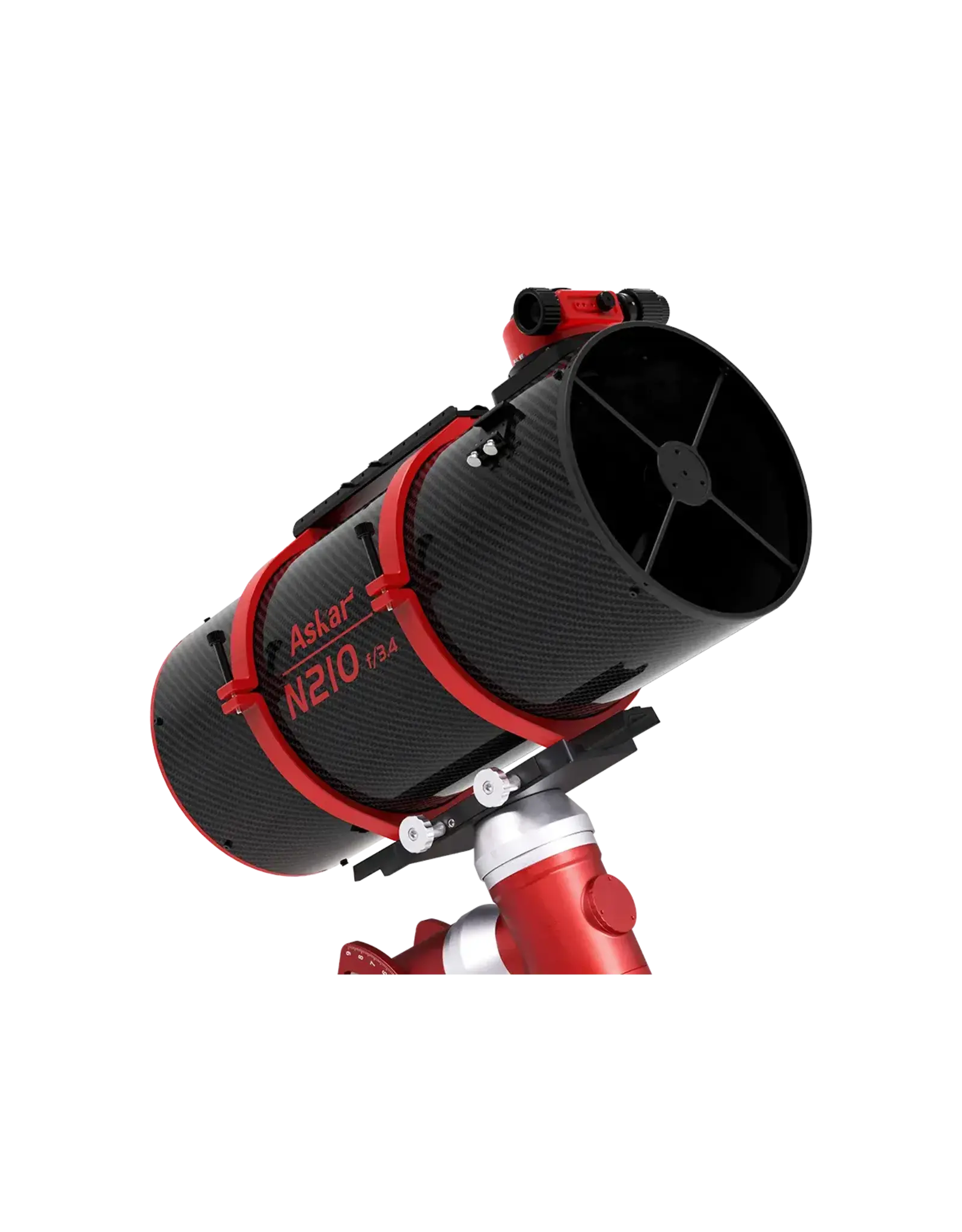

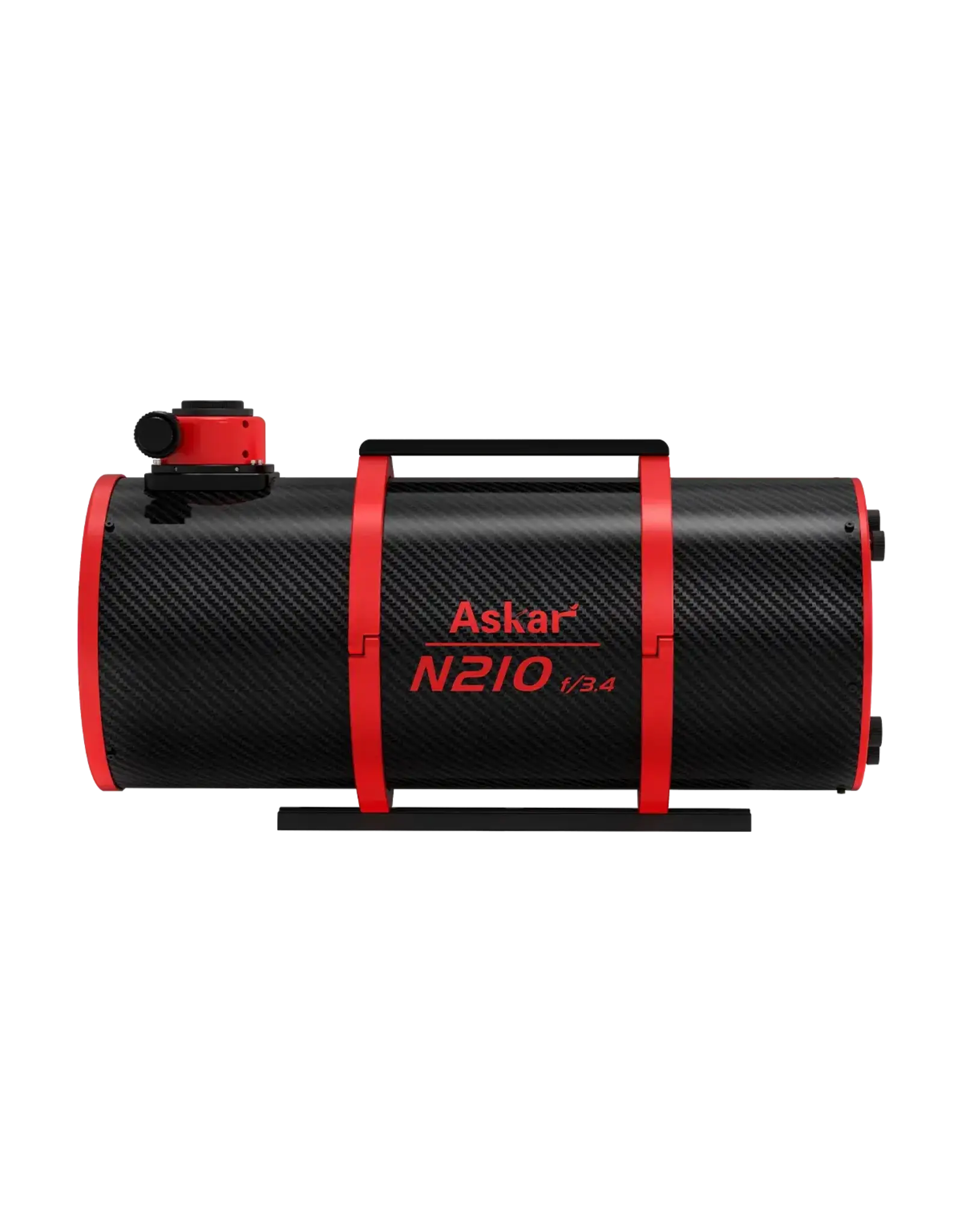

Askar N210 f/3.6 Newtonian Astrograph Telescope
| Article number: | ASKAR-N210 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar N210 is a large-aperture Newtonian reflector designed primarily for deep-sky astrophotography. Its 210mm parabolic primary mirror provides a 756mm focal length at the native f/3.6 focal ratio, while the included 0.95x triplet coma corrector changes the system to 714mm at f/3.4 and provides coma correction across an APS-C imaging field.
The N210 features a lightweight carbon-fiber optical tube, a 71mm minor-axis secondary mirror, and a dual-speed rack-and-pinion focuser with 25mm of travel. The focuser includes tilt adjustment and is compatible with electronic focus motors. A 400mm Vixen-style dovetail, multifunction handle, tube rings, and the coma corrector are included.
Key Specifications:
- 210mm aperture
- 756mm focal length at native f/3.6
- 714mm focal length with included 0.95x corrector
- f/3.6 native focal ratio
- f/3.4 with corrector
- Parabolic primary mirror
- 0.95x three-element coma corrector
- APS-C imaging format
- 71mm minor-axis secondary mirror
- Carbon-fiber optical tube
- 2" dual-speed rack-and-pinion focuser
- 25mm focuser travel
- Focuser tilt adjustment
- Compatible with electronic focusers
- 55mm backfocus from M48 thread
- M48 × 0.75 camera connection
- 400mm Vixen-style dovetail
- Multifunction handle with integrated finder base
- Additional finder base on the optical tube
- Tube rings included
Use Cases:
- Deep-sky astrophotography
- Nebula and galaxy imaging
- APS-C astronomy camera imaging
- DSLR and mirrorless astrophotography
- High-resolution deep-sky imaging
- Visual deep-sky observing with appropriate accessories
Specifications:
Aperture: 210mm
Focal Length: 756mm native / 714mm with corrector
Focal Ratio: f/3.6 native / f/3.4 with corrector
Optical Design: Newtonian reflector
Primary Mirror: Parabolic
Corrector: 0.95x triplet coma corrector
Image Format: APS-C
Secondary Mirror Minor Axis: 71mm
Tube Material: Carbon fiber
Tube Diameter: 264mm
Tube Length: 640mm
Focuser: 2" dual-speed rack-and-pinion
Focuser Travel: 25mm
Backfocus: 55mm
OTA Weight: 7.9 kg (17.4 lb)
Complete Weight: 9.8 kg (21.6 lb)
Dovetail: 400mm Vixen-style
