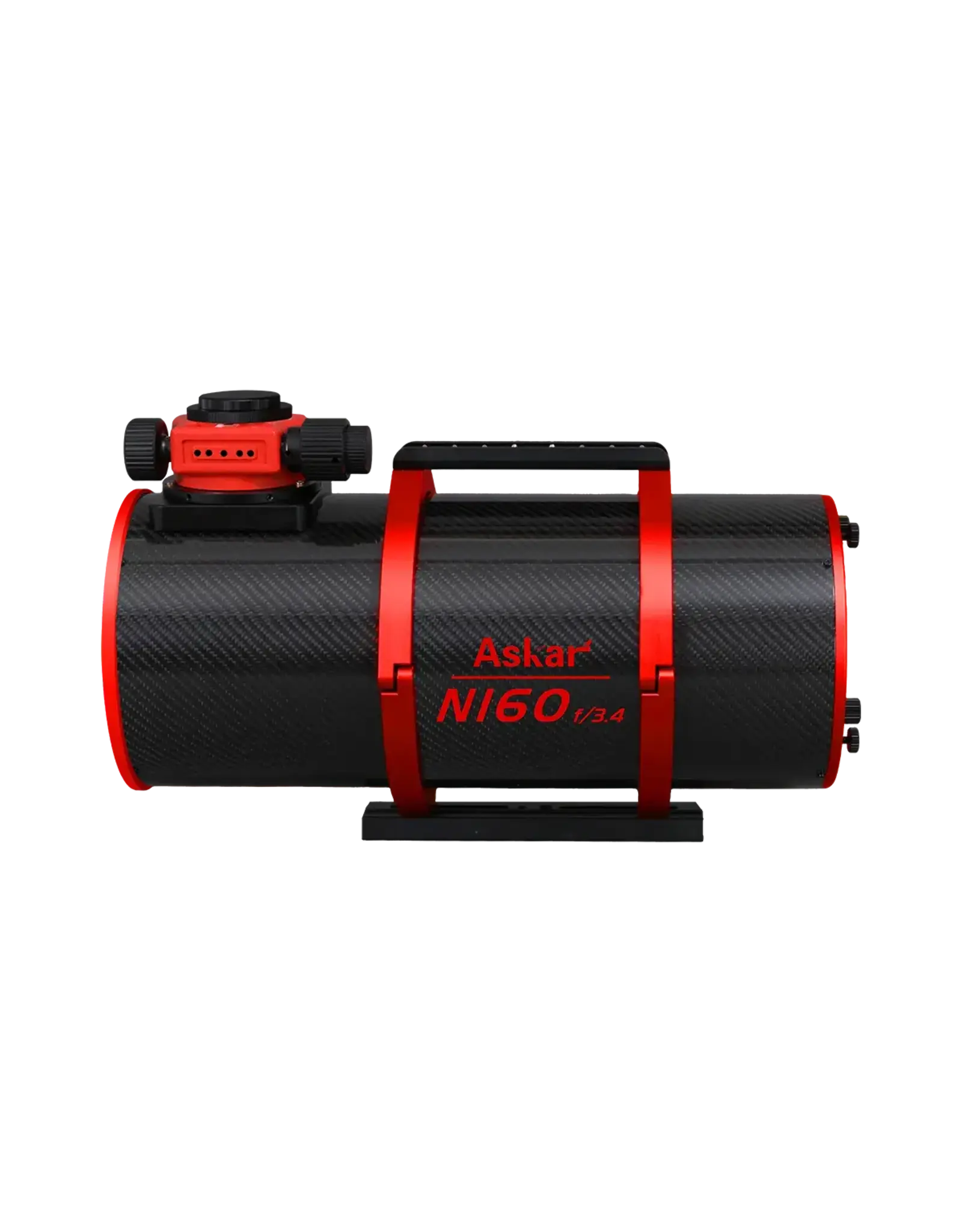

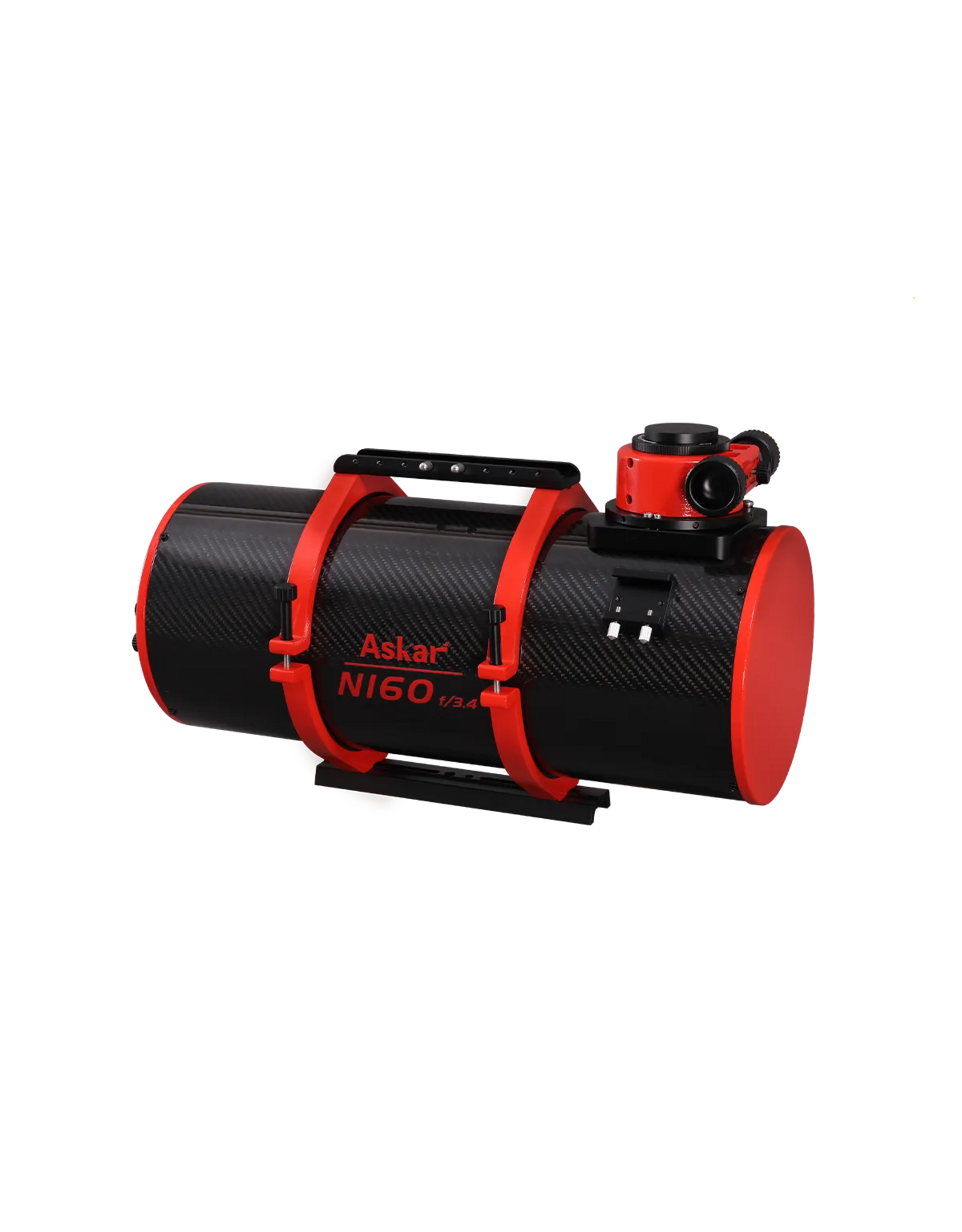

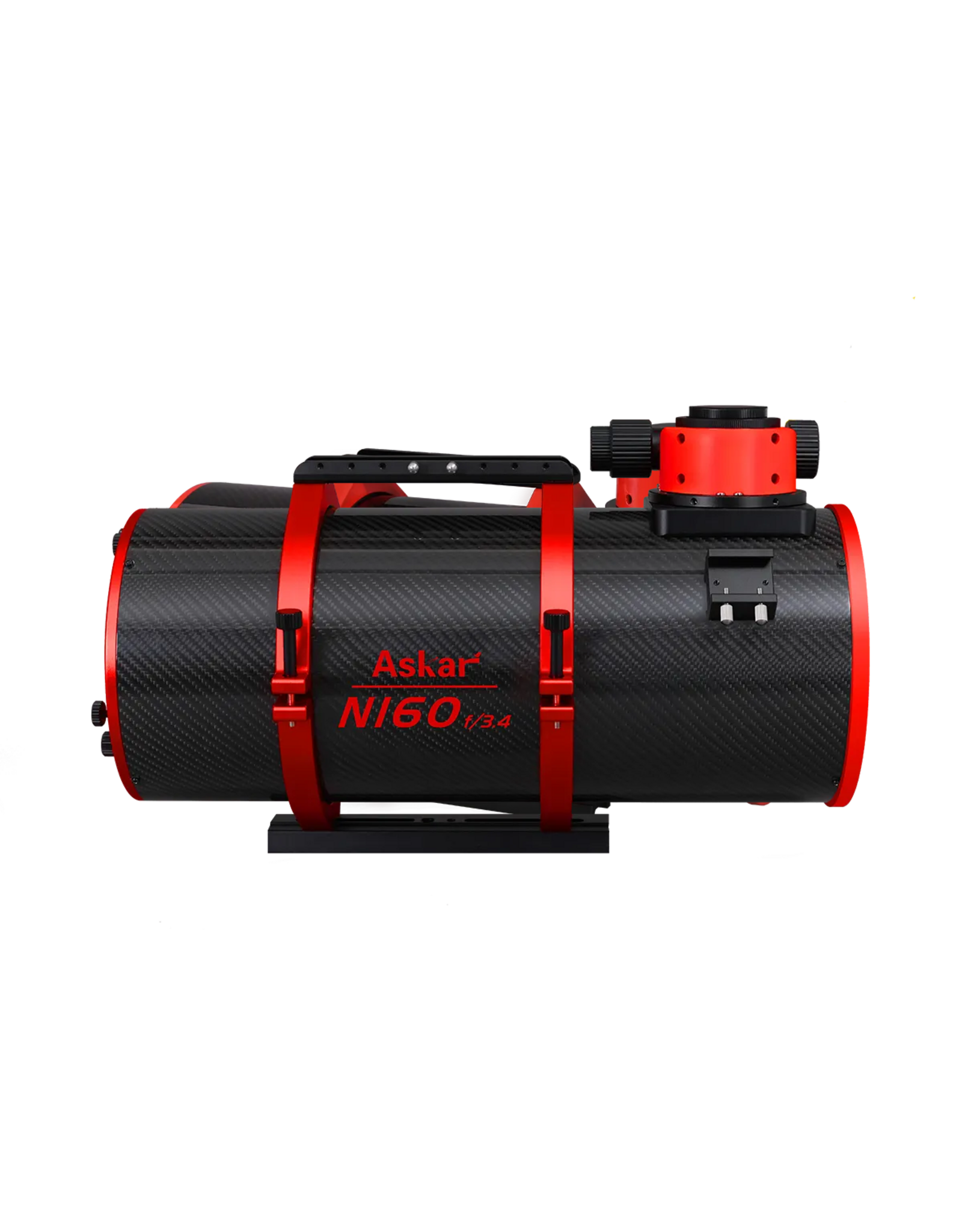

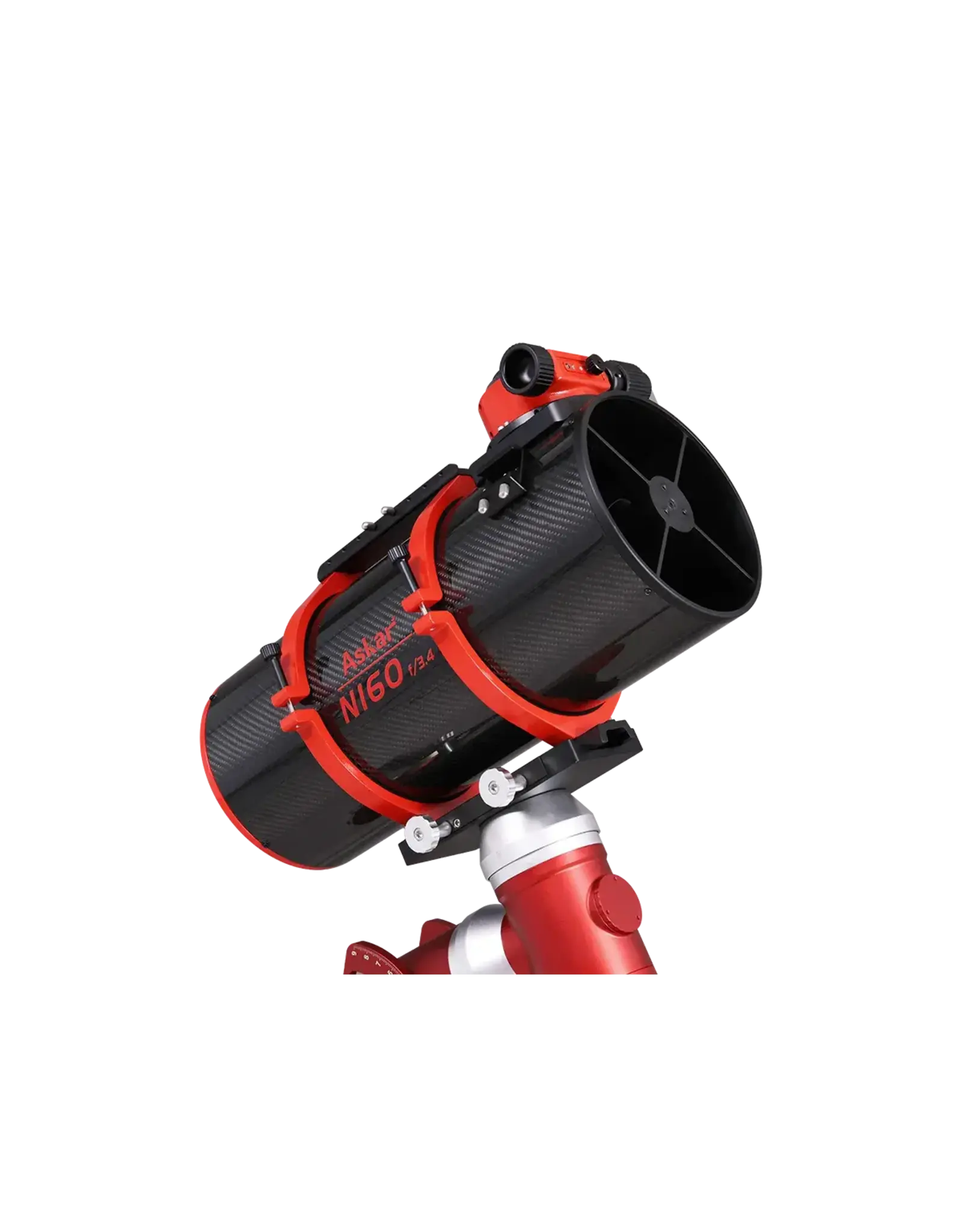

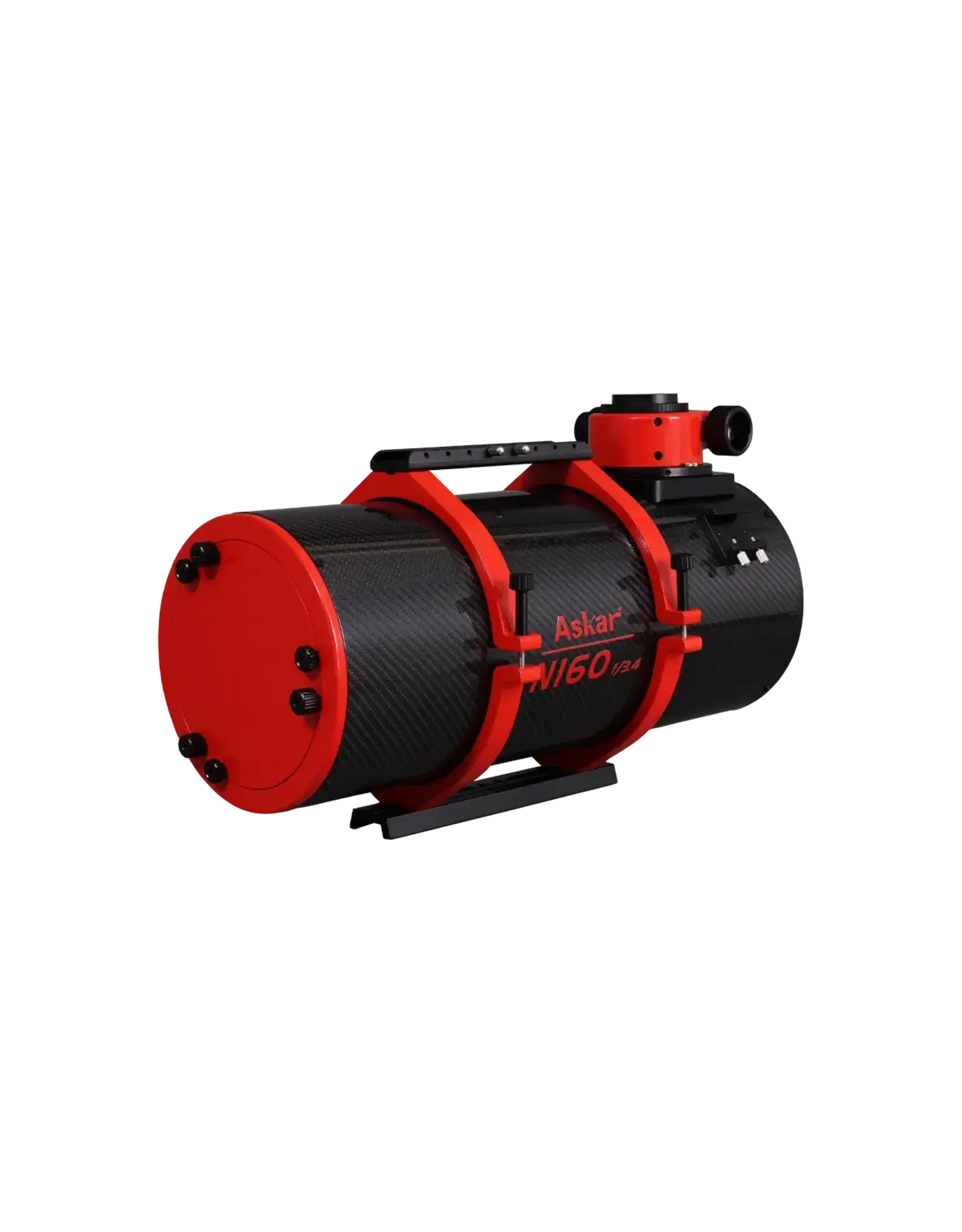

Askar N160 f/3.6 Newtonian Astrograph Telescope
| Article number: | ASKAR-N160 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar N160 is a fast 160mm Newtonian reflector designed primarily for deep-sky astrophotography. Its parabolic primary mirror provides a 576mm focal length at the native f/3.6 focal ratio, while the included 0.95x triplet coma corrector changes the system to 544mm at f/3.4 and corrects the coma inherent to fast Newtonian designs.
The N160 uses a lightweight carbon-fiber optical tube and a 61mm minor-axis secondary mirror. Its dual-speed rack-and-pinion focuser provides 25mm of travel and can accommodate an electronic focuser, while the included 230mm Vixen-style dovetail and multifunction handle provide a solid mounting and accessory platform.
Key Specifications:
- 160mm aperture
- 576mm focal length at native f/3.6
- 544mm focal length with included 0.95x corrector
- f/3.6 native focal ratio
- f/3.4 with corrector
- Parabolic primary mirror
- 0.95x three-element air-spaced coma corrector
- APS-C image circle
- 61mm secondary mirror minor axis
- Carbon-fiber optical tube
- 2" dual-speed rack-and-pinion focuser
- 25mm focuser travel
- Compatible with electronic focusers
- 55mm backfocus from M48 thread
- M48 × 0.75 camera connection
- 193mm tube diameter
- 230mm Vixen-style dovetail
- Multifunction handle
- Finder base
- Built-in focuser tilt and alignment adjustment
Use Cases:
- Deep-sky astrophotography
- Nebula and galaxy imaging
- Wide-field imaging of large deep-sky objects
- APS-C astronomy camera imaging
- DSLR and mirrorless astrophotography
- Visual deep-sky observing with appropriate accessories
Specifications:
Aperture: 160mm
Focal Length: 576mm native / 544mm with corrector
Focal Ratio: f/3.6 native / f/3.4 with corrector
Optical Design: Newtonian reflector
Primary Mirror: Parabolic
Corrector: 0.95x triplet coma corrector
Image Circle: APS-C
Secondary Mirror Minor Axis: 61mm
Tube Material: Carbon fiber
Tube Diameter: 193mm
Tube Length: 467mm
Focuser: Dual-speed rack-and-pinion
Focuser Travel: 25mm
Backfocus: 55mm
OTA Weight: 3.97 kg (8.75 lb)
Complete Weight: 5.2 kg (11.5 lb)
Dovetail: 230mm Vixen-style
