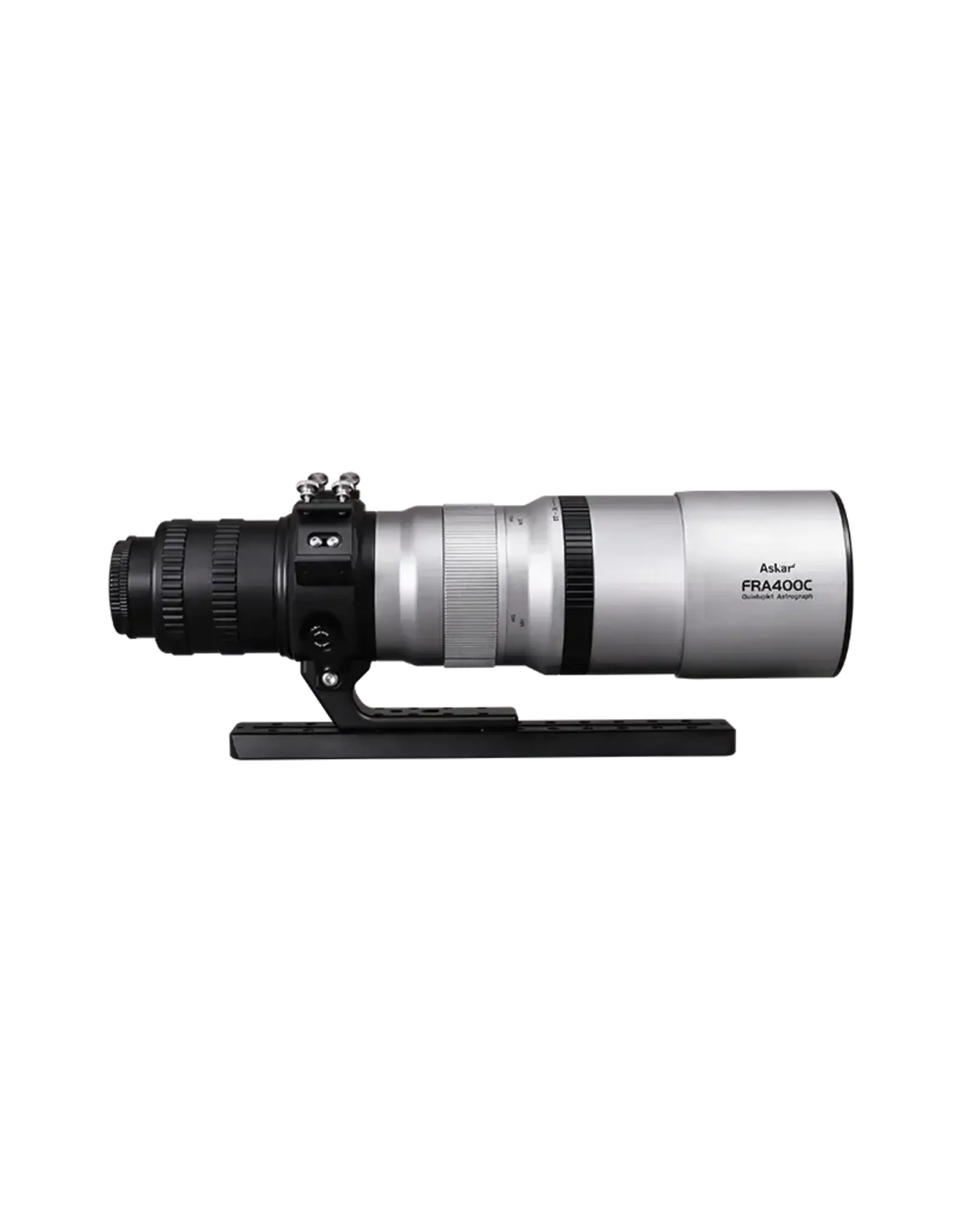

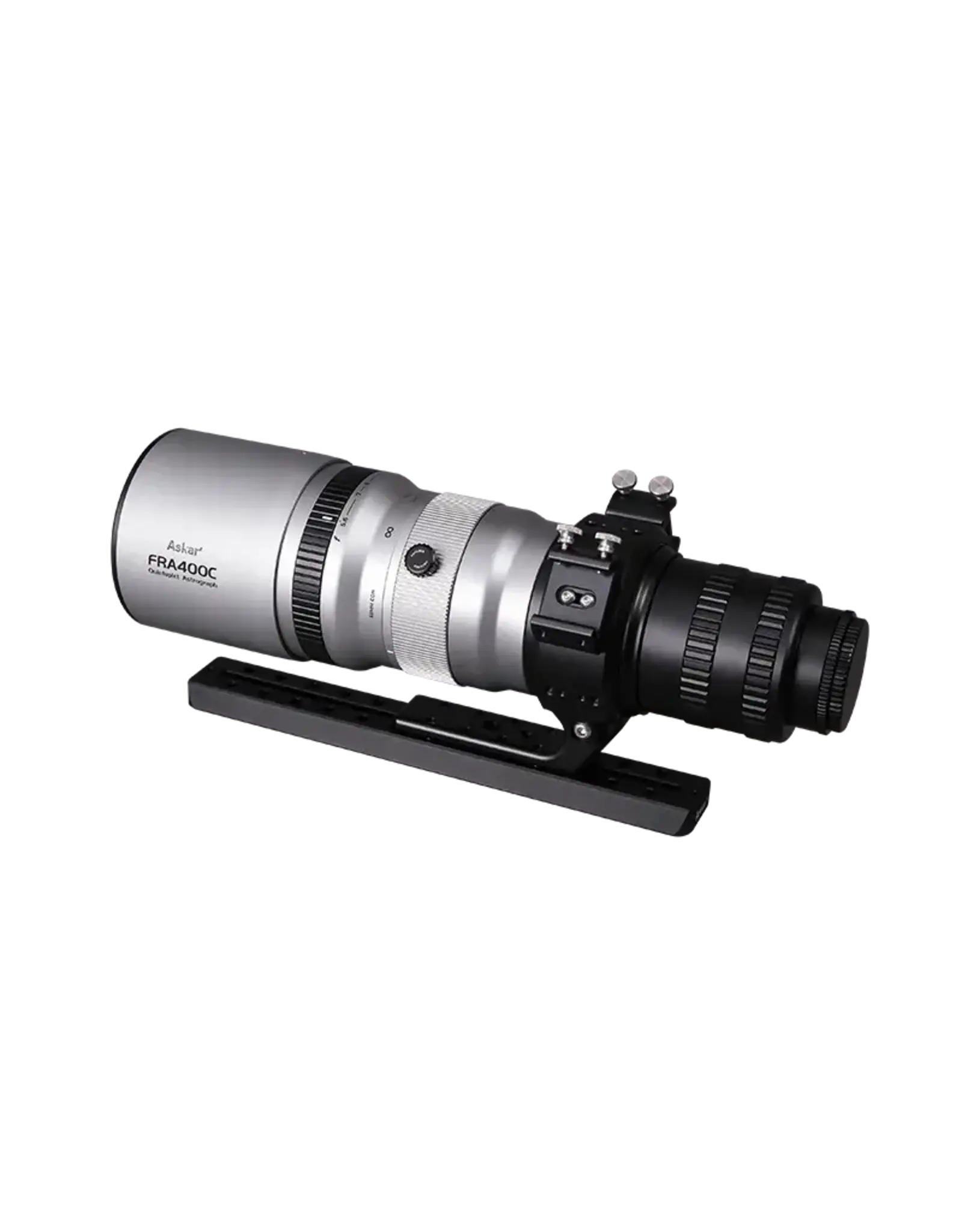

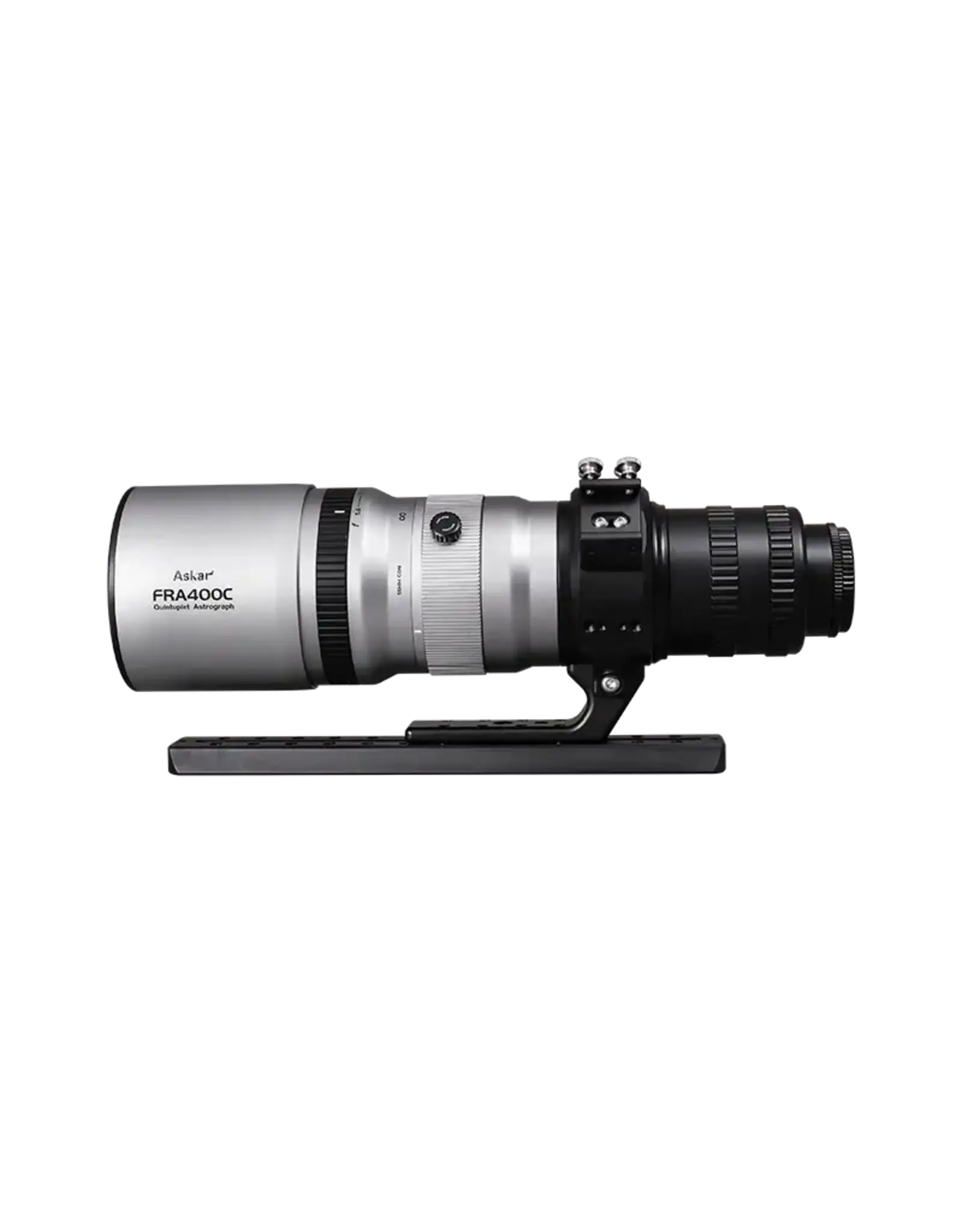

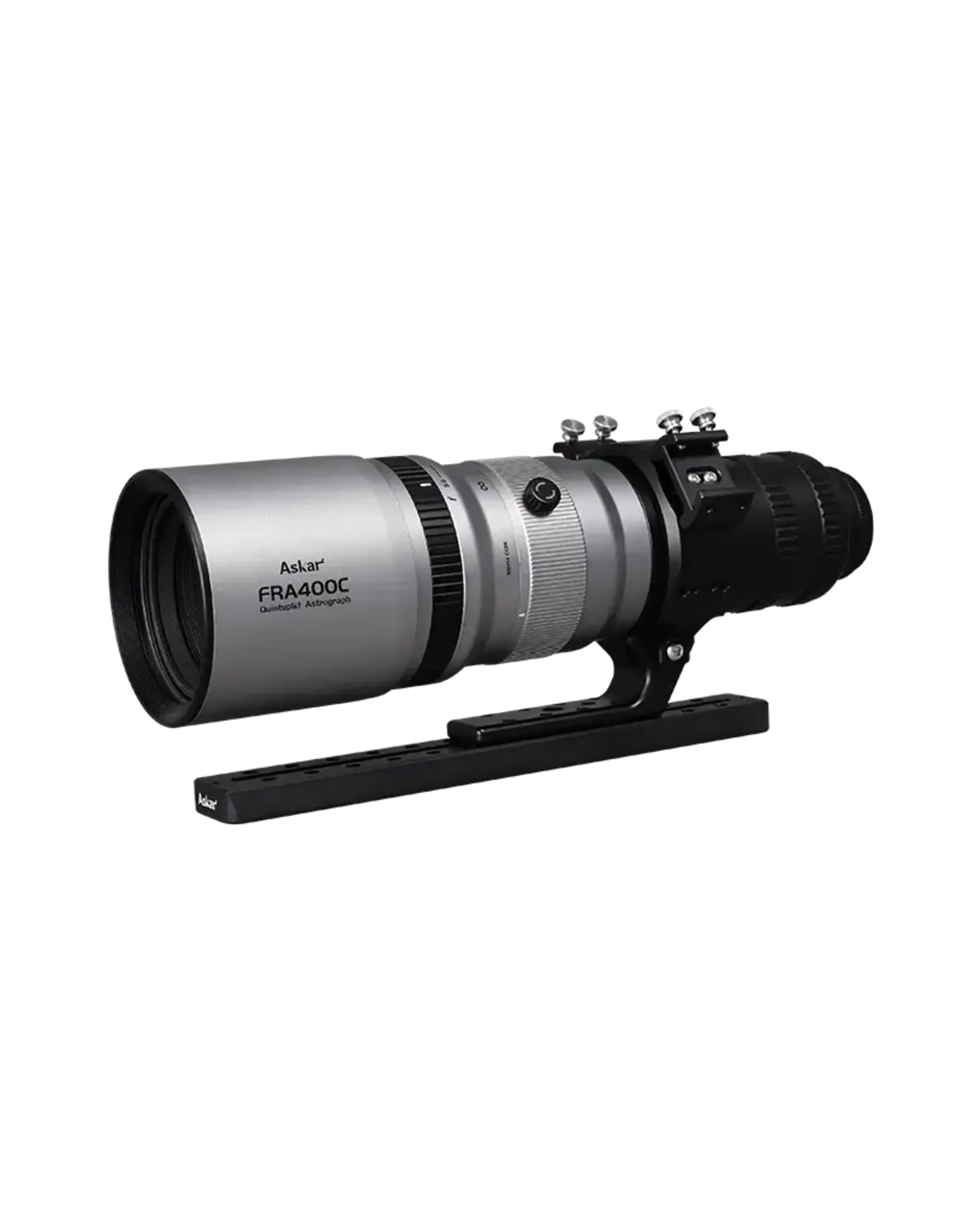

Askar FRA400C Quintuplet Petzval APO Astrograph
| Article number: | ASKAR-FRA400C |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar FRA400C is a versatile flat-field astrograph designed for astrophotography, visual observation, and general photography. It features a 72mm aperture, 400mm focal length, and f/5.6 focal ratio, providing a useful combination of wide field of view and light-gathering capability.
The FRA400C uses a five-element, fully air-spaced APO optical design incorporating two ED glass elements. Its 44mm image circle provides full-frame coverage, while the Petzval-style optical design provides built-in field correction without requiring a separate field flattener.
The telescope also incorporates a 17-blade adjustable aperture ranging from f/5.6 to f/22. This allows the FRA400C to be used for astrophotography as well as daytime photography of subjects such as landscapes and wildlife.
A helical manual focuser provides focusing adjustment, while the entire optical tube can be rotated to adjust camera orientation. The included multifunctional handle provides multiple mounting points for accessories and can also be used as a carrying handle.
The rear of the telescope accepts M72, M54, and M48 adapters. The M48 adapter includes a built-in 2" filter thread, and the system supports a 50–60mm rear connection distance, with 55mm recommended.
FEATURES
• 72mm aperture
• 400mm focal length
• f/5.6 focal ratio
• Quintuplet fully air-spaced APO optical design
• Two ED glass elements
• 44mm full-frame image circle
• Built-in flat-field correction
• No separate field flattener required
• 17-blade adjustable aperture
• Aperture range of f/5.6–f/22
• 5m minimum focus distance
• Manual helical focuser
• M82 front filter thread
• M72, M54, and M48 rear adapters
• Built-in 2" filter thread on M48 adapter
• Adjustable 50–60mm rear connection distance
• Recommended 55mm connection distance
• Rotatable optical tube for camera orientation
• Multifunctional handle
• Two accessory finder bases
• 290mm Vixen-style dovetail plate
• Compatible with electronic focuser systems
• Suitable for astrophotography, visual observation, and daytime photography
OPTICAL SPECIFICATIONS
Aperture: 72mm
Focal Length: 400mm
Focal Ratio: f/5.6
Optical Design: Quintuplet Fully Air-Spaced APO
ED Glass Elements: 2
Image Circle: 44mm
Format: Full Frame
Aperture Blades: 17
Aperture Range: f/5.6–f/22
Minimum Focus Distance: 5m
MECHANICAL SPECIFICATIONS
Focusing: Manual Helical Focuser
Front Filter Thread: M82
Rear Adapters: M72 / M54 / M48
M48 Filter Thread: 2"
Rear Connection Distance: 50–60mm
Recommended Connection Distance: 55mm
Length with Dew Shield Retracted: 370mm
Length with Dew Shield Extended: 420mm
Dovetail Plate: 290mm Vixen-style
WEIGHT
OTA Weight: 2.68 kg / 5.91 lb
Weight with Handle and Dovetail Plate: 3.18 kg / 7.01 lb
INCLUDED ITEMS
• Askar FRA400C Optical Tube
• Expandable Tube Ring
• Multifunctional Handle
• 290mm Vixen-style Dovetail Plate
• 1.25" Adapter
• 2" Adapter
• User Manual
