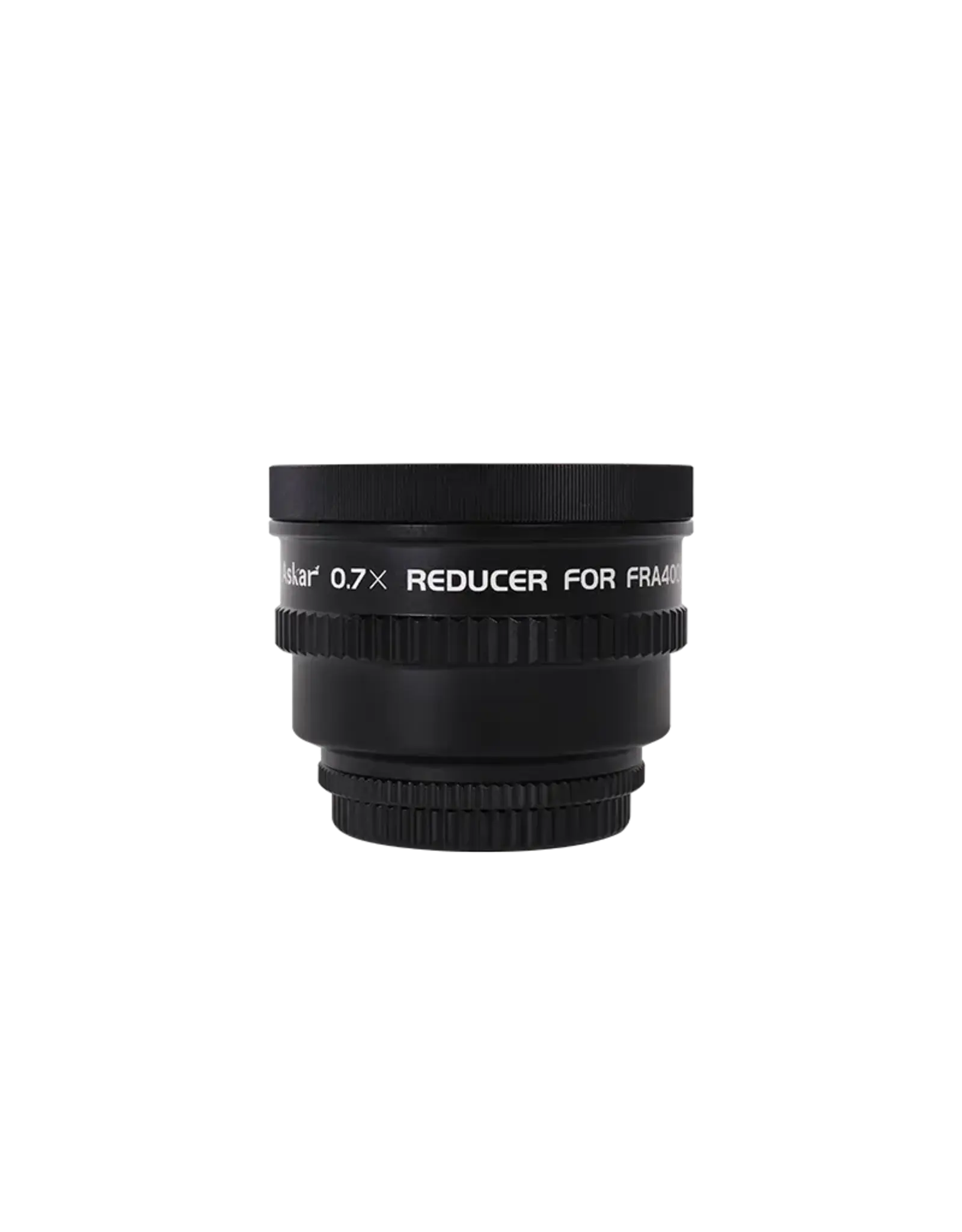

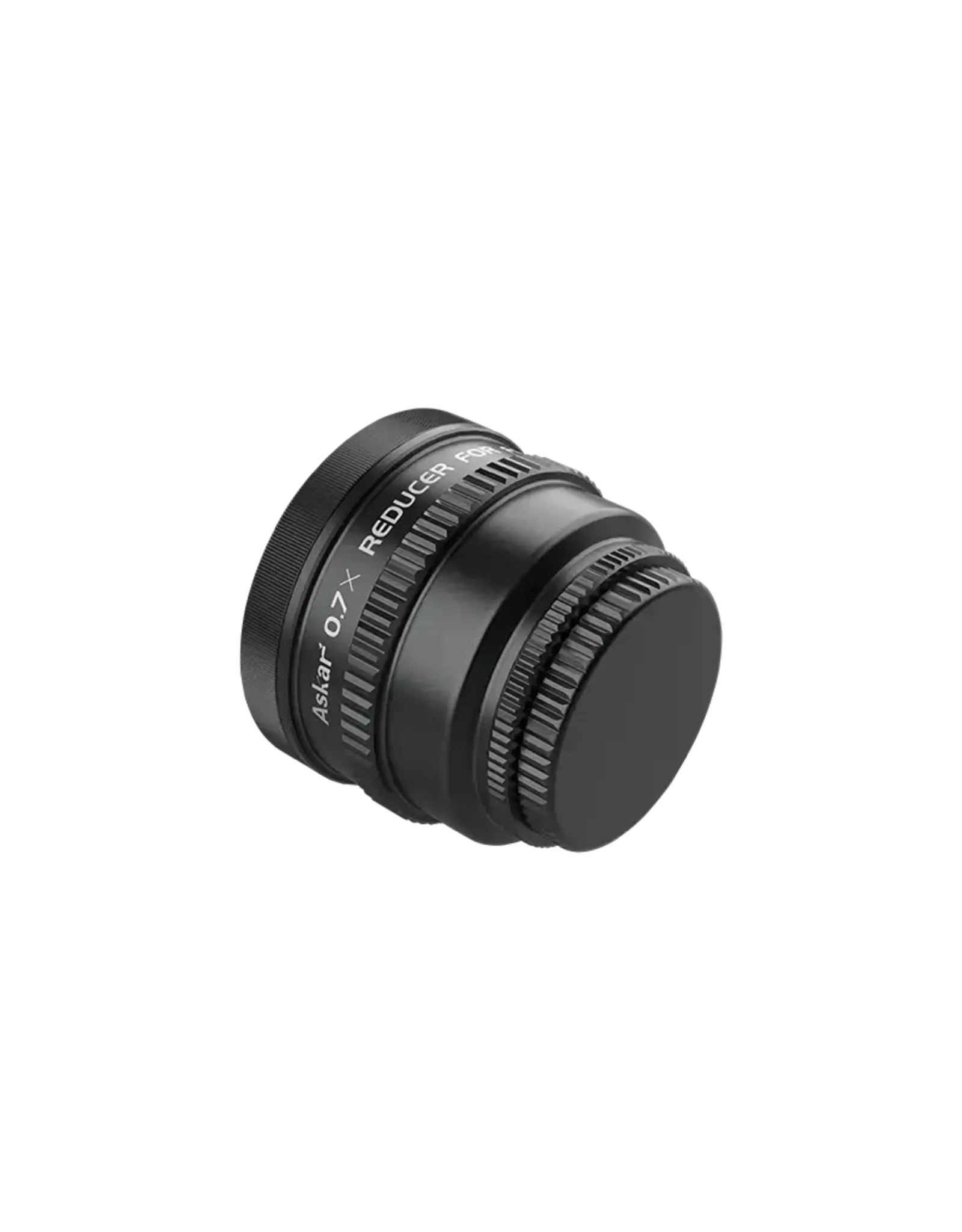

Askar FRA400C 0.7x Full-Frame Reducer For FRA400C Refractor
| Article number: | ASKARFRA400CR |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar FRA400C 0.7x Reducer is specifically designed for the FRA400C astrograph, reducing its focal length from 400mm to 280mm and its focal ratio from f/5.6 to a much faster f/3.9. The three-element optical design also provides field-flattening correction and maintains full-frame imaging capability.
The reducer provides a standard 55mm backfocus measured from the M48 thread, making it straightforward to configure with common astronomy cameras and imaging accessories. Its M48 × 0.75 rear connection also includes a built-in 2" filter thread.
Key Specifications:
-
Designed specifically for the Askar FRA400C
-
0.7x reduction factor
-
Changes FRA400C from 400mm f/5.6 to 280mm f/3.9
-
Three-element optical design
-
Full-frame compatible
-
Field-flattening correction
-
55mm standard backfocus
-
M48 × 0.75 rear connection
-
Built-in 2" filter thread
-
CNC-machined construction
Use Cases:
-
Wide-field deep-sky astrophotography
-
Large nebula imaging
-
Star cluster photography
-
Faster imaging of faint deep-sky objects
-
Full-frame astronomy cameras
-
Shorter exposures and wider fields with the FRA400C
Specifications:
Reduction Factor: 0.7x
Focal Length with FRA400C: 280mm
Focal Ratio with FRA400C: f/3.9
Optical Design: Three-element reducer
Image Format: Full-frame
Backfocus: 55mm from M48 thread face
Rear Connection: M48 × 0.75
Filter Thread: Built-in 2" filter thread
Weight: 0.46 kg (1.0 lb)
