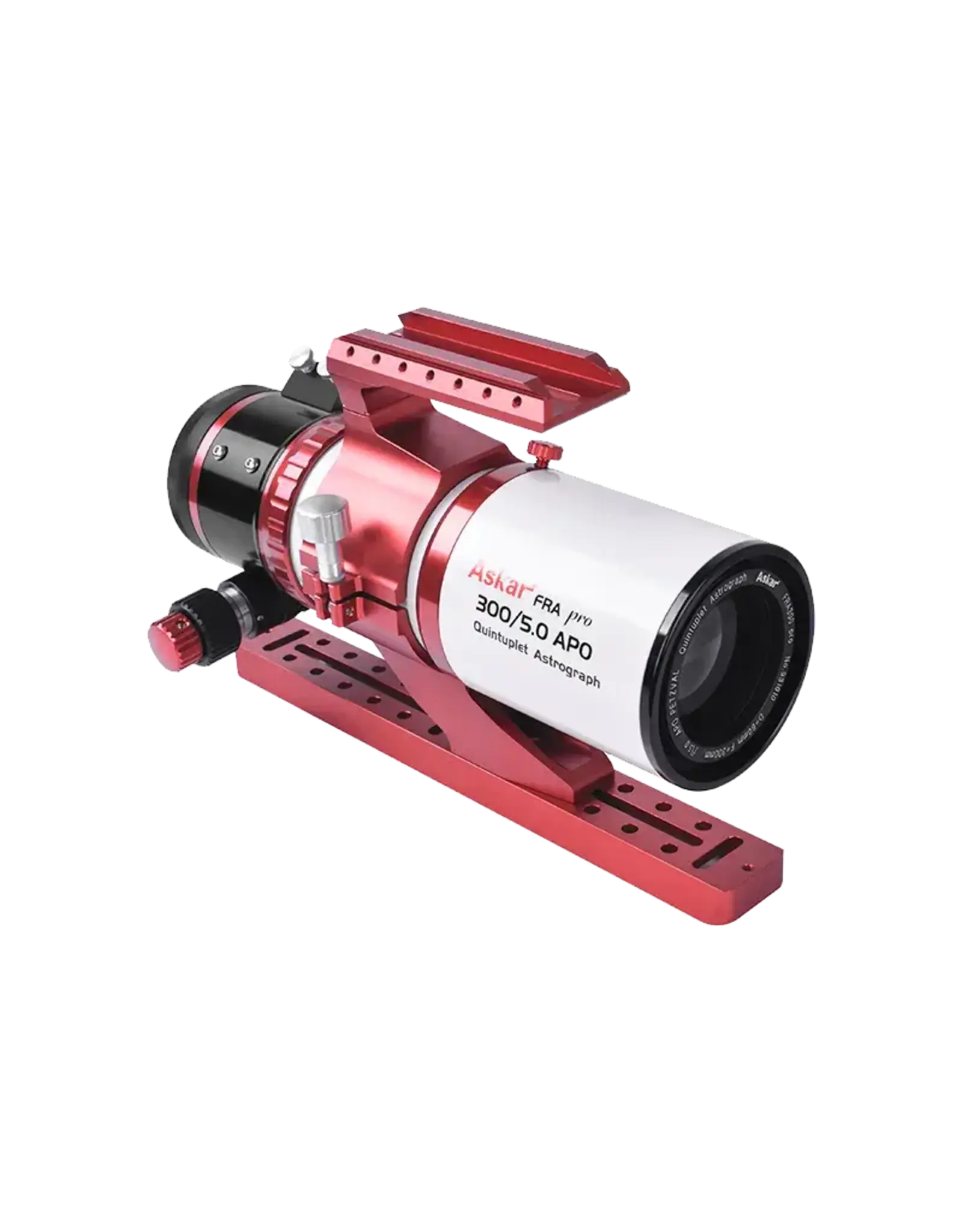

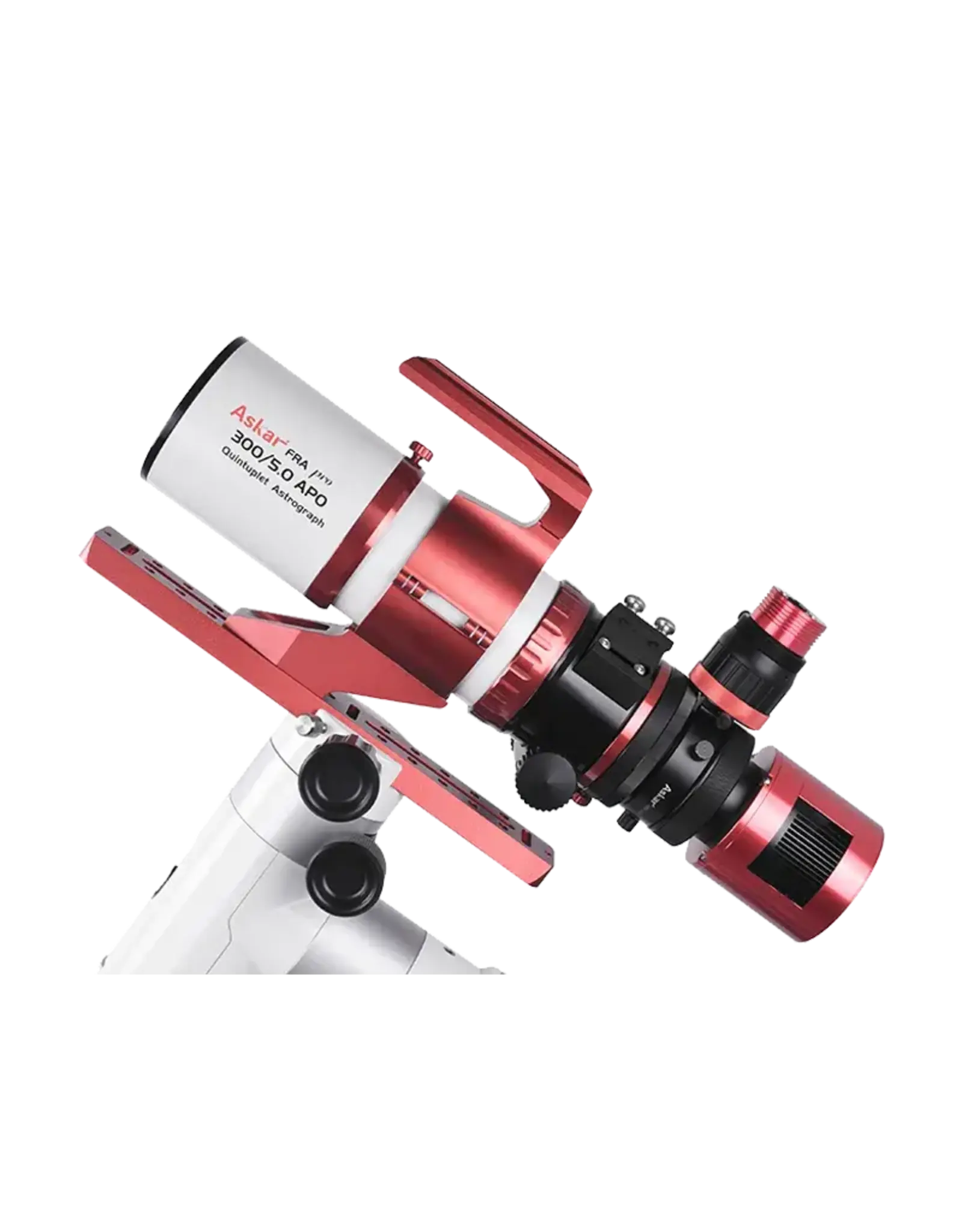

Askar FRA300 Pro Quintuplet Petzval APO Astrograph

Article number:	ASKAR-FRA300PRO
Availability:	Out of stock
Delivery time:	More on the Way to Us

The Askar FRA300 Pro is a compact, fast Petzval astrograph designed for wide-field astrophotography. With a 60mm aperture, 300mm focal length, and fast f/5 focal ratio, it provides a wide field of view while maintaining excellent star quality across the image.

The FRA300 Pro uses a five-element, fully air-spaced Petzval APO optical design incorporating one ED glass element. Its 44mm image circle provides full-frame coverage, making it well suited for modern full-frame astrophotography cameras.

The native Petzval design incorporates field flattening directly into the optical system, eliminating the need for a separate field flattener. The optical system is also designed to provide excellent control of peripheral light falloff across the full-frame image circle.

The FRA300 Pro features a 2.5" dual-speed rack-and-pinion focuser with coarse and fine adjustment controls. A built-in 360° rotator allows the camera to be rotated for convenient framing without changing the telescope's optical alignment.

The rear of the telescope provides M42, M48, and M54 connections, with the M48 adapter incorporating a built-in 2" filter thread. A multifunctional handle and 300mm Vixen-style dovetail plate are included for mounting the telescope and accessories.

FEATURES

• 60mm aperture
• 300mm focal length
• Fast f/5 focal ratio
• Five-element fully air-spaced Petzval APO optical design
• One ED glass element
• 44mm full-frame image circle
• Built-in Petzval field flattening
• No separate field flattener required
• 2.5" dual-speed rack-and-pinion focuser
• Built-in 360° rotator
• M42, M48, and M54 rear connections
• Built-in 2" filter thread
• Multifunctional handle
• 300mm Vixen-style dovetail plate
• Compact design for portable astrophotography

OPTICAL SPECIFICATIONS

Aperture: 60mm
Focal Length: 300mm
Focal Ratio: f/5
Optical Design: Quintuplet Fully Air-Spaced Petzval APO
ED Glass Elements: 1
Image Circle: 44mm
Format: Full Frame

MECHANICAL SPECIFICATIONS

Total Length: 303mm
Focuser: 2.5" Dual-Speed Rack-and-Pinion
Rotator: 360°
Rear Connections: M42 × 0.75 / M48 × 0.75 / M54 × 0.75
M48 Adapter: Built-in 2" filter thread
Maximum Accessory Connection:
71mm from M42 × 0.75
67mm from M48 × 0.75
71mm from M54 × 0.75

WEIGHT

OTA Weight: 2.26 kg / 4.98 lb
Weight with Tube Ring, Handle, and Dovetail Plate: Approximately 3.12 kg / 6.88 lb

INCLUDED ITEMS

• Askar FRA300 Pro Optical Tube
• Tube Ring
• Multifunctional Handle
• 300mm Vixen-style Dovetail Plate
• M54 × 0.75 Adapter
• M42 × 0.75 Adapter
• M48 × 0.75 Adapter
• User Manual
• Warranty Documentation
