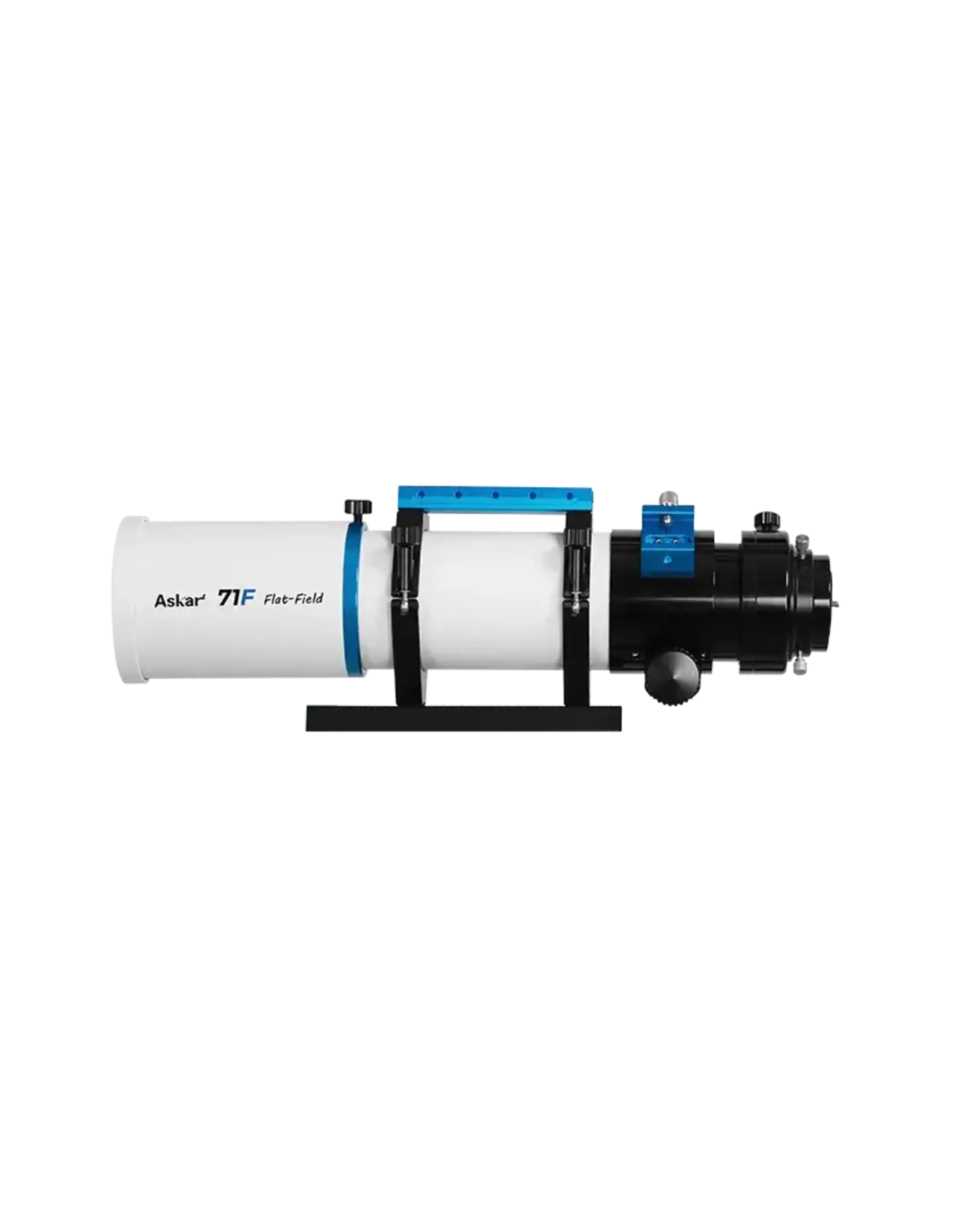

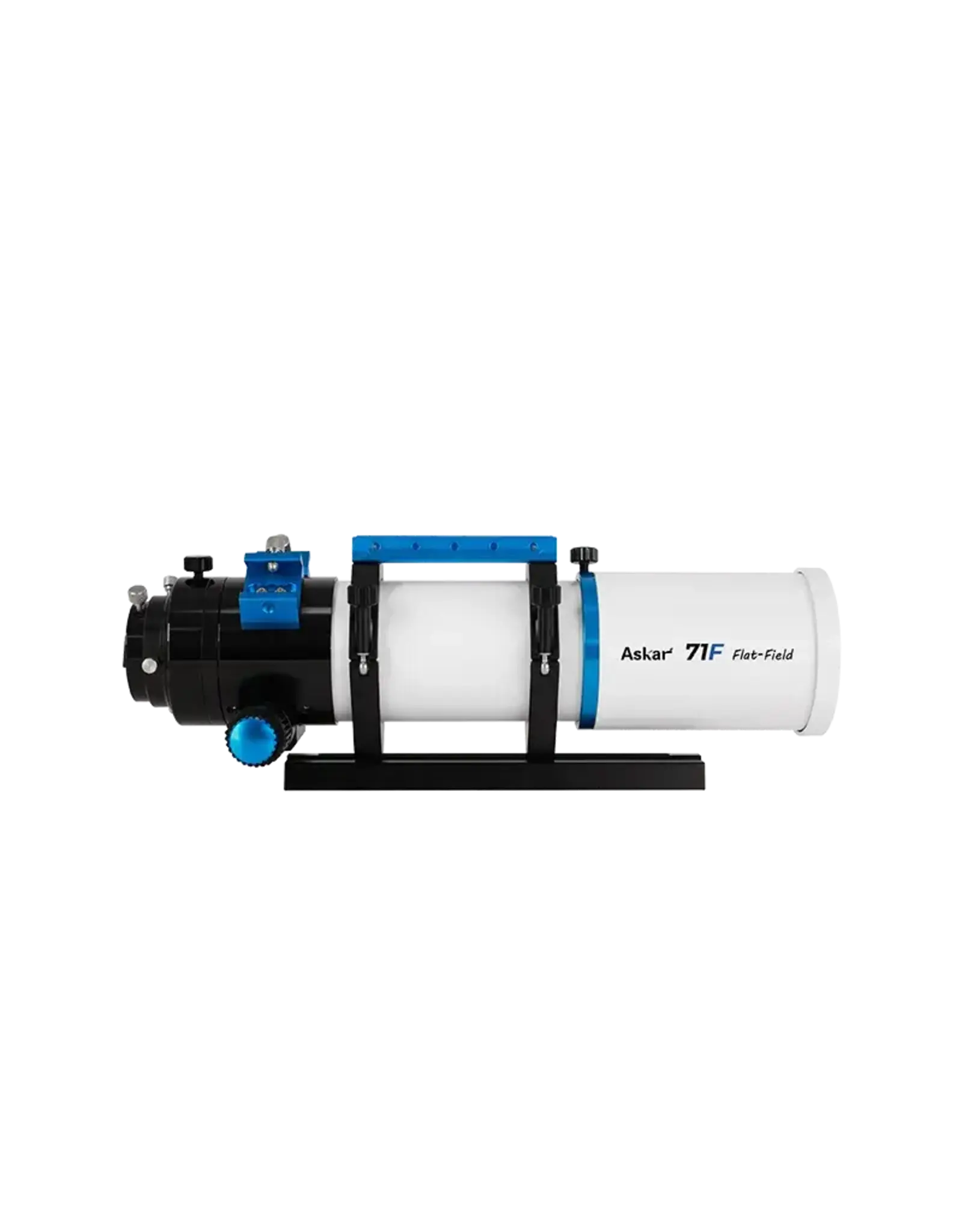

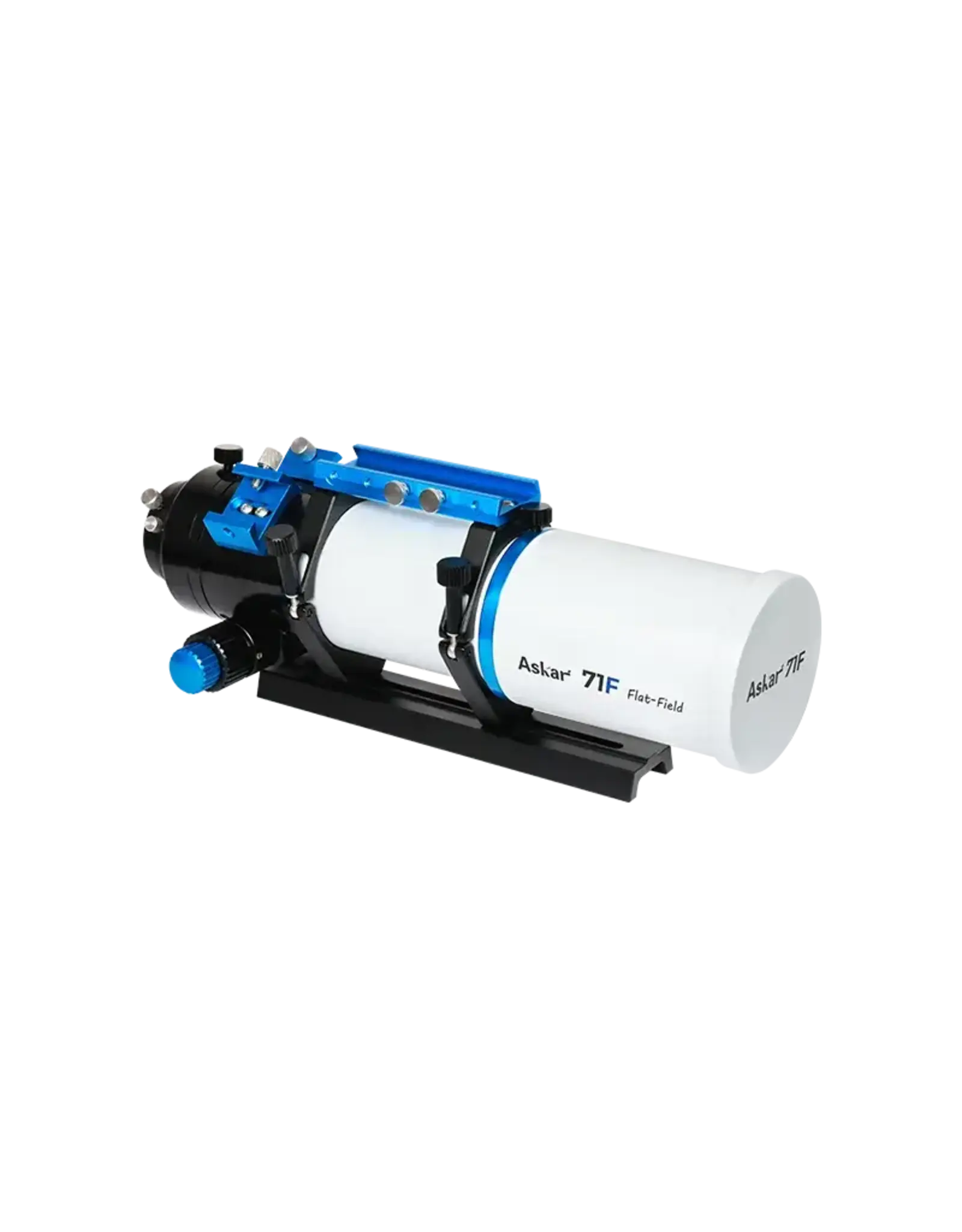

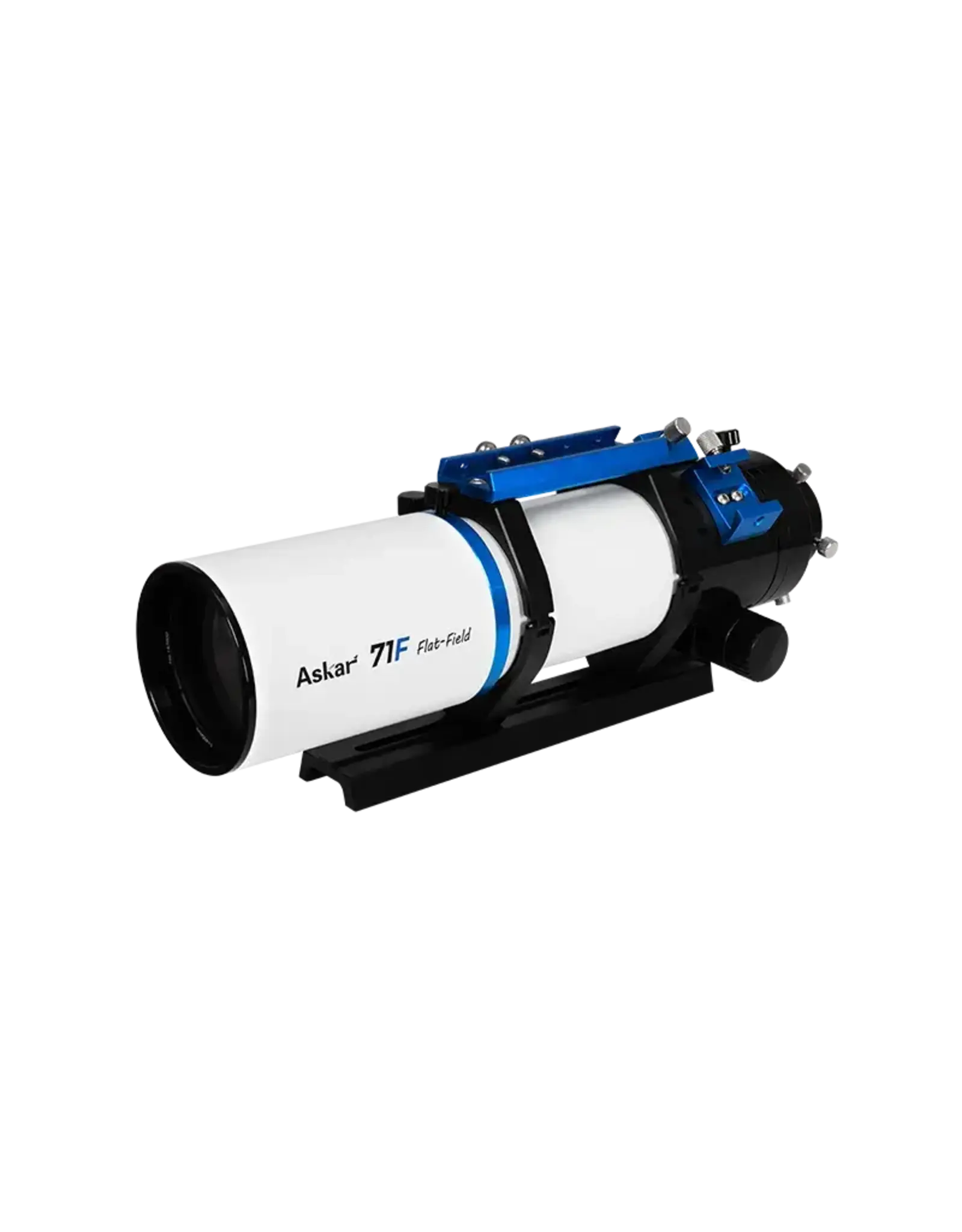

Askar 71F f/6.9 Quadruplet Flat-Field Astrograph
| Article number: | ASKAR-71F |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 71F is a compact, lightweight quadruplet APO astrograph designed for both astrophotography and visual observation. Its 71mm aperture and 490mm focal length produce a native f/6.9 focal ratio, while the air-spaced quadruplet optical design incorporates one ED element for improved chromatic aberration correction.
The 71F features a self-flattened optical design with a 44mm image circle, making it suitable for full-frame imaging without requiring a separate field flattener or complicated backfocus calculations. Once the appropriate imaging adapters are installed, the telescope can be used directly after achieving focus.
Key Specifications:
- 71mm aperture
- 490mm focal length
- f/6.9 focal ratio
- Quadruplet air-spaced APO optical design
- One ED glass element
- 44mm image circle
- Full-frame compatible
- Integrated field-flattening design
- No separate flattener required
- 2.4" dual-speed rack-and-pinion focuser
- 50mm focuser travel
- 1:10 fine adjustment
- 360° rotator with scale
- Retractable dew shield
- Two finder bases
- M48 and M54 photographic connections
- Built-in 2" filter thread
- 230mm Vixen-style dovetail plate

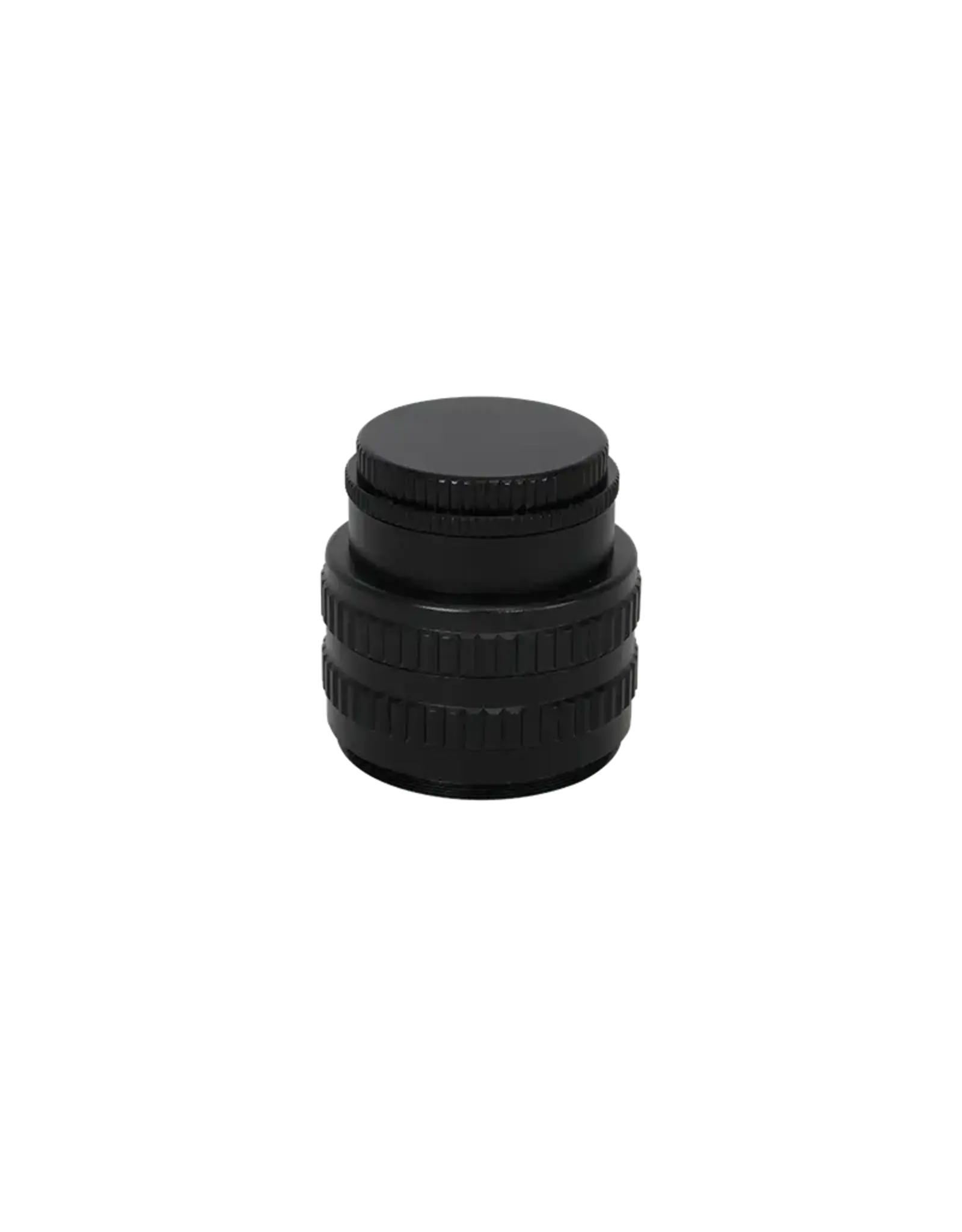

- Photographic adapter set included
- Tube rings and handle included
Use Cases:
- Full-frame deep-sky astrophotography
- Wide-field nebula and galaxy imaging
- DSLR and mirrorless camera astrophotography
- Dedicated astronomy camera imaging
- Visual observation
- Portable and grab-and-go astronomy
