Askar 60F f/6.8 Quadruplet Flat-Field Astrograph
| Article number: | ASKAR-60F |
| Availability: | Out of stock |
| Delivery time: | More on the Way to Us |

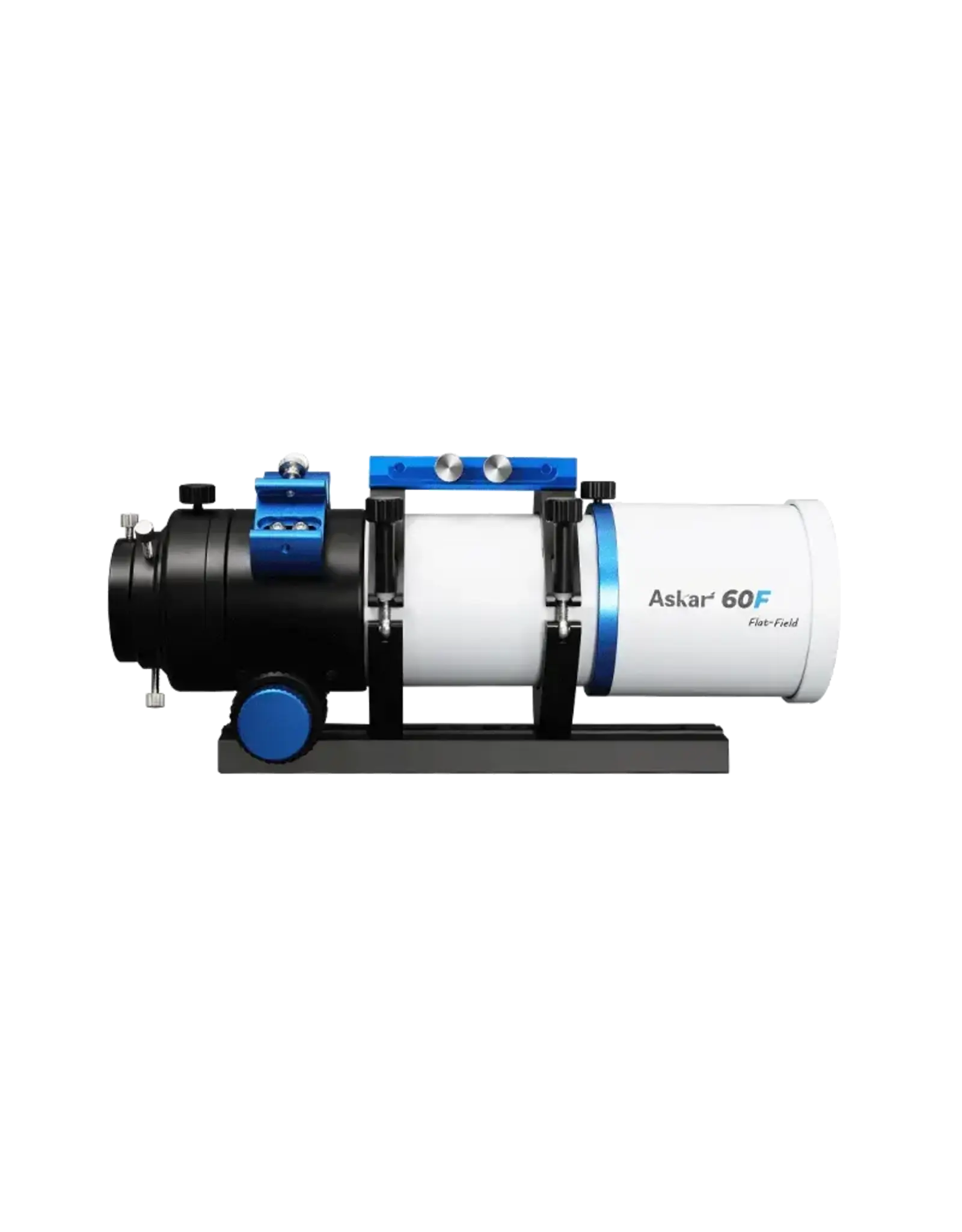

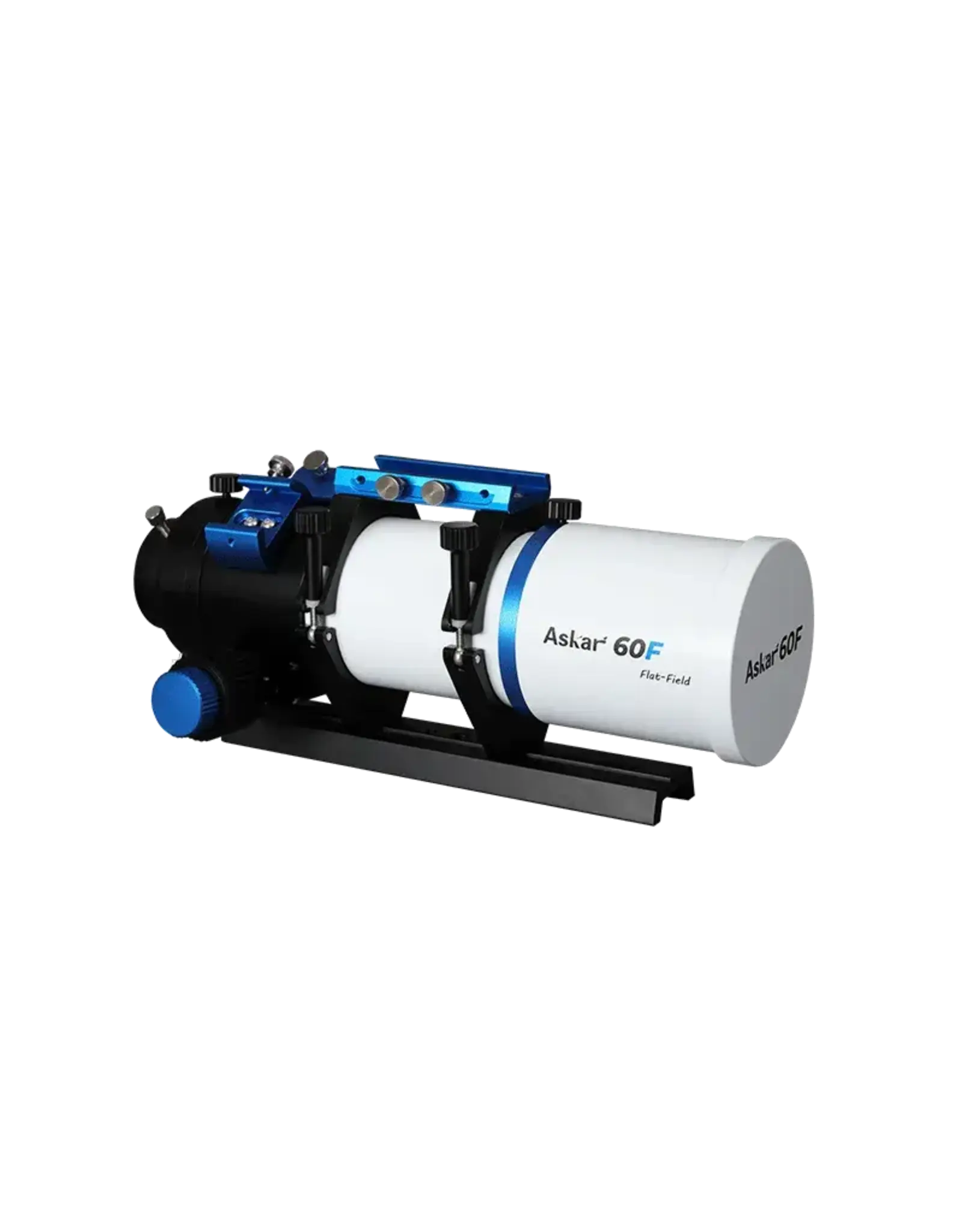

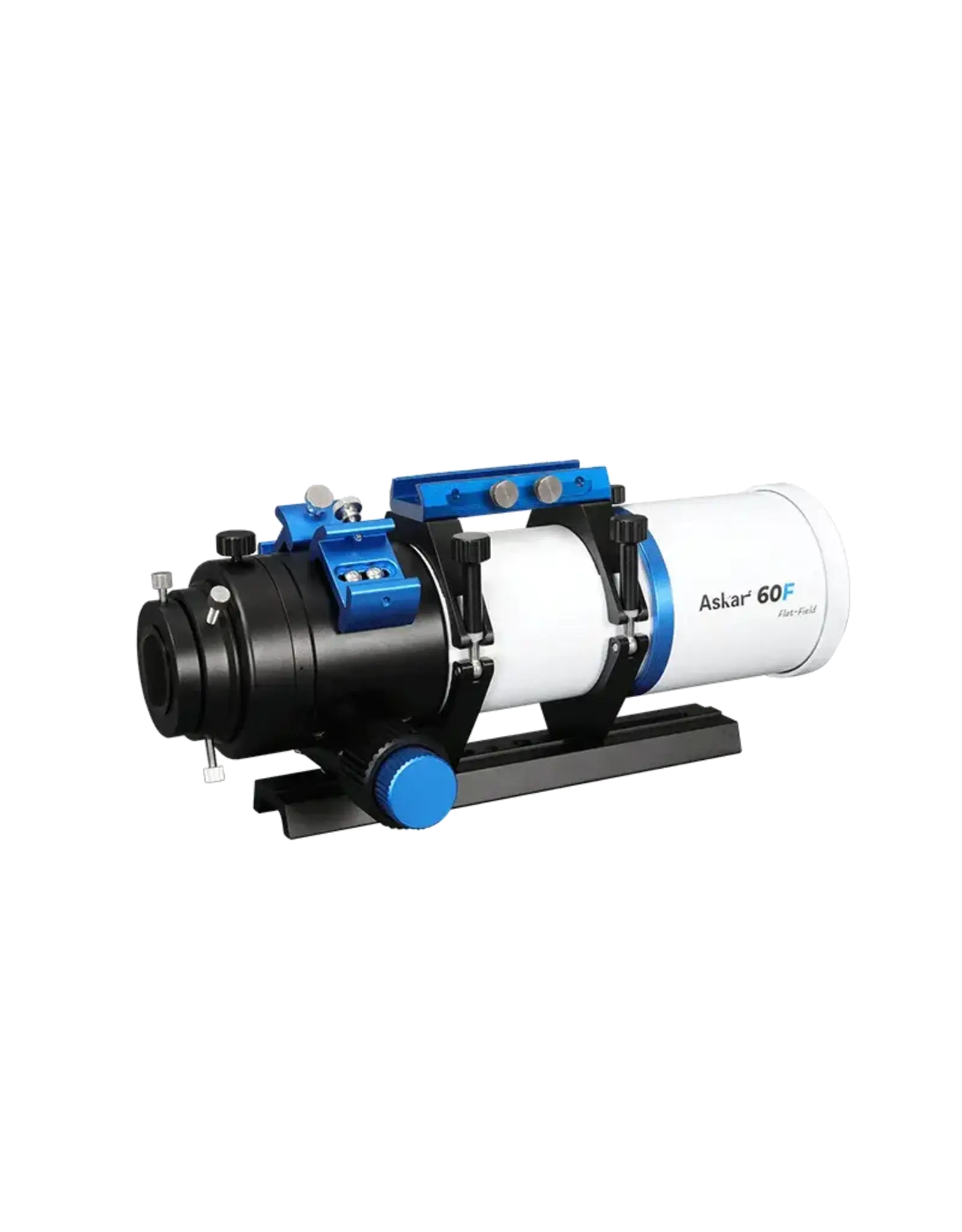

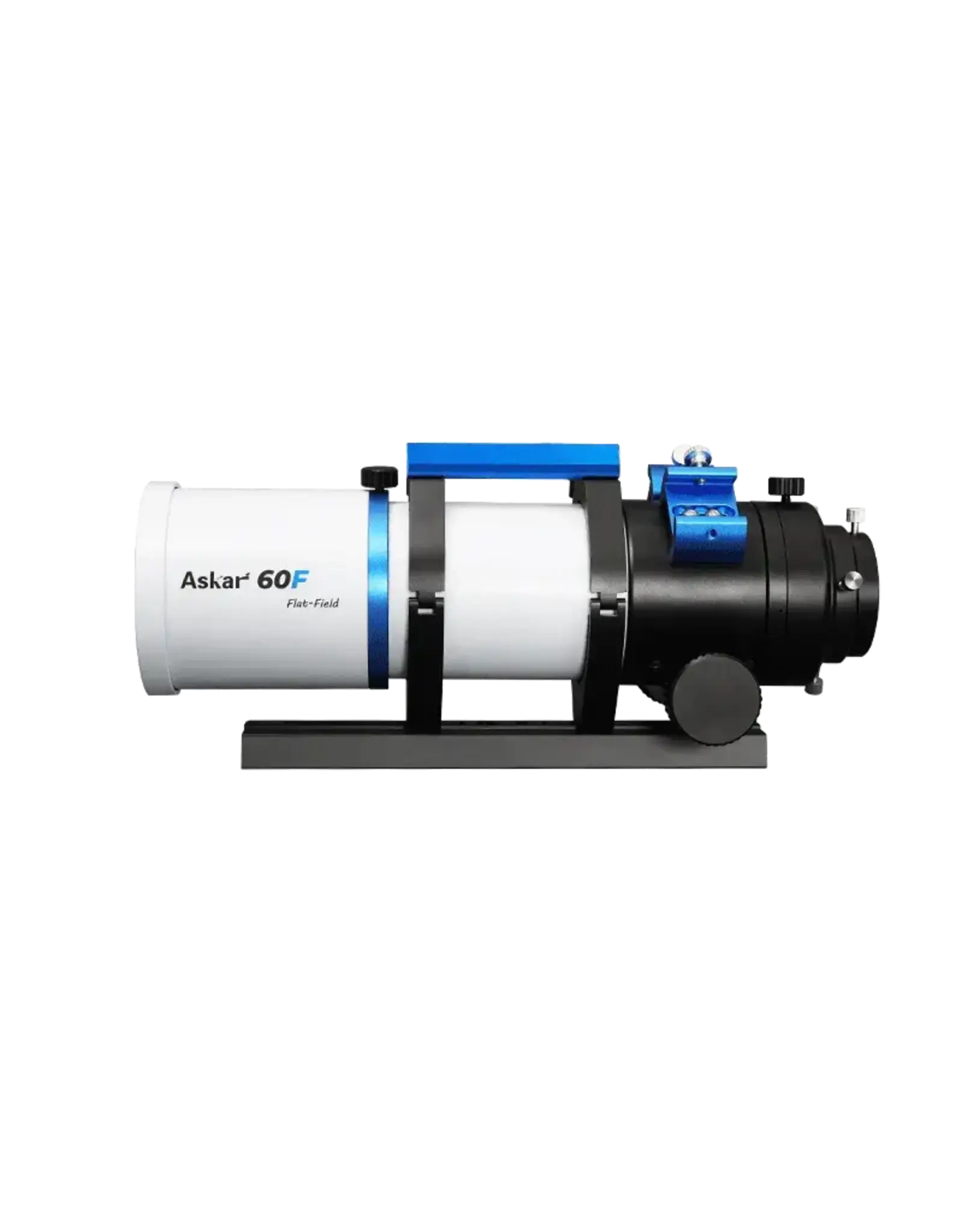

The Askar 60F is a compact, portable astrograph designed for both astrophotography and visual observation. Its 60mm aperture and 408mm focal length produce a native f/6.8 focal ratio, while the quadruplet air-spaced APO optical system incorporates one ED element for improved chromatic aberration correction.
The 60F features a built-in field-flattening system and supports a 44mm image circle, allowing full-frame cameras to be used without the need for a separate field flattener or complicated backfocus calculations.
A retractable dew shield keeps the telescope compact for transport, while the 2.4" dual-speed rack-and-pinion focuser provides 50mm of travel and 1:10 fine adjustment. A 360° rotator and multiple finder-base locations provide additional flexibility for imaging setups.
Key Specifications:
- 60mm aperture
- 408mm focal length
- f/6.8 focal ratio
- Quadruplet air-spaced APO optical design
- One ED glass element
- Built-in field flattener
- 44mm image circle
- Full-frame compatible
- 2.4" dual-speed rack-and-pinion focuser
- 50mm focuser travel
- 1:10 fine adjustment
- 360° rotator
- Retractable dew shield
- Two finder bases
- 1.25" and 2" visual adapters
- 230mm Vixen-style dovetail plate

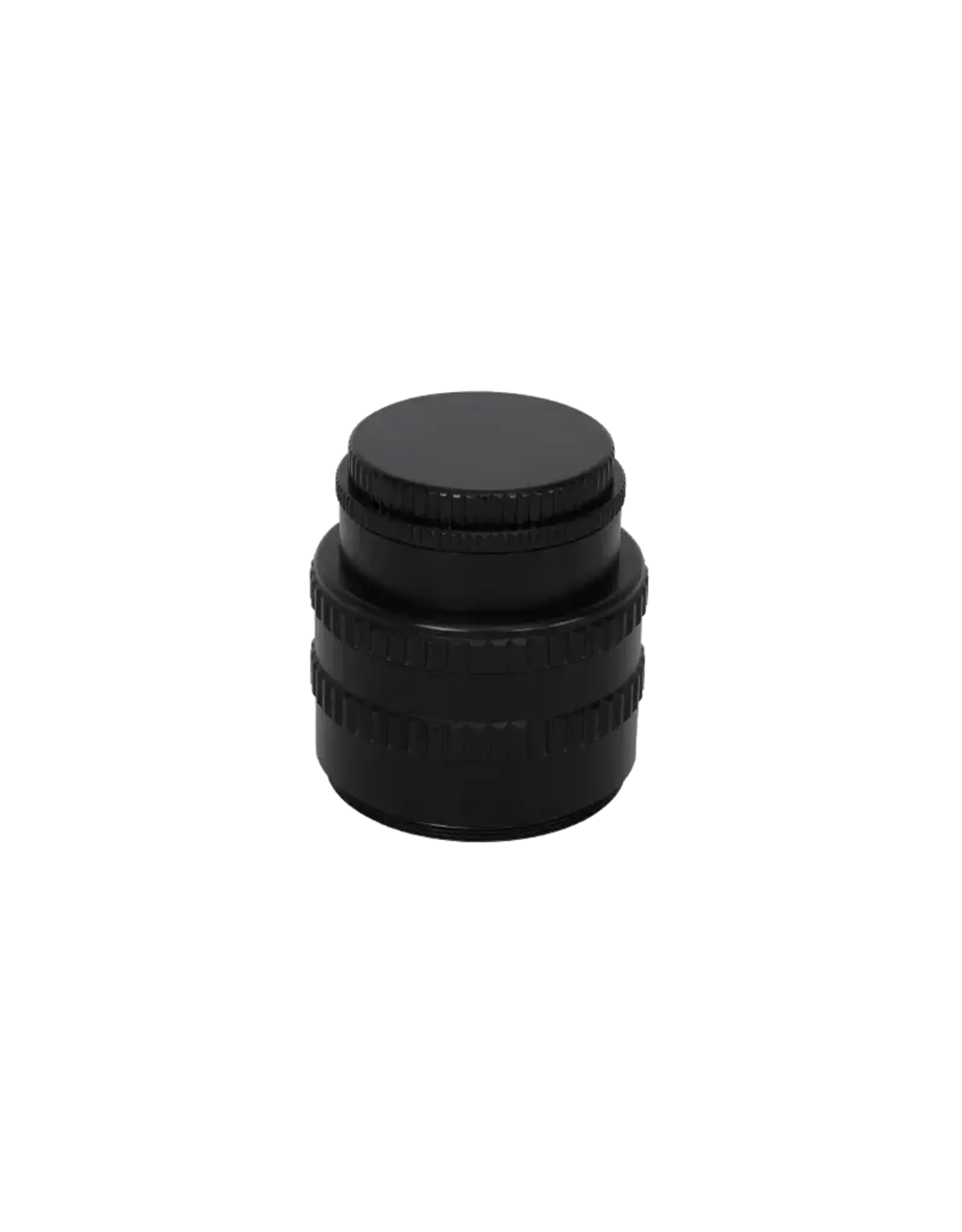

- Photographic extension tube included
- M48 and M54 photographic connections
- Built-in 2" filter thread
Use Cases:
- Full-frame deep-sky astrophotography
- Wide-field nebula and galaxy imaging
- DSLR and mirrorless camera astrophotography
- Dedicated astronomy camera imaging
- Portable visual astronomy
- Travel and grab-and-go observing
