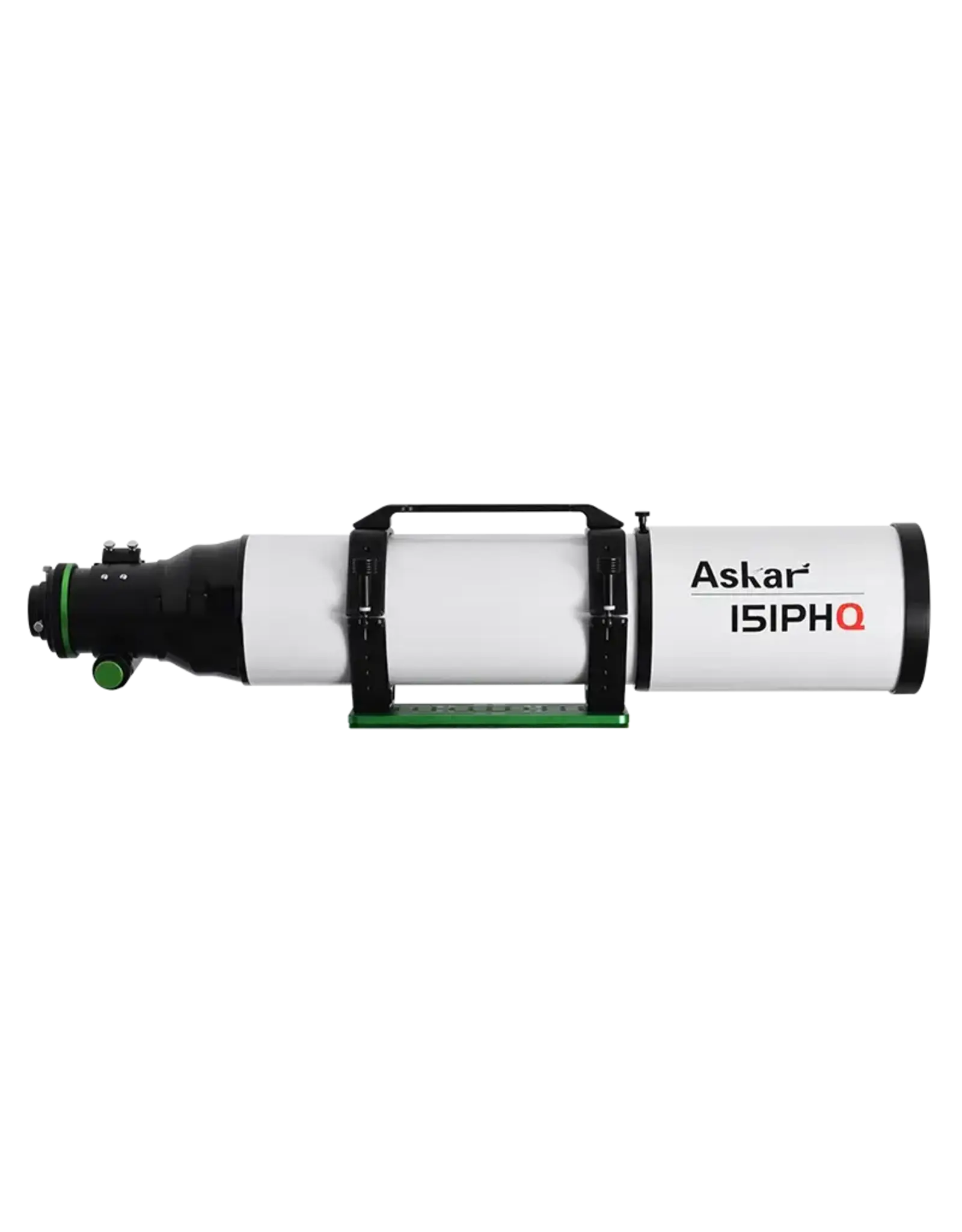

Askar 151PHQ F/6.4 ED Flatfield Astrograph
| Article number: | ASKAR-151PHQ |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 151PHQ is a large-aperture, long-focal-length APO astrograph designed for serious deep-sky astrophotography as well as high-resolution visual observation. Its 151mm aperture and 1057mm focal length provide substantial light-gathering power and image scale for detailed imaging of galaxies, nebulae, star clusters, and other deep-sky objects.
The 151PHQ uses a quadruplet air-spaced APO optical design incorporating two ED glass elements for excellent chromatic aberration control. Its self-flattening optical design produces a 60mm image circle, providing coverage well beyond a standard full-frame sensor and making the telescope suitable for larger-format imaging systems without requiring a separate field flattener.
A large 3.4" rack-and-pinion focuser includes a 360° rotator and finder base, providing a rigid and precise platform for astrophotography. The included adapter system provides M68, M54, and M48 connections, with the M48 adapter incorporating a built-in filter thread.
The telescope includes a retractable dew shield, heavy-duty dual tube rings, multifunction handle, 300mm Losmandy-style dovetail plate, four-piece photographic adapter set, and aluminum carrying case.
An optional 3" 0.7x flat-field reducer can reduce the system to approximately 740mm focal length at f/4.9 for a faster, wider-field imaging configuration.
Key Specifications:
- Aperture: 151mm
- Focal Length: 1057mm
- Focal Ratio: f/7
- Optical Design: Quadruplet air-spaced APO
- ED Elements: 2
- Image Circle: 60mm
- Field Design: Self-flattening / integrated field correction
- Focuser: 3.4" rack-and-pinion
- Rotator: 360°
- Rear Connections: M86, M68, M54, and M48
- M48 Adapter: Built-in M48 × 0.75 filter thread
- Dew Shield: Retractable
- Dovetail: 300mm Losmandy-style
- OTA Weight: Approximately 25.6 lb / 11.6 kg
- Complete Weight with Rings and Dovetail: Approximately 30.2 lb / 13.7 kg
- Carrying Case: Aluminum case included
- Optional Reducer: 3" 0.7x flat-field reducer
- Reduced Configuration: Approximately 740mm at f/4.9
Use Cases:
- Large-format astrophotography
- Full-frame astrophotography
- Deep-sky imaging
- Galaxy photography
- Nebula imaging
- Star cluster photography
- Lunar and planetary imaging
- High-resolution visual observation
