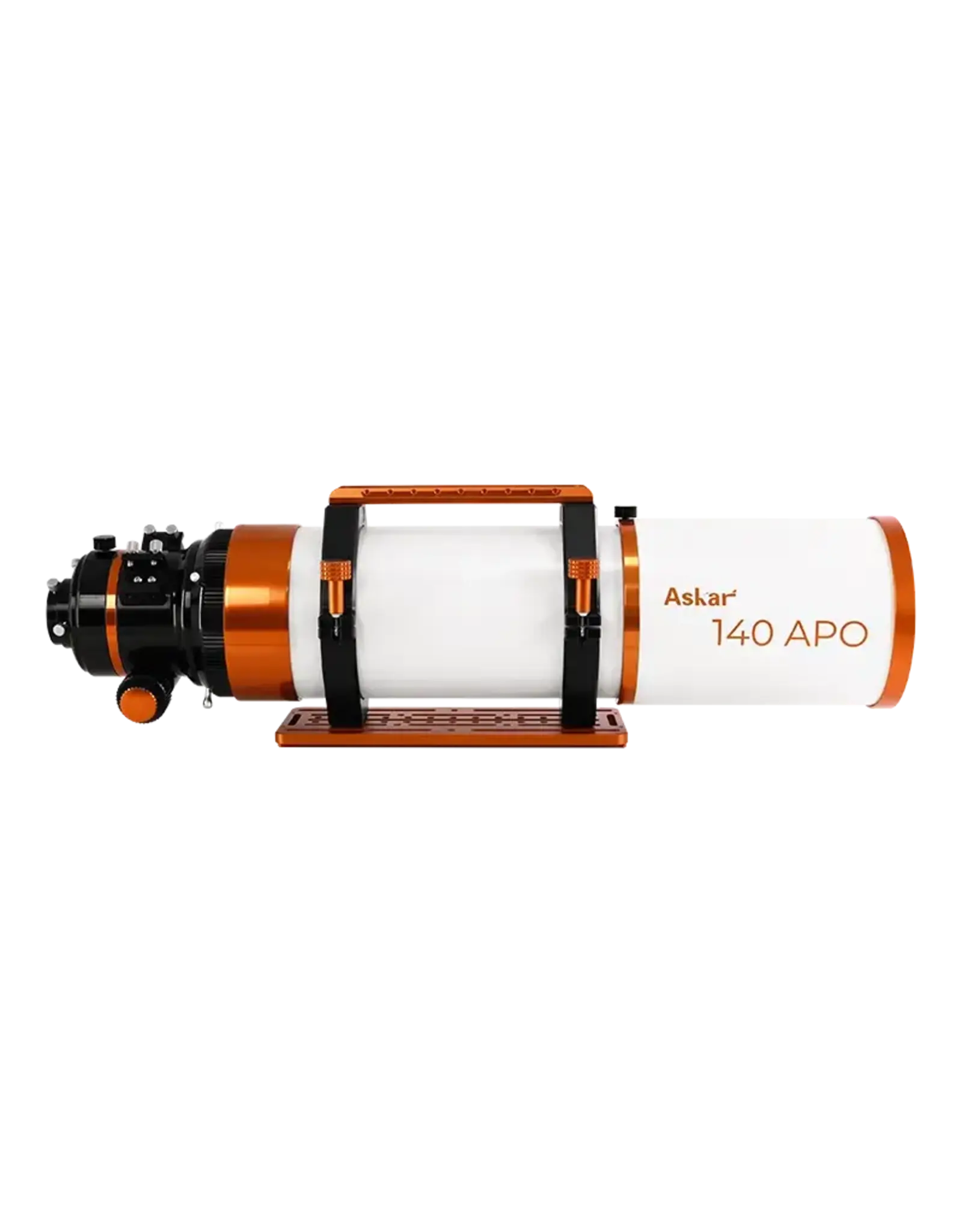

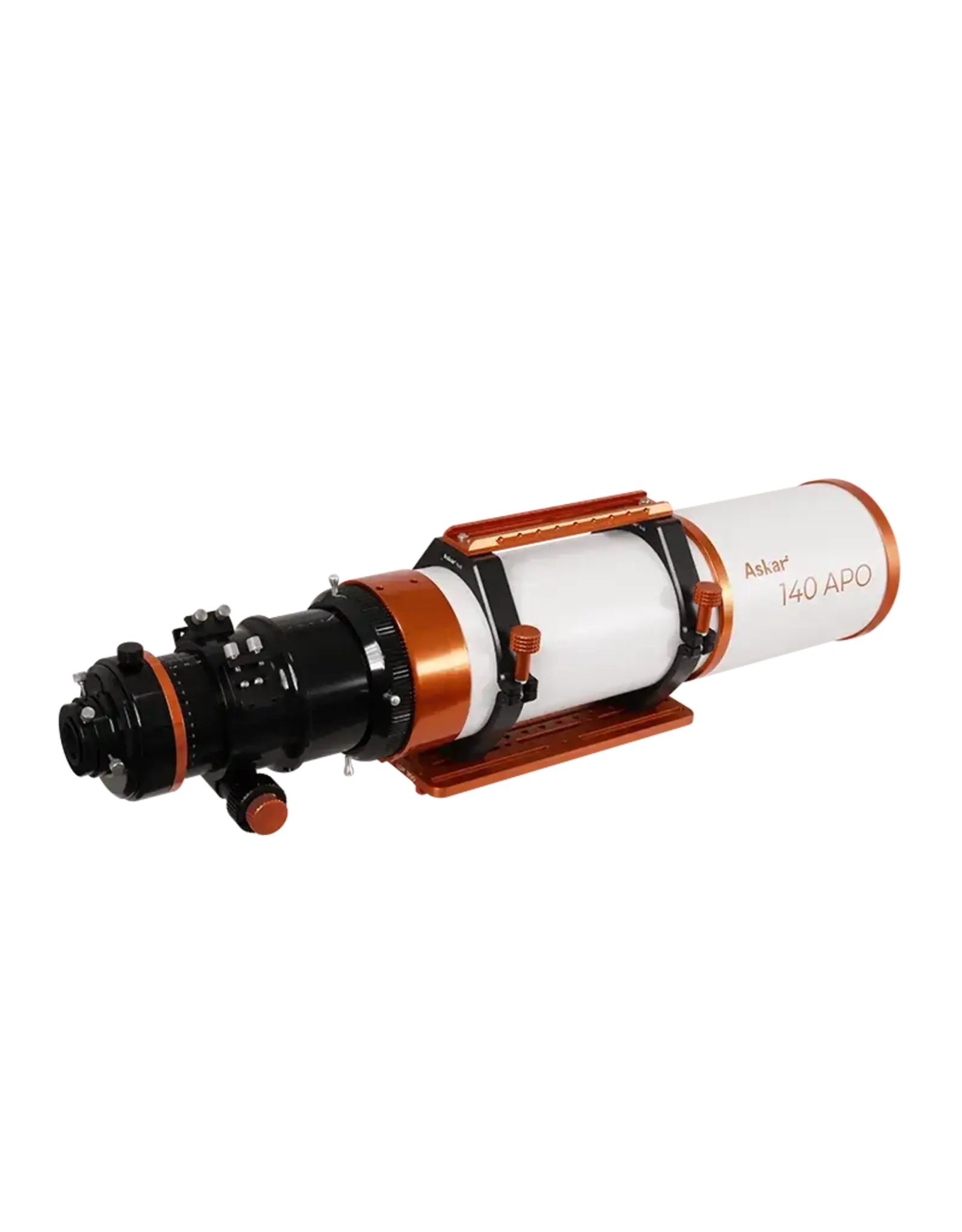

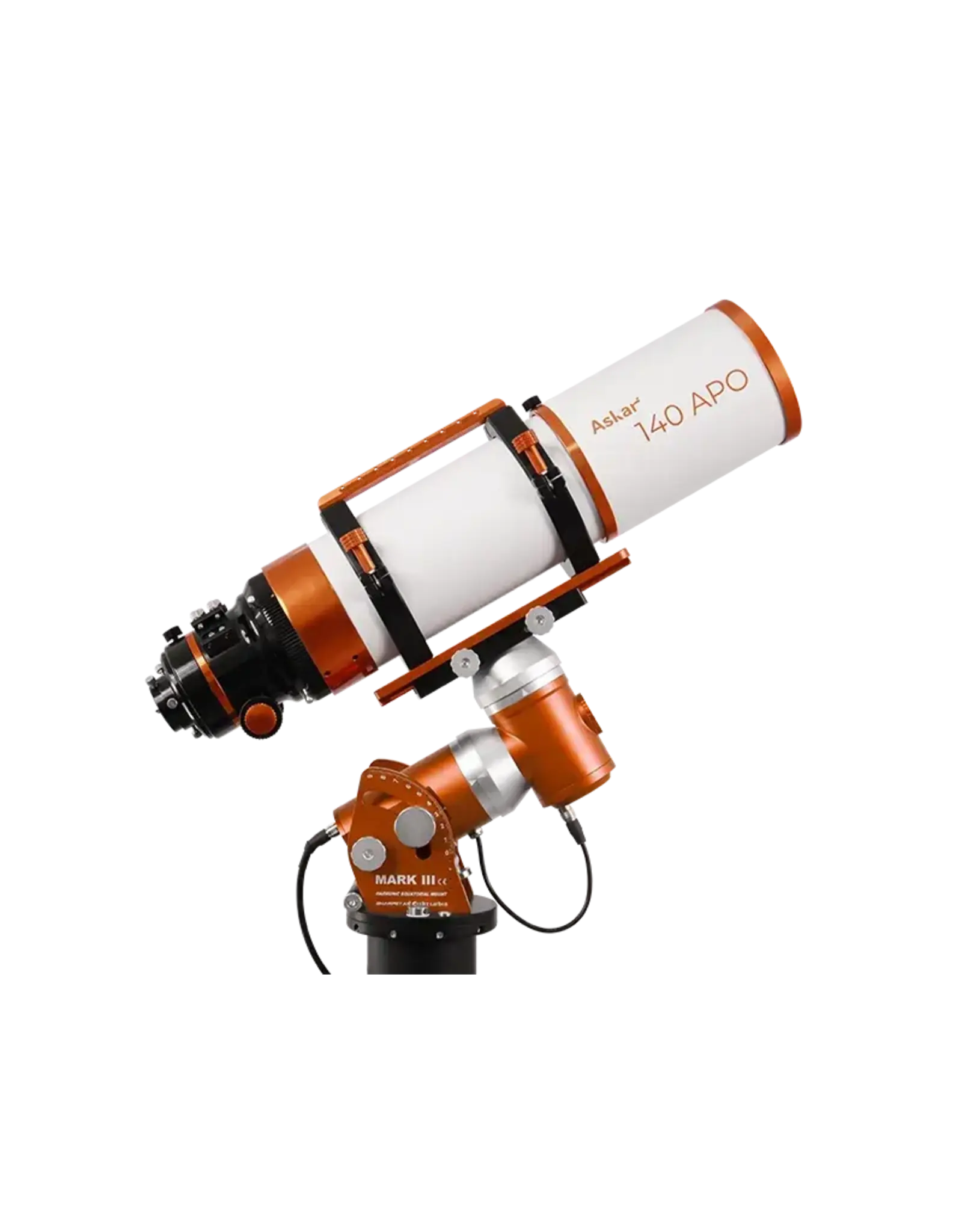

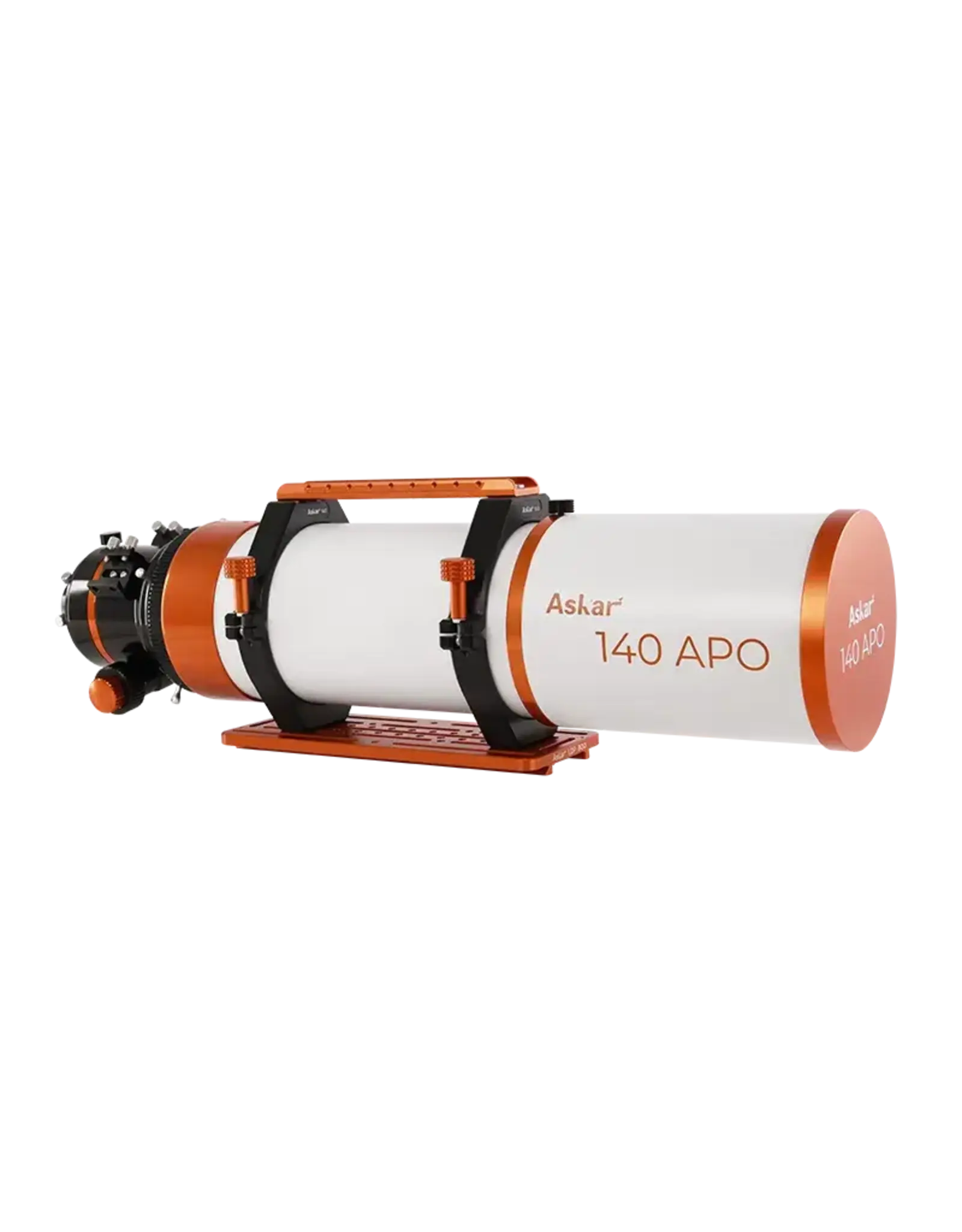

Askar 140APO f/7 Triplet APO Refractor
| Article number: | ASKAR-140APO |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 140APO is a large-aperture apochromatic refractor designed for both astrophotography and visual astronomy. With a 140mm aperture and 980mm focal length, it provides excellent light-gathering capability and resolution for detailed observation and deep-sky imaging.
The 140APO uses a triplet air-spaced APO objective incorporating one ED glass element for improved chromatic aberration correction. Its long f/7 focal ratio provides a versatile combination of image scale, resolution, and manageable exposure requirements for astrophotography.
A large 3.5" dual-speed rack-and-pinion focuser provides 100mm of focusing travel and includes a precision 360° rotator with graduated markings. The focuser is designed to accommodate both visual accessories and astrophotography equipment, while two finder bases provide additional mounting options.
The 140APO features a retractable dew shield and a 125mm rear retractable lens tube. This design allows the telescope to be used with a variety of observing configurations, including binoviewers. The rear of the focuser accepts both 2" and 1.25" visual accessories.
The telescope includes a pair of tube rings, multifunction handle, 300mm Losmandy-style dovetail plate, Oxford cloth carrying case, and manual.
Optional 1x field flattener and 0.8x reducer accessories are available for astrophotography. The 0.8x reducer produces approximately 784mm at f/5.6 while providing field flattening.
Key Specifications:
- Aperture: 140mm
- Focal Length: 980mm
- Focal Ratio: f/7
- Optical Design: Triplet air-spaced APO
- ED Elements: 1
- Focuser: 3.5" dual-speed rack-and-pinion
- Focuser Travel: 100mm
- Fine Adjustment: 1:10
- Rotator: 360° precision rotator
- Dew Shield: Retractable
- Rear Retractable Lens Tube: 125mm
- Visual Adapters: 2" and 1.25"
- Finder Bases: 2
- Tube Rings: Included
- Handle: Included
- Dovetail: 300mm Losmandy-style
- OTA Weight: 9.2 kg / 20.3 lb
- Weight with Rings and Dovetail: 10.9 kg / 24.0 lb
- Length with Dew Shield Retracted: 735mm / 28.9"
- Length with Dew Shield Extended: 870mm / 34.3"
- Carrying Case: Oxford cloth case included
Use Cases:
- Deep-sky astrophotography
- Nebula and emission-region imaging
- Galaxy photography
- Star cluster imaging
- Lunar and planetary observation
- High-resolution visual astronomy
- Binoviewer observing
