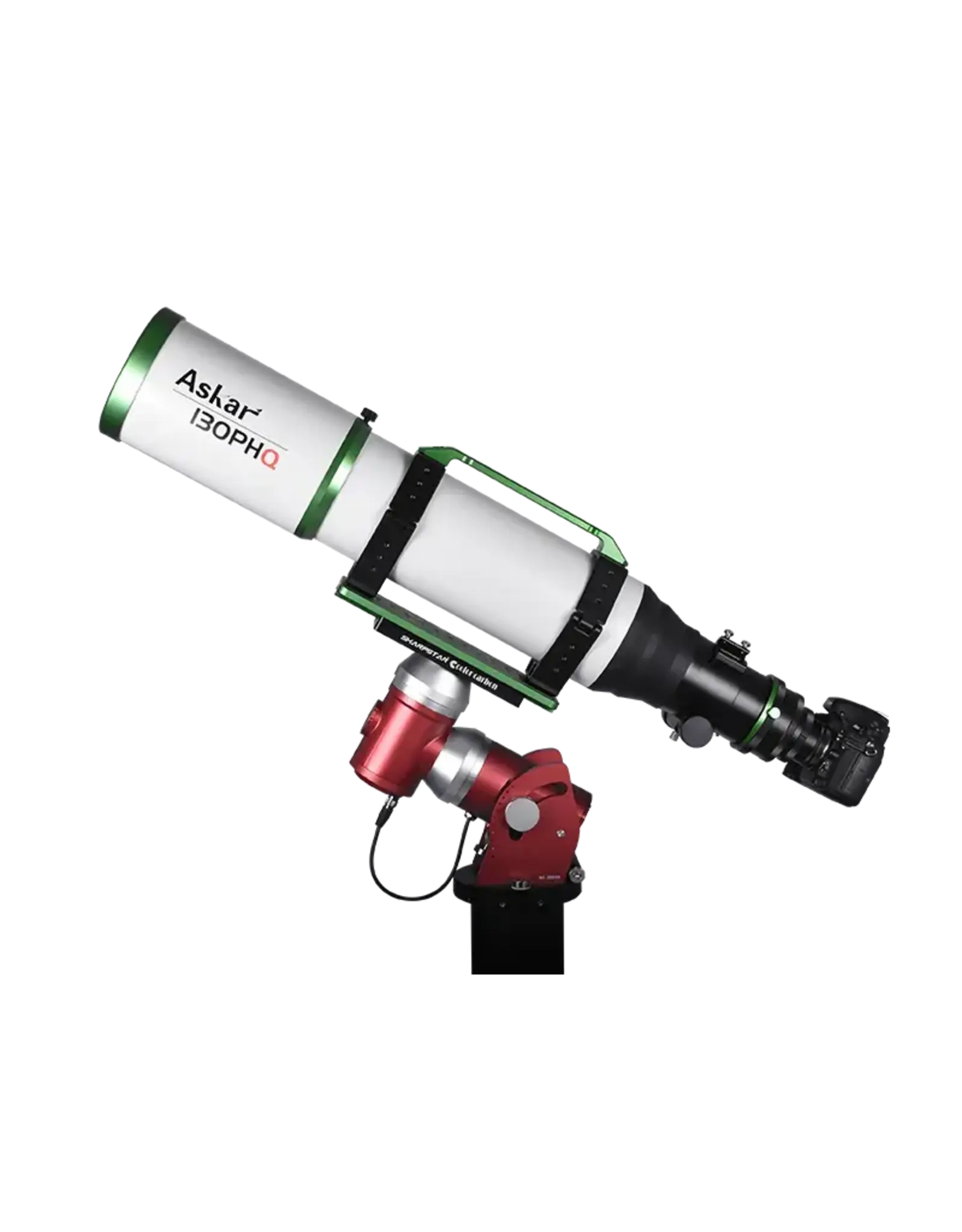

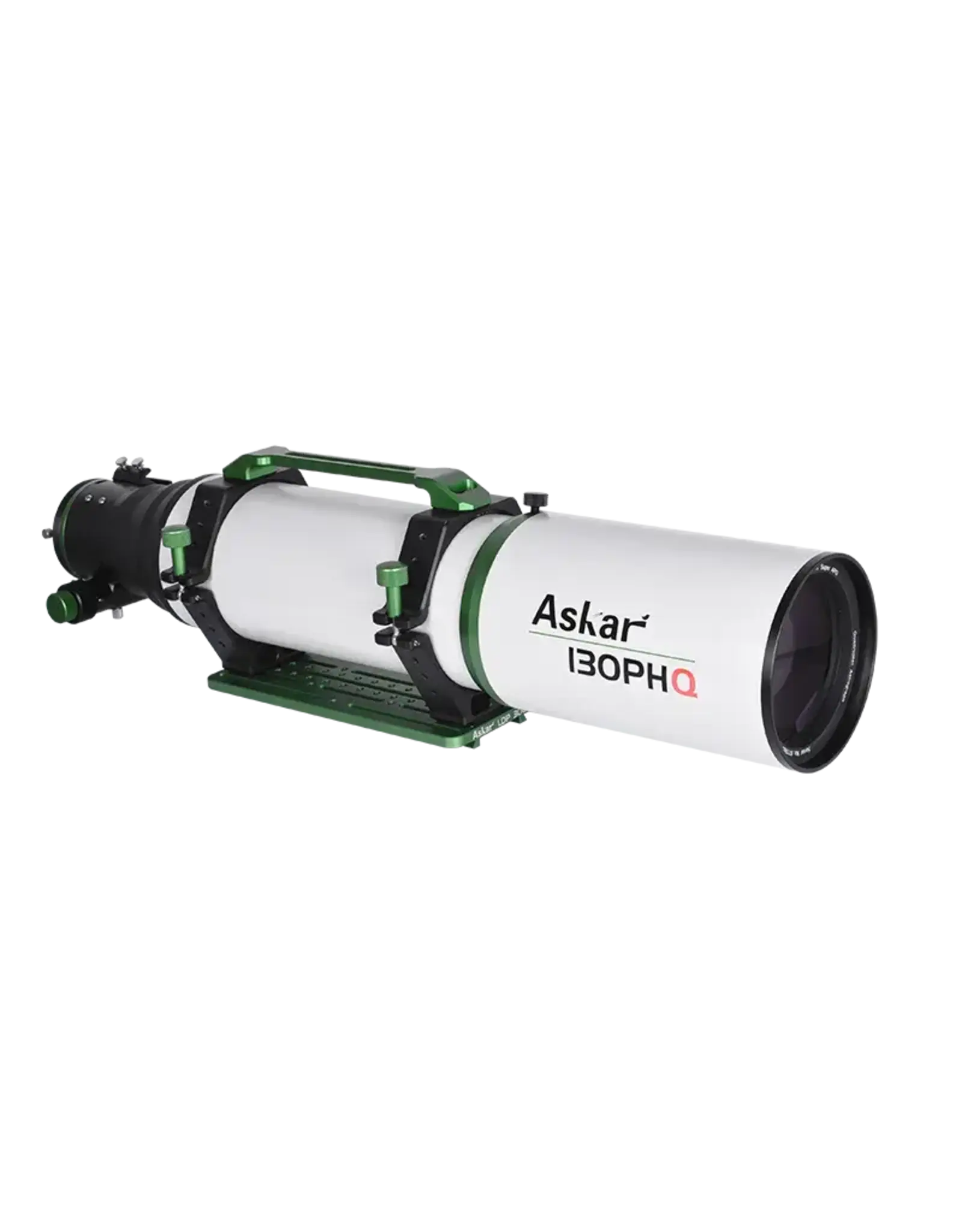

Askar 130PHQ F/6.4 ED Flatfield Astrograph
| Article number: | ASKAR-130PHQ |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 130PHQ is a large-aperture, long-focal-length flat-field astrograph designed for demanding astrophotography as well as high-quality visual observation. With a 130mm aperture and 1000mm focal length, it provides excellent resolution for detailed deep-sky imaging while maintaining a flat imaging field suitable for large-format cameras.
The 130PHQ uses a quadruplet air-spaced APO optical design incorporating two ED glass elements for strong chromatic aberration control. Its integrated flat-field optical design eliminates the need for a separate field flattener, while the generous 60mm image circle provides coverage beyond full-frame and supports larger imaging sensors.
A rigid 3.4" focuser provides a solid platform for astrophotography and includes M68, M54, and M48 camera adapters along with a finder base. Multiple rear-thread configurations provide considerable flexibility when connecting cameras and imaging accessories.
The telescope includes sturdy dual tube rings, a multifunction handle, and a 300mm Losmandy-style dovetail plate. An aluminum carrying case is also included.
An optional 3" 0.7x flat-field reducer can be used to reduce the system to approximately 700mm at f/5.4, providing a wider field of view and faster imaging.
Key Specifications:
- Aperture: 130mm
- Focal Length: 1000mm
- Focal Ratio: f/7.7
- Optical Design: Quadruplet air-spaced APO
- ED Elements: 2
- Image Circle: 60mm
- Field Design: Integrated flat-field optical system
- Focuser: 3.4" rigid focuser
- Rear Connections: M86, M68, M54, and M48
- M48 Adapter: Internal M48 × 0.75 filter thread
- Backfocus: Up to 186mm from the M86 connection
- Dew Shield: Retractable
- Tube Rings: Dual heavy-duty rings
- Handle: Multifunction handle with M6 mounting provision
- Dovetail: 300mm Losmandy-style
- OTA Weight: Approximately 23.2 lb / 10.5 kg
- Complete Weight: Approximately 27.6–28.7 lb / 12.5–13 kg, depending on configuration
- Carrying Case: Aluminum case included
- Optional Reducer: 3" 0.7x flat-field reducer
- Reduced Configuration: Approximately 700mm at f/5.4
Use Cases:
- Full-frame and large-format astrophotography
- Deep-sky imaging
- Galaxy photography
- Nebula imaging
- Planetary nebula imaging
- Star cluster photography
- Lunar and planetary photography
- High-resolution visual observation
