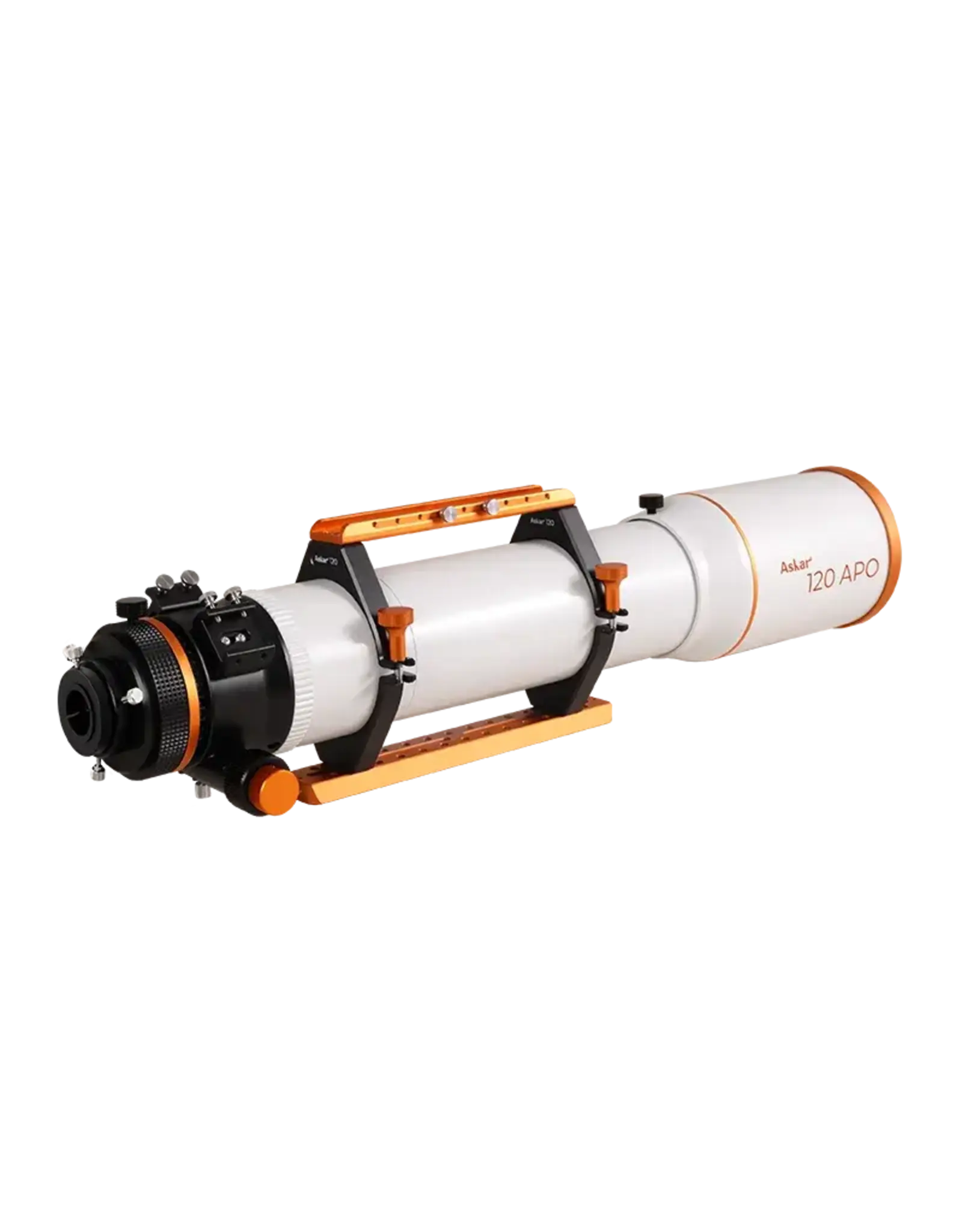

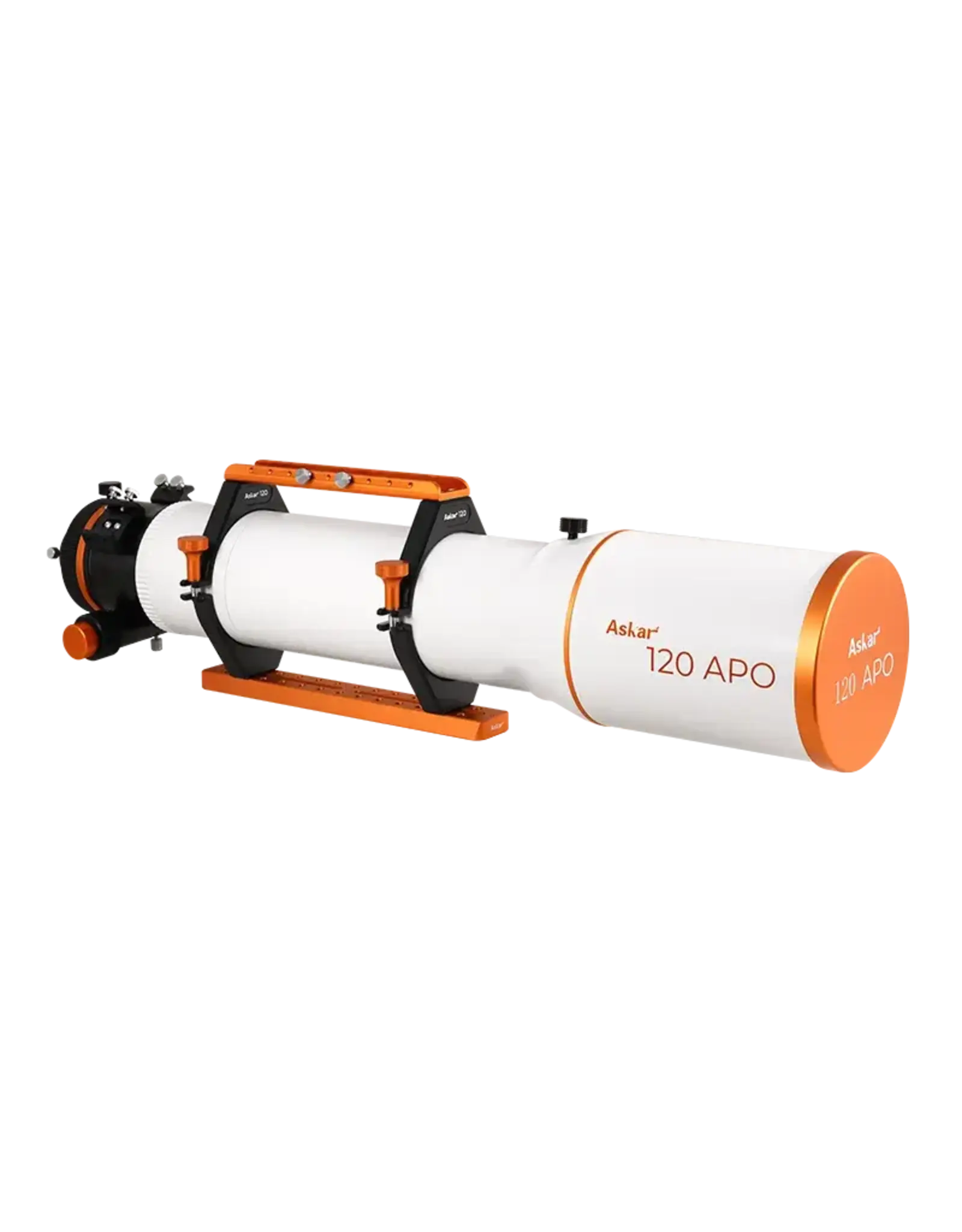

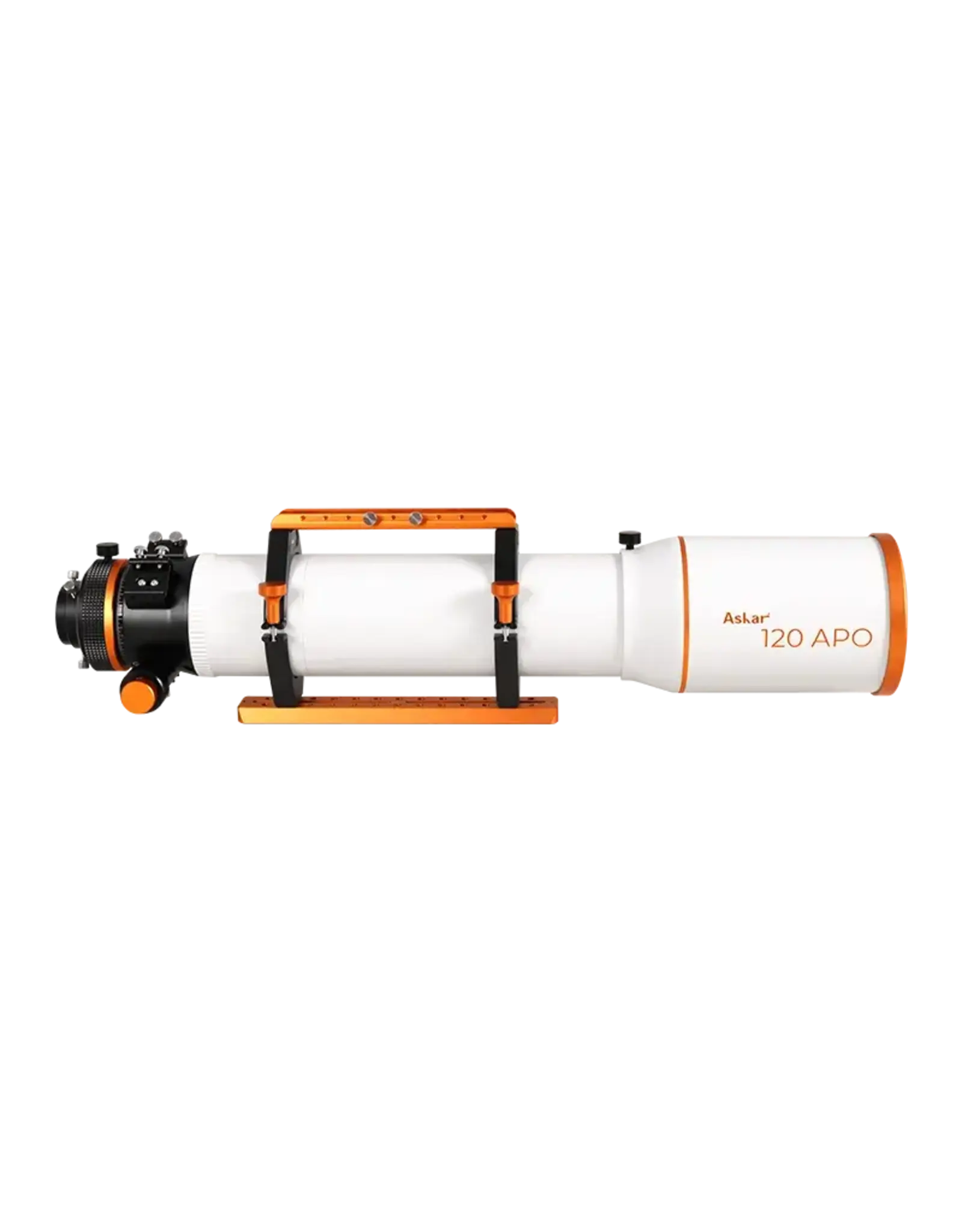

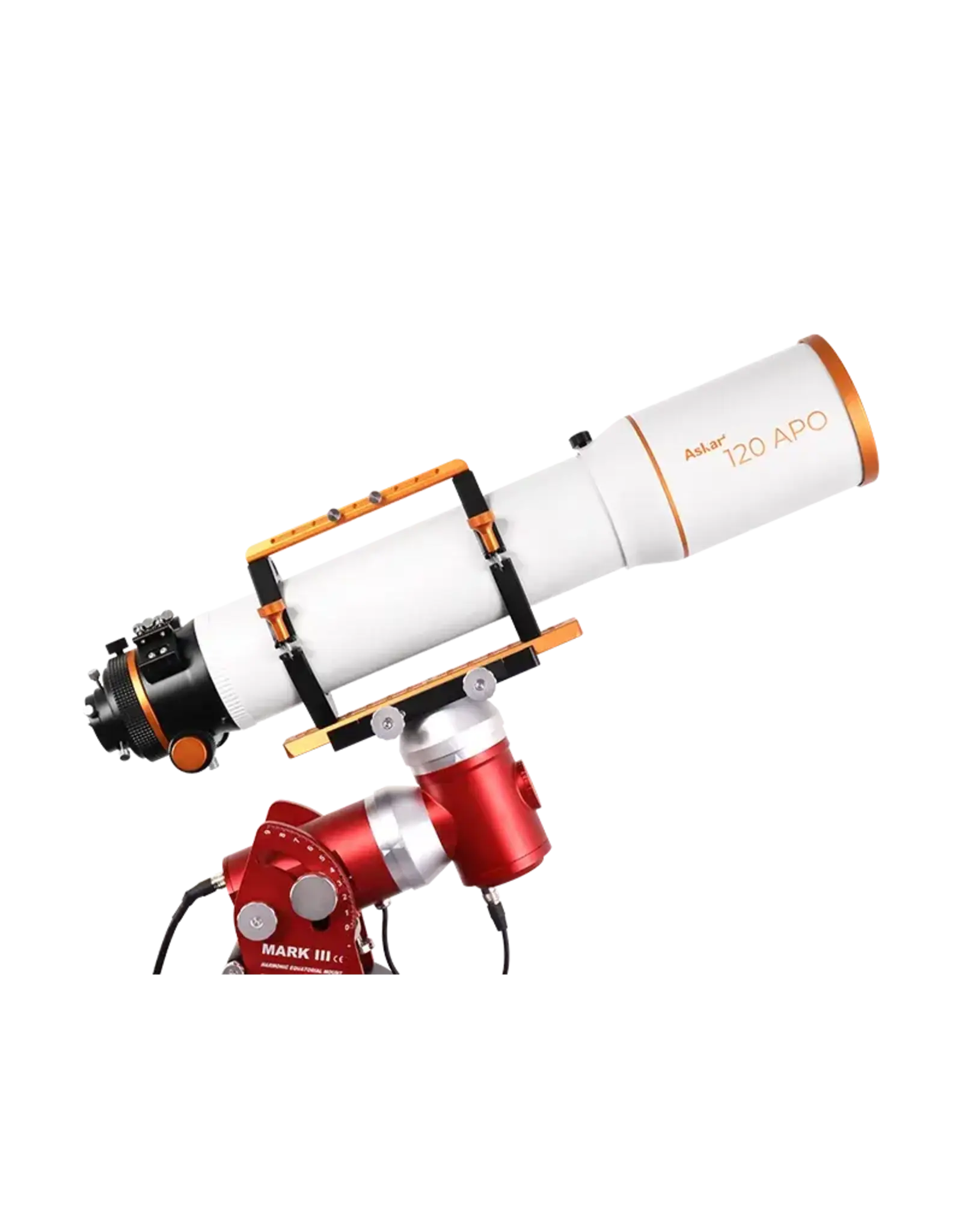

Askar 120APO f/7 Triplet APO Refractor
| Article number: | ASKAR-120APO |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 120APO is a large-aperture apochromatic refractor designed for both astrophotography and visual astronomy. Its 120mm aperture and 840mm focal length provide increased light-gathering power, resolution, and contrast while maintaining a practical f/7 focal ratio.
The 120APO uses a triplet air-spaced APO objective incorporating one ED glass element for improved chromatic aberration correction. The two-section optical tube can be configured for different applications, including use with a binoviewer.
A large 3.3" dual-speed rack-and-pinion focuser provides a rigid platform for astrophotography, with approximately 100mm of focusing travel and 1:10 fine adjustment. A 360° precision rotator with graduated markings allows accurate camera framing and rotation.
The telescope includes two finder bases, a retractable dew shield, multifunction handle, tube rings, and a 290mm Vixen-style dovetail plate. An Oxford cloth carrying case is also included.
For astrophotography, optional 1x field flattener and 0.8x reducer accessories are available. The 1x flattener maintains the native f/7 focal ratio while correcting field curvature and coma. The 0.8x reducer converts the telescope to approximately 672mm at f/5.6 while providing field flattening and a 44mm full-frame image circle.
Key Specifications:
- Aperture: 120mm
- Focal Length: 840mm
- Focal Ratio: f/7
- Optical Design: Triplet air-spaced APO
- ED Elements: 1
- Focuser: 3.3" dual-speed rack-and-pinion
- Focuser Travel: 100mm
- Fine Adjustment: 1:10
- Rotator: 360° precision rotator
- Visual Adapters: 2" and 1.25"
- Finder Bases: 2
- Dew Shield: Retractable
- Tube Design: Two-section
- Dovetail: 290mm Vixen-style
- OTA Weight: 5.7 kg / 12.6 lb
- Weight with Tube Rings and Dovetail: 6.5 kg / 14.3 lb
- Length with Dew Shield Retracted: 722mm / 28.4"
- Length with Dew Shield Extended: 804mm / 31.7"
- Case: Oxford cloth case included
Use Cases:
- Deep-sky astrophotography
- Nebula and emission-region imaging
- Galaxy photography
- Star cluster imaging
- Lunar and planetary observation
- High-resolution visual astronomy
- Binoviewer observing
