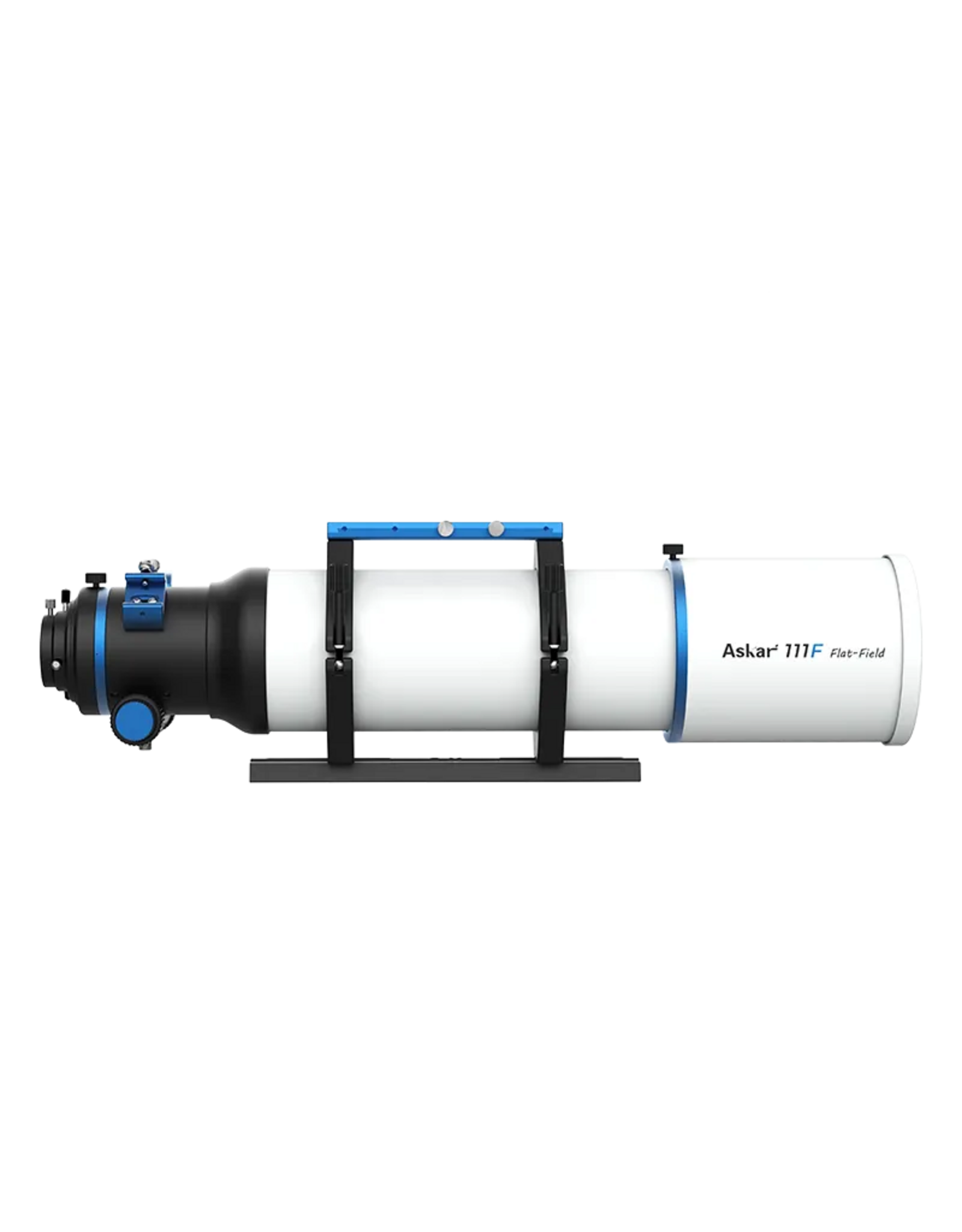

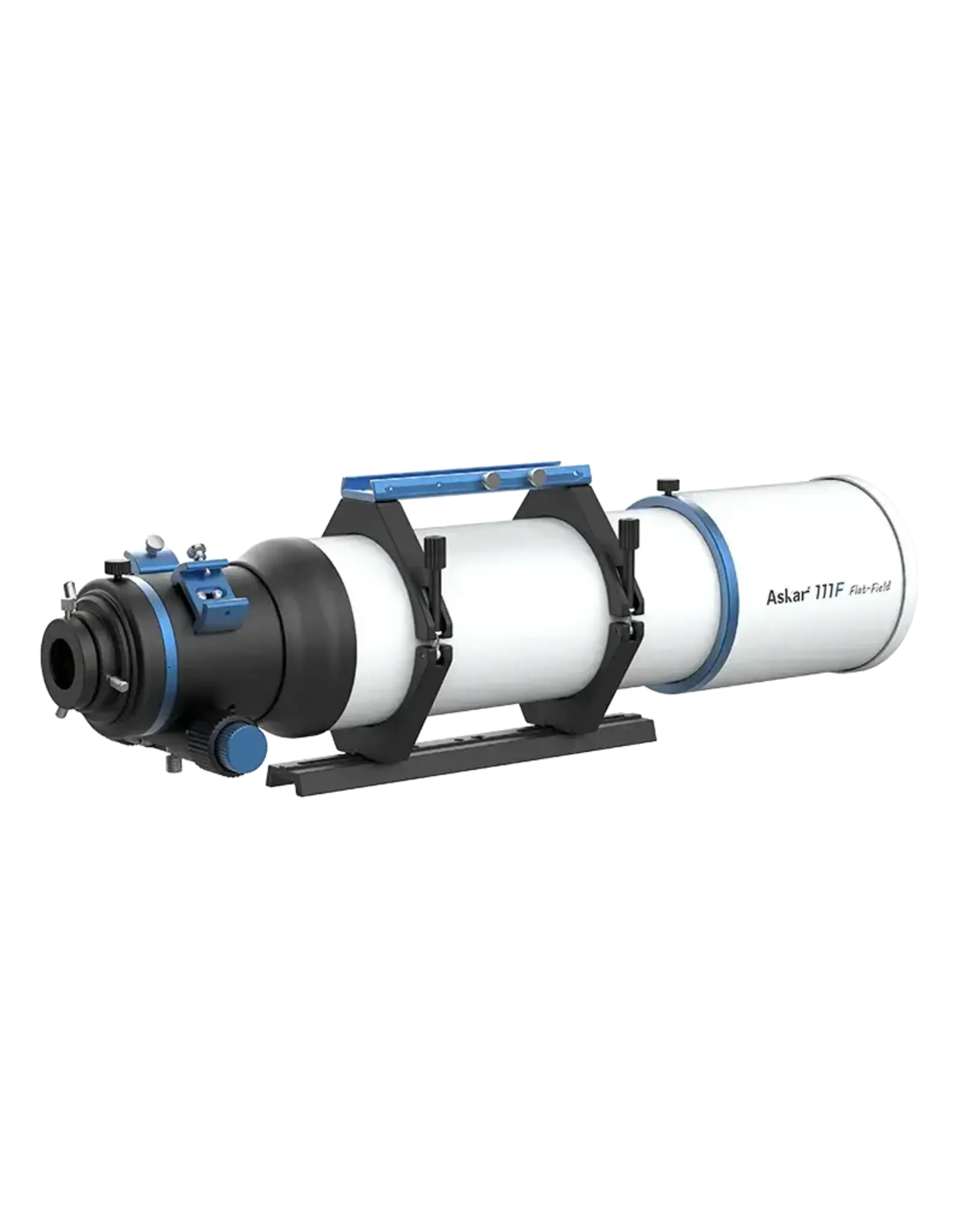

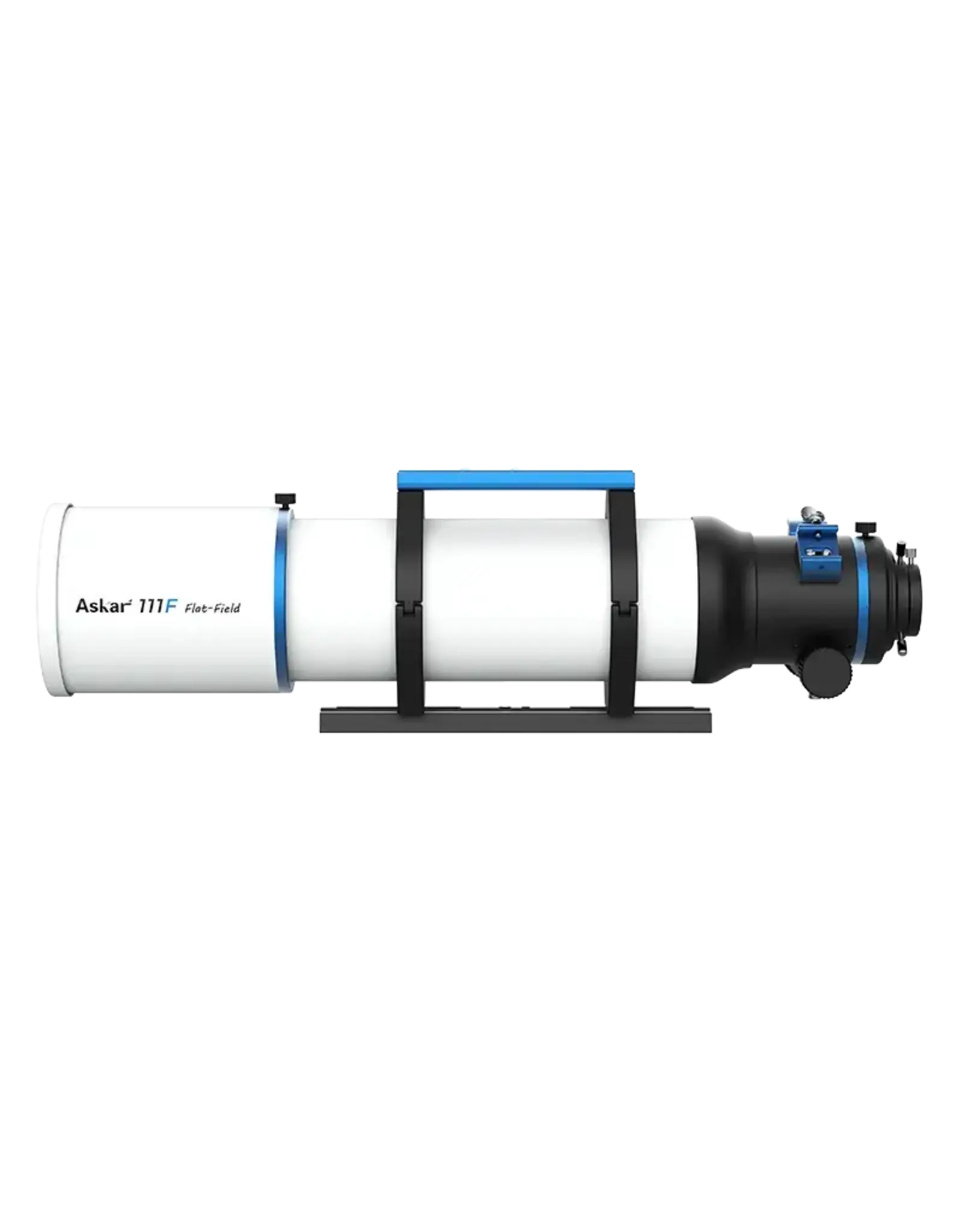

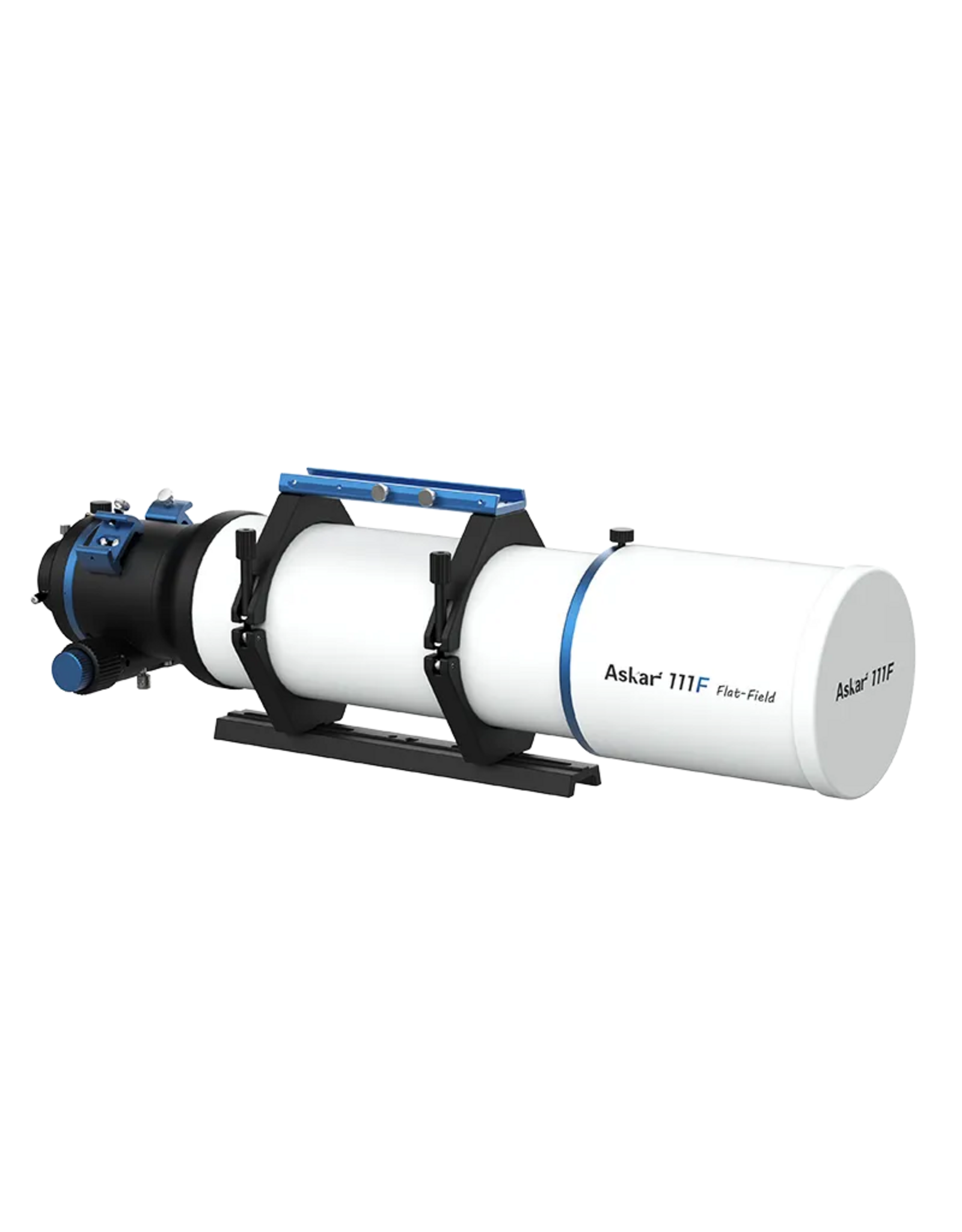

Askar 111F f/6.9 Quadruplet Flat-Field Astrograph
| Article number: | ASKAR-111F |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 111F is a versatile 111mm quadruplet astrograph designed for deep-sky astrophotography and visual observation. Its 766mm focal length and f/6.9 focal ratio provide a balance of resolution, light-gathering ability, and field of view, while the four-element air-spaced APO design incorporates one ED glass element for improved chromatic aberration correction.
The 111F features an integrated self-flattening optical design with a 44mm image circle, making it compatible with full-frame cameras without requiring a separate field flattener or backfocus calculations. The telescope includes photographic adapters with M48 and M54 connections, as well as a built-in 2" filter thread.
Key Specifications:
- 111mm aperture
- 766mm focal length
- f/6.9 focal ratio
- Quadruplet air-spaced APO optical design
- One ED glass element
- 44mm image circle
- Full-frame compatible
- Integrated field-flattening design
- No separate flattener required
- 3" dual-speed rack-and-pinion focuser
- 30mm focuser travel
- 1:10 fine adjustment
- 360° rotator with graduated scale
- Retractable dew shield
- Two finder bases
- 1.25" and 2" visual adapters

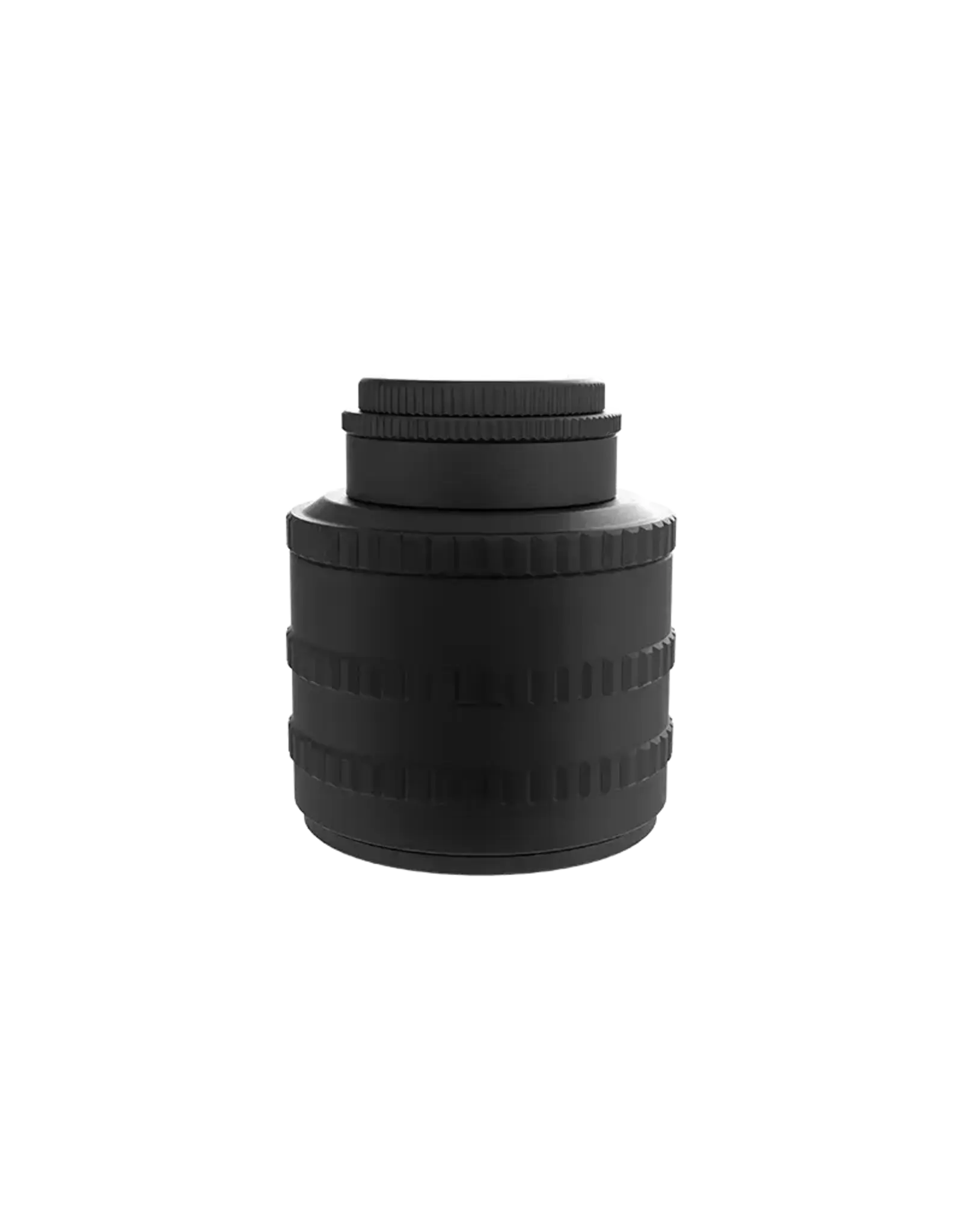

- Photographic extension tube
- M48 and M54 photographic connections
- Built-in 2" filter thread
- 300mm Vixen-style dovetail plate
- Tube rings and multifunction handle included
Use Cases:
- Full-frame deep-sky astrophotography
- Nebula and galaxy imaging
- DSLR and mirrorless camera astrophotography
- Dedicated astronomy camera imaging
- Lunar and planetary observation
- Visual deep-sky astronomy
- Wide-field imaging with a large-aperture refractor
