Askar 107PHQ F/6.4 ED Flatfield Astrograph
| Article number: | ASKAR-107PHQ |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |

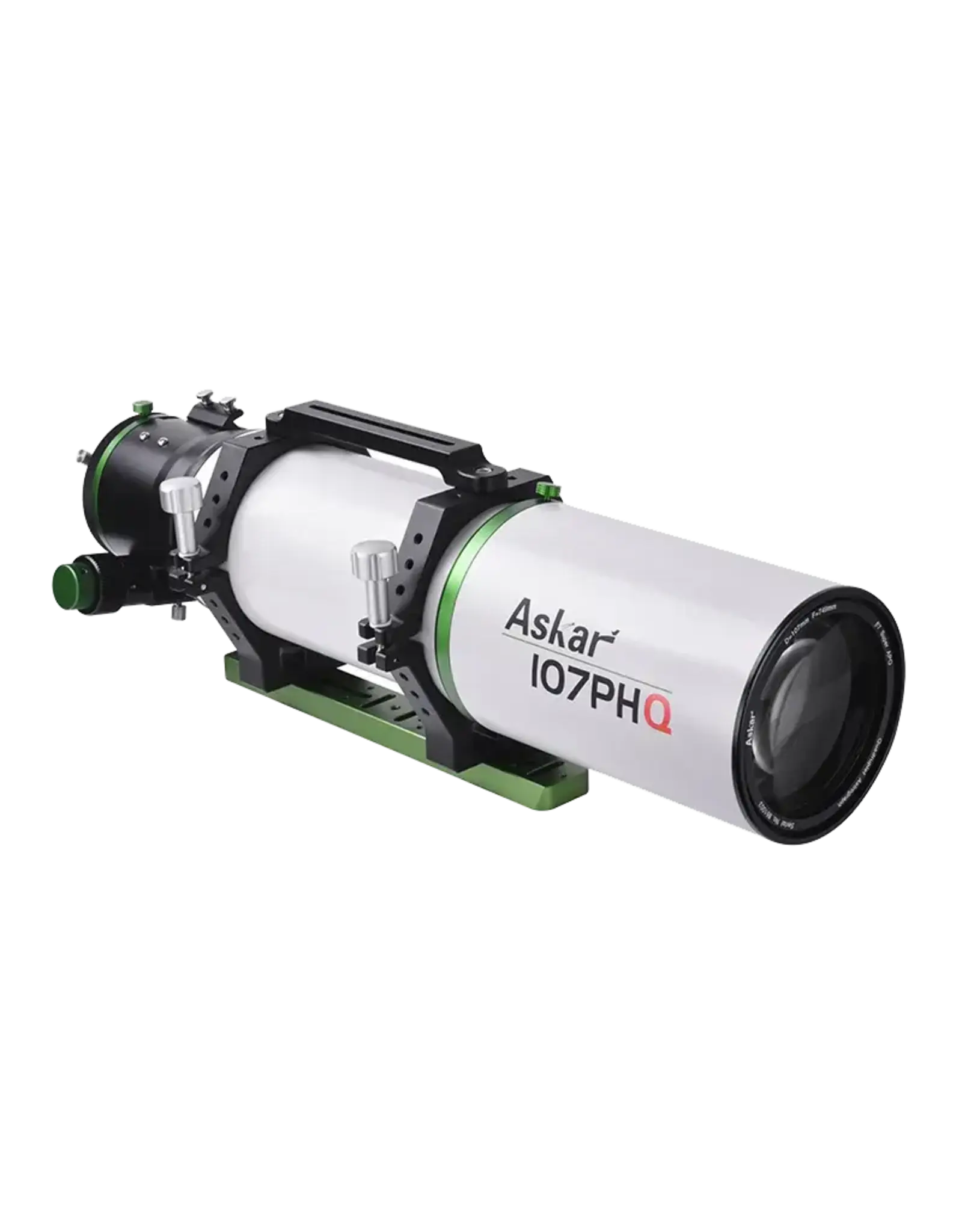

The Askar 107PHQ is a high-performance flat-field APO astrograph designed for full-frame astrophotography while also providing excellent performance for visual observation. With a 107mm aperture and 740mm focal length, it offers a useful combination of resolution and focal length for imaging nebulae, galaxies, star clusters, and other deep-sky targets.
The 107PHQ uses a quadruplet air-spaced APO optical design incorporating two ED glass elements for strong chromatic aberration correction. An integrated field corrector provides a flat 44mm image circle, allowing the telescope to be used for full-frame imaging without requiring a separate field flattener.

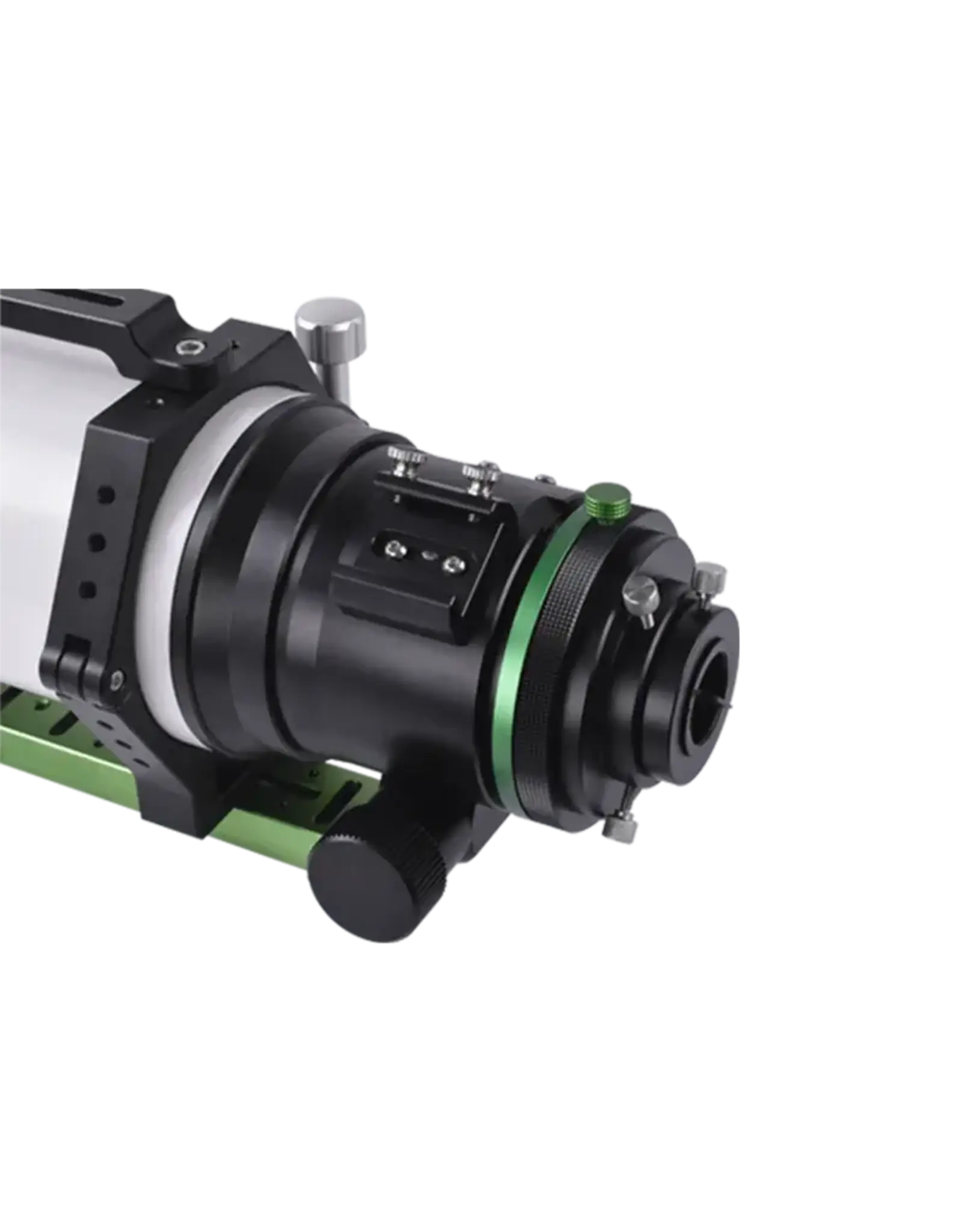

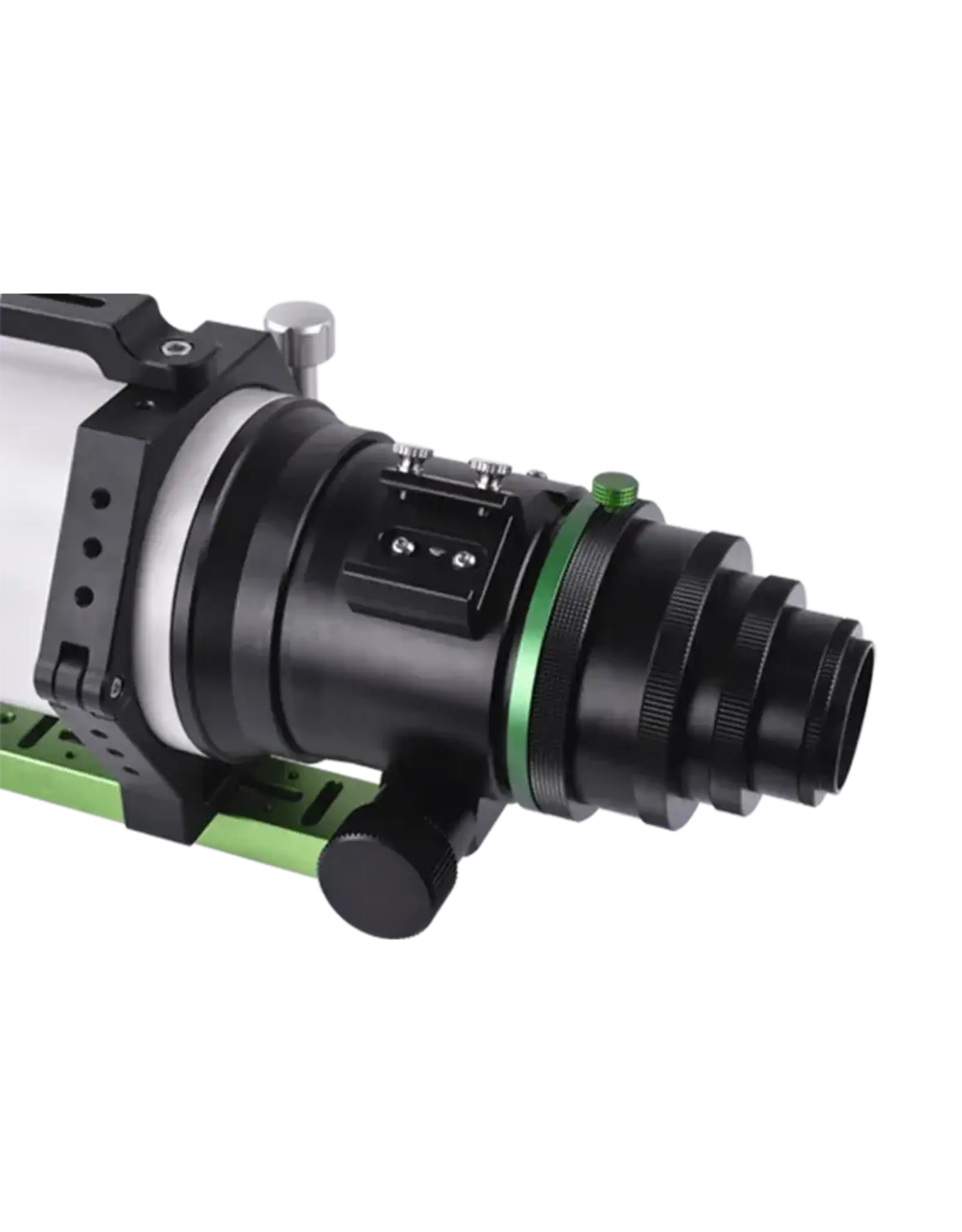

A large 3.4" rack-and-pinion focuser provides 110mm of travel and is designed to support imaging equipment weighing up to approximately 8 kg. The focuser includes fine adjustment and can be rotated for precise camera framing. Multiple threaded connections are provided for photographic setups, including M86, M68, M54, and M48.
The telescope includes a retractable dew shield, tube rings with carrying handle, 300mm Vixen-style dovetail plate, four-piece photographic adapter set, and an aluminum carrying case.
An optional 0.7x reducer is available for the 107PHQ. With the reducer, the telescope operates at approximately 524mm focal length and f/4.9 while retaining a full-frame image circle.
Key Specifications:
- Aperture: 107mm
- Focal Length: 740mm
- Focal Ratio: f/7
- Optical Design: Quadruplet air-spaced APO
- ED Elements: 2
- Image Circle: 44mm
- Integrated Field Corrector: Yes
- Focuser: 3.4" rack-and-pinion
- Focuser Travel: 110mm
- Focuser Reduction: Fine adjustment
- Rear Connections: M86, M68, M54, and M48
- M48 Adapter: Includes 2" filter thread
- Backfocus: Up to 149mm from the M86 connection
- Dew Shield: Retractable
- Dovetail: 300mm Vixen-style
- OTA Weight: Approximately 12.6 lb / 5.7 kg
- Complete Weight with Rings and Dovetail: Approximately 15.2 lb / 6.9 kg
- Carrying Case: Included
- Optional Reducer: 0.7x, producing approximately 524mm at f/4.9
Use Cases:
- Full-frame astrophotography
- Deep-sky imaging
- Nebula photography
- Galaxy imaging
- Star cluster photography
- Lunar and planetary photography
- High-resolution visual observation
