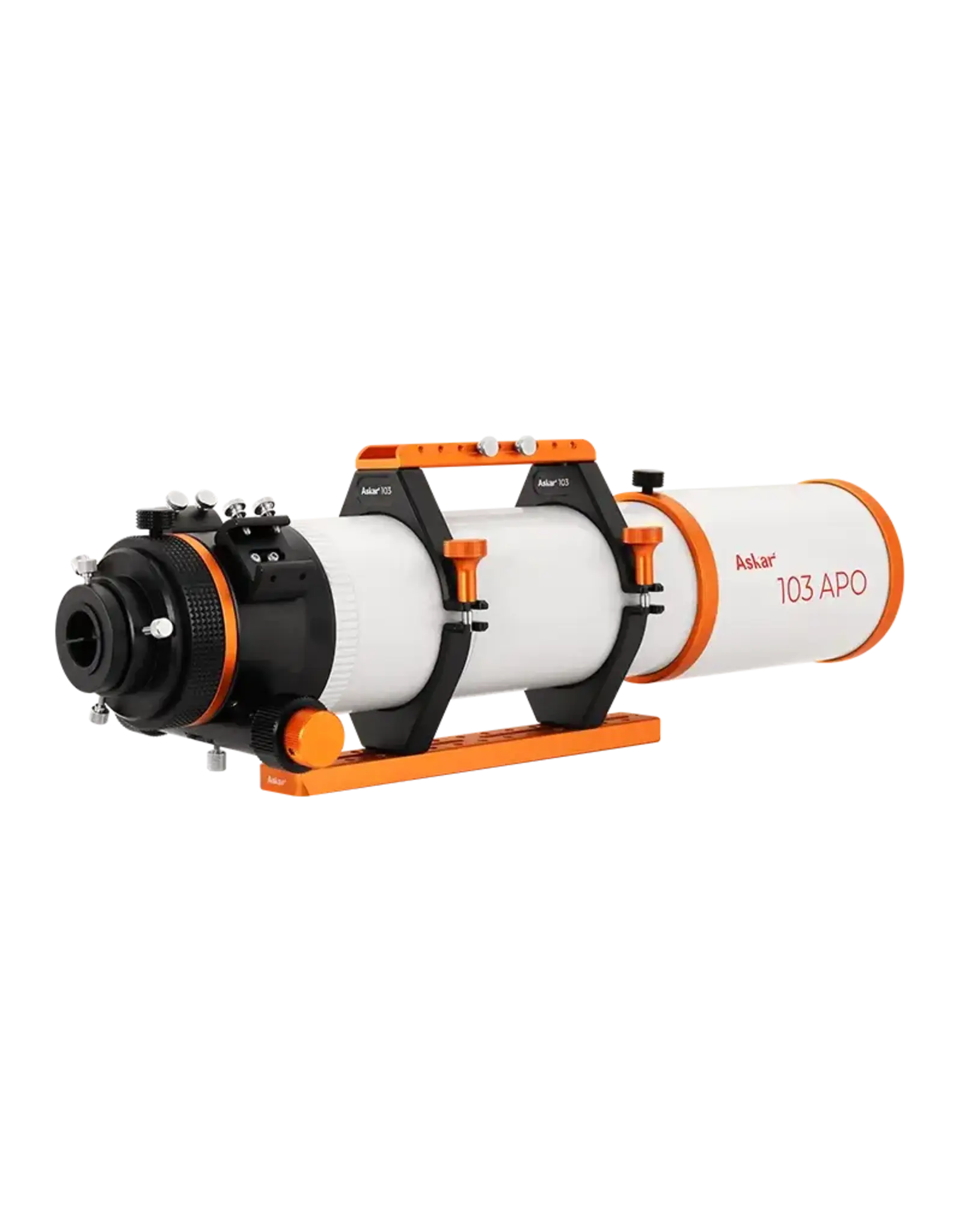

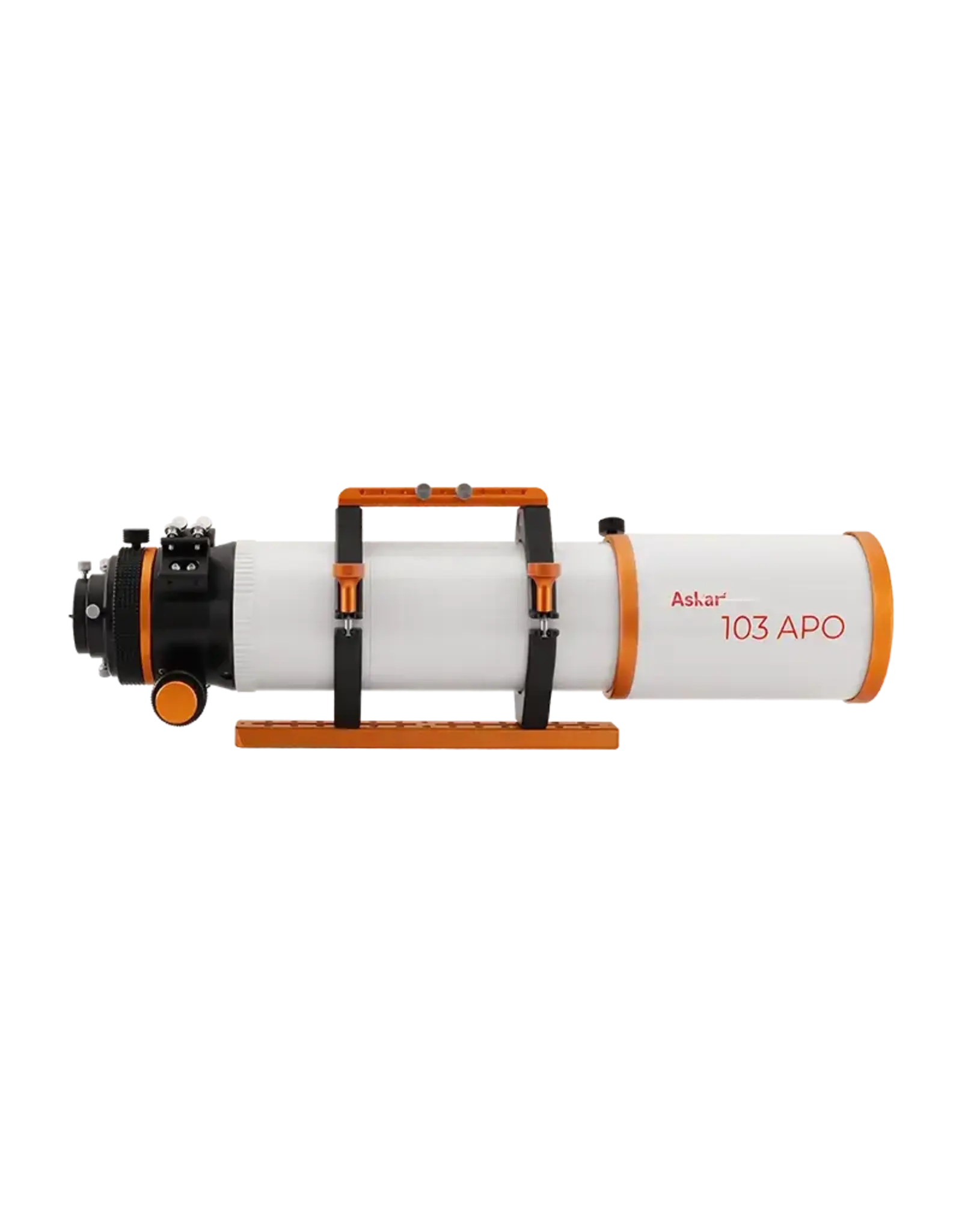

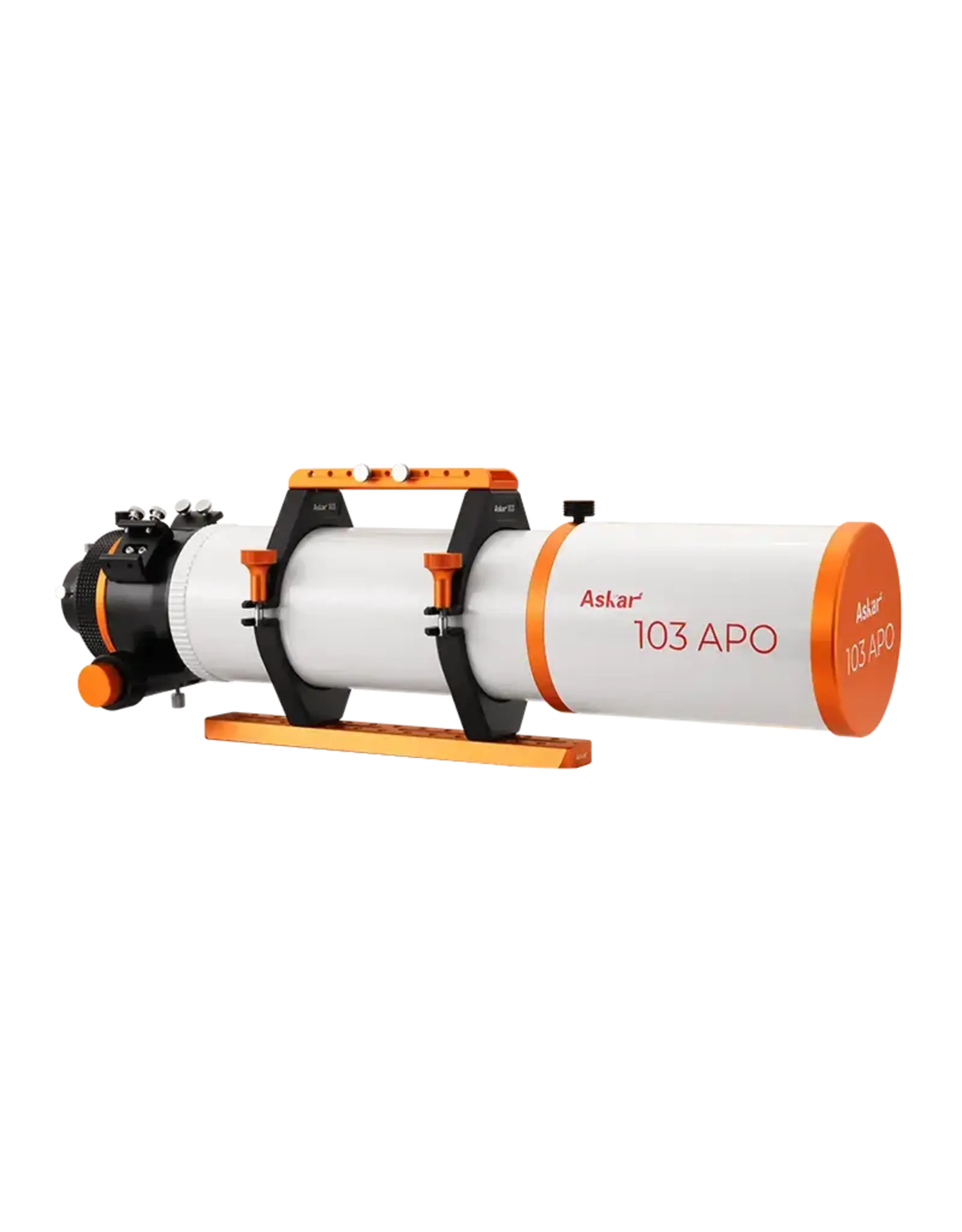

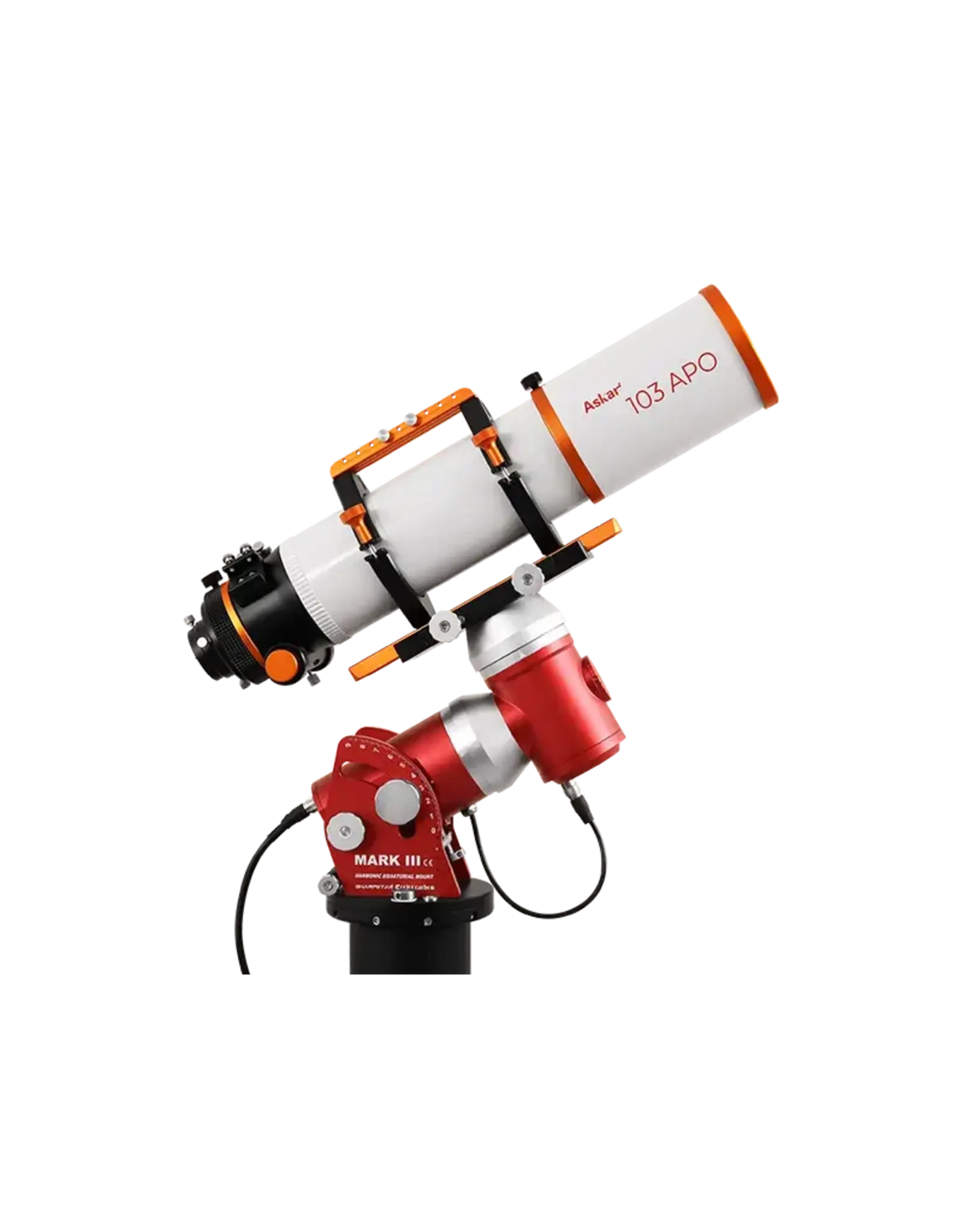

Askar 103APO f/6.8 Triplet APO Refractor
| Article number: | ASKAR-103APO |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The Askar 103APO is a versatile 103mm apochromatic refractor designed for both astrophotography and visual astronomy. With a 700.4mm focal length and f/6.8 focal ratio, it provides a useful combination of aperture, resolution, and field of view for deep-sky imaging and detailed visual observation.
The 103APO uses a triplet air-spaced APO objective incorporating one ED glass element for improved chromatic aberration correction. The optical tube features internal baffling and matte-finished surfaces to help reduce stray light and improve contrast.
A large 3.3" dual-speed rack-and-pinion focuser provides a rigid platform for astrophotography, with 100mm of focusing travel and 1:10 fine adjustment. A 360° rotator with graduated markings allows precise camera framing, while two finder bases provide convenient mounting positions for finders and other accessories.
The 103APO features a two-section, detachable tube design. This allows the telescope to be configured for use with the optional 0.6x reducer and also provides additional optical-path flexibility when using a binoviewer.
Optional 1x flattener, 0.8x reducer, and 0.6x reducer accessories are available. The 0.8x reducer produces approximately 560mm at f/5.4, while the 0.6x reducer produces approximately 420mm at f/4.08 with field flattening.
Key Specifications:
- Aperture: 103mm
- Focal Length: 700.4mm
- Focal Ratio: f/6.8
- Optical Design: Triplet air-spaced APO
- ED Element: 1
- Focuser: 3.3" dual-speed rack-and-pinion
- Fine Adjustment: 1:10
- Focuser Travel: 100mm
- Rotator: 360° with graduated markings
- Rear Connection: M84 female thread
- Visual Adapters: 2" and 1.25"
- Finder Bases: 2
- Dew Shield: Retractable
- Tube Design: Two-section / detachable
- Dovetail: 290mm Vixen-style
- Tube Rings: Included
- Multifunction Handle: Included
- OTA Weight: 4.75 kg / 10.5 lb
- Weight with Tube Rings and Dovetail: 5.5 kg / 12.1 lb
- Tube Length: 600mm / 23.6" with dew shield contracted
- Extended Length: 711mm / 28.0" with dew shield extended
- Case: Oxford cloth transport case included
Use Cases:
- Deep-sky astrophotography
- Nebula and emission-region imaging
- Galaxy and star cluster photography
- Full-frame imaging with the appropriate flattener or reducer
- Lunar and planetary observation
- High-resolution visual astronomy
- Binoviewer observing
