Note: These items are being sold together as a bundle.

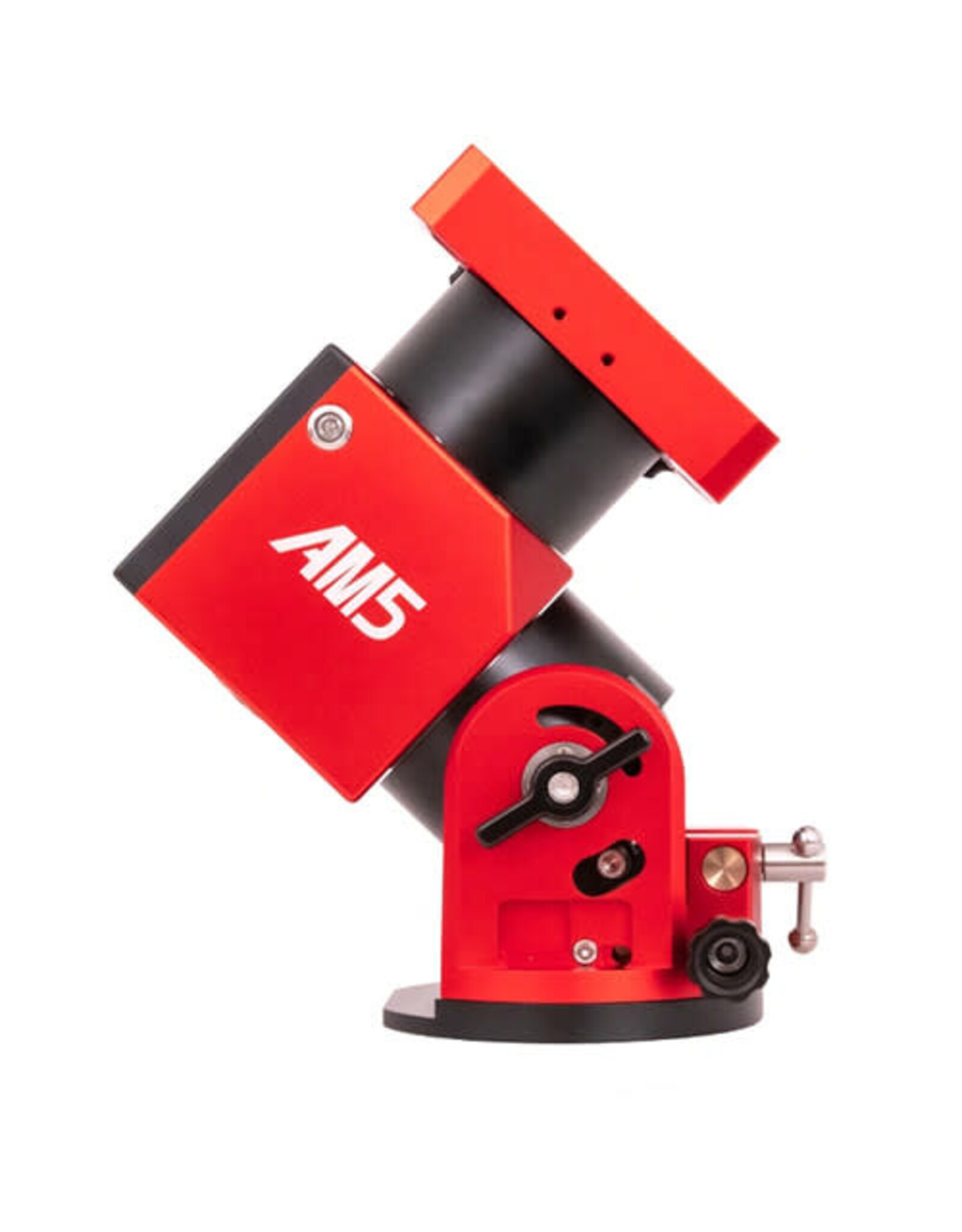

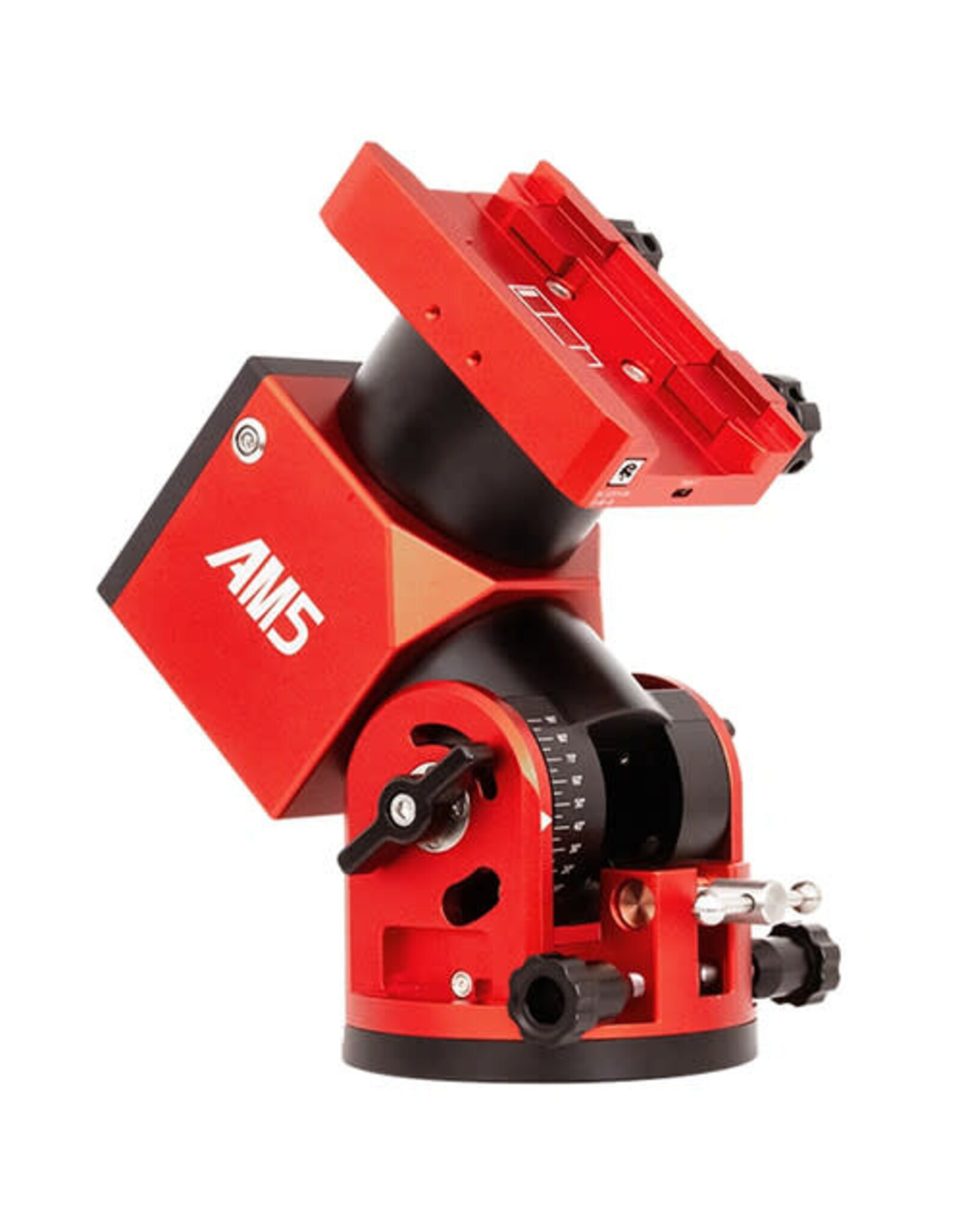

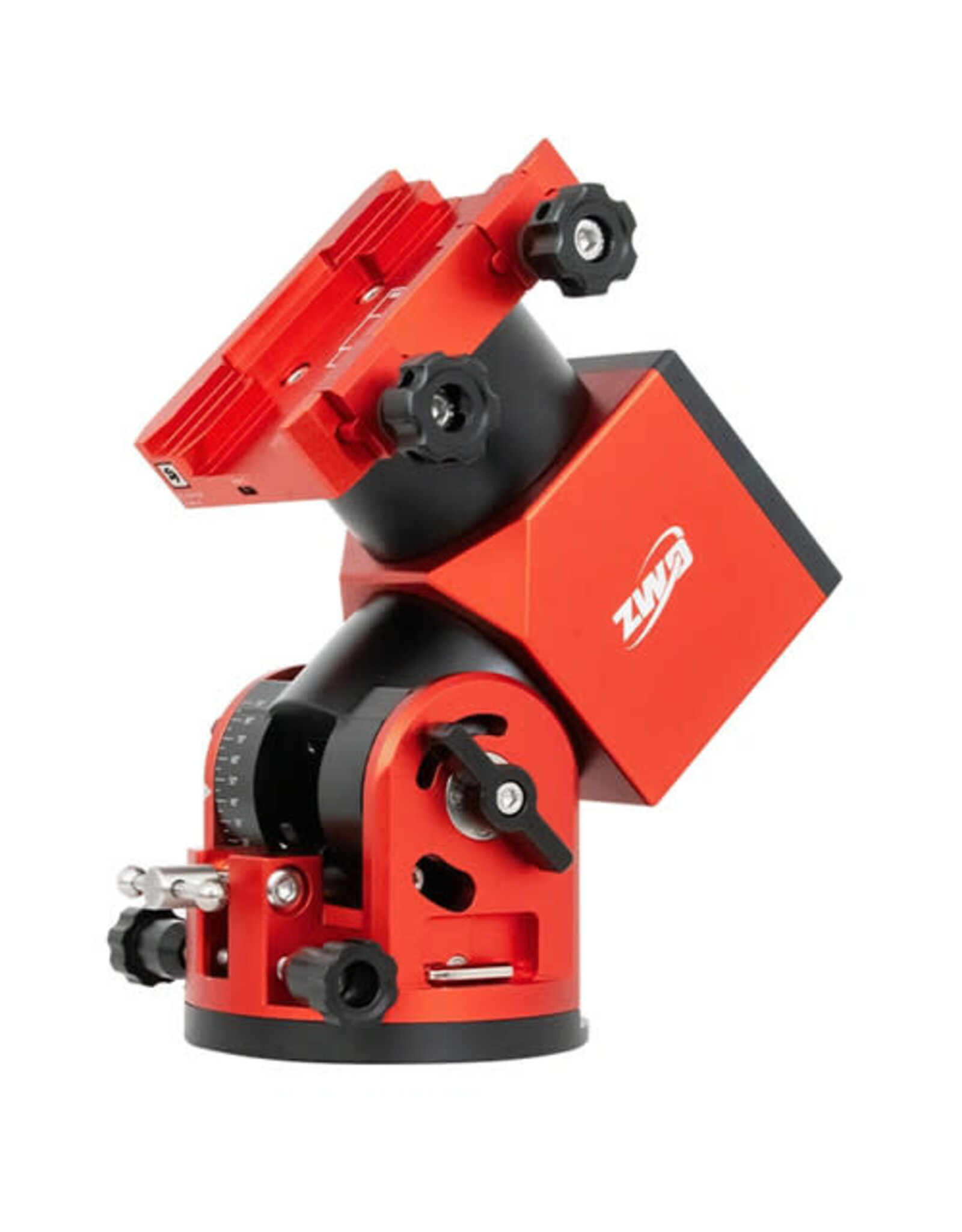

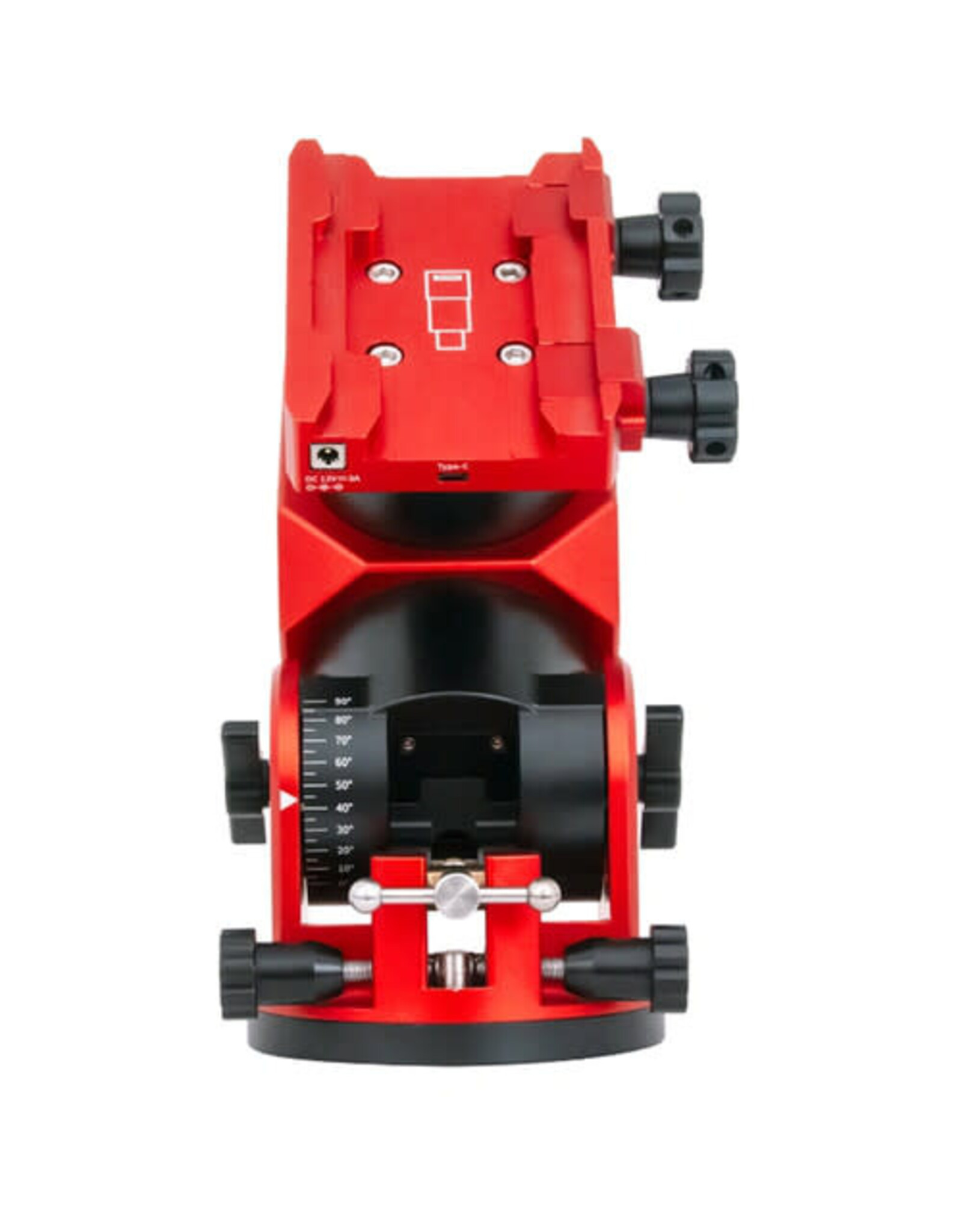

AM5N Harmonic Equatorial Mount

Portable, Precise and Stable

High Load Capacity:

• Without counterweight: 15kg
• With counterweight: 20kg

Cable Management:

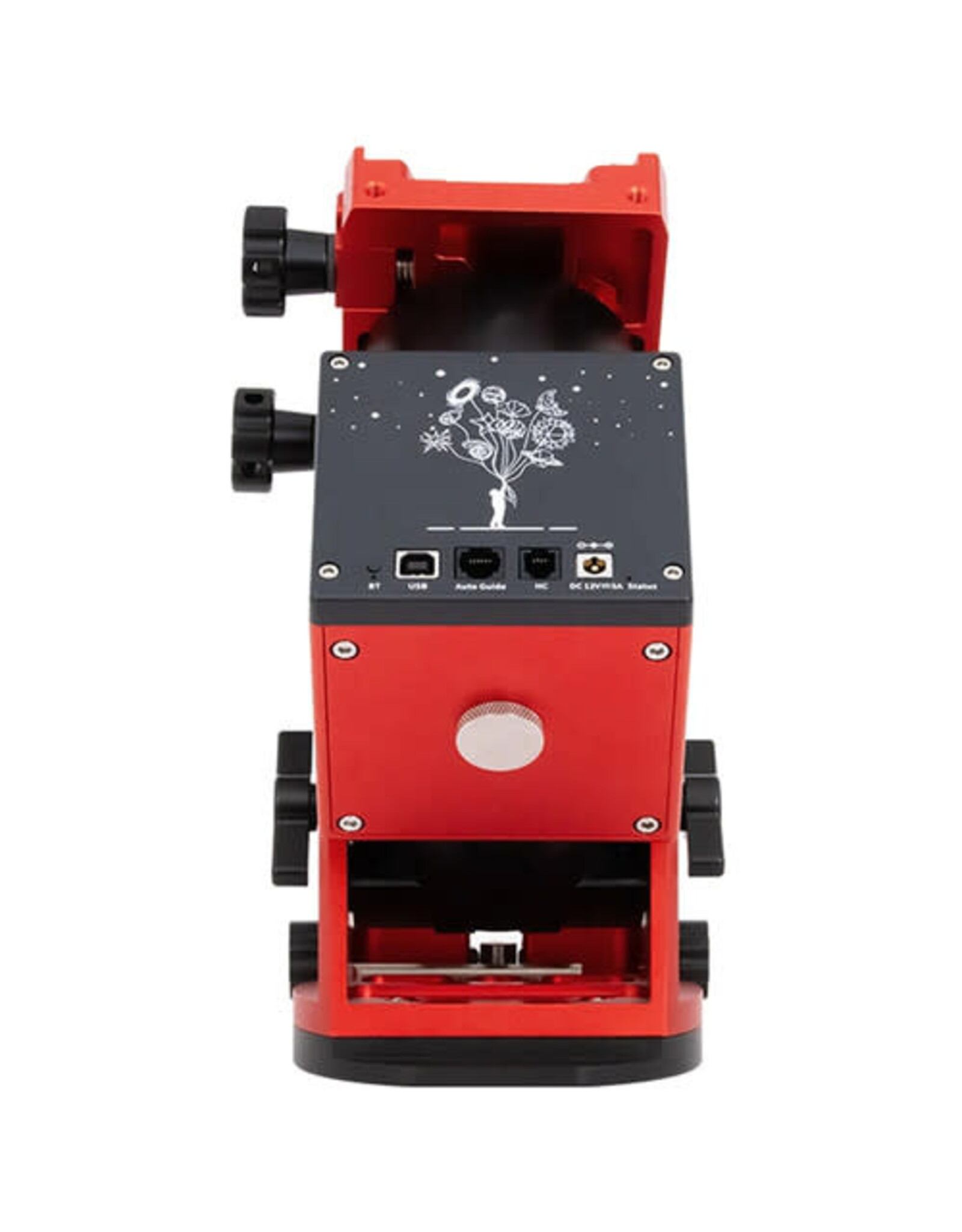

• Newly-added USB Type-C port and DC power port

Precision Control:

• Single period error within +/- 10"
• Strain Wave gear reducer + synchronous belt

Power-Off Protection

• The AM5's power-off brake structure protects the mount in case of sudden power loss, preventing telescope and other equipment from falling.

Hand Controller + APP

• Wi-Fi/Bluetooth control
• Live star database
• Tonight's Target, GOTO, Live Preview and so many great functions can all be achieved with your phones.

Multiple Functions

• Equatorial mount
• Alt-azimuth mount

Lightweight Design

• Net weight 5.5kg
• No counterweight required

1. Low Temperature Tolerance: can be used at extremely low temperatures down to -20'C.

2. HeavyLoad Mode: To combat the impact of cold environments on the mount, enabling this mode in the app can significantly enhance the device's load capacity. If you experience load capacity issues with the AM5 in harsh, cold environments, it is recommended to activate this mode.

3. Cable Management: The dovetail plate integrates DC output and USB Type-C ports, effectively preventing cable tangling.

Traditional equatorial mounts often require heavy counterweights, making them cumbersome and difficult to balance in RA and DEC directions, also inconvenient for transit, storage and assembling; While some newer harmonic mount may lack multifunctionality, have insufficient load capacity, and suffer from stability issues and cable tangling.

To address these issues, the new AM5 Harmonic Mount (2024 edition) eliminates the need for counterweights, offers high load capacity (15kg without counterweights, 20kg with a 5kg counterweight), and balances portability with stability. The ZWO's customized strain wave geared reducer ensures precision with an accuracy within +/-10". It can be used as both an equatorial and alt-azimuth mount, with an altitude adjustment range of 0-90 degrees.

Impact Structure:

The internal structure is optimized with a strain wave geared reducer and synchronous belt, achieving precise control with a 300:1 reduction ratio.

Astronomy-Dedicated Strain Wave Gear:

Developed in collaboration with well-known strain wave gear manufacturers, this motor is tailored for astrophotography, offering ultra-low periodic error, stable transmission, and high torque output. Each mount is tested to ensure a periodic error within +/-10 arcseconds, guaranteeing its performance.

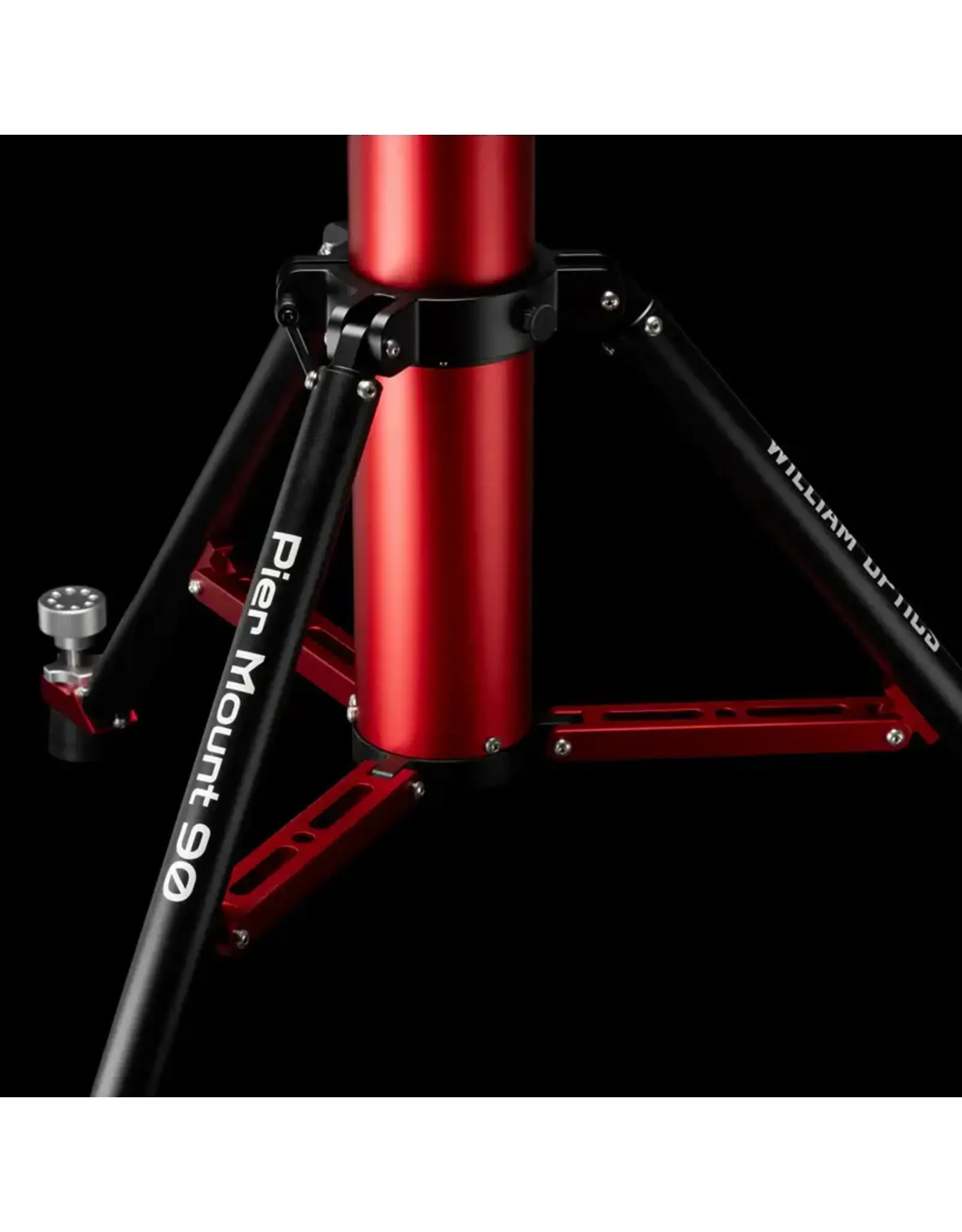

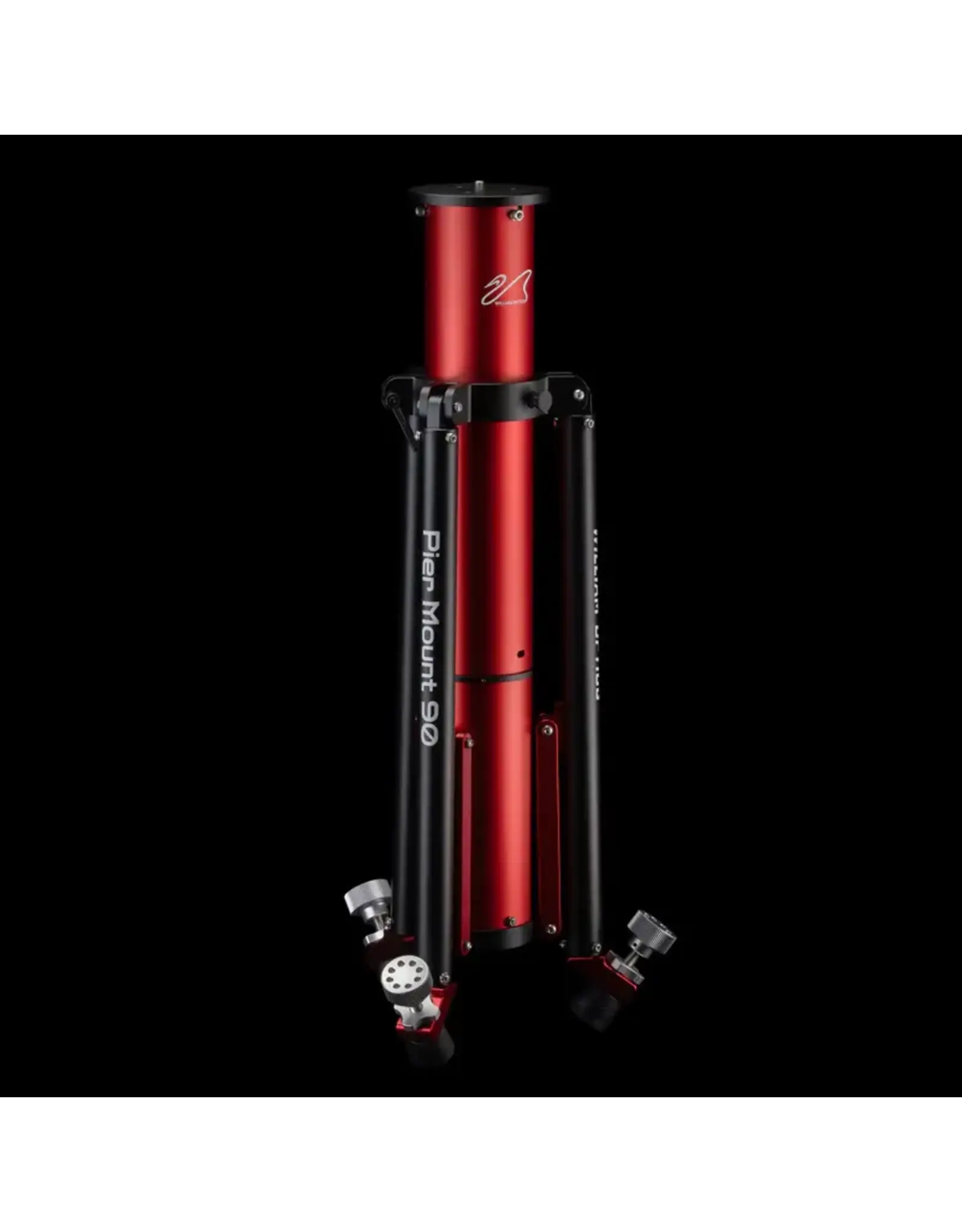

Pier Mount 90

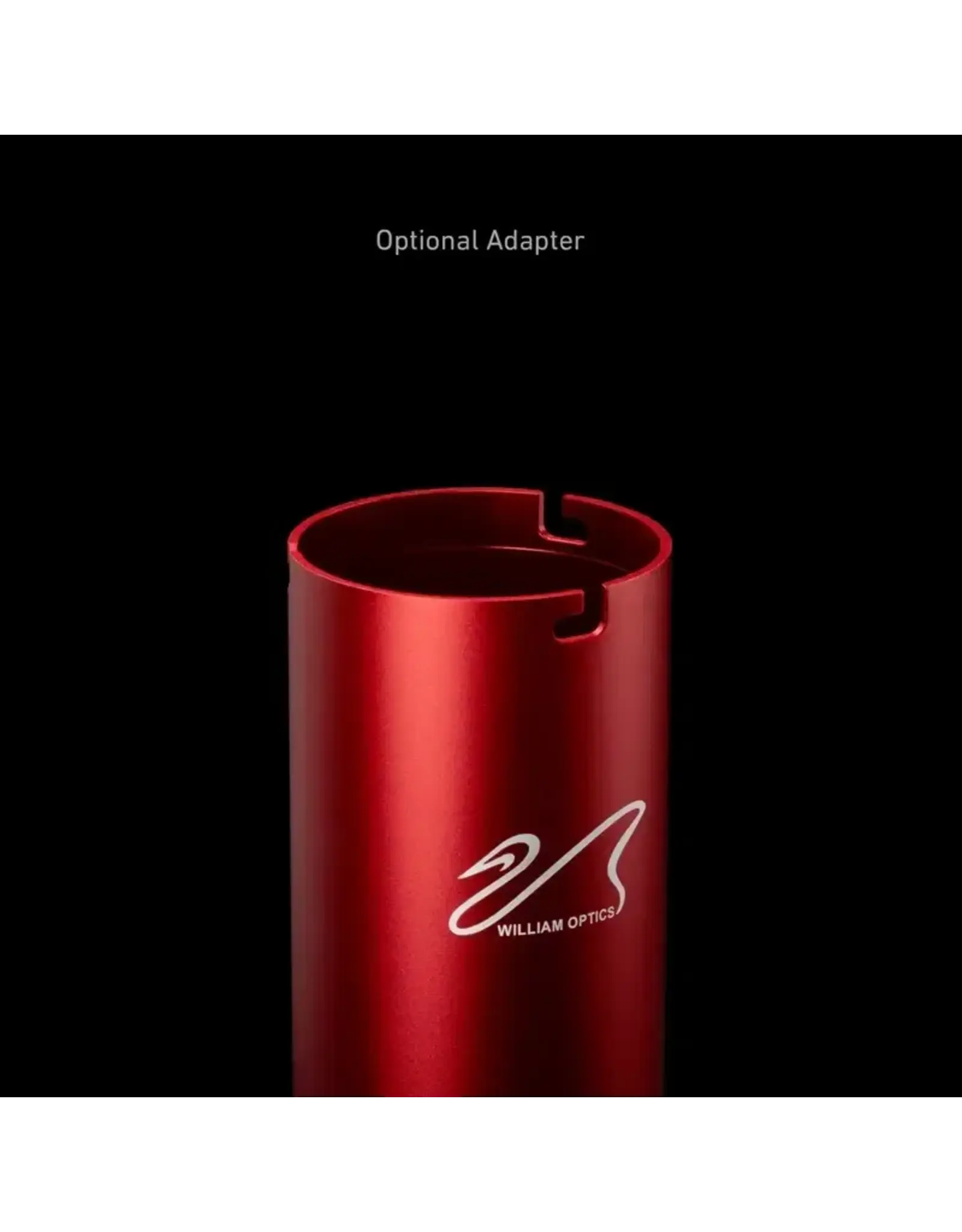

Adapter

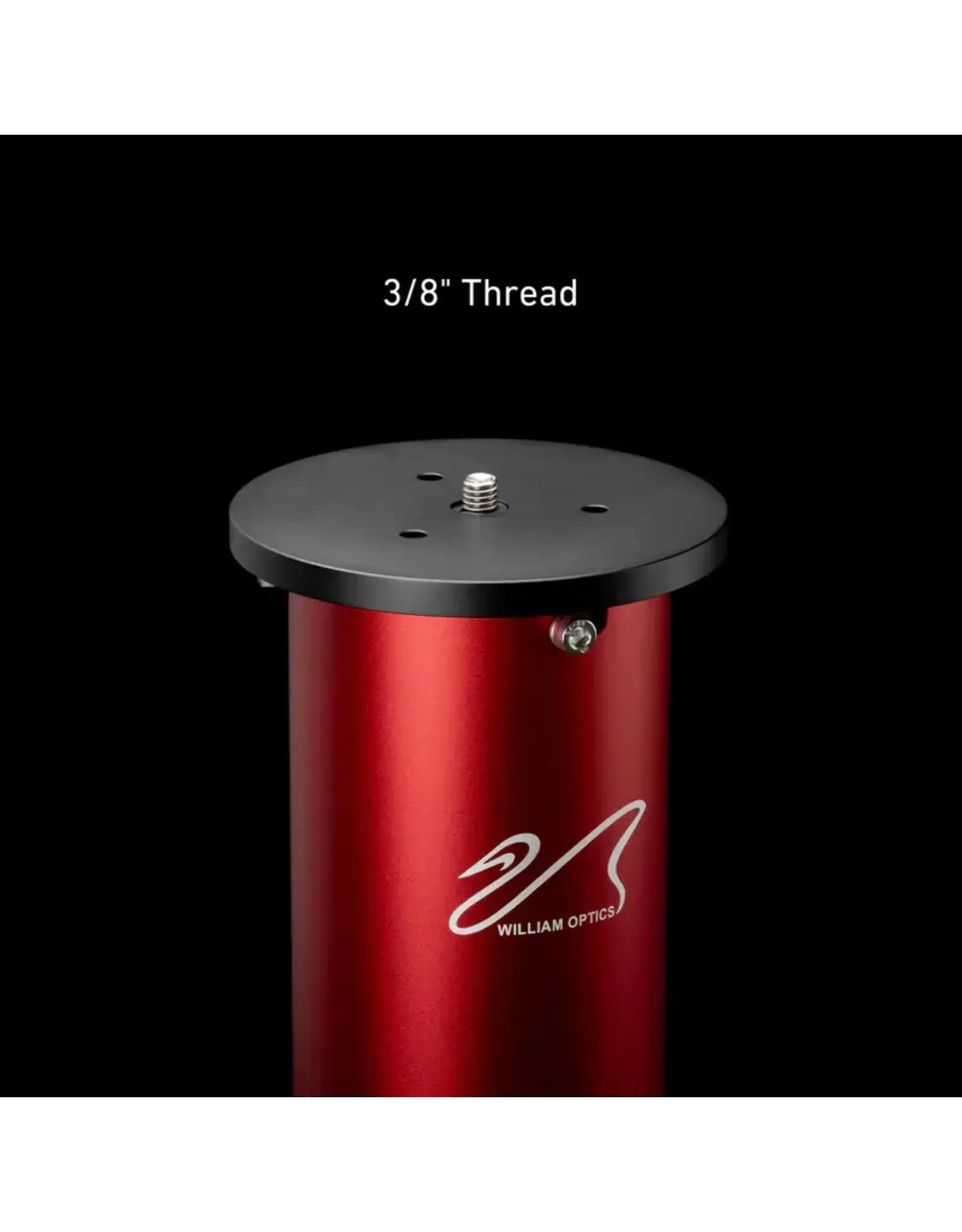

• 3/8" Thread (for ZWO AM3/AM5)
• More EQ Mount Types are optional

Weight

• approx. 7 kg

Loading Capacity

• 90kg/198 lbs

Height

• Stance: 89.3cm
• Closed: 79.3cm

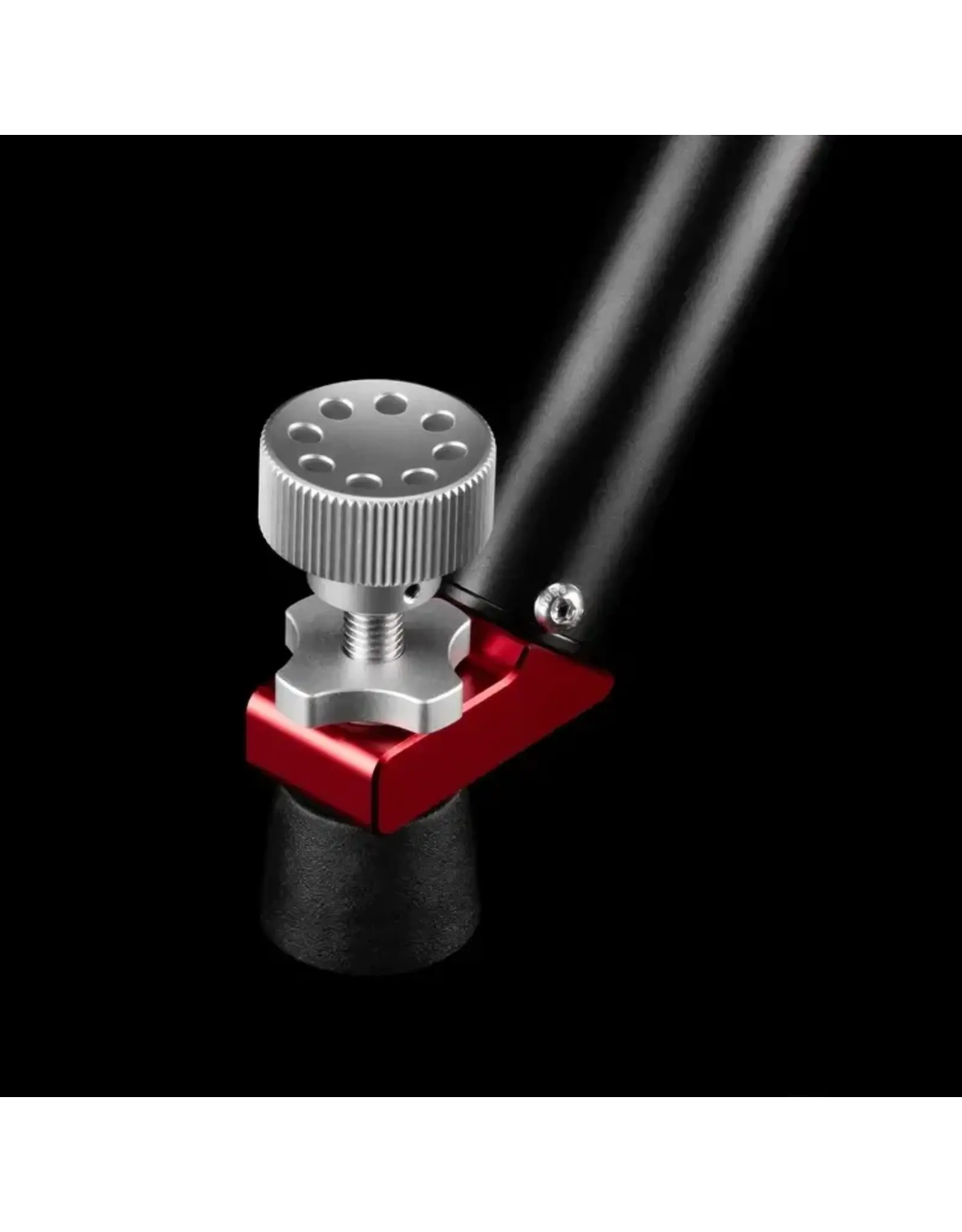

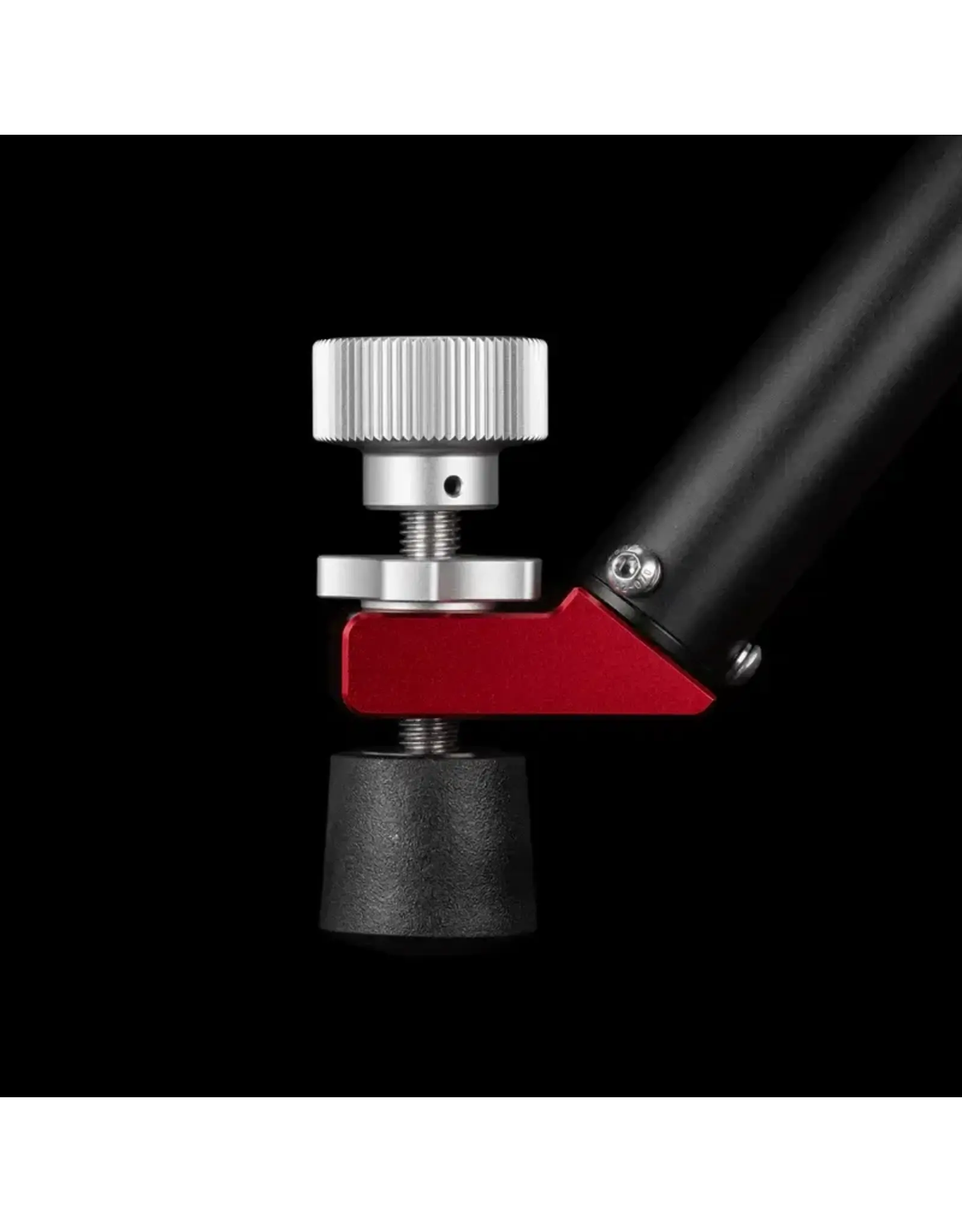

• Foot Adjustable Height Range: 15mm

Material

• Aluminum Alloy

Pillar Diameter

• 100mm/4"
