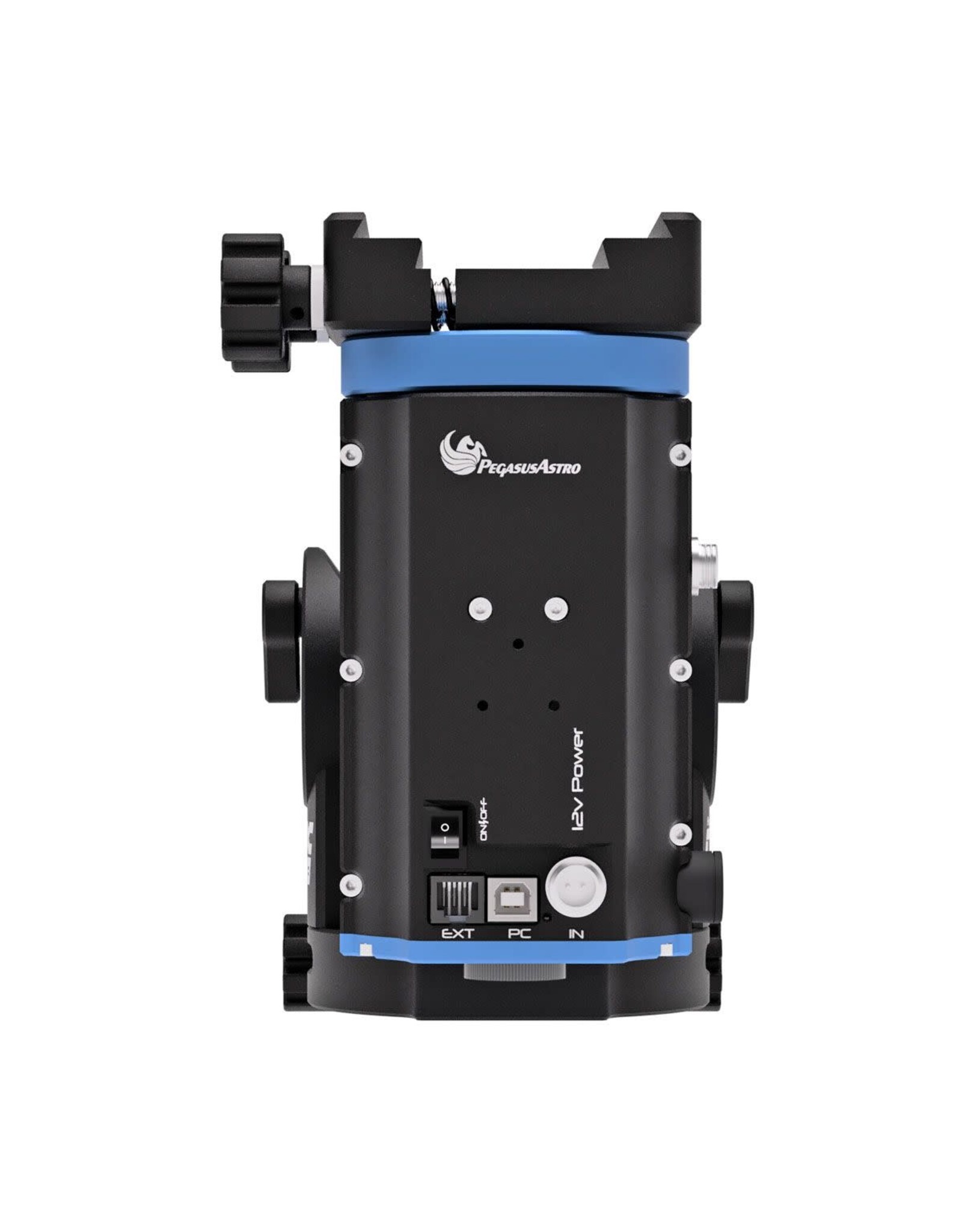

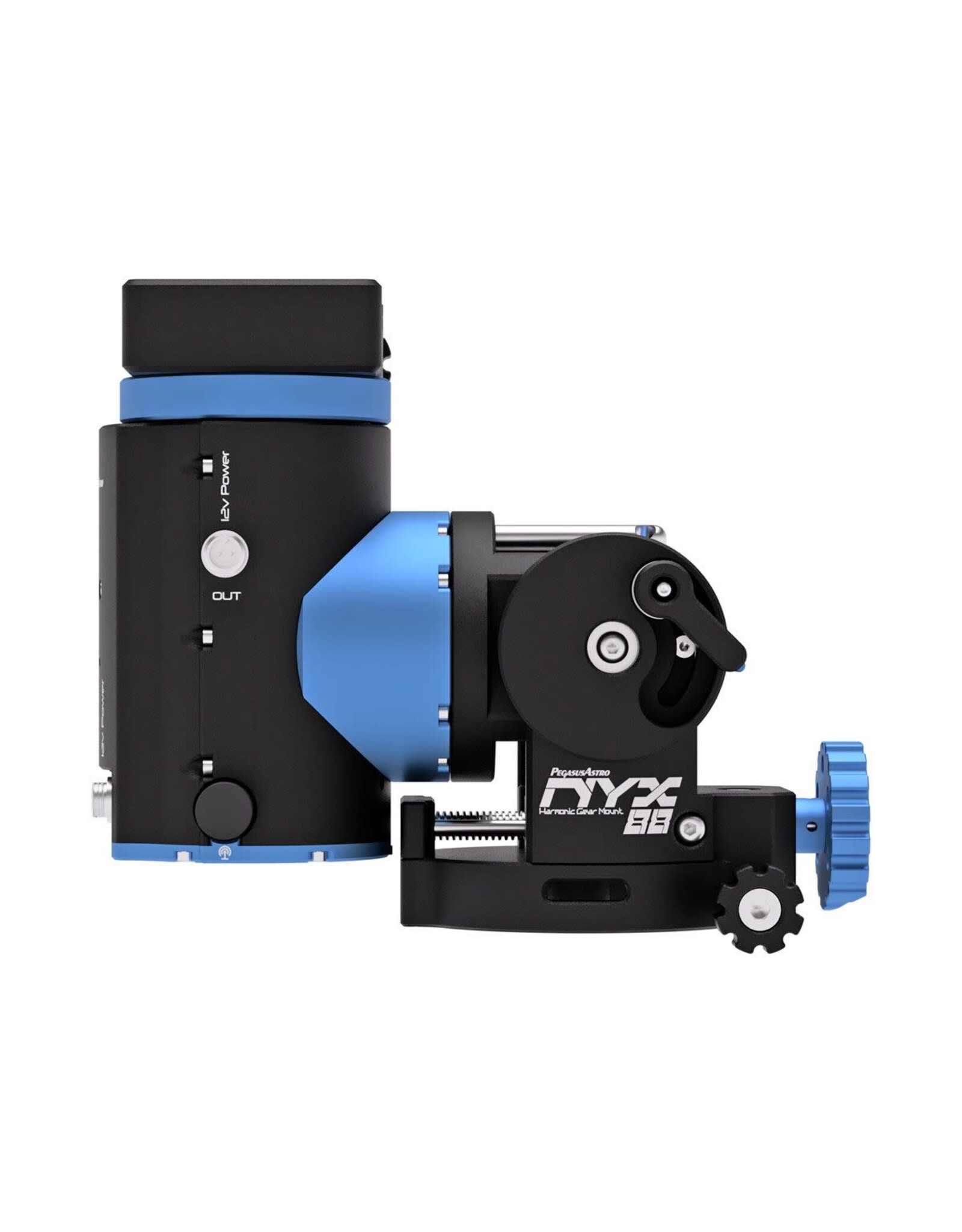

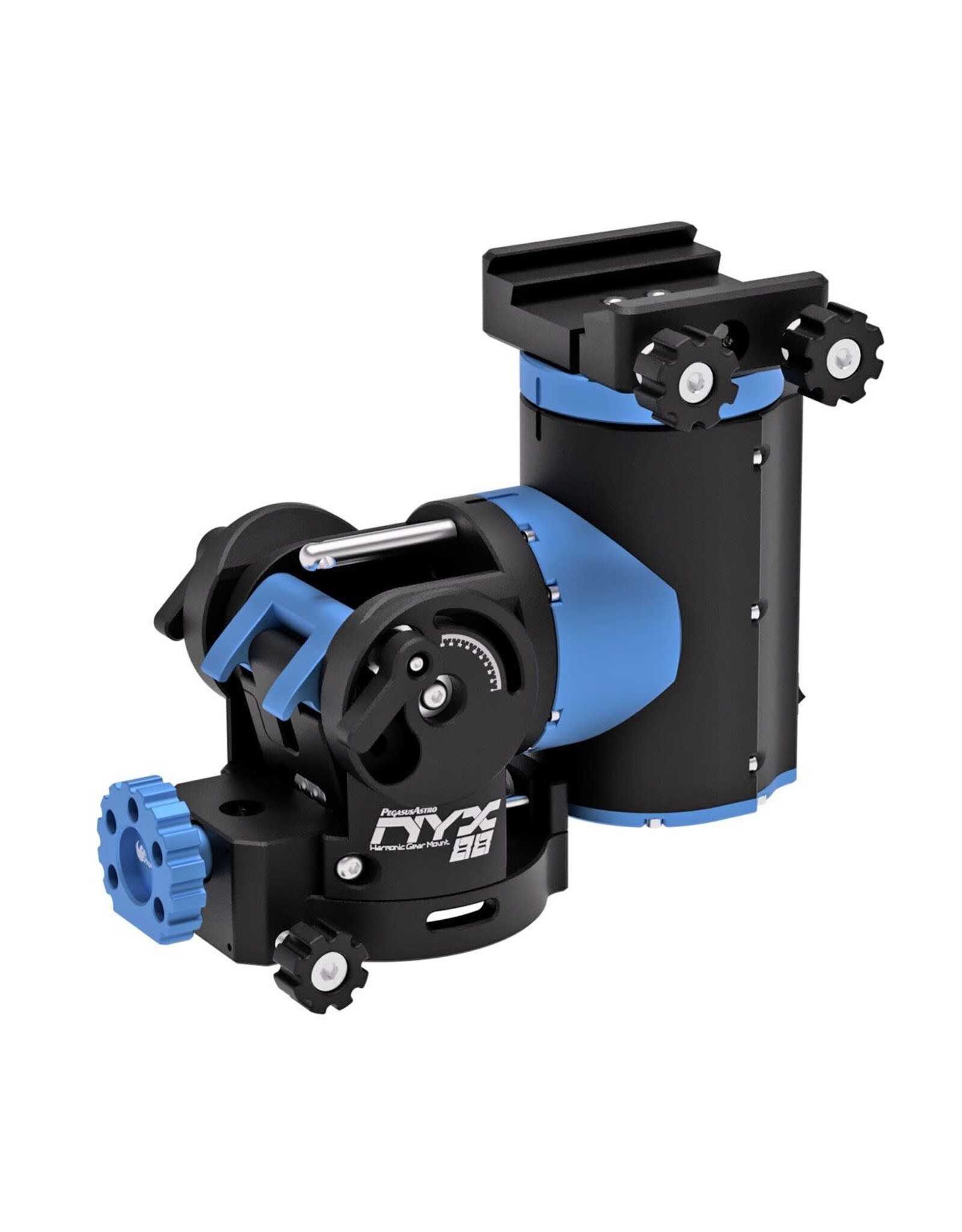

Pegasus Astro NYX-88 Harmonic Gear Mount
| Article number: | PEG-NYX88 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The NYX-88, designed with travelers in mind, offers an impressive payload capacity of up to 14 kg (mount weighs 5 kg) without the need for counterweights. Engineered for precision and performance in astrophotography and observational astronomy, this mount ensures seamless and reliable operation.
Featuring strain wave drives on both the RA and DEC movements, the NYX-88 guarantees a backlash-free experience with high torque even at maximum payloads. Its fully CNC machined aluminum alloy 6061 body, anodized in black and blue, combines durability with aesthetics. Inside, you’ll find top-quality branded components, including stepper motors and strain wave gears, ensuring the mount’s long-term flawless performance.
The mount also includes an electronic brake on the RA axis to prevent backsliding when the power is off, as well as safety limit stops during slewing or tracking. Whether you’re exploring the night sky from your backyard or a remote location, the NYX-88 is the perfect companion for travelers seeking precision and reliability in their astronomical pursuits.
Additional Key Features
DC 12 Volts Battery Operation
The NYX-88 mount requires only 12V for smooth operation, allowing you to use a standard 12V battery without additional converters. The mount consumes less than 0.6 amps during tracking and up to 2 amps during slewing.
Universal Saddle Plate
The NYX-88 mount includes a low-profile and rigid universal saddle that accepts Vixen and Losmandy 3-inch dovetails.
Integrated ST-4 Autoguiding Port
An ST-4 port is available, compatible with our dedicated NYX hand controller or an ST-4 guiding camera.
Secure DC Output
An extra DC (GX-12) output on the side of the mount provides up to 8A to your equipment.
Reverse Voltage Polarity Safety
NYX mount has been designed with reverse voltage polarity protection. A saver if you accidentally reverse voltage or battery polarity during the night.
Optional Counterweights Support
The mount does not require counterweights for up to 14Kg of payloads. However, if you need to install counterweights for heavier payloads, there is a compatible M12 threaded shaft hole at the end of the DEC axis.
Auto Slew to Home
The automatic home position feature is implemented with encoders on both axes. Mount can automatically initialize to home position on request.
ASCOM, Alpaca & INDI
The mount fully supports ASCOM 7, ASCOM Alpaca and INDI framework. Sky-Safari is also supported allowing you to control the mount through your mobile device.
LX200 Compatibility
LX200 protocol is fully compatible with the NYX-88 mount. Any device that support LX200 such as Sky-Safari works out of the box with the mount.
Mobile Control

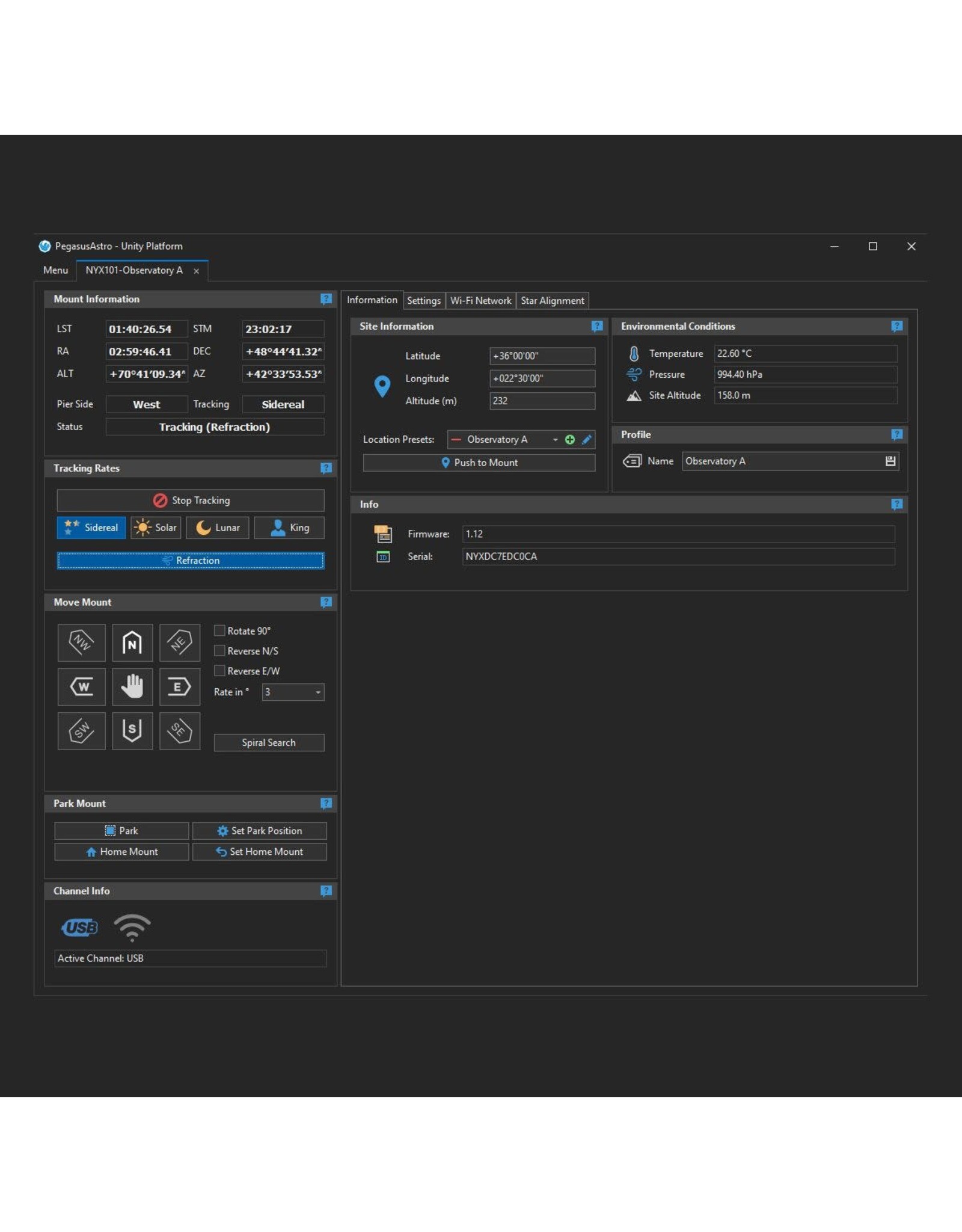

A mobile application for IOS and Android platforms allows you to control both axes of the mount, slew to installed catalogs of thousands of night sky targets and do a rough polar alignment through an electronic polar assistant.
Mount Position Saving
The mount saves its position every second and restores it upon boot.
Firmware Upgradable
An easy firmware upgrade process via USB cable or Air (Wi-Fi) allows you to stay up to date with bug fixes and the latest features of the mount.
ASCOM Alpaca Native Support
ASCOM Alpaca outshines classic ASCOM drivers with its platform independence, modern web standards, streamlined installation, remote control capabilities, extensibility, and open-source options. This ensures superior compatibility and user-friendly performance, making it the preferred choice for advanced astronomy applications.
The NYX-88 comes equipped with an integrated web server that seamlessly communicates with Alpaca clients natively. This integration enhances the user experience by providing easy and driverless access to mount control through ASCOM Alpaca.
Modern imaging software like N.I.N.A. automatically identifies native Alpaca devices and lists them for immediate use.
