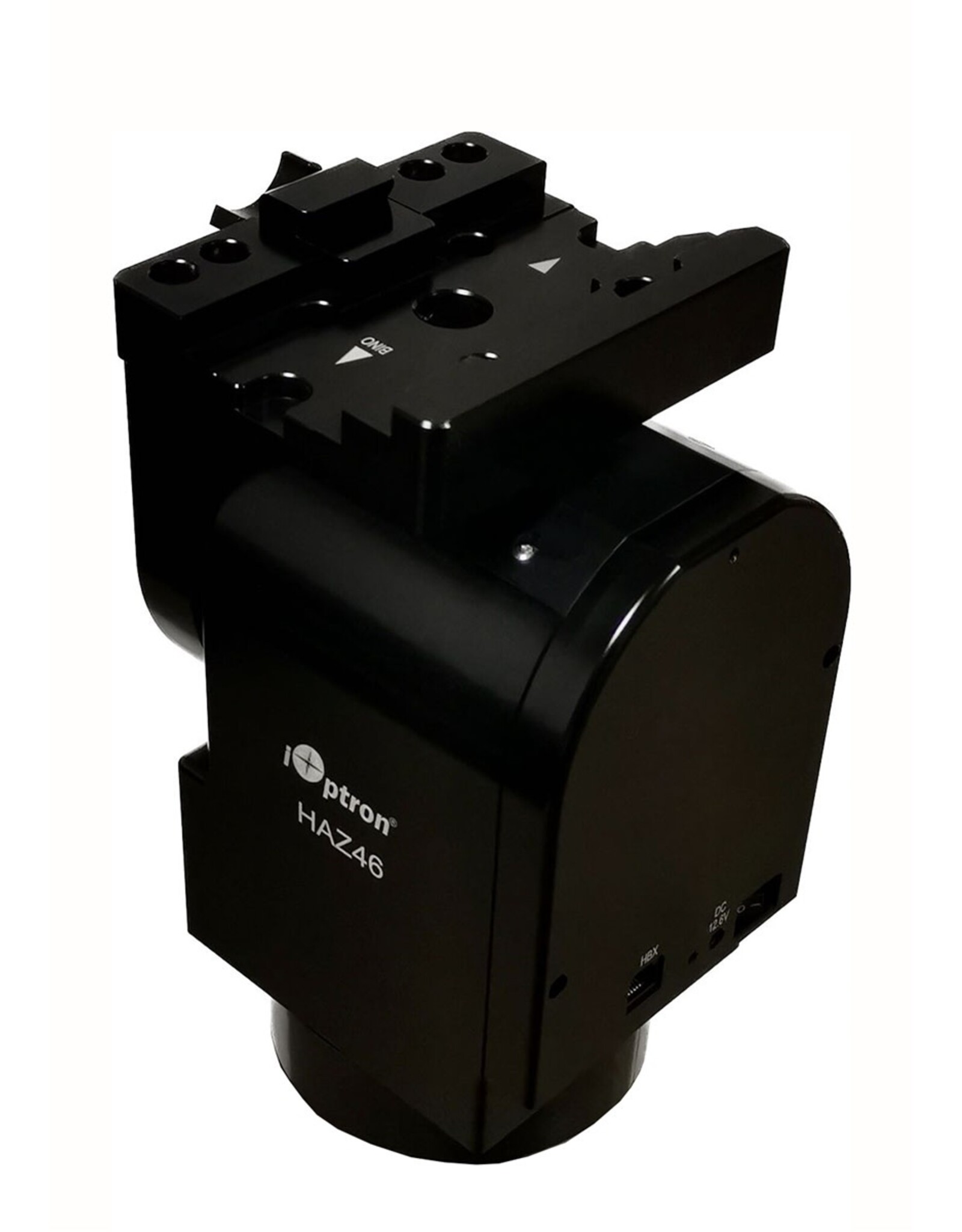

iOptron HAZ46 Alt-Azimuth Strain Wave Mount
| Article number: | HZ462 |
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
Two exciting new Alt-Az strain wave mounts, HAZ31 and HAZ46, are added into iOptron strain wave gear mount family!
This light weight, compact, medium payload HAZ46 mount will deliver an astronomy experience like never before. With a mount head weighing in at 12.3 lbs, HAZ46 has a payload capability 44 lbs, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments that flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely sets up the HAZ46 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested "Lever and Go" technology.
Utilizing state of the art strain wave gear technology for both RA and DEC movement, the HAZ46 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake that allows the mount to stop safely.
An HAZ46 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
iOptron Closed-Loop Tracking Demo on Moving Objects
(Actual contents may differ from the image)
| Mount | Strain Wave Altazimuth Mount |
| RA gear system | Strain Wave Gear |
| DEC gear system | Strain Wave Gear |
| RA/DEC reduction ratio | 640:1 |
| Payload* | 44 lbs (20 kg) |
| Mount weight | 12.3 lbs (5.6 kg) with dovetail saddle |
| Payload/Mount weight | 3.57 |
| Drive motor | Stepper motor |
| Structure Material | All metal, CNC machined |
| Exterior finish | Anodized black |
| Level indicator | Level bubble |
| Control system | GOTONOVA/Commander |
| Hand Controller | Go2Nova® 8409 with ~212,000 objects database |
| Tracking | Automatic |
| Maximum slew speed | 6º/sec |
| Power consumption | 0.7A(Tracking), 1.2A(GOTO) |
| Battery | Built-in rechargeable Li-ion battery (11.1V, 4.4AH) |
| Battery Charger | 100-240V AC input /12.6V DC 2A output |
| Power off brake | Electronic friction brake |
| GPS | Built-in |
| Wi-Fi | Built-in |
| Communication port | Yes (Wi-Fi and USB, via HC) |
| Firmware upgrade | Yes |
| Dovetail saddle | Vixen & Losmandy |
| Carbon Fiber Tripod (#8061A) | Optional |
| 3 point leveling extension pier (#8042) | Optional |
| Operation temperature | -20ºC ~ 40ºC |
| Gross weight and dimension | 16 lbs, 15 x 13 x 7 in |
| Warranty | Two year limited (90 days for battery) |
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
