iOptron HAZ130 Dual SWG Altazimuth Mount
| Article number: | HZ130 |
| Availability: | More on the Way to us |
| Delivery time: | Sorry..Item has been sold! |

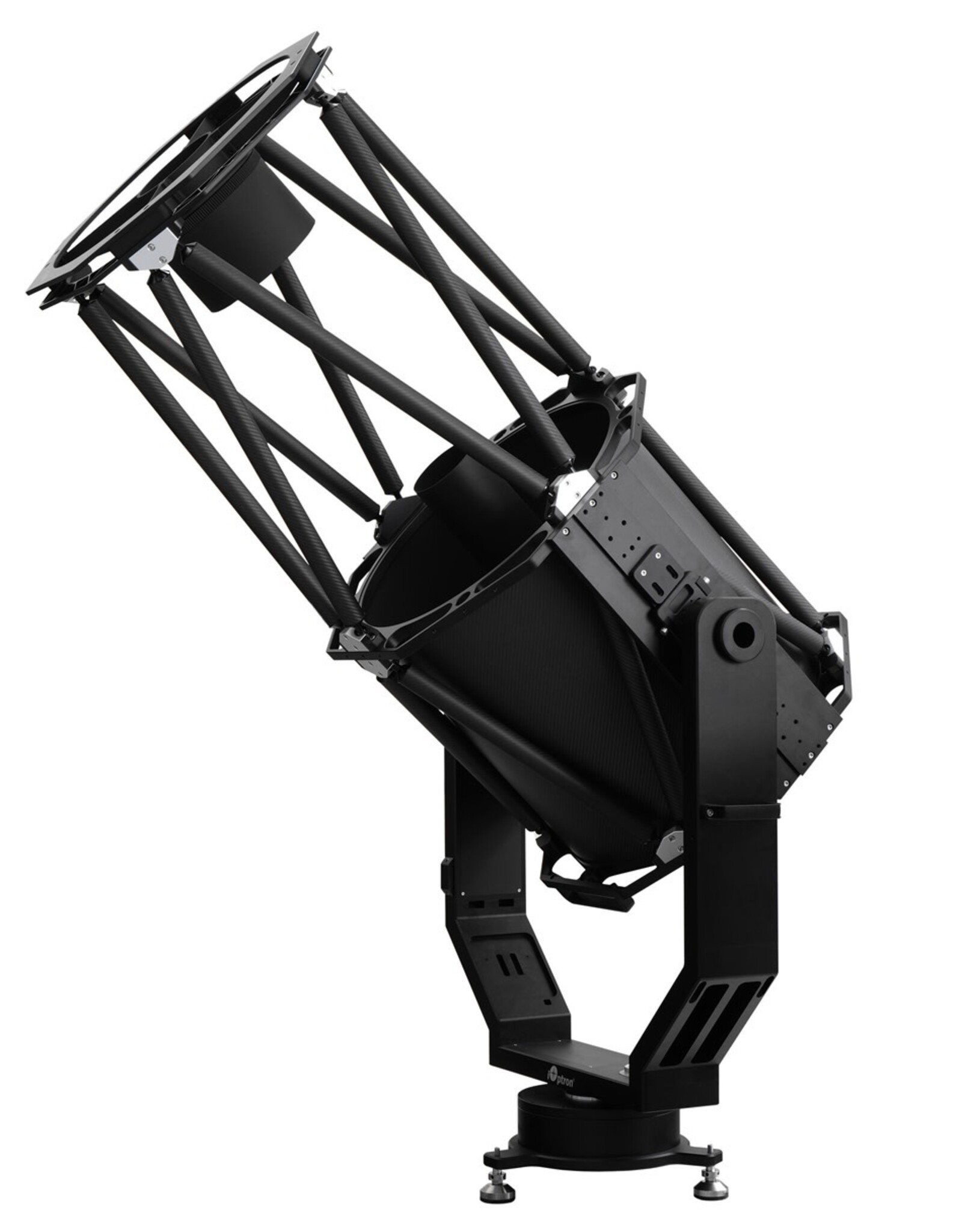

Introducing the iOptron HAZ130 Alt-Az mount with dual strain wave gear drives. The HAZ130 is our highest capacity SWG mount to date and is designed to accommodate instruments as large as our 20” F/8 RC truss OTA (carries a payload up to 132lbs)! The mount offers full Go To pointing and Alt-Az tracking utilizing its 8411 hand set with OLED display or by independent computer control.

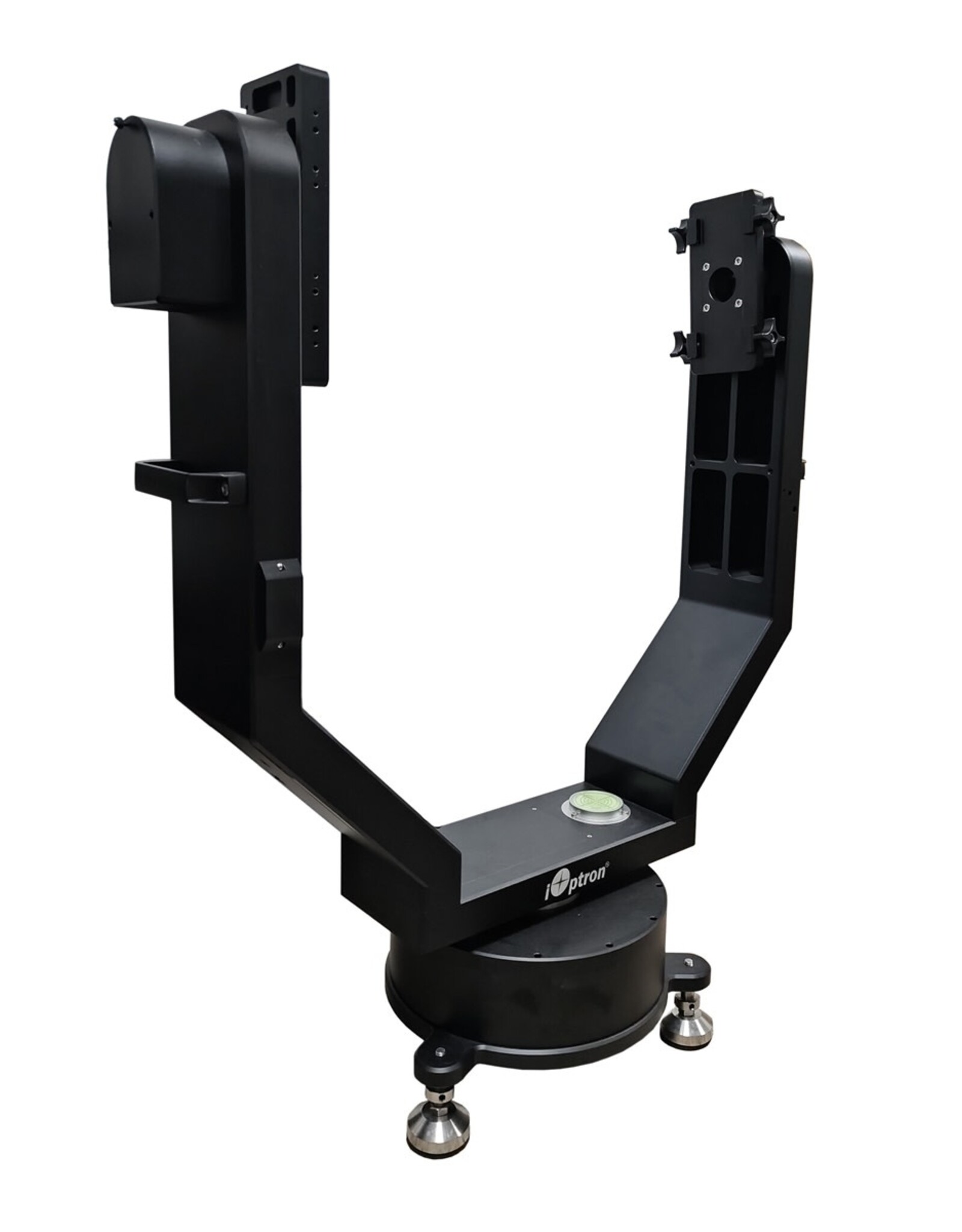

The all metal CNC machined fork mount design offers optimal stability for tracking and imaging. Two adjustable Losmandy-style saddles accommodate the attachment of various-sized instruments. The SWG drive system is perfect for unbalanced payloads and includes a unique friction brake to stop movement during a planned or unplanned power interruption safely. The wide stance adjustable base features a high-precision leveling indicator to ensure the highest level of precision in Go To pointing accuracy. Speaking of precision, the SWG gear system is driven by quiet, reliable stepper motors.
Other features include, mounting holes for NUC computers as well as other devices, built-in GPS, USB communication ports, 180° altitude and 360°azimuth movement ranges, low power consumption and more.
Not only is the HAZ130 a capable tool for both visual astronomy and imaging, it is designed to work with the latest satellite tracking software making it an excellent antenna platform for radio communication enthusiasts.
The all metal CNC machined fork mount design offers optimal stability for tracking and imaging. Two adjustable Losmandy-style saddles accommodate the attachment of various-sized instruments. The SWG drive system is perfect for unbalanced payloads and includes a unique friction brake to stop movement during a planned or unplanned power interruption safely. The wide stance adjustable base features a high-precision leveling indicator to ensure the highest level of precision in Go To pointing accuracy. Speaking of precision, the SWG gear system is driven by quiet, reliable stepper motors.
Other features include, mounting holes for NUC computers as well as other devices, built-in GPS, USB communication ports, 180° altitude and 360°azimuth movement ranges, low power consumption and more.
Not only is the HAZ130 a capable tool for both visual astronomy and imaging, it is designed to work with the latest satellite tracking software making it an excellent antenna platform for radio communication enthusiasts.
Features
- Advanced strain wave gear system technology
- Payload capacity of 60 kg (132 lbs) with the mount weight of 32 kg (70 lbs)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- Position limit on ALT to prevent scope over slewing
- Go2Nova® 8411 handset with OLED display
- Built-in GPS receiver
- Losmandy-D mounting saddle
- Adjustable base with a high precision leveling indicator
- Built in zero position search and locator
- USB port for firmware upgrade and computer control
- Two year warranty
| Mount | Strain Wave Altazimuth Mount |
| ALT/AZI gear system | Dual Strain Wave Gear |
| Payload | 132 lbs (60 kg) |
| Mount weight | 70 lbs (32 kg) |
| Structure Material | All metal, CNC machined |
| Exterior finish | Anodized black |
| Drive motor | Stepper motor |
| Maximum slew speed | 6º/sec |
| Altitude range | 0~180º |
| Azimuth range | 0~360º |
| Slew protection | Altitude 0º position limit |
| Level indicator | High Precision Level bubble (DIV2/1000) |
| Control system | GOTONOVA/Commander |
| Handset | Go2Nova® 8411 with OLED display |
| Tracking | Automatic |
| Power consumption | 0.6A(Tracking), 1.2A(GOTO) |
| Power | DC12V-5A (5.5/2.1mm DC plug) |
| AC adapter | 100V ~ 240V (included, indoor use only) |
| Power off brake | Electronic friction brake |
| GPS | Built-in |
| Communication port | USB |
| Firmware upgrade | Yes |
| Dovetail saddle | Losmandy |
| Mounting base | 450mm minimum, with 3XM10 threaded holes on a 410mm diameter circle. |
| Operation temperature | -20ºC ~ 40ºC |
| Warranty | Two year limited |
