Baader Stronghold Tangent Assembly (Specify Color)

$299.00
Article number: STRONG-XX
Availability: Order Now!
Delivery time: Ships from our warehouse in 7-10 days
  • STRONGHOLD has been developed to fasten lightweight viewfinder telescopes, guiding telescopes and heavy telephoto lenses safely to your main telescope
  • Carrying capacity: 7kg Max
  • Mounting options Top panel: 1/4 " screw, 6St M6 threaded hole (Recommended thread depth 6mm)
  • Mounting options base plate: 1/4 "and 3/8" photo thread, 4pcs. M6 and 4pcs. M5 threaded hole (Recommended thread depth 6mm)
  • 3D-printed ring wrench for Baader clamping knobs #2450071 is recommended.

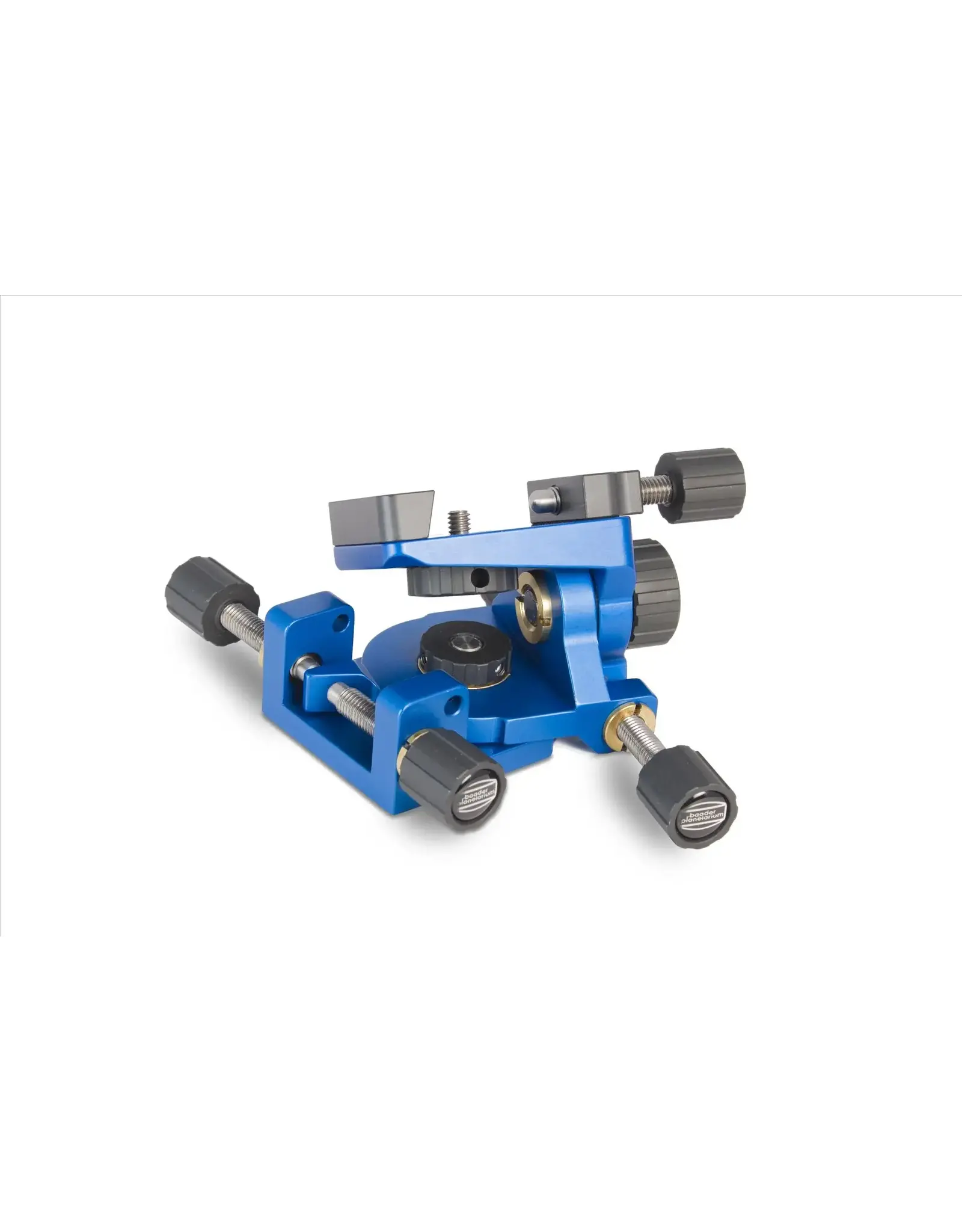

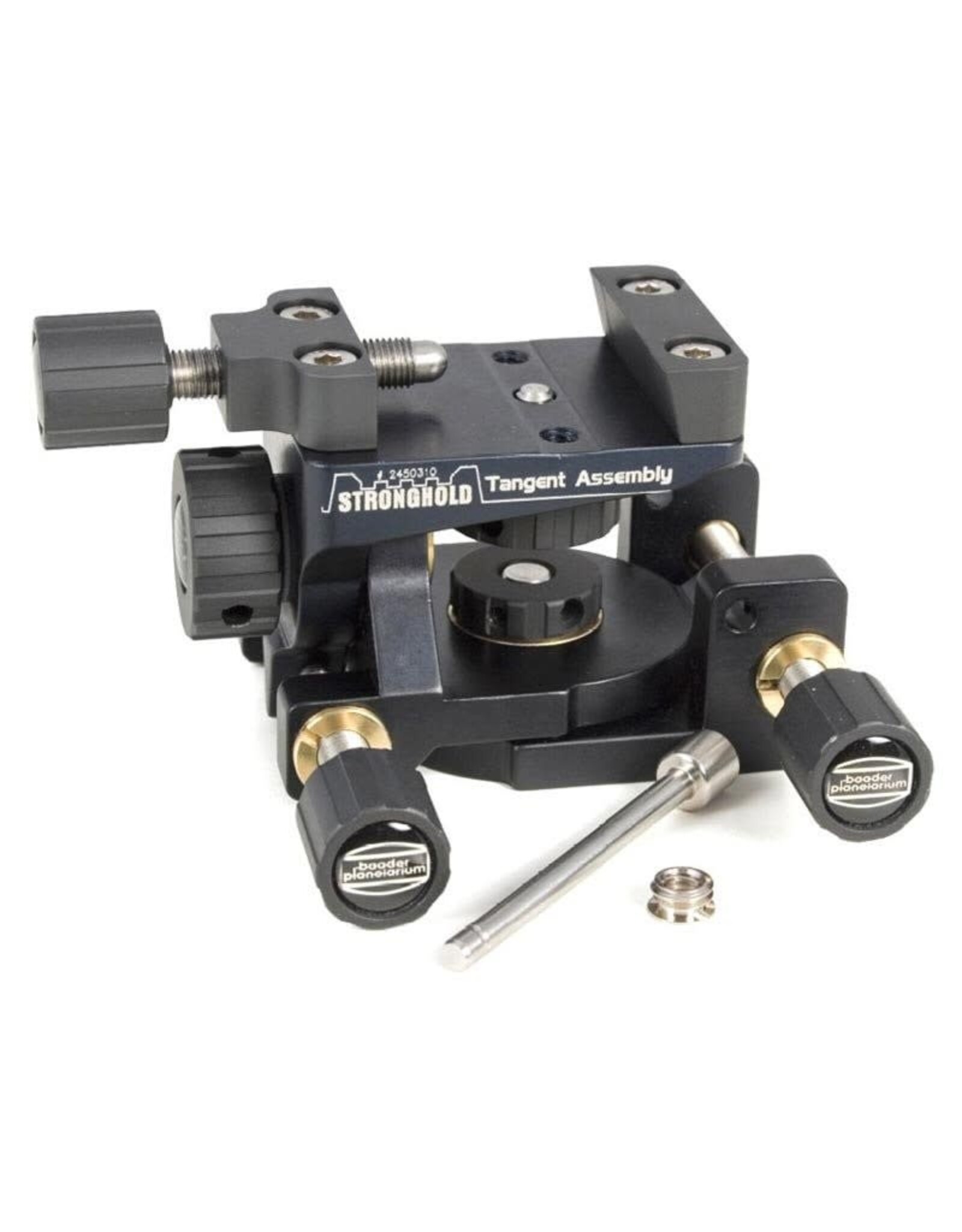

Baader Stronghold Tangent Assembly

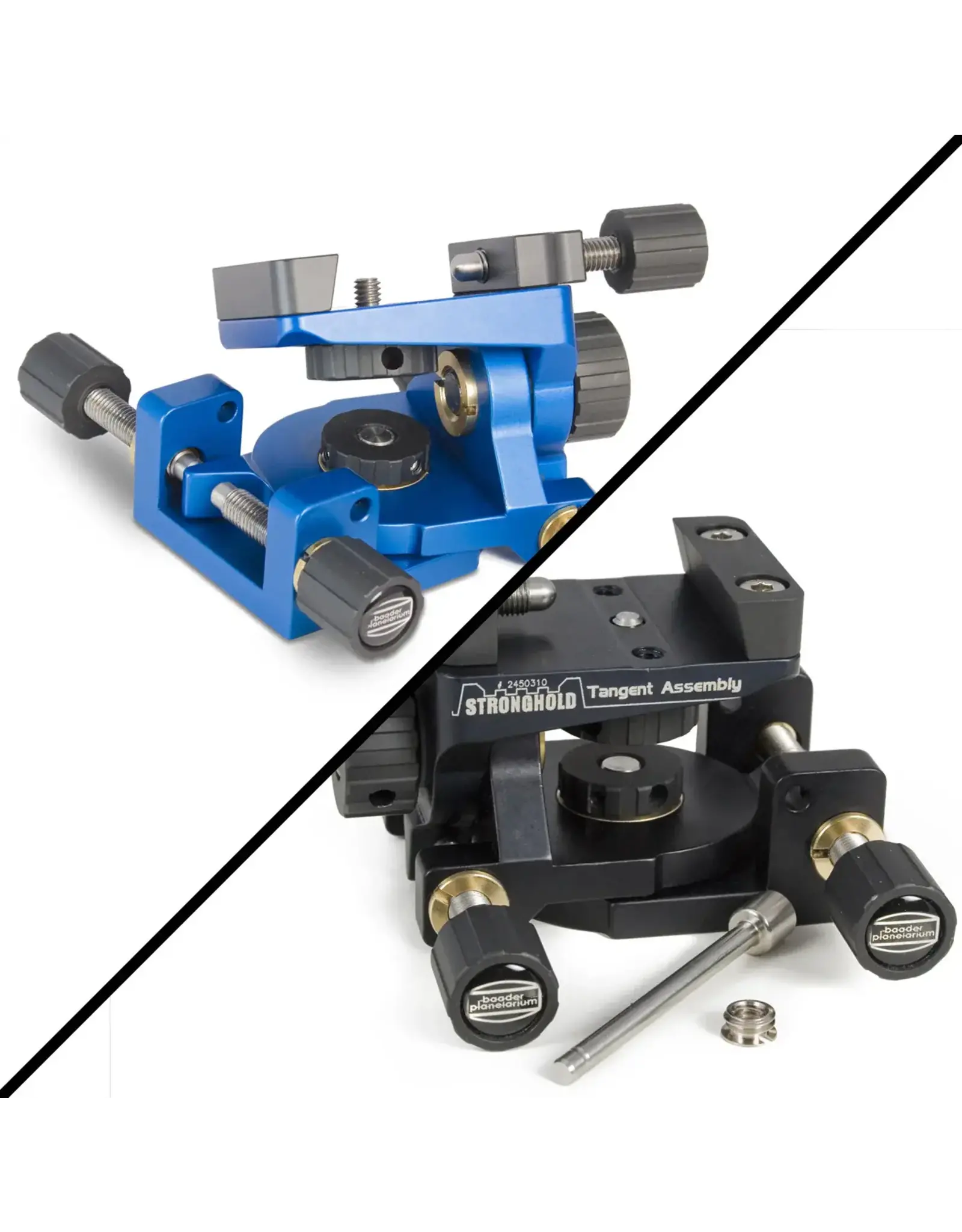

Black and Blue versions available

Technical Data:

  • Colour: Black or Blue
  • Weight: 680 g
  • Material: Aluminium, hard anodized
  • Loading capacity: max. 7kg for imaging
  • Azimuth adjustment: +/- 23° , elevation: +/- 35°
  • Length: 115mm (incl. knobs)
  • Width: 128mm (incl. knobs)
  • Height: 54mm (without EQ-clamp)
  • Mounting options (top): 1/4" photo thread, 6pc. M6 threads
  • Mounting options (base plate): 1/4" and 3/8" photo threads, 4pc. M6 and 4pc. M5 threads
  • General mounting options: EQ-clamp (Vixen Standard) included, can be mounted on top or on base. Alternative: Baader 3" clamp with special threads for Stronghold base plate

Scope of supply:

  • Stronghold Tangent Assembly
  • Locking Dowel
  • Holder for Locking Dowel
  • Reducer 3/8" to 1/4"
  • EQ-clamp
  • 1/4" Photo-Thumb-Screw (In the as-delivered-condition, the Photo-Thumb-Screw is secured with an O-Ring which has to be removed prior to use)
